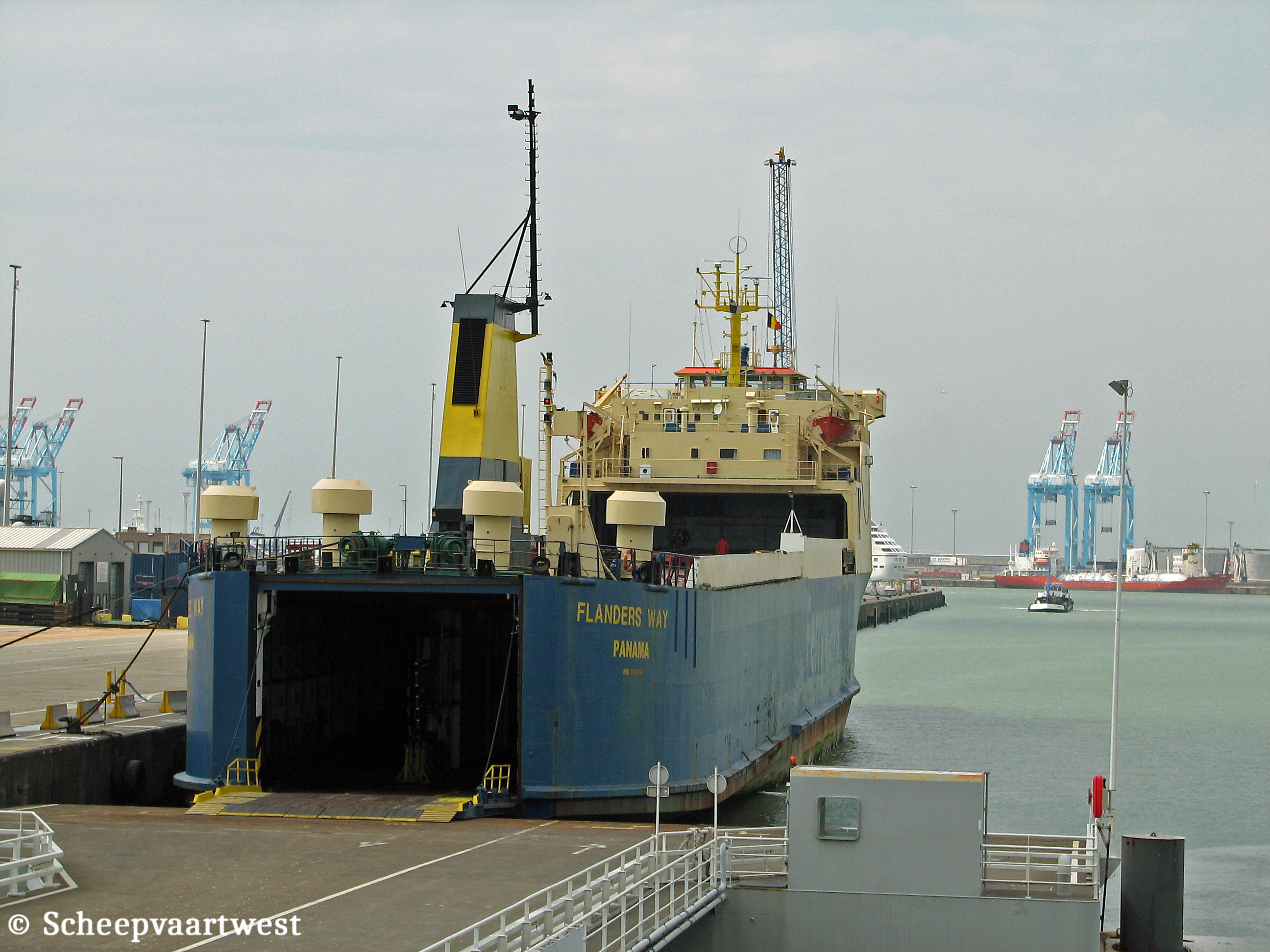

| Zeebrugge 15 July 2007 |
 |

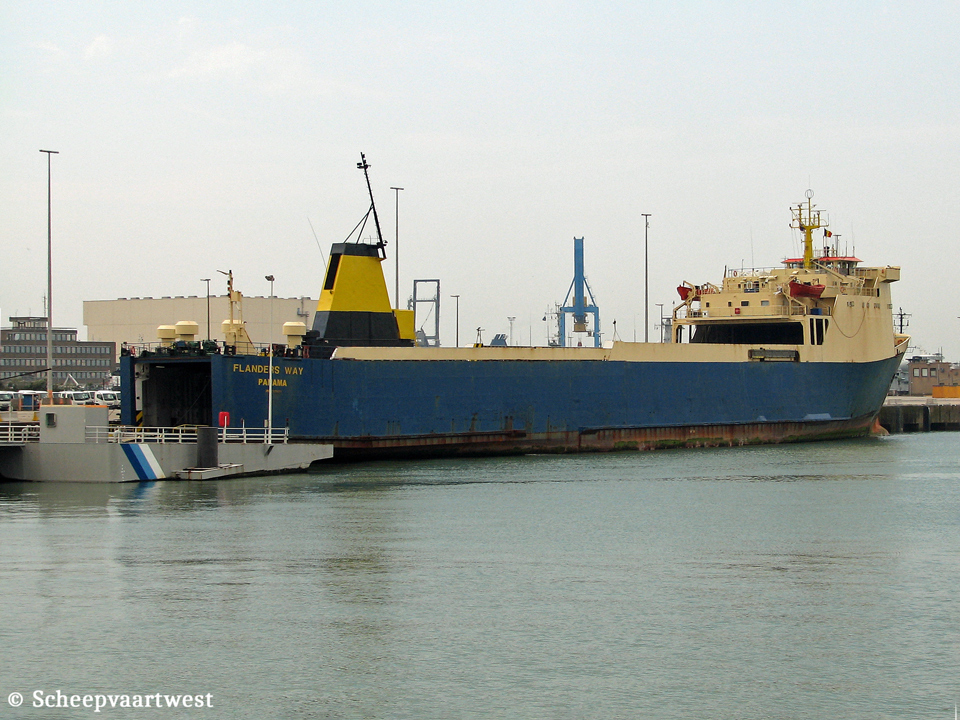

| Zeebrugge 15/07/07 |
|
Name |
FLANDERS WAY |
|
Previous names |
1978 - 1982 Gabriele Wehr 1982 - 1985 Tor Anglia 1985 - 1993 Gabriele Wehr 1992 - 1993 Sari 1993 - 2007 Gabriele Wehr |
|
Type |
Roll-On/Roll-Off carrier |
|
IMO-number |
7720477 |
|
Call sign |
9HIA9 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
1993 - Germany, Hamburg 1995 - Antigua & Barbuda 1995 - Tuvalu 2008 - Republic of Panama |
|
GT |
7.635 |
|
DWT |
4.322 t |
|
NT |
2.290 |
|
Number of 20ft containers |
341 |
|
Length |
141,13 m overall 133,20 m between perpendiculars |
|
Breadth |
17,43 m overall |
|
Draught |
Summer: 5,21 m |
|
Forecastle |
9,20 m |
|
Freeboard |
6.980 mm |
|
Depth |
12,20 m moulded |
|
Speed |
15,0 knots |
|
Built |
1978 |
|
Keel laid |
14/10/1977 |
|
Launch Date |
14/03/1978 |
|
Date of completion |
08/06/1978 |
|
Builder |
Rickmers Rhederei G.m.b.H Bremerhaven Hamburg Germany |
|
Yard number |
391 |
|
Hull type |
Double hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Continuous Decks |
2 |
|
Main engine |
2x Krupp/MaK 8M 453 C - 4 stroke single acting 8 cylinder 320 x 420 mm combustion engines each 2.200 kW at 600 rpm Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Number of screws |
2x Controllable pitch propeller - aft at 310 rpm |
|
Electric Installations |
1x 440/ 220 V - 701 kVA 1x 440 V - 700 kVA |
|
Shaft generator |
1x 700 kVA |
|
Generators |
2x Main diesel generatorsets each 338 kVA 1x Diesel generatorset - 25 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 63 litres - 30,0 bar 1x Receiver 20 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster Jastram - 441 kW forward |
|
Cargo capacity |
Bale: 14.498 m³ |
|
Tank capacities |
Ballast: 2.446 m³ Bunker: 665 t Fuel oil: 665 m³ |
|
Lifting equipment |
1x Lift ramp on the 2nd deck- 42 t |
|
Anchor equipment |
3x Anchors weight each 3.540 kg Chain length: 522,50 m |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 63 litres - 30,0 bar |
|
Number of passengers |
12 |
|
Number of beds |
12 |
|
Manager |
Euroship Services Ltd. London Road Long Reach House (1st Floor) Purfleet, Essex RM19 1PD United Kingdom |
|
Operator |
CLdN RoRo & Cobelfret Ferries Antwerpen Belgium |
|
Previous names & shipping companies |
|
|
Owner |
Ro-Roco N.V. Sneeuwbeslaan 14 2610 Wilrijk Belgium |
|
Previous owners |
1978 - 2001 Oscar Wehr Transport |
|
Remarks |
Ship lengthened 08/1982 |
|
Renamed |
2009 Ranine Owner: Owner: Asya RoRo Turizm Nakliyat ve Tic Ltd. Sti -Turkey Yoroz Shipping Co. Ltd. - Belize) |
|
Scrapped |
26/09/2013 as Ranine at Chittagong - Bangladesh Owner: Salem Seawyas Inc. - Belize |
|
Latest data adjustment |
18 April 2025 |
