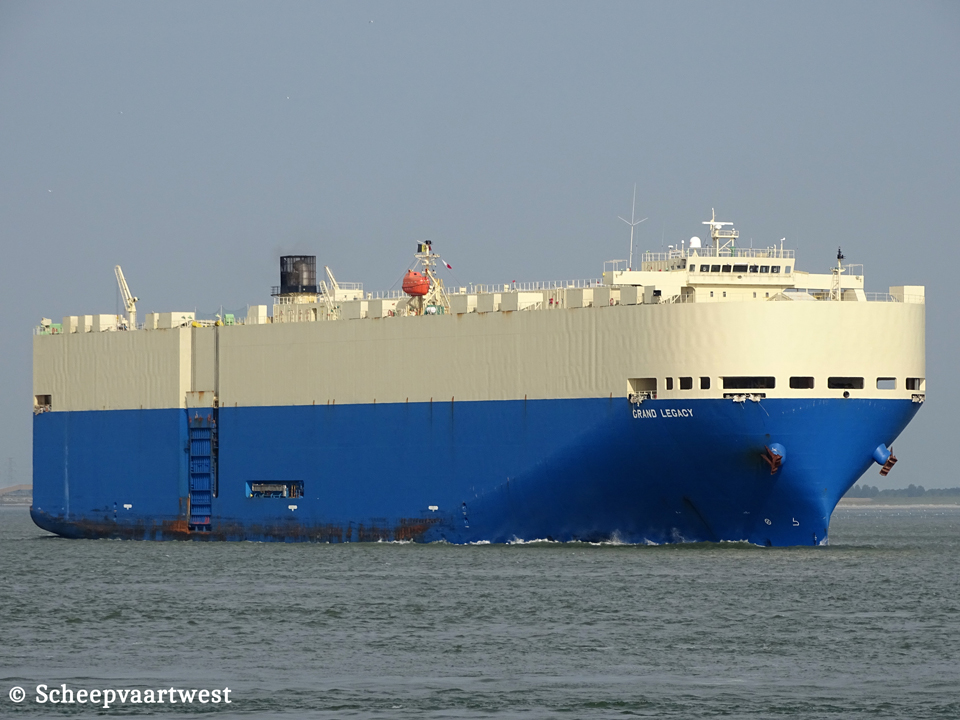

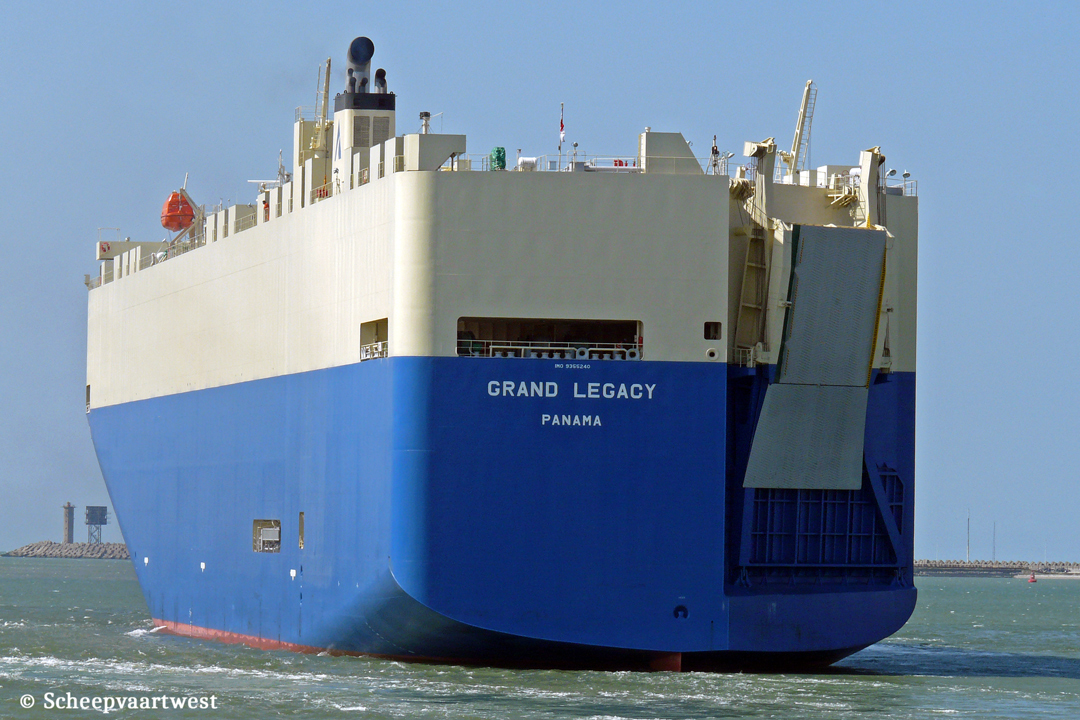

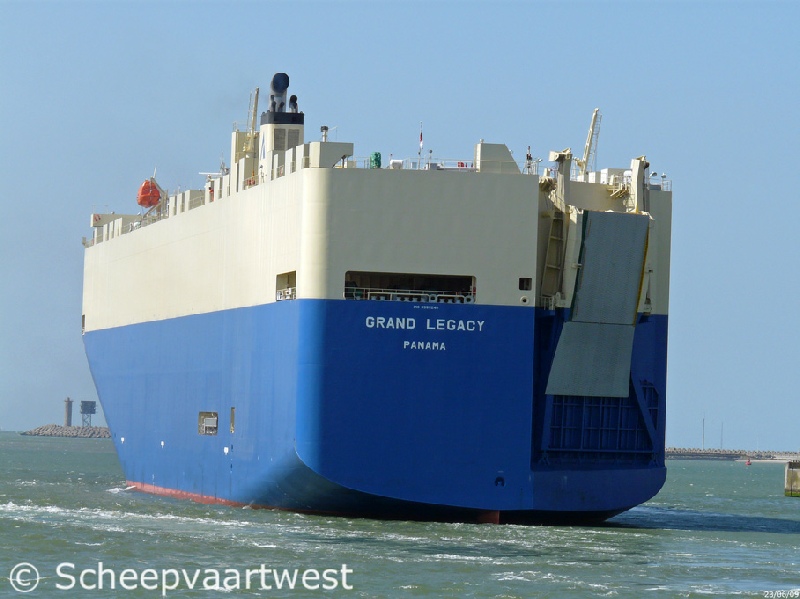

Grand Legacy - IMO 9355240

Name

GRAND LEGACY

Type

Roll-On/Roll-Off carrier - Vehicles carrier

IMO-number

9355240

Call sign

3FYG8

Flag

Republic of Panama

Port of registry

Panama City

GT

59.217 t

DWT

18.075 t

NT

17.766 t

Length

199,90 m overall

192,00 m between perpendiculars

Breadth

32,26 m moulded

Reg. Dimensions L x B x D

194,70 x 32,26 x 25,33 m

Rule Dimensions L x B x D

192,00 x 32,26 x 35,80 m

Draught

Summer: 9,62 m

Freeboard

Summer: 4.664 mm

Depth

25,33 m moulded

Speed

20,6 knots

Built

2009

Keel laid

03/09/2008

Launch date

25/12/2008

Date of completion

15/05/2009

Builder

Shin Kurushima Toyohashi Shipbuilding Co., Ltd.

Toyohashi

Japan

Yard number

3617

Bulkheads

Watertight: 5

Hul material

Steel

Hull type

Single hull

Main engine

1x Mitsui - 2 stroke single acting 7 cylinder 600 x 2.292 mm combustion engine output 14.280 kW at 105,0 rpm

Build: 10/2008

Builder: Mitsui Engineering & Shipbuilding Co.,Ltd. Tamano Works - Japan

Number of screws

1x Fixed pitch propeller

Boiler

1x Auxiliary steam boiler - 6,9 kg/cm²

Heating surface: 44,8 m³

1x Economizer EGE - 10,9 kg/cm²

Heating surface: 171,2 m³

Date of manufacturer: 07/2008

Manufacturer: Tortoise Engineering Co., Ltd., Ehime - South Korea

Generator

3x Main diesel generatorsets 1.200 kVA - 450 Volt

Number of decks

9

Number of cars

6.400

Number of ramps

3

Tank capacities

Fuel oil: 3.132,70 m³

Fresh water: 466,00 m³

Water ballast: 10.155,20 m³

Crew

22

Commercial manager

Cido Shipping Co., Ltd.

20th Floor, World Wide House, 19, Des Voeux Road Central

Hong Kong - China

ISM manager

Cido Shipping (Korea) Co., Ltd. (Pusan Site)

3rd & 4th Floors, 798, Jungang-daero, Busanjin-gu, Busan, 614-706

South Korea

Registered owner

Dynamic Listener Shipping S.A.

Care of Cido Shipping (HK) Co Ltd , 20th Floor, World Wide House, 19, Des Voeux Road Central

Hong Kong - China

Latest dat adjustment

18 December 2022
