Westerschelde 10 October 2015 |
|
Name |

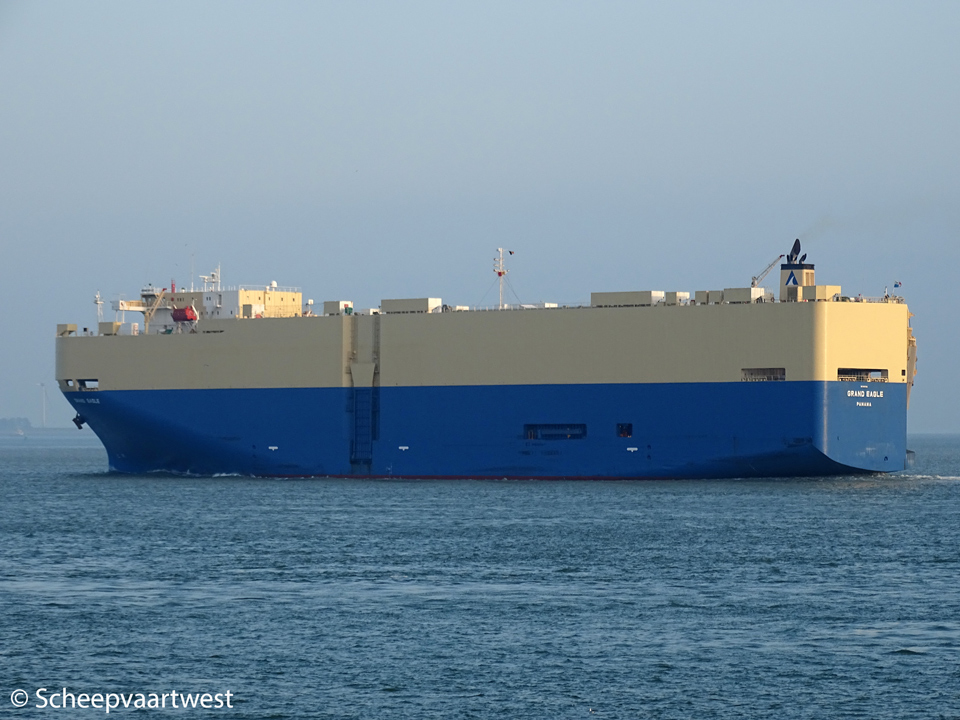

GRAND EAGLE |
|
Previous names |
2003 - 09/2005 Hual Oceania 09/2005 - 08/2014 Höegh Oceania |
|
Type |
Roll-On/Roll-Off vehicles carrier |
|
IMO-number |
9267663 |
|
Call sign |
HOXM |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
58.947 |
|
DWT |
Summer: 19.048 t |
|
NT |
17.685 |
|
Length |
199,50 m overall |
|
Breadth |
32,26 m |
|
Draught |
Max: 9,62 m |
|
Reg. dimensions |
192,85 x 32,26 x 23,82 m |
|
Rule dimensions |
190,00 x 32,26 x 34,06 m |
|
Freeboard |
Summer: 5.014 mm |
|
Depth |
23,82 m |
|
Speed |
Max: 20,7 knots |
|
Built |
2003 |
|
Keel laid |
06/06/2002 |
|
Launch date |
07/11/2002 |
|
Date of completion |
04/02/2003 |
|
Builder |
Shin Kurushima Toyohashi Shipbuilding Co., Ltd. Toyohashi South Korea |
|
Yard number |
H-3565 |
|
Hull material |
Steel |
|
Watertight bulkheads |
Transverse: 6 |
|
Number of decks |
13 |
|
Main engine |
1x Mitsubishi 8UEC60LS - 2 stroke single acting 8 cylinder 600 x 2.200 mm combustion engine 14.160 kW / 19.257 bhp at 100,0 rpm Built: 06/2002 |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary Boiler STB - 6,9 bar Heating surface: 41,4 m² 1x Economizer EGE - 9,8 bar Heating surface: 213,3 m² Built: 01/2002 Builder: Tortoise Engineering Co., Ltd., Matsuyama - Japan |
|
Generators |
3x Generatorsets each 960 kW / 1.200 kVA - 450 Volt |
|
Emergency generator |
1x Diesel generatorset 120 kW |
|
Tank capacities |
Fuel oil: 1.757 m³ Fresh water: 402 m³ Water ballast: 7.915 m³ |
|
Commercial manager |
Cido Shipping HK Co., Ltd. 20th Floor, World-Wide House 19, Des Voeux Road Centra Hong Kong - China |
|
Technical manager |
Cido Shipping (Korea) Co., Ltd. (Pusan Site) 3rd & 4th Floors, 798, Jungang-daero, Busanjin-gu Busan South Korea |
|
Registered owner |
Dynamic Twinkle Shipping S.A. c/o Cido Shipping (HK) Co Ltd 20th Floor, World Wide House 19 Des Voeux Road Central Hong Kong - China |
|
Latest data adjustment |
03 May 2025 |
