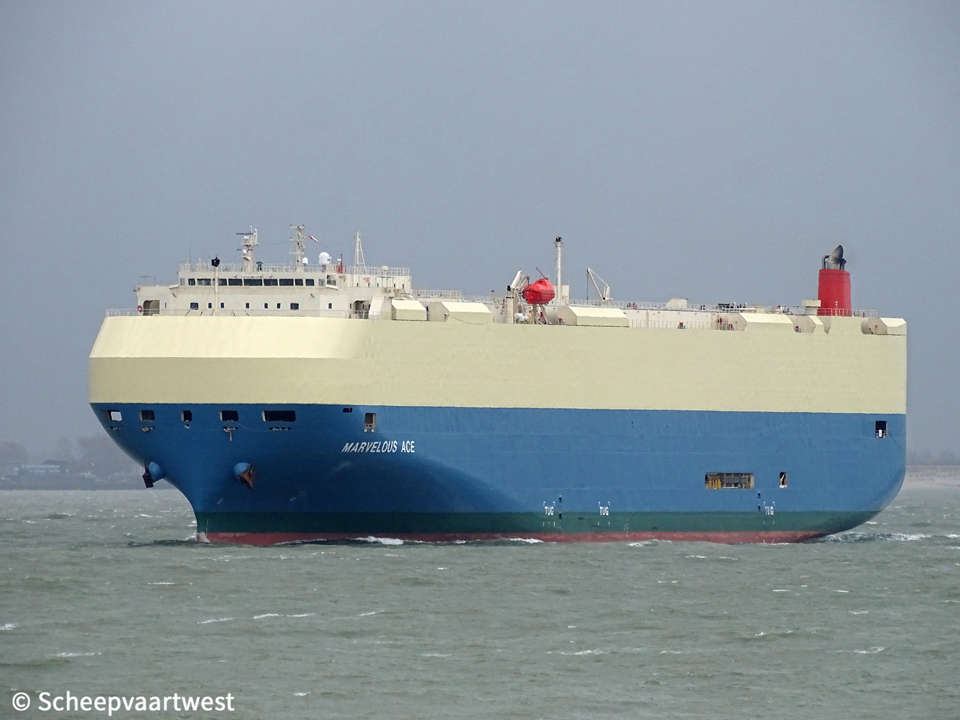

| Westerschelde 28 February 2019 |
 |
 |
 |
||

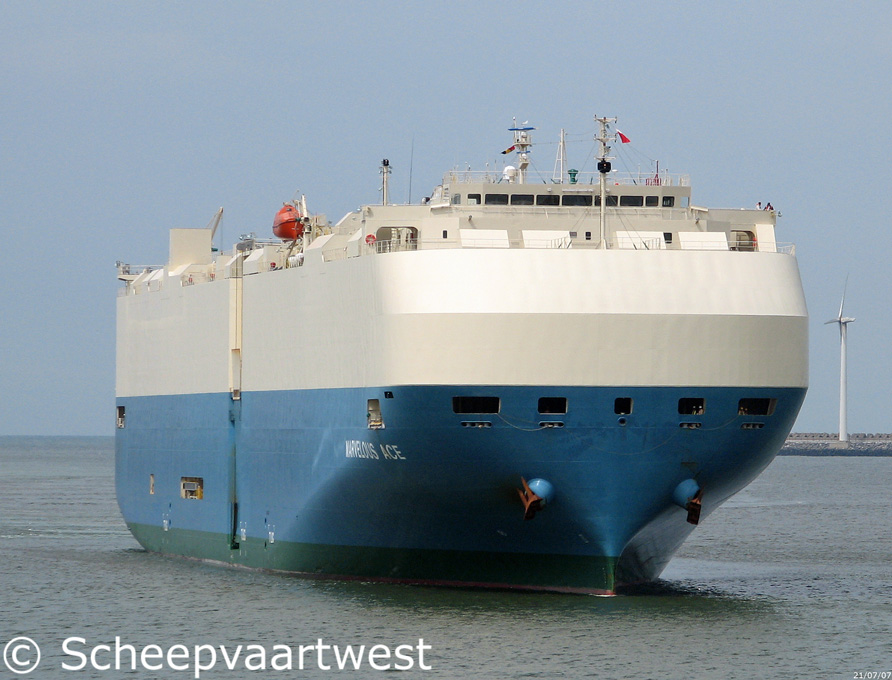

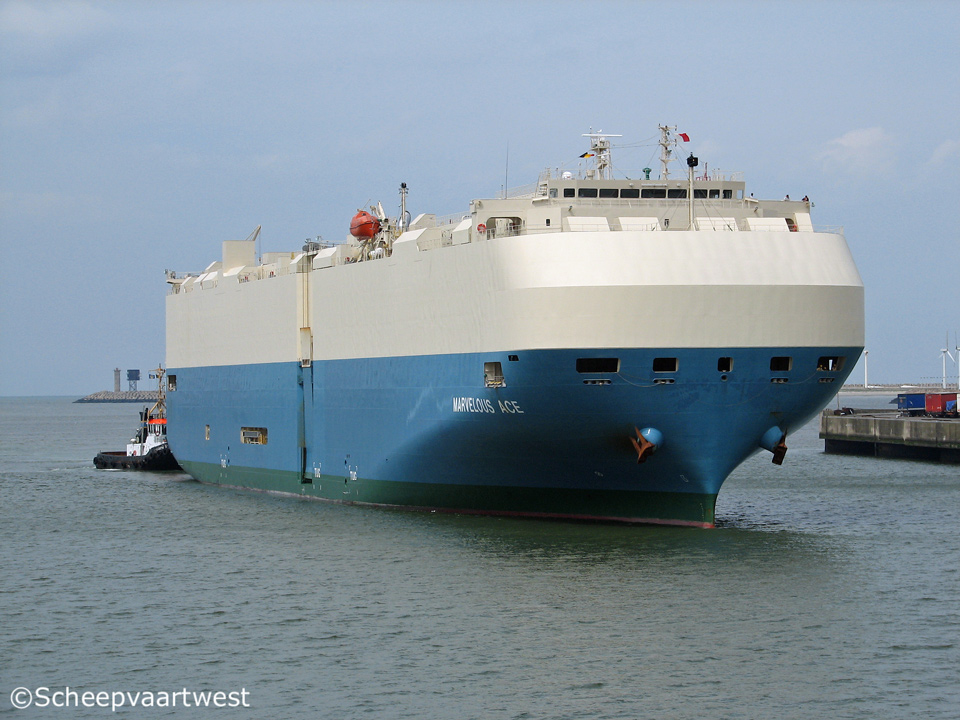

| Zeebrugge 21/07/07 | Zeebrugge 21/07/07 | Westerschelde 25/10/17 |
|
Name |
MARVELOUS ACE |
|
Type |
Vehicles Carrier |
|
IMO-number |
9293519 |
|
Call sign |
3EDT |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
59.422 t registered |
|
DWT |
Summer: 19.401 t |
|
NT |
19.152 t registered |
|
Length |
199,97 m overall 190,00 m between perpendiculars |
|
Breadth |
32,26 m overall |
|
Moulded L x B x D |
192,00 x 32,26 x 14,70 m |
|
Registered L x B x D |
194,14 x 32,26 x 21,31 m |
|
Draught |
Summer: 10,00 m |
|
Freeboard |
24.800 mm |
|
Depth |
34,80 m |
|
Speed |
20,7 knots |
|
Built |
2006 |
|
Keel laid |
08/04/2005 |
|
Launch date |
19/11/2005 |
|
Date of completion |
24/01/2006 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Marugame Headquarters |
|
Yard number |
1433 |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi/Kobe Hatsudoki 8 UEC 60LS II - 2 stroke single acting 8 cylinder 600 x 2.300 mm Combustion engine - 15.100 kW / 20.530 bhp at 99 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 630 mm |
|
Number of screws |
1x Fixed propeller |
|
Boiler |
1x Auxiliary vertical boiler - 7,8 bar Evaporation: 4,62 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 1.125 kW |
|
Bow thruster |
1x 1.250 kW |
|
Car capacity |
6.141 standard passenger cars |
|
Tank capacities |
Fuel oil: 3.011 m³ Fresh water: 478 m³ Water ballast: 8.551 m³ |
|
Lifting equipment |
2 Cranes SWL - 0,5 t each 1 Crane SWL - 0,9 t 2x Cranes SWL - 4,0 t each |
|
Manager |
MOL Ship Management Co. Ltd. Tokyo Japan |
|
Shipping company |
MOL - Mitsui O.S.K. Lines Ltd. |
|
Operator |
MOL Auto Carrier Express - MOL Ace |
|
Owner |
Marvelous Maritima S.A. Panama |
|
Registered owner |
Polar Express S.A. |
|
Latest data adjustment |
24 July 2018 |
