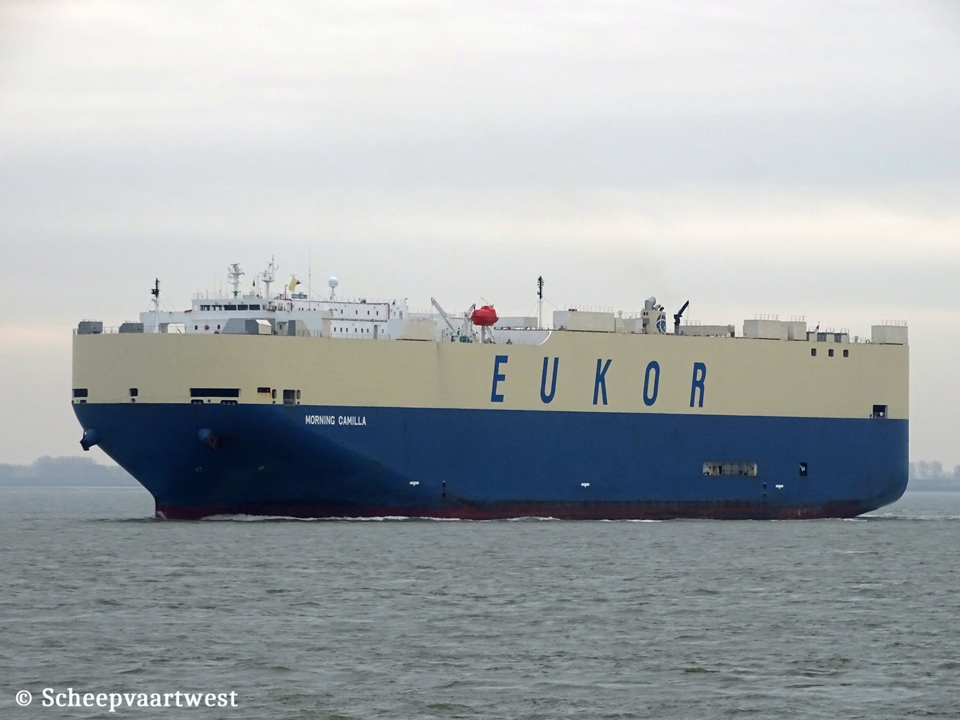

| Westerschelde 20 December 2018 |
 |
 |
|

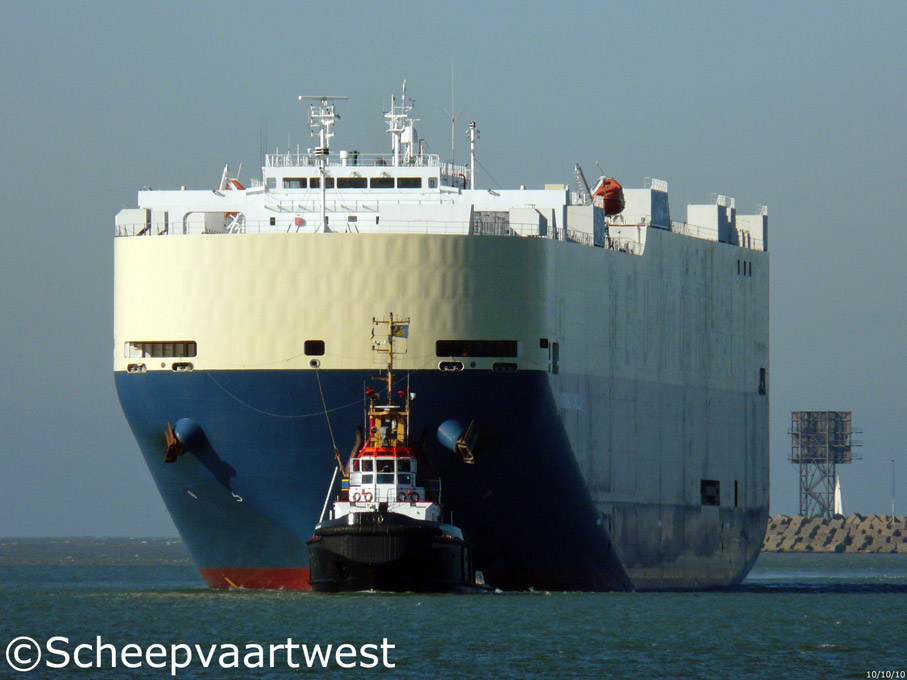

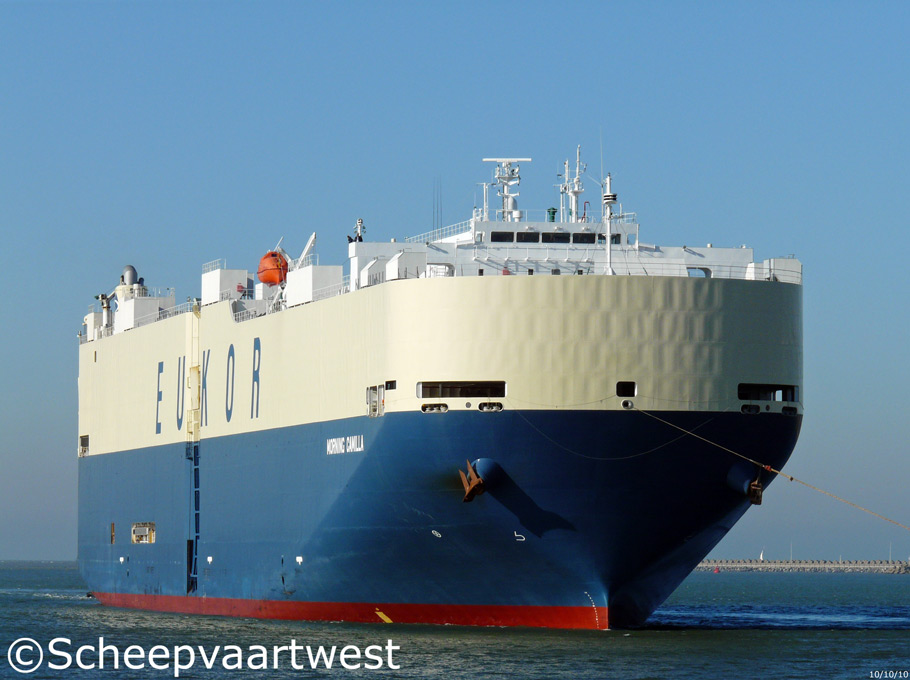

| Zeebrugge 10/10/10 | Zeebrugge 10/10/10 |
|
Name |
MORNING CAMILLA |
|
Type |
Vehicles carrier PCC - Pure car carrier |
|
IMO-number |
9477919 |
|
Call sign |
H3LJ |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
60.876 t registered |
|
DWT |
22.692 t |
|
NRT |
18,263 t registered |
|
Displacement |
Light ship: 15.863 t |
|
Length |
199,94 m overall |
|
Breadth |
32,26 m |
|
Moulded L x B x D |
190,00 x 32,26 x 15,00 m |
|
Registered L x B x D |
194,11 x 32,26 x 24,32 m |
|
Draught |
Summer: 10,02 m |
|
Freeboard |
Summer: 5.025 mm |
|
Depth |
15,00 m moulded |
|
Speed |
19,5 knots |
|
Built |
2009 |
|
Keel laid |
29/08/2008 |
|
Launch date |
27/11/2008 |
|
Date of completion |
25/02/2009 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Marugame Headquarters Japan |
|
Yard number |
1498 |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi 8UEC60LSII - 2 stroke single acting 8 cylinder 600 x 2.300 mm combustion engine 15.540 kW / 20.839 bhp at 104,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propellers |
1 |
|
Propeller Shaft |
1x Oil lubrication shaft with monitoring device |
|
Boilers |
1x Auxiliary vertical boiler - 7,8 bar Evaporation: 4,35 t/h Manufacturer: Miura Protec Co., Ltd. |
|
Generators |
4x Main diesel generatorsets total 3.870 kVA |
|
Bow thruster |
1x 1.500 kW |
|
Car capacity |
6.502 |
|
Number of ramps |
2 |
|
Tank capacities |
Fuel oil: 3.668 m³ Fresh water: 368 m³ Water ballast: 10.066 m³ |
|
Lifting equipment |
2x Cranes - SWL 0,9 t each 3x Cranes - SWL 4,0 t each |
|
Crew |
25 |
|
ISM Manager |
Fleet Ship Management Pte Ltd. 15-04, PSA Building 460, Alexandra Road Singapore |
|
Ship manager |
Shoei Kisen Kaisha Ltd. 4-52, Kora-cho 1-chome Imabari-shi, Ehime-ken, 799-2111 Japan |
|
Operator |
EUKOR |
|
Registered owner |
La Darien Navegacion S.A. Care of Shoei Kisen KK 4-52, Kora-cho 1-chome Imabari-shi, Ehime-ken, 799-2111 Japan |
|
Latest data adjustment |
18 July 2021 |
