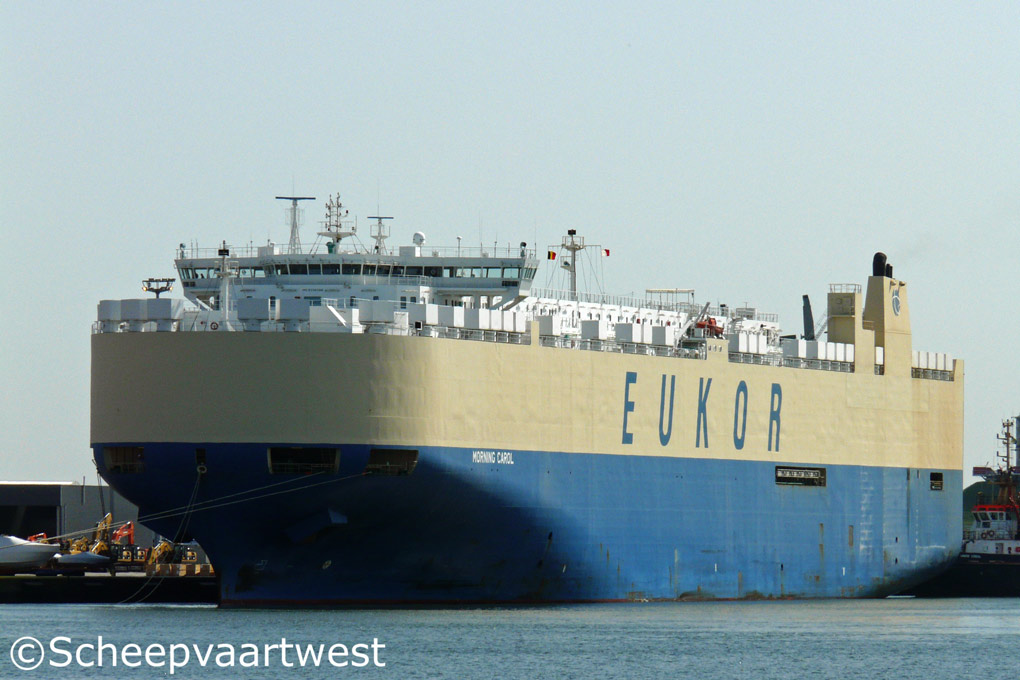

| Antwerpen 22 May 2015 |
 |
 |
 |
 |
|||

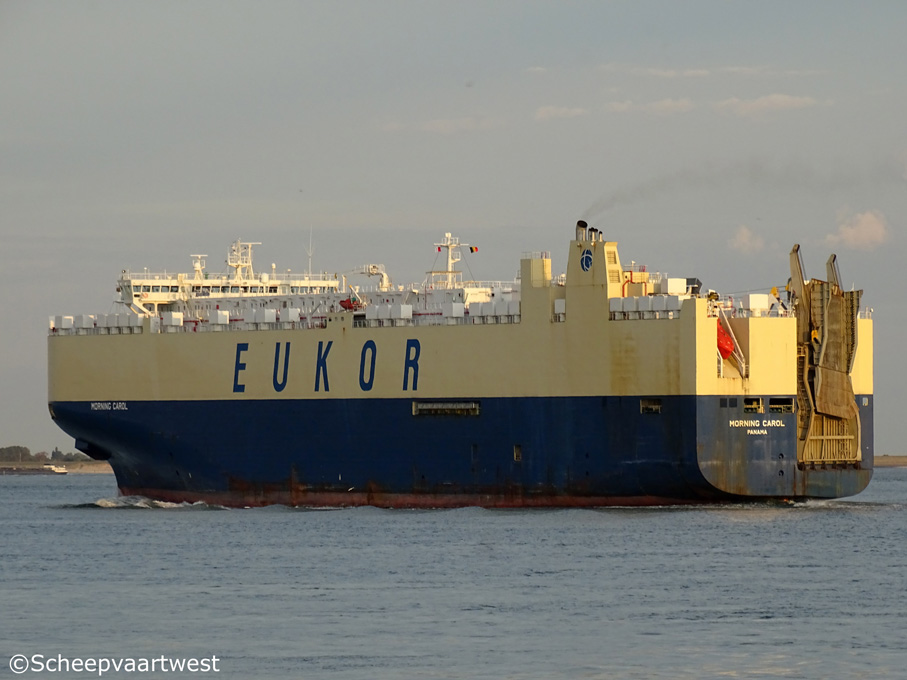

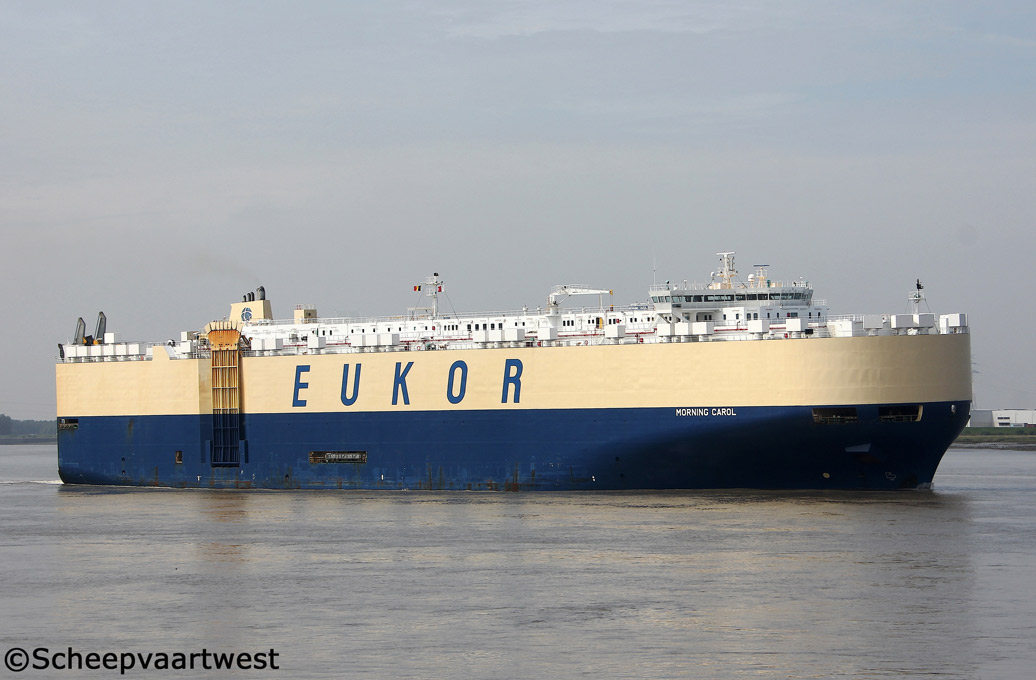

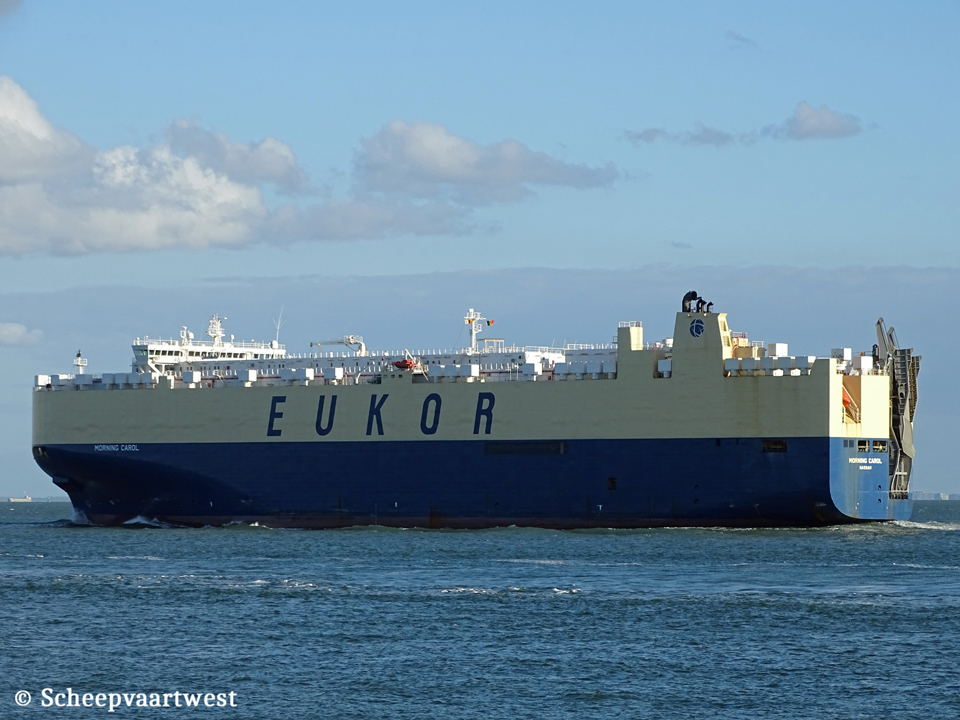

| Antwerpen 22/05/15 | Zeebrugge 10/04/11 | Westerschelde 08/10/16 | Westerschelde 28/03/18 |
|
Name |
MORNING CAROL |
|
Type |
Roll-On/Roll-Off vehicle carrier PCC - Pure Car Carrier |
|
IMO-number |
9336086 |
|
Call sign |
C6DI6 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
Previous flags |
2008 - 2017 Republic of Panama, Panama City - Call sign: 3EQI7 2017 - 2017 South Korea, Jeju Cheju - Call sign: D7UV |
|
GT |
57.542 t |
|
DWT |
21.044 t |
|
NT |
20.901 t |
|
Length |
199,97 m overall |
|
Breadth |
32,26 m |
|
Draught |
Summer: 10,017 m |
|
Registration dimensions |
193,13 x 32,26 x 20,11 m |
|
Rule dimensions |
189,20 x 32,26 x 14,30 m |
|
Freeboard |
Summer: 3.534 mm |
|
Depth |
32,64 m |
|
Speed |
20,5 knots |
|
Built |
2008 |
|
Keel laid |
05/11/2007 |
|
Launch date |
19/01/2008 |
|
Date of completion |
28/04/2008 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. 1700, Yongdang-Ri, Samho-Eup 526-701 Youngam-Gun Republic of Korea |
|
Yard number |
HSHI0293 |
|
Hull type |
Single hull |
|
Watertight bulkheads |
4 |
|
Main engine |
1x Hyundai/MAN-B&W 7S60MC - 2 stroke single acting 7 cylinder 600 x 2.292 mm combustion engine 14.280 kW / 19.420 bhp at 105,0 rpm Built: 11/2007 Builder: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Korea |
|
Number of screws |
1x Fixed propeller |
|
Boiler |
1x Auxiliary water tube boiler - 8,8 bar Heating Surface: 24,0 m² 2x Auxiliary water tube boiler - 12,0 bar Heating Surface: 226,5 m² Built: 10/2007 Builder Kang Rim Ind. Co., Ltd., Changwon - South Korea |
|
Generators |
3x Main diesel generatorsets each 1.180 kW / 1.475 kVA - 450 Volt |
|
Bow thruster |
1x 1.345 kW |
|
Car capacity |
6.645 |
|
Number of decks |
7 |
|
Tank capacities |
Fuel oil: 4.130,60 m³ Fresh water: 323,80 m³ Water ballast: 5.877,10 m³ |
|
Anchor chain |
Length: 687,5 m Diameter: 81 mm |
|
Crew |
22 |
|
Manager |
Wilhelmsen Ship Management Korea |
|
Technical manager |
Wilhelmsen Ship Management(Korea) Ltd. 10th Floor Marine Center Bldg. 79-1 4-ga Jungang-Dong, Jung-Gu 600-715 Pusan Republic of Korea |
|
Operator |
EUKOR 13th Floor Hansol B/D 736-1 Yeoksam-Dong, Kangnam-Gu 135-983 Seoul Republic of Korea |
|
Registered owner |
Carol Maritime Limited |
|
Latest data adjustment |
22 May 2021 |
