Westerschelde 09 July 2018 |
|
Name |

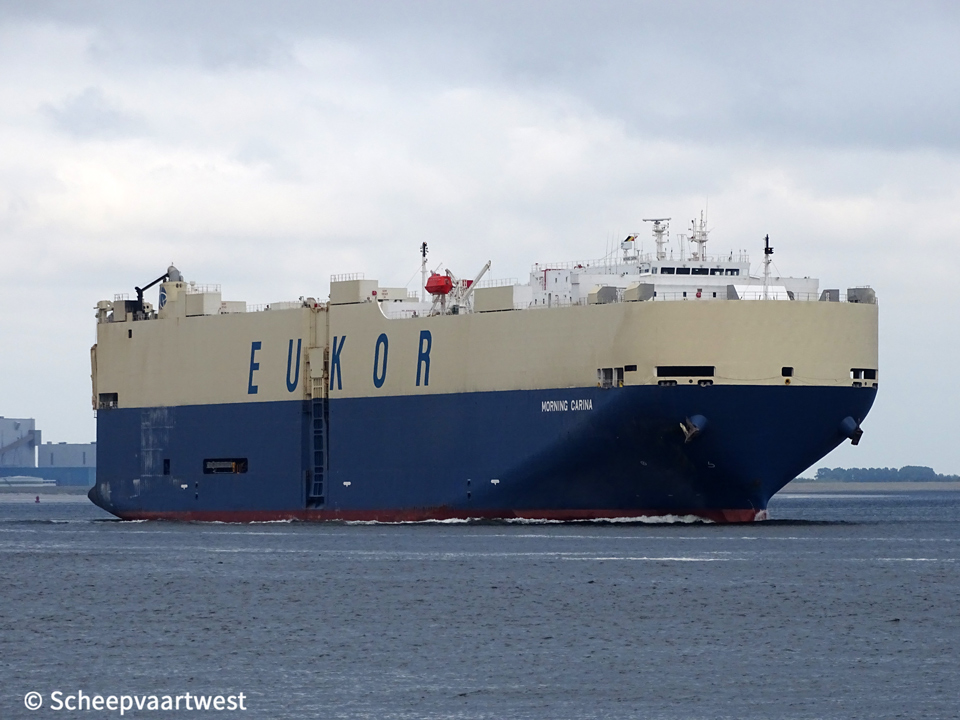

MORNING CARINA |
|
Type |
Roll-On/Roll-Off carrier - Vehicles carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9338709 |
|
Call sign |
3ENP9 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
60.876 t registered |
|
DWT |
Summer: 22.755 t |
|
NT |
18.263 t registered |
|
Length |
199,00 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Max: 10,02 m |
|
Moulded L x B x D |
190,00 x 32,26 x 15,00 m |
|
Registered L xB x D |
190,11 x 32,26 x 24,32 m |
|
Freeboard |
5.025 mm |
|
Depth |
15,00 m moulded |
|
Speed |
Max: 22,0 knots |
|
Built |
2007 |
|
Keel laid |
08/06/2007 |
|
Launch date |
15/09/2007 |
|
Date of completion |
20/11/2007 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Marugame Headquarters |
|
Yard number |
1465 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi-Kobe Hatsudoki 8UEC60LSII - 2 stroke single acting 8 cylinder 600 x 2.300 mm combustion engine 15.540 kW at 104,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 650 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler - 7,8 bar Evaporation: 4,35 t/h Manufacturer: Miura Protec Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 1.000 kW |
|
Bow thruster |
1.500 kW |
|
Number of cars |
6.502 |
|
Number of trucks |
162 |
|
Tank capacities |
Fuel oil: 3.668 m³ Fresh water: 368 m³ |
|
Manager |
Fleet Ship Management Pte Ltd. |
|
Operator |
Eukor Car Carriers Inc. |
|
Registered owner |
Paraiso Shipping S.A. Shoei Kisen Kaisha, Ltd. |
|
Latest data adjustment |
02 August 2019 |
