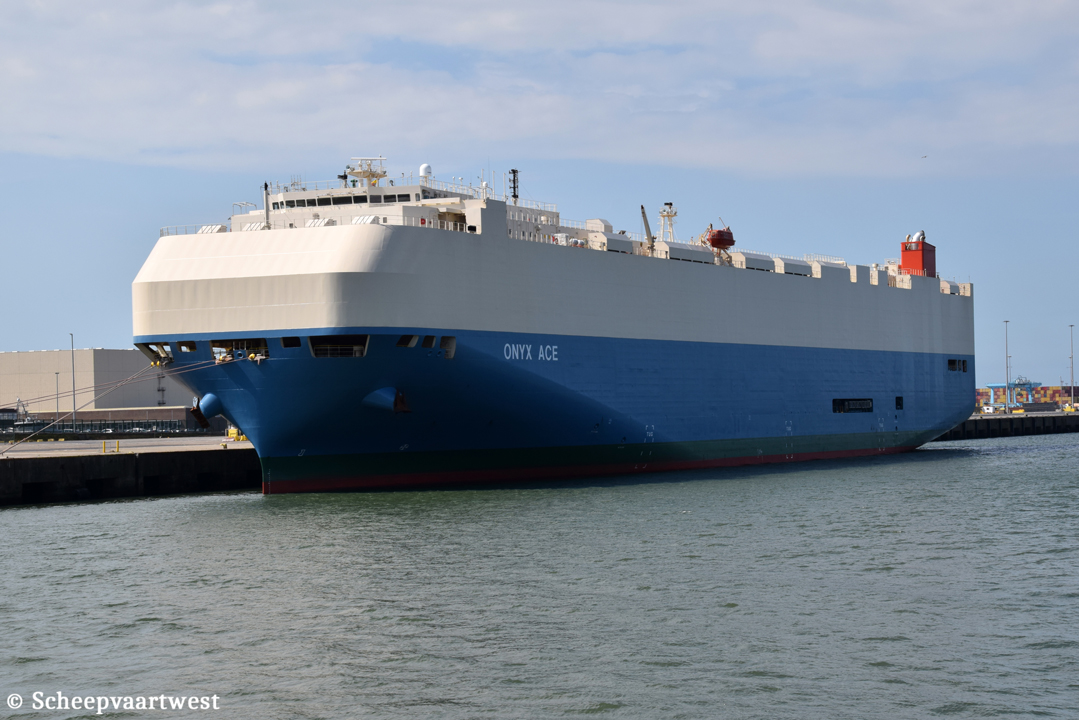

Onyx Ace IMO 9539212 03

Zeebrugge 24 August 2022

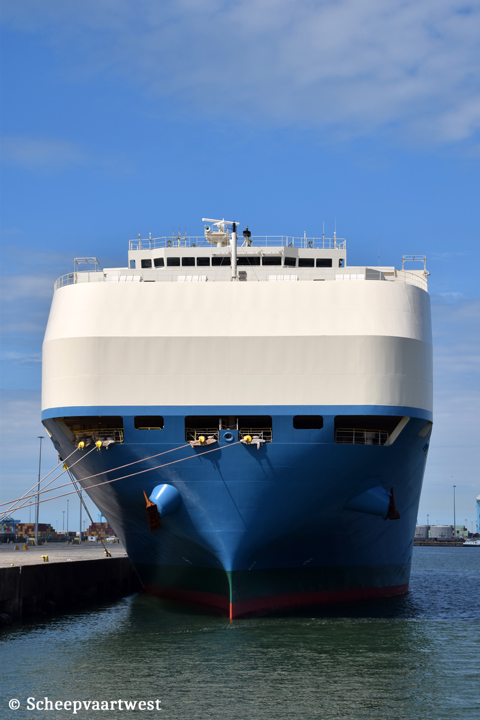

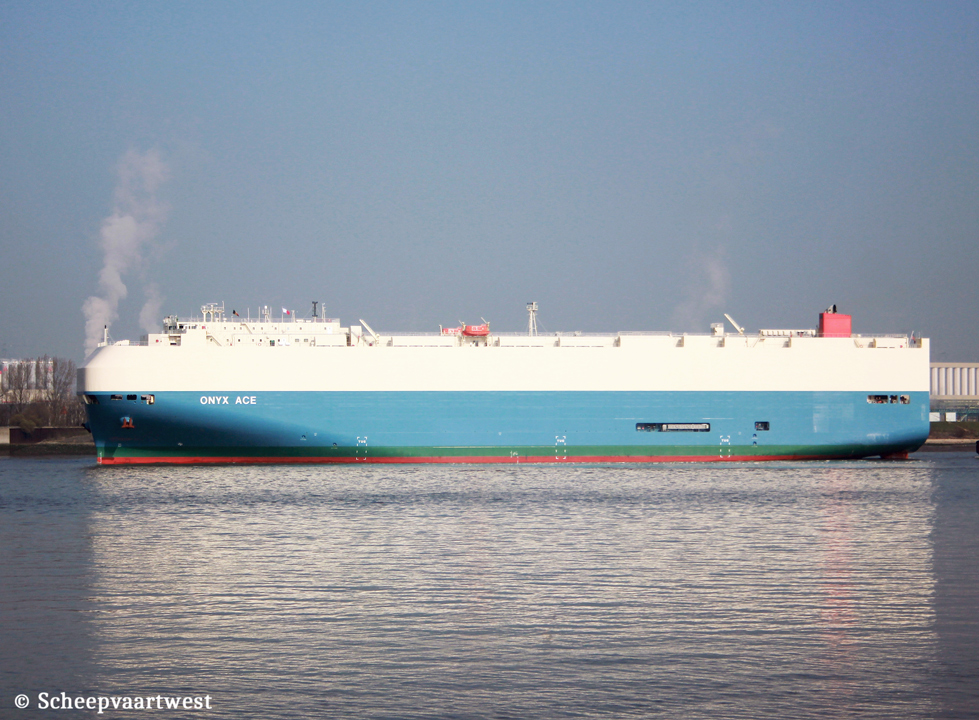

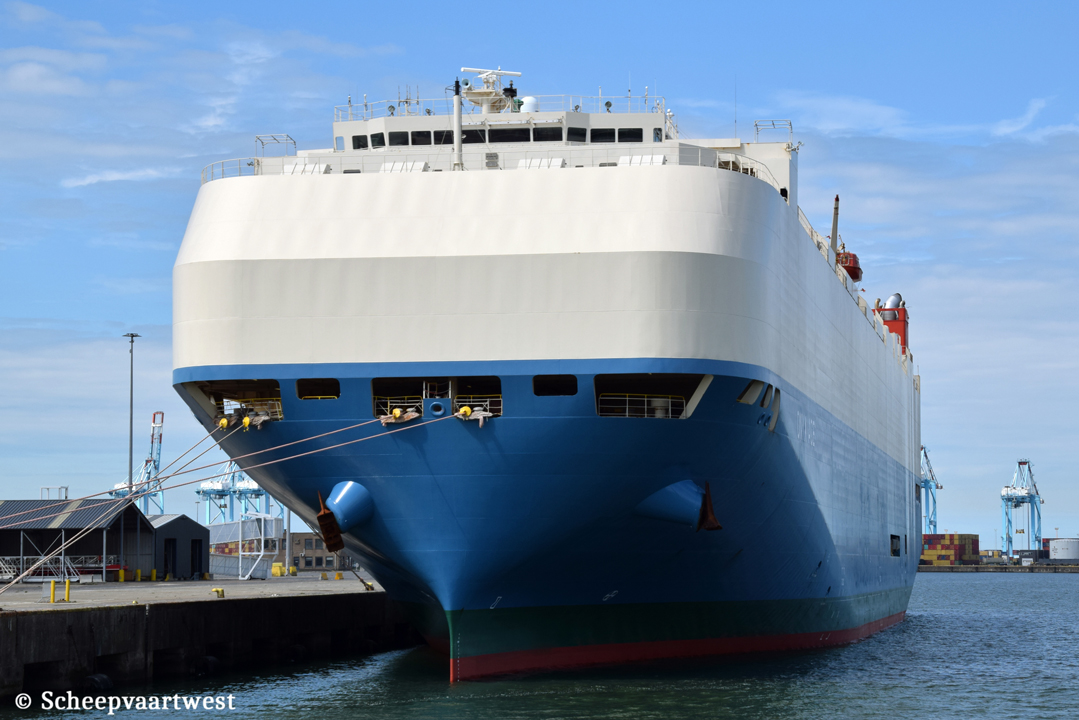

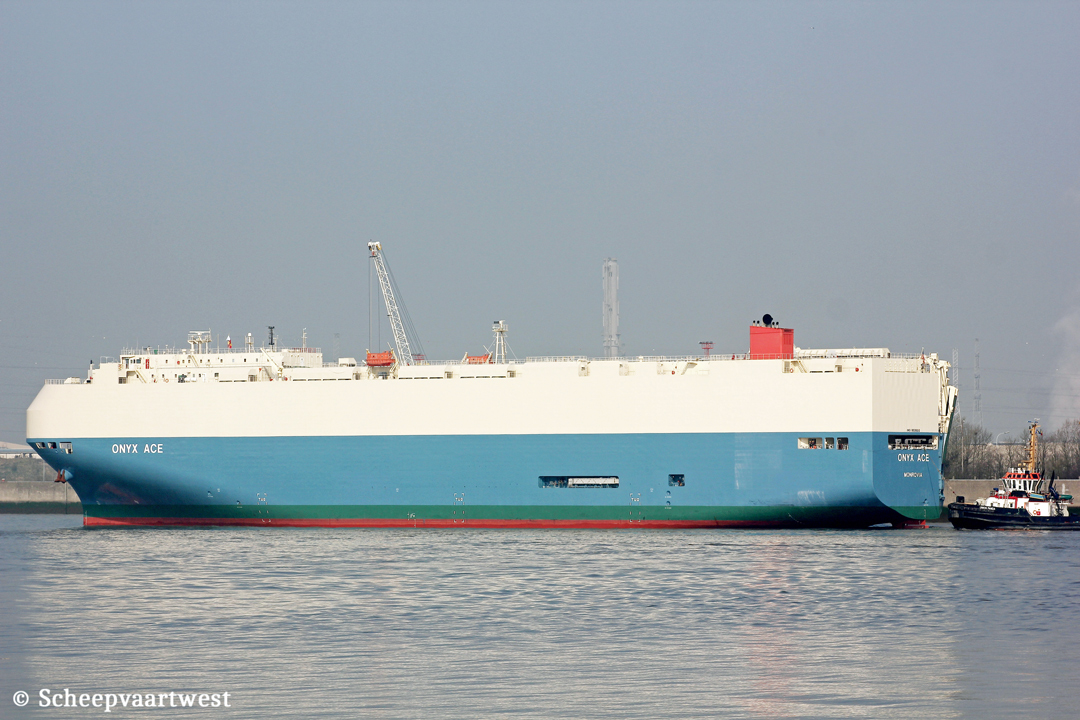

Onyx Ace IMO 9539212 01   Onyx Ace IMO 9539212 02   Onyx Ace IMO 9539212 04   Onyx Ace IMO 9539212 05
Zeebrugge 24/08/22   Zee 24/08/22   Antwerpen 09/04/15   Antwerpen 09/04/15



Name

ONYX ACE

Type

Roll-On/Roll-Off vehicle carrier

IMO-number

9539212

Call sign

D5EJ8

Flag

Liberia

Port of registry

Monrovia

Previous flag

2012 - 2013 Cayman Islands, George Town - Call sign: ZGCC5

GRT

60.131

DWT

Summer: 18.529 t

NRT

18.430 t

Length

199,99 m overall

Breadth

32,26 m moulded

Draught

Summer: 9,73 m

Moulded L x B x D

192,00 x 32,26 x 14,70 m

Registered L x B x D

194,31 x 32,26 x 21,25 m

Freeboard

5.013 mm

Depth

14,70 m moulded

Speed

Max.: 22,9 knots

Se vice: 20,7 knots

Built

2010

Keel laid

01/11/2010

Launch date

05/10/2011

Date of completion

27/02/2012

Builder

Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works

Kobe

Japan

Yard number

1294

Hull material

Steel

Hull type

Single hull

Main engine

1x Mitsubishi 7UEC60LSII - 2 stroke single acting 7 cylinder 600 x 2.300 mm combustion engine 14.315 kW at 105,0 rpm

Manufacturer: Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 590 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 3.92 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

4x Generators total 4.586 kVA

Bow thruster

1.250 kW

Number of cars

6.321

Number of ramps

2

Tank capacities

Fuel oil: 2.921 m³

Fresh water: 582 m³

Water ballast: 9.287 m³

Crew

26

Commercial manager

Mitsui Osk Lines Ltd.

1-1, Toranomon 2-chome, Minato-ku

Tokyo, 105-8688

Japan

ISM manager

MOL Shipmanagement Singapore Pte. Ltd.

17-04, UIC Building, 5, Shenton Way

Singapore 068808

Republic of Singapore

Registered owner

White Bear Maritime Limited

Care of Mitsui OSK Lines Ltd (MOL)

1-1, Toranomon 2-chome, Minato-ku

Tokyo, 105-8688

Japan

Latest data adjustment

04 September 2022
