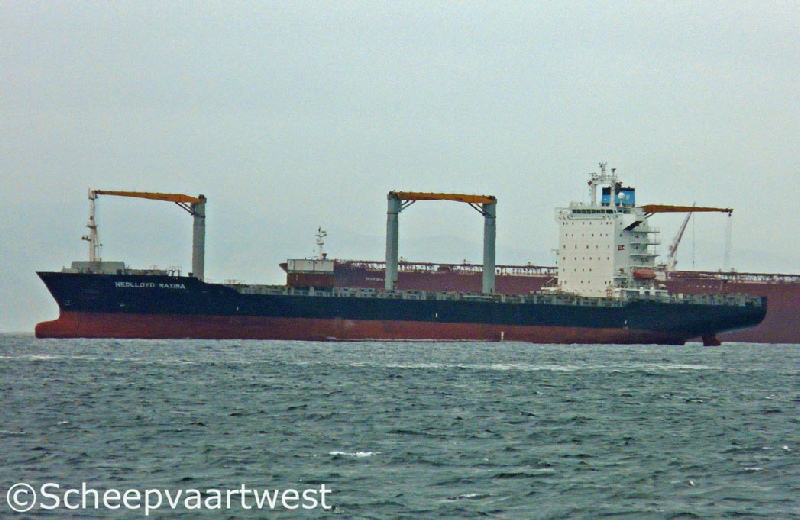

Nedlloyd Maxima 01
Gibraltar 29 September 2011



Name

NEDLLOYD MAXIMA

Previous names

2004-31.03.2004 Rio Thelon

31.03.2004-20.04.2004 P&O Nedlloyd Thelon

20.04.2004-30.11.2005 P&O Nedlloyd Maxima

Type

Cellular containership

IMO-number

9283708

Call sign

A8JR6

Flag

Liberia

Port of registry

Monrovia

GT

26.833 t

DWT

34.314 t

NT

12.743 t

Number of 20ft containers

2.556

Container capacity 14t

1.850

Reefer capacity

600

Length

210,07 m overall

200,55 m registered

Breadth

30,20 m registered

Draught

Summer: 11,50 m

Forecastle

26,45 m

Poop

38,96 m

Freeboard

5.240 mm

Depth

16,70 m moulded

Speed

21,0 knots

Built

2004

Keel laid

23.12.2003

Launch date

13.03.2004

Date of completion

19.04.2004

Builder

Hyundai Heavy Ind. Co., Ltd.
1, Cheonha-dong, Dong-gu
Ulsan 682-792
Republic of Korea

Yard number

H1491

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

2

Main engine

1x Sulzer 7RTA72U-B - 2 stroke 7 cylinder 720 x 2.500 mm diesel engine - 21.560 kW at 99,0 rpm

Year of manufacture: 2003

Manufacturer: Hyundai Heavy Industries Co., Ltd.
1, Jeonha-dong, Dong-gu
Ulsan 682-792
Republic of Korea

Propeller

1x Solid propeller (keyless) - aft at 99,0 rpm

Boilers

1xSteam boiler, oil fired / exhaust gas heated - 7,85 bar

Heating surface: 30,0 m²

Heating surface: 304,0 m²

Year of manufacture: 2003

Manufacturer: KangRim Ind. Co., Ltd. (3rd Factory)
40, Wongnam-dong
Changwon
Republic of Korea

Electric installations

7x Plant each 450 V - 2.133 kVA

1x Plant 450 V - 188 kVA

1x Plant 24 V - 200 Ah

1x Plant 24 V - 300 Ah

Generators

4x MAN-B&W 8L28/32 main diesel generatorset each 2.133 kVA

Emergency generator

1x Diesel generatorset 188 kVA

Compressed air receivers

2x Receivers each 5.000 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

1x Receiver 2000 litres - 8,0 bar

Bow thruster

1x Transverse thruster KAWASAKI - 1.000 kW, forward

Anchor equipment

3x Anchors weight each 9.300 kg

Chain length: 660,00 m

Gear

4x Cranes - SWL 40,0 t each

Crew size

27

Manager

Reederei Blue Star GmbH
Montanhof Kattrepel 2
20095 Hamburg
Federal Republic of Germany

Owner

"RIO THELON" Schiffahrtsges. mbH & Co. KG
Montanhof Kattrepel 2
20095 Hamburg
Federal Republic of Germany
