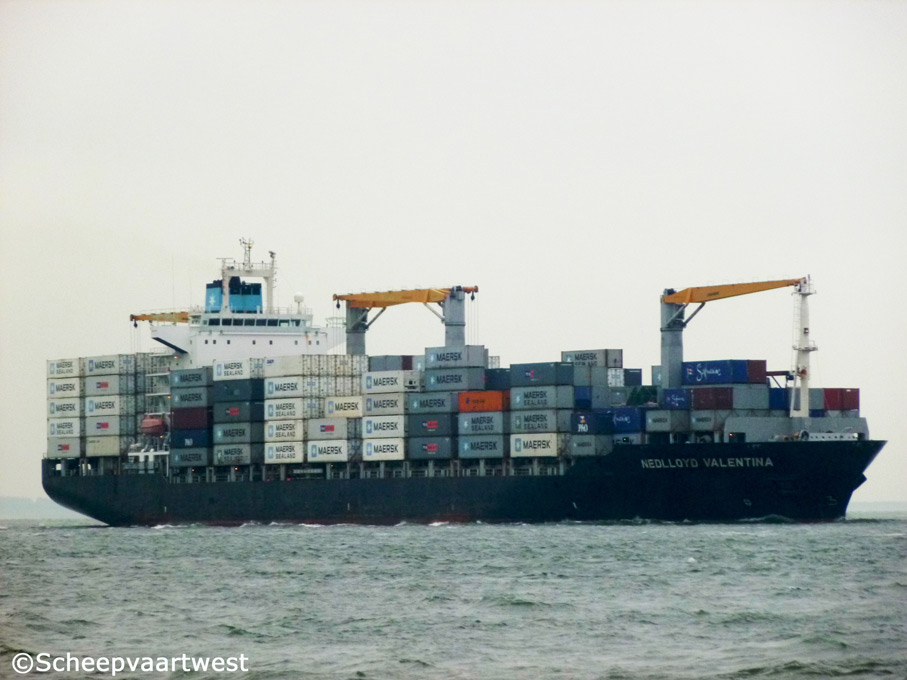

Nedlloyd Valentina 01

Westerschelde 14 October 2013

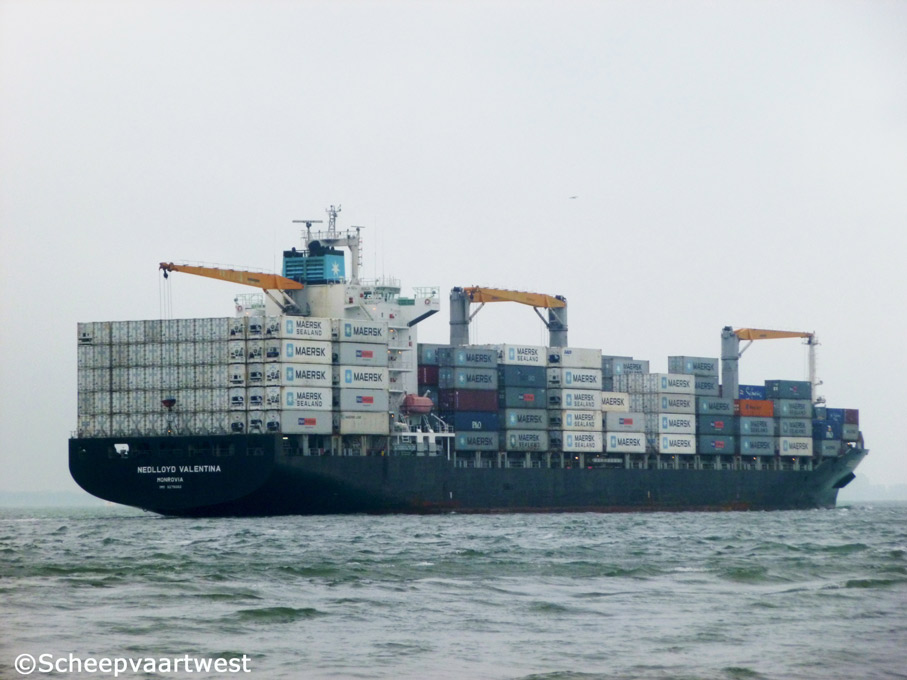

Nedlloyd Valentina 02
Westerschelde 14/10/13



Name

NEDLLOYD VALENTINA

Previous names

2004 launch as: Valentina Star

02.2004 - 12.2005 P&O Nedlloyd Valentina

Type

Cellular containership

IMO-number

9275062

Call sign

A8EG9

Flag

Liberia

Port of registry

Monrovia

GT

26.833 t

DWT

Summer: 34.317 t

NT

12.743 t

Number of 20ft containers

2.556

Container capacity 14t

1.850

Reefer capacity

600

Length

210,05 m overall

200,55 m registered

Breadth

30,20 m registered

Draught

11,50 m

Forecastle

26,45 m

Poop

38,96 m

Depth

16,70 m moulded

Speed

Service: 21,0 knots

Max.: 22,0 knots

Built

2004

Keel laid

06.10.2003

Launch date

20.12.2003

Date of completion

11.02.2004

Builder

Hyundai Heavy Industries Co., Ltd.
1, Cheonha-dong, Dong-gu
Ulsan
Republic of Korea

Yard number

H1489

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

1

Main engine

1x Sulzer 7RTA72U-B - 2 stroke 7 cylinder 720 x 2.500 mm diesel engine - 21.560 kW at 99,0 rpm

Year of manufacture: 2003

Manufacturer: Hyundai Heavy Industries Co., Ltd.
1000 Bangeojinsunhwan-doro Dong-gu
Ulsan
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 99,0 rpm

Boilers

1x Steam boiler, oil fired - 8,0 bar

Heating surface: 30,0 m²

1x Steam boiler, exhaust gas heated - 8,0 bar

Heating surface: 304,0 m²

Year of manufacture: 2003

Manufacturer: KangRim Industries Co., Ltd. (3rd Factory)
40, Wongnam-dong
Changwon
Republic of Korea

Electric installations

4x Plants each 450/230 V - 2.133 kVA

1x Plant 450 V - 188 kVA

2x Plants each 24 V - 200 Ah

1x Plant 24 V - 300 Ah

Generators

4x MAN-B&W 8L28/32 main diesel generatorsets each 2.133 kVA

Emergency generator

1x diesel generatorset 188 kVA

Compressed air receivers

2x Receivers each 5.000 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

1x Receiver 2.000 litres - 8,0 bar

Bow thruster

1x Transverse thruster 1.000 kW, forward

Tank capacities

Fuel oil: 4.174 m³

Water ballast: 9.457 m³

Anchor equipment

3x Anchors weight each 9.300 kg

Chain length: 660,00 m

Cargo gear

4x Cranes - SWL 40,0 t each

Manager

E.R. Schiffahrt GmbH & Cie. KG
Hohe Bleichen 12
20354 Hamburg
Federal Republic of Germany

Registered owner

Naurata Schiffsbetriebs GmbH & Co. MS "NEDLLOYD VALENTINA" KG
Montanhof Kattrepel 2
20095 Hamburg
Federal Republic of Germany

Renamed

12.2014 Cap Beatrice

Latest data adjustment

05 March 2015
