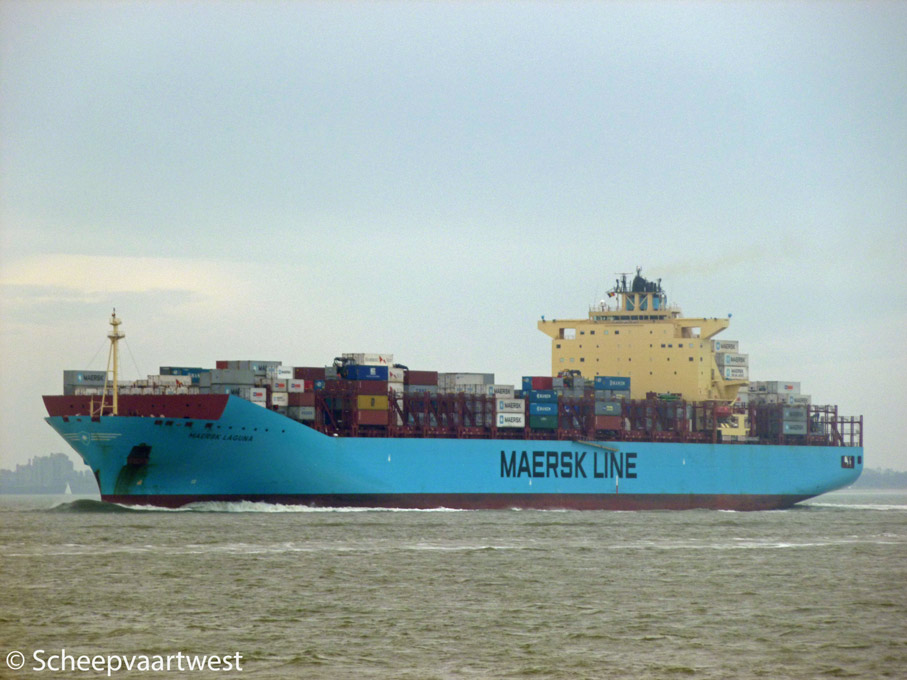

Maersk Laguna 01
Westerschelde 20 October 2013

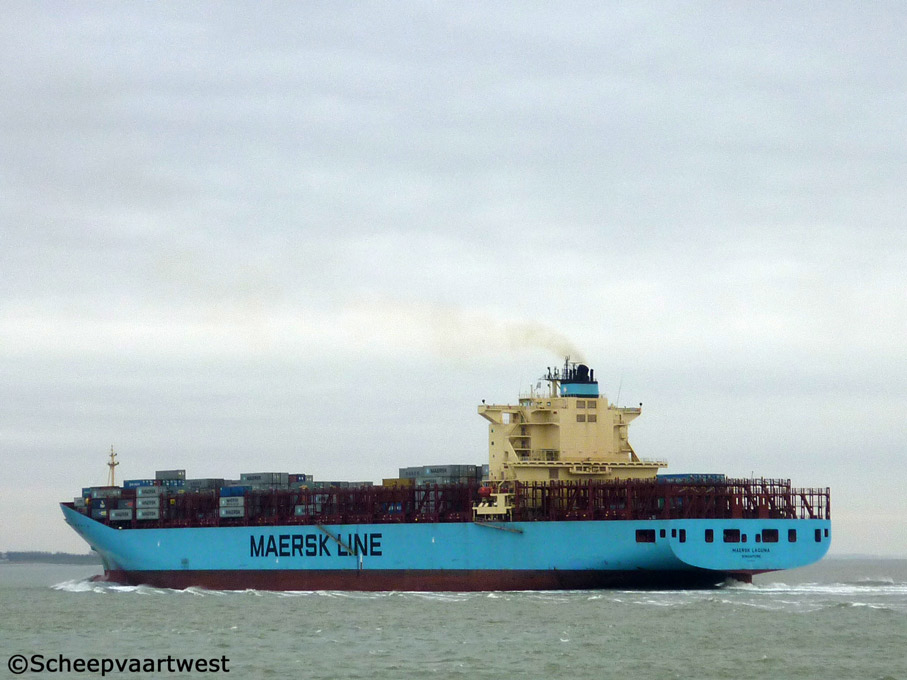

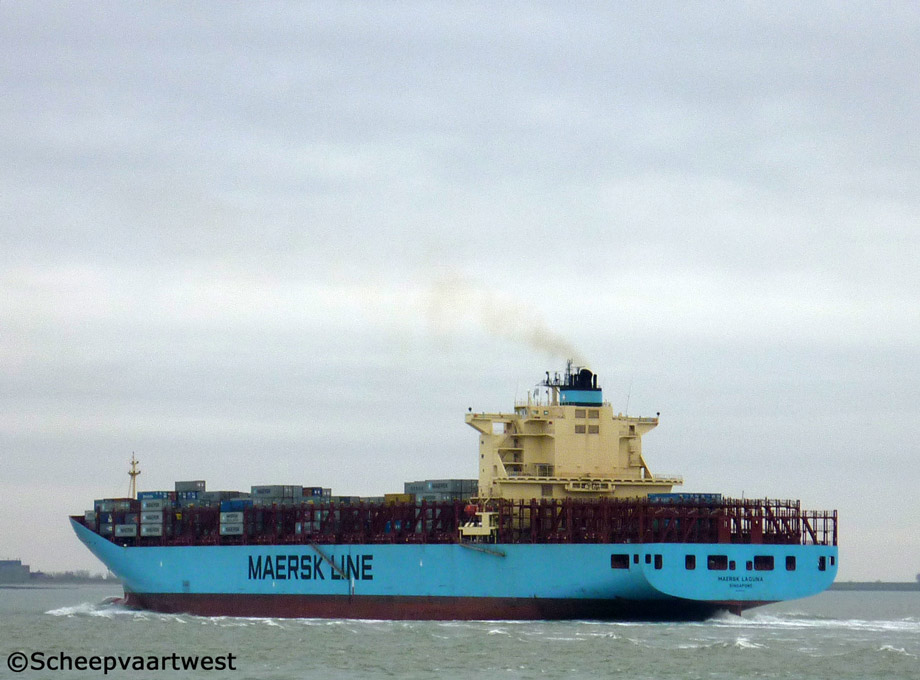

Maersk Laguna 05   Maersk Laguna 06
Westerschelde 25/01/14 Westerschelde 25/01/14



Name

MAERSK LAGUNA

Type

Cellular containership

IMO-number

9526942

Call sign

9V9763

Flag

Republic of Singapore

Port of registry

Singapore City

GT

88.237 t

DWT

Summer: 94.267 t

NT

45.120 t

Number of 20ft containers

7.410

Reefer capacity

1.707­

Length

299,90 m overall

186,80 m between perpendiculars

Breadth

45,20 m

Draught

Max.: 13,00 m

Depth

24,20 m

Speed

Max.: 22,8 knots

Built

2012

Keel laid

02.08.2011

Launch date

23.10.11

Date of completion

06.01.2012

Builder

Daewoo Shipbuilding & Marine Engineering
Geoje
South Korea

Yard number

4221

Hull material

Steel

Main engine

1x MAN-B&W 9S90ME-CS - 2 stroke single acting 9 cylinder 900 x 3.­188 mm diesel engine - 45.740 kW / 62.188 hp

Builder: Doosan Engine Co Ltd - South Korea

Propellers

1x Fixed pitch propeller- aft at 78 rpm

Generators

3x MAN-B&W 9L32/40CD diesel generatorsets each 4.230 kW

1x MAN-B&W 6L32/40CD diesel generatorset 2.800 kW

1x Turbogenerator Mitshubishi ATD52CLN2 - 3.700 kW

Bow thruster

2.300 kW

Cargo gear

None

Manager

AP Moller Maersk
Copenhagen
Denmark

Operator

Maersk Line

Owner

AP Moller Maersk
Copenhagen
Denmark

Registered owner

Moller Maersk

Esplanaden 50
Copenhagen
Denmark

Last update

26 November 2013
