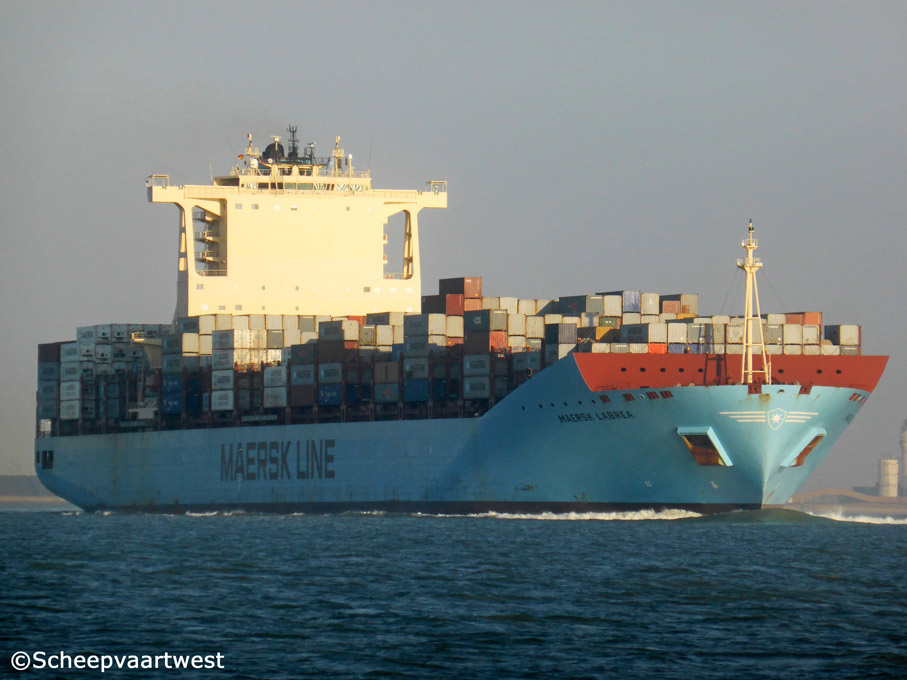

Maersk Labrea 01

Westerschelde 08 March 2015

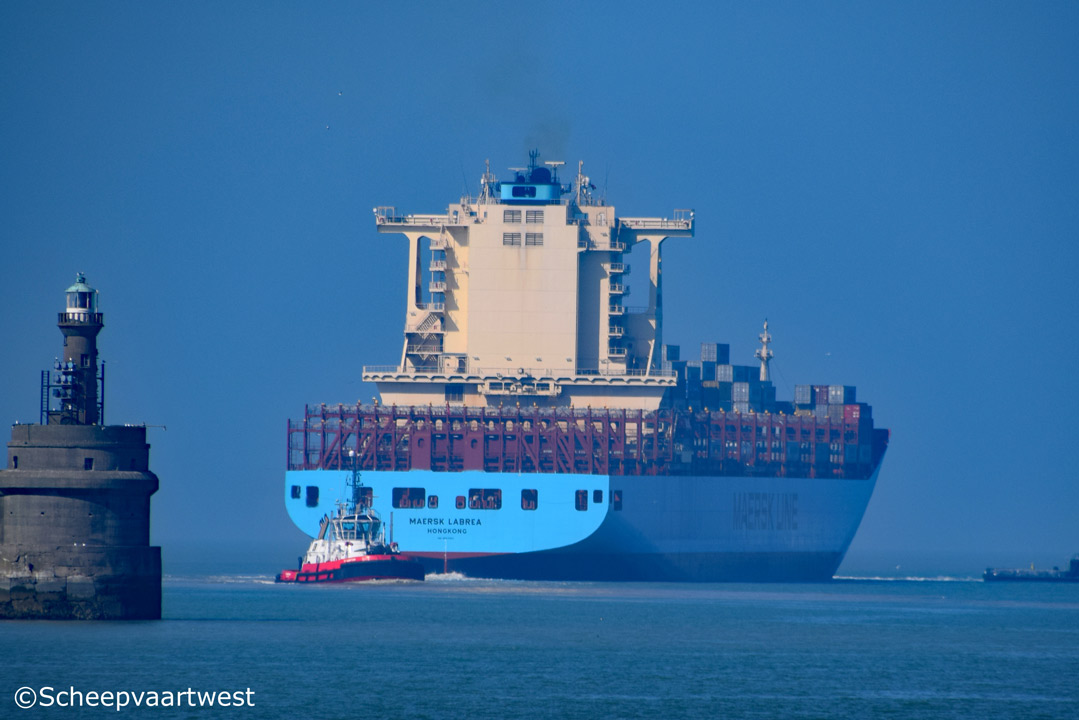

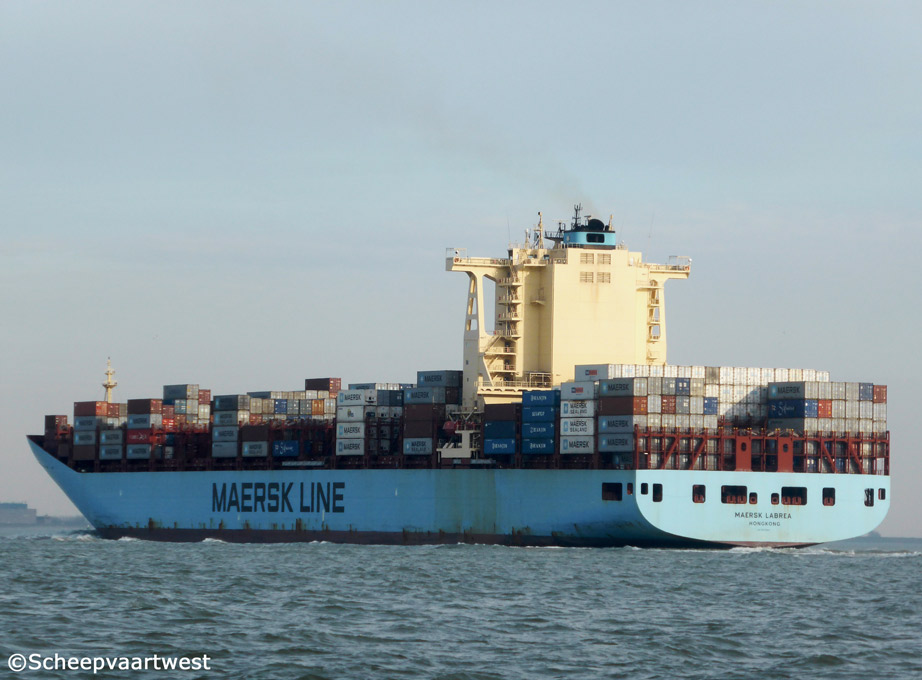

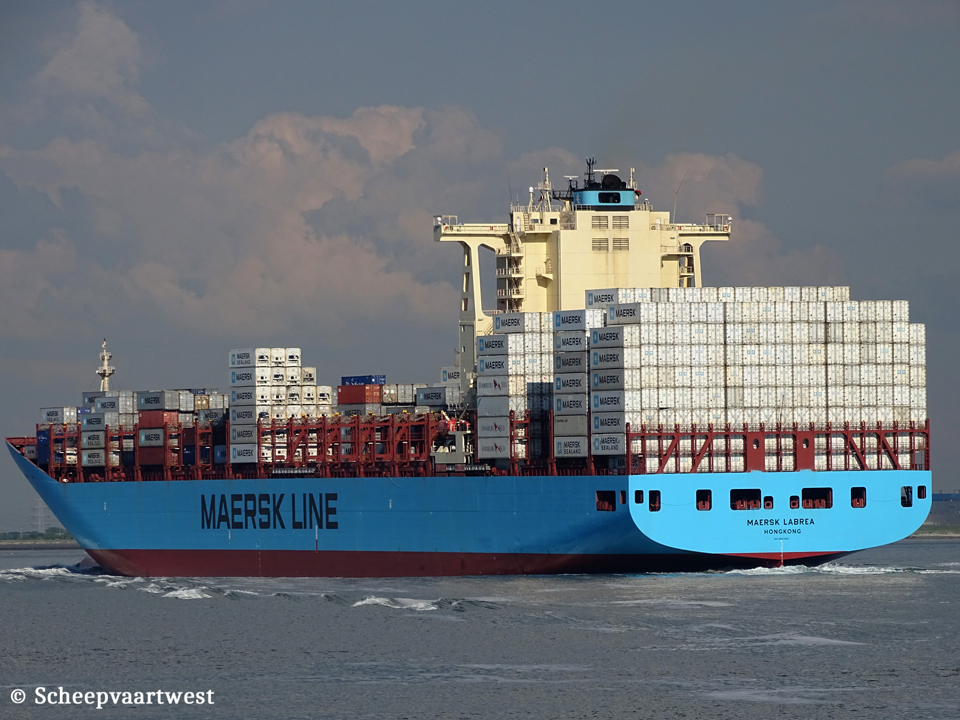

Maersk Labrea 02   Maersk Labrea 03   Maersk Labrea IMO 9527063 04
Westerschelde 08/03/15 Zeebrugge 02/04/17   Westerschelde 20/05/17


Name

MAERSK LABREA

Type

Cellular containership

IMO-number

9527063

Call sign

OZIL2

Flag

Denmark

Port of registry

København

Previous flags

2013 - 06/2023 Hong Kong, People's Republic of China - Call sign: VRLI9

GT

89.505 t registered

Suez: 92.537,21 t

DWT

Summer: 99.797,6 t

NT

48.488 t registered

Suez: 81.118,53 t

Number of 20ft containers

8.700

Container capacity 14t

1.707

Length

299,90 m overall

286,80 m between perpendiculars

Breadth

45,20 m moulded

Draught

Max.: 13,0 m

Freeboard

10.278 mm

Depth

24,20 m

Speed

Max.: 22,5 knots

Built

2013

Keel laid

24/10/2012

Launch date

05/01/2013

Date of completion

21/03/2013

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd.

Geoje

South Korea

Yard number

4229

Hull material

High strength steel

Ordinary strength steel

Watertight bulkheads

13

Main engine

1x Doosan/MAN-B&W 9S90ME-C Mk8 - 9 cylinder 900 x 3.188 mm combustion engine 45.740 kW / 62.189 hp at 78,0 rpm

Manufacturer: Doosan Engine Co., Ltd.

Propellers

1x Fixed pitch propeller

Manufacturer: Mecklenburger Metallguss GmbH

Boilers

1x Fired boiler - 9,0 bar

1x Unfired exhaust gas boiler - 10,0 bat

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

1x Mitsubishi ATD52CLN2 Turbine generator 3.700 kW

3x MAN-B&W 9L32/40CD diesel generatorsets each 4.300 kW

1x MAN-B&W 6L32/40CD diesel generatorsets each 2.800 kW

Bow thruster

1x 2.300 kW

Number of holds

8

Number of tanks

Ballast: 27

Fuel oil: 12

Lubricating oil: 10

Fresh water: 6

Waste water: 4

Diesel oil: 4

Sludge: 3

Chain: 1

Tank capacities

Diesel Oil: 723,40 m³

Freshwater: 522 m³

Fuel Oil: 9082 m³

Lube Oil: 516.5 m³

Tank Ballast: 33.566,6 m³

Lifting equipment

2x Engine room crane - SWL total 12,6 t (2x 6,3 ton double jig engine room crane)

Manufacture: Danish Crane Building

1x Monorail Crane - SWL 12,5 t

Manufacture: Dongnam Marine Crane Co., Ltd.

Cargo gear

Gearless

Manager

Maersk Shipping Hong Kong Ltd.

19/F, One Kowloon

1 Wang Yuen Stree

Kowloon Bay, KLN

Hong Kong

China

Operator

Maersk Line

Registered owner

Maersk A/S

Esplanaden 50

1263 København K

Denmark

Latest data adjustment

20 November 2023
