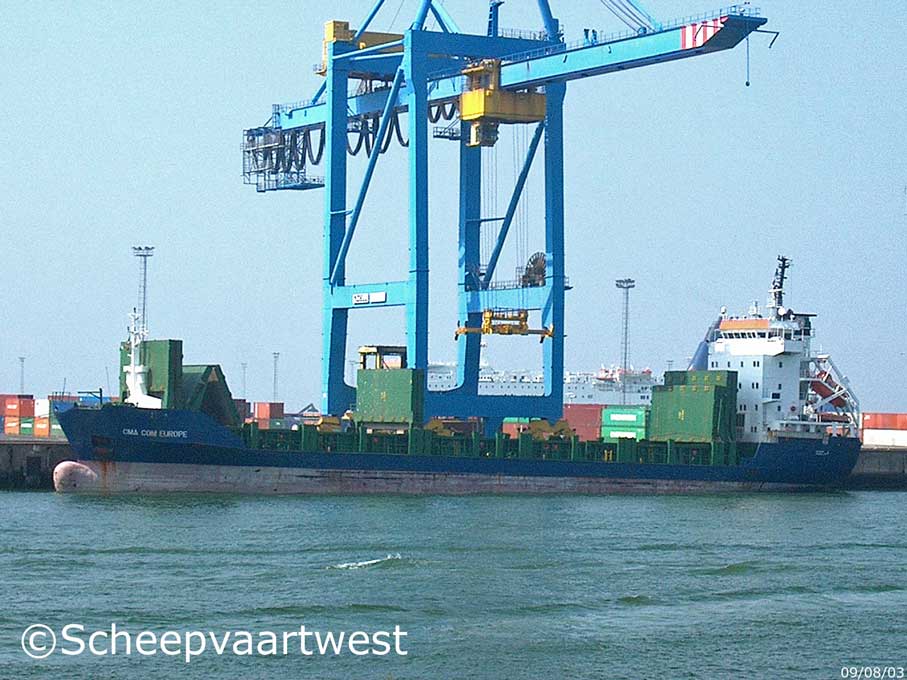

| Zeebrugge 09 August 2003 |
|
Name |
CMA CGM EUROPE |
|
Previous names |
01.01.2003 Camira 24.09.2003 CMA CGM Europe |
|
Type |
Containerschip |
|
IMO-number |
9118276 |
|
Call sign |
EIWX |
|
Flag |
Ireland |
|
Previous flag |
01.01.1997 Cyprus |
|
Port of registry |
Cork |
|
GT |
4.107 t |
|
DWT |
Summer: 5.203 t |
|
NT |
2.016 t |
|
Number of 20ft containers |
Under deck: 140 On deck: 240 Total: 380 |
|
Container capacity 14 t |
234 |
|
Reefer Point |
50 (female) reefer plug on deck 380 V / 3 phase / 50 cycles |
|
Length |
99,94 m overall 95,30 m registered |
|
Breadth |
16,20 m moulded |
|
Draught |
Summer: 6,39 m |
|
Forecastle |
7,56 m |
|
Poop |
11,37 m |
|
Highest point above keel |
35,00 m |
|
Air draft |
Max.: 30,50 m |
|
Freeboard |
1.810 mm |
|
Depth to main deck |
8,20 m |
|
Speed |
14,0 knots |
|
Built |
1997 |
|
Keel laid |
09.11.1995 |
|
Launch date |
30.07.1996 |
|
Completion |
06.1997 |
|
Builder |
Tianjin Xingang Shipbuilding Heavy Industry Co., Ltd. 1, Jichang Street |
|
Yard number |
300 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Single hull Double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
2 |
|
Propelling engine |
1x MAK 9 M 32 - 4 stroke single acting 9 cylinder 320 x 480 mm diesel engine - 3.960 kW Year of manufacture: 1995 Manufacturer: Krupp MAK Maschinenbau GmbH, Kiel - Germany |
|
Number of screws |
1x Controllable pitch propeller - aft |
|
Boiler |
1x Water heater, oil fired - 5,0 bar |
|
Electric installations |
1x Plant 380/220 V - 850 kVA 1x Plant 380 V - 550 kVA 1x Plant 380 V - 126 kVA |
|
Shaft generator |
1x 550 kVA / 440 kW |
|
Generators |
2x Volvo main diesel generatorsets each 425 kVA / 340 kW |
|
Emergency generator |
1x Diesel generatorset 126 kVA / 100,8 kW |
|
Compressed air receivers |
1x Receiver 500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar |
|
Bow thruster |
1x Fixed pitch propeller SCHOTTEL - 350 kW, forward |
|
Grain / Bale capacity |
Abt. 255.500 ft³ / 7.235 m³ |
|
Number of holds |
1 dimensions: 65,00 m x 13,05 m x 8,80 m |
|
Hold ventilation |
6 fold mechanically |
|
Tank capacities |
Ballast: 1.737 m³ Bunker: 315 t |
|
Anchor equipment |
3x Anchors weight each 3.060 kg Chain Length: 495,00 m |
|
Cargo Gear |
Gearless |
|
Crew size |
16 |
|
Operator |
CMA CGM |
|
Owner |
Clonakilty Shipping Ltd. |
|
Renamed |
Camira |
