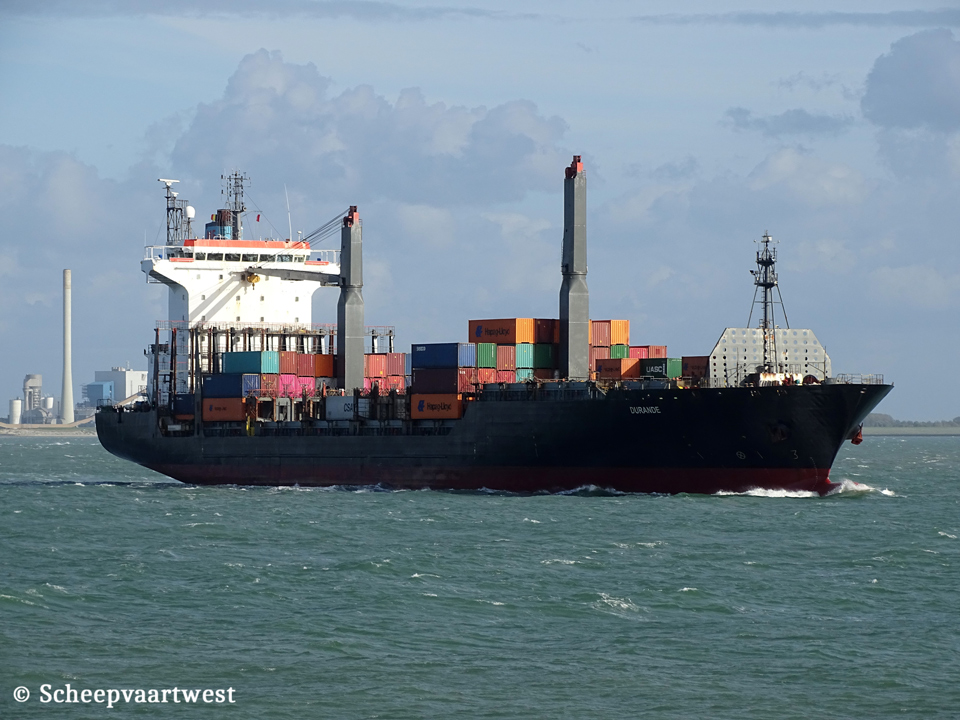

Durande IMO 9256365 07

Westerschelde 10 October 2019

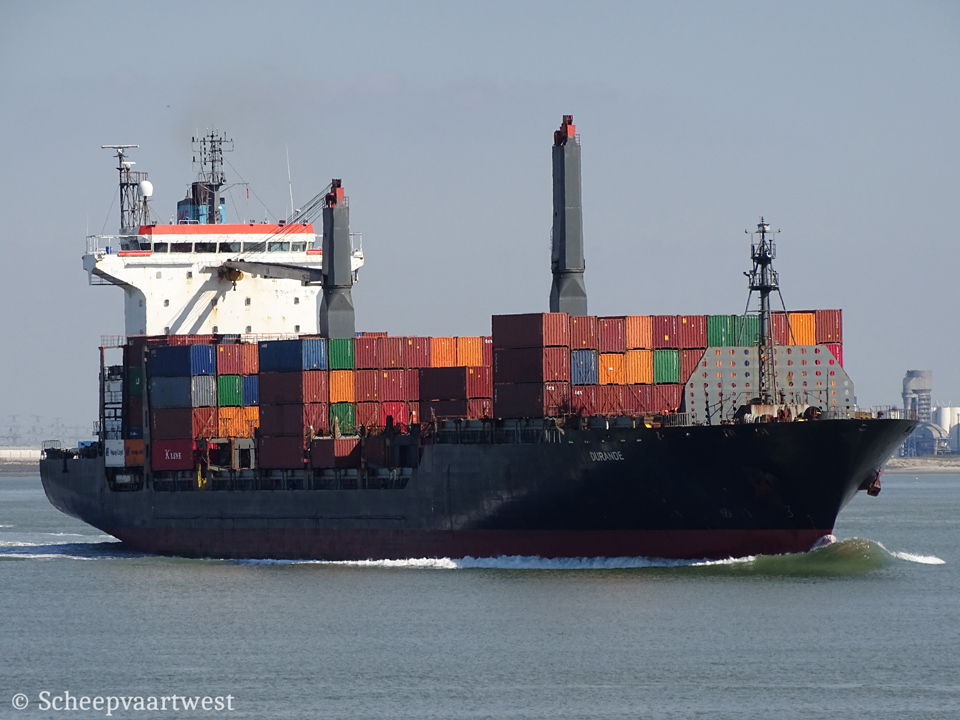

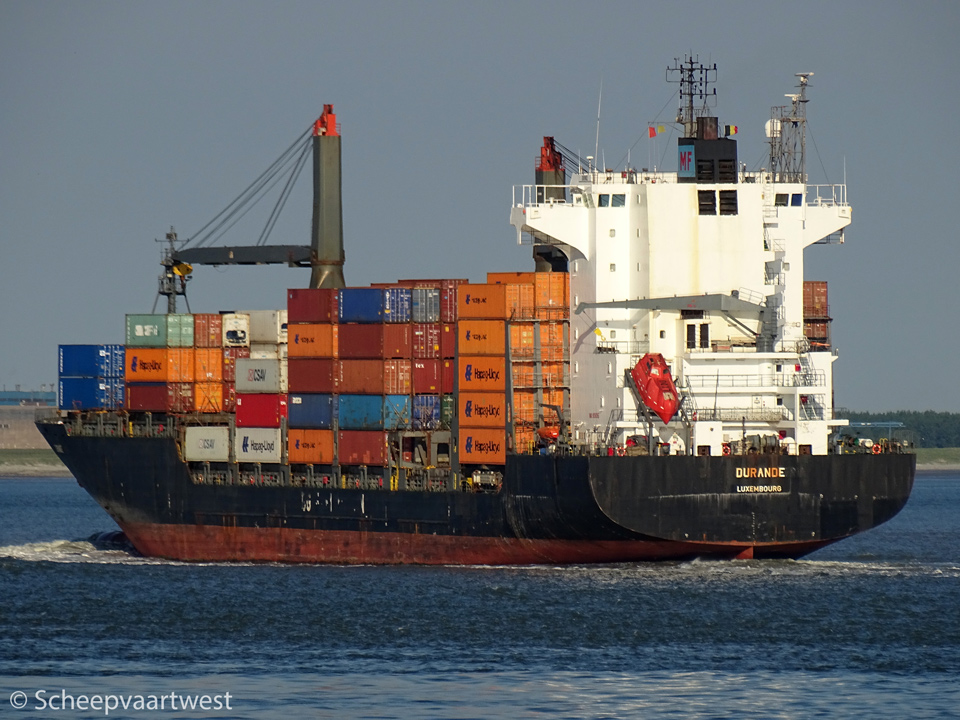

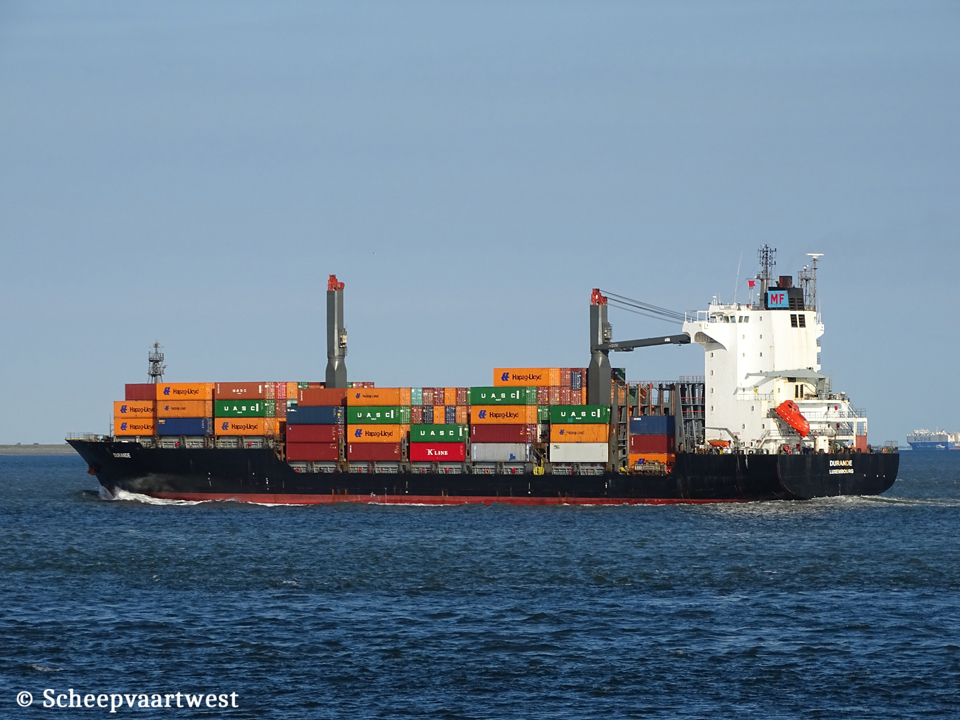

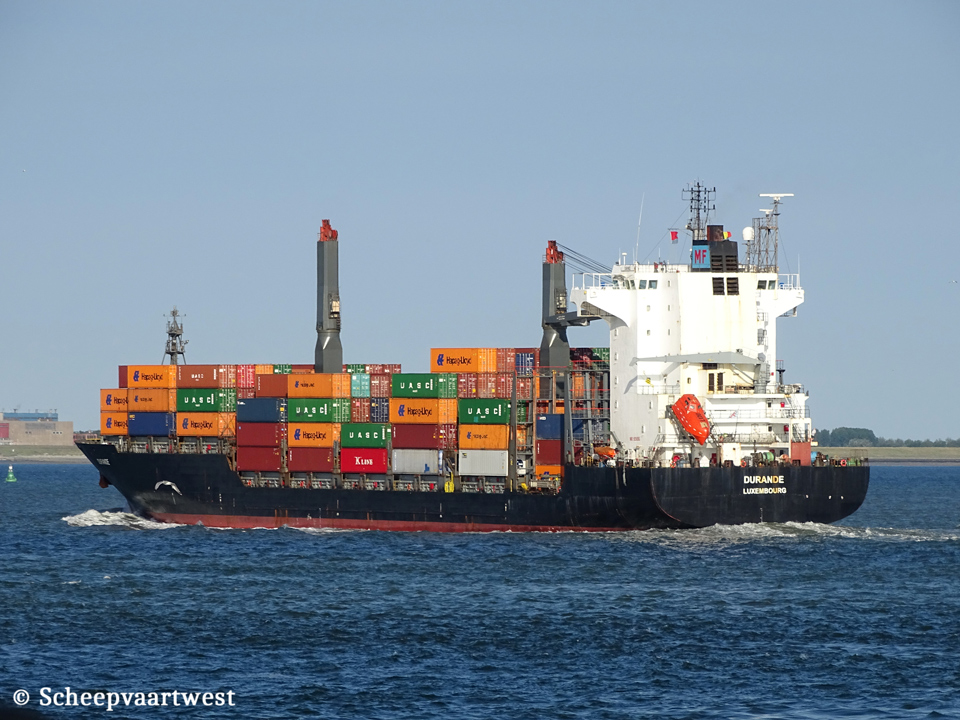

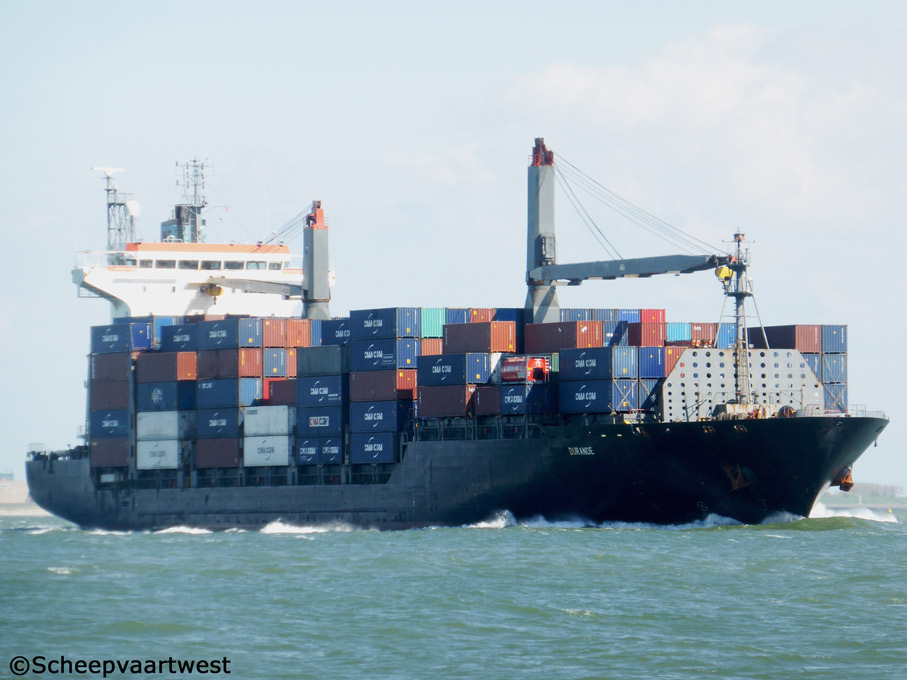

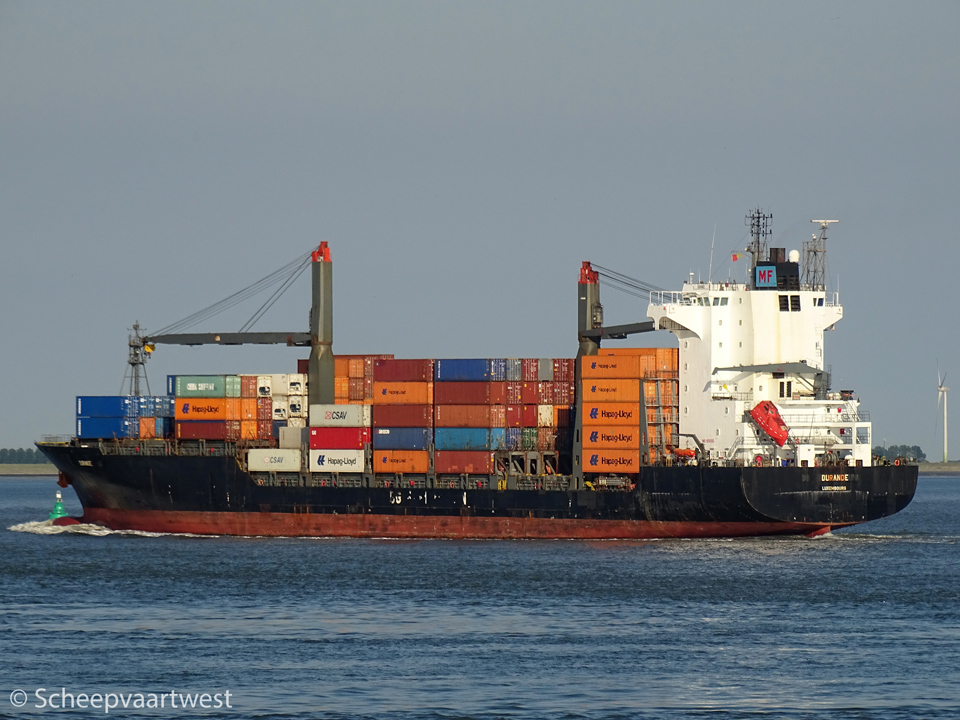

Durande 02   Durande 03   Durande 01   Durande IMO 9256365 05   Durande IMO 9256365 06   Durande 04
Westerschelde 18/07/18 Westerschelde 18/07/18 Westerschelde 30/04/15 Westerschelde 02/07/19   Westerschelde 02/07/19   Westerschelde 01/04/20

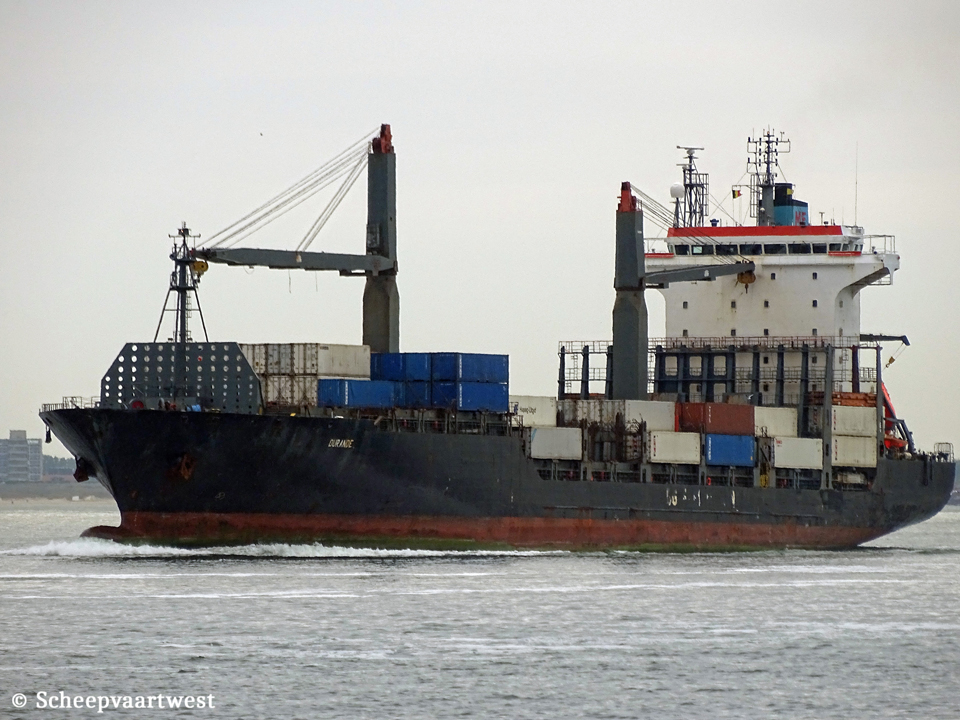

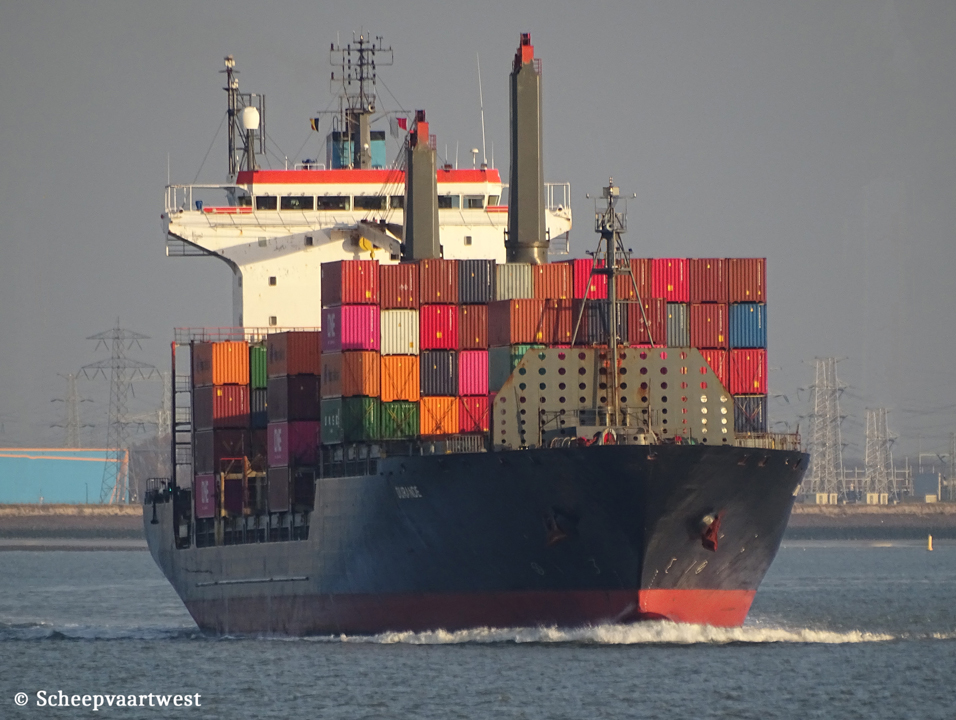

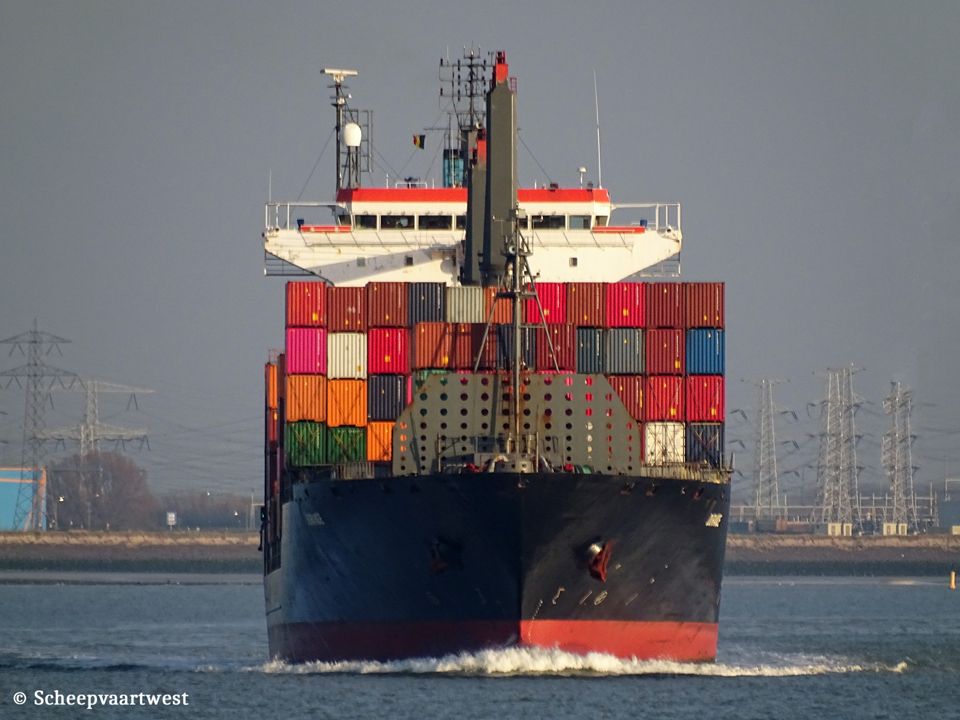

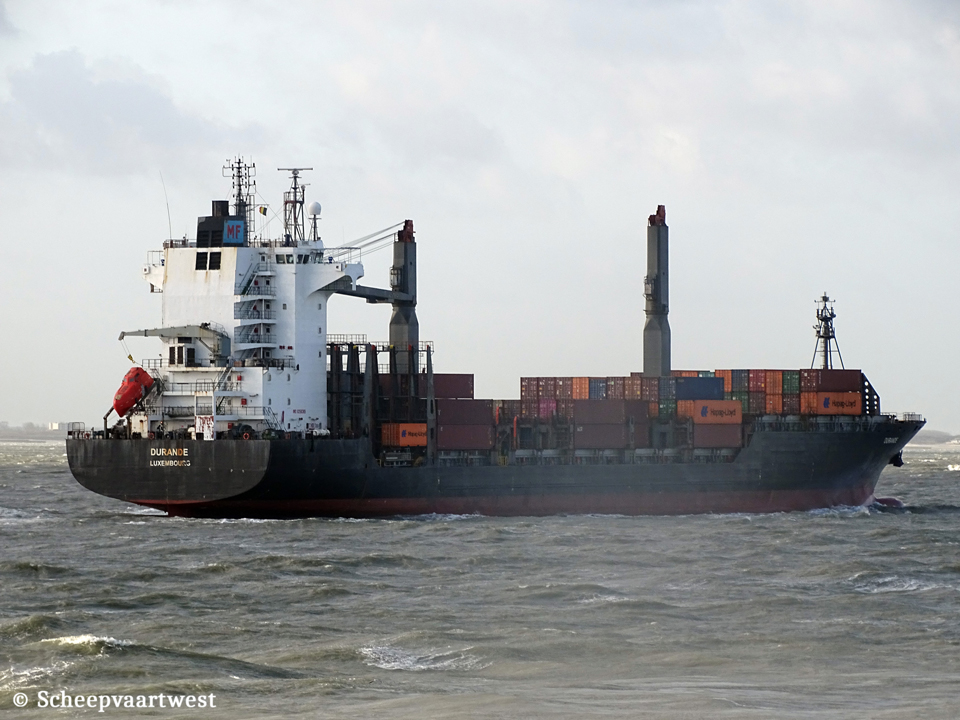

Durande IMO 9256365 09   Durande IMO 9256365 08   Durande IMO 9256365 10   Durande IMO 9256365 11
Westerschelde 24/11/20   Westerschelde 24/11/20   Westerschelde 29/01/20   Westerschelde 15/05/17


Name

DURANDE

Previous names

2003 Built as: Hansa Sonderburg

2003 - 05/2003 Durande

05/2003 - 11/2006 Delmas Forbin

11/2006 - 08/2012 Marfret Durande

08/2012 - 10/2013 BG Freight Iberia

Type

Cellular containership

IMO-number

9256365

Call sign

LXDU

Flag

G.D. Luxembourg

Port of registry

Luxembourg City

Previous flags

2004 - 2007 Liberia

2007 - 2010 French Southern & Antarctic Territories

2010 - 2015 France, Marseille - Call sign: FWAJ

GT

18.334 t

DWT

Summer: 23.526 t

NT

10.744 t

Number of 20ft containers

In hold: 700

On deck: 1.036

Total: 1.736

Number of 40ft containers

In hold: 388

On deck: 520

Total: 1.290

Container capacity 14t

1.330

Reefer capacity

296 (whereof 80 under deck)

Length

175,49 m overall

166,10 m between perpendiculars

Breadth

27,40 m

Draught

Max: 10,90 m

Keel to mast end

51,29 m

Freeboard

3.425 mm

Depth

14,30 m

Speed

19,5 knots

Built

2003

Keel laid

19/11/2001

Launch date

08/11/2002

Delivery date

27/05/2003

Builder

Chengxi Shipyard (Guangzhou) Co., Ltd.

Guangzhou

China

Yard number

GWS 292

Hull material

Shipbuilding steel (standard)

Hull type

Single hull double bottom, continuous from peak to peak bulkhead

Watertight Bulkheads

8

Continuous decks

1

Main engine

1x Hudong/MAN-B&W 7S60MC-C - 2 stroke 7 cylinder 600 x 2.400 mm combustion engine 15.785 kW / 21.461 hp at 105,0 rpm

Built: 2002

Builder: Hudong Heavy Machinery Co., Ltd., Shanghai - China

Propellers

1x Fixed pitch propeller - aft at 105,0 rpm

Boilers

1x Steam boiler, oil fired / exhaust gas heated - 9,0 bar

Heating surface: 61,0 m²

Heating surface: 380,0 m²

Manufacturer: KangRim Industries Co., Ltd. (3rd Factory)

Electric installations

Power voltage: 450 V

Lighting voltage: 230 V

Frequency: 60 Hz

Generators

3x MAN-B&W 6L28/32H diesel generatorsets each 1.499 kVA - 1.199 kW - 1.712 hp

Emergency generator

1x Diesel generatorset 212,5 kVA - 170 kW

Bow thruster

1x Transverse 900 kW

Number of holds

5

Total capacity of holds

27.172 m³

Number of hatches

8

No. 1: 12,80 x 19,85 m

No. 2: 12,84 x 24,93 m

No. 3 - 8: 12,80 x 24,93 m

Hatch type

Pontoon hatch cover

Tank capacities

Fuel: 2.044 m³

Water ballast: 8.100 m³

Fresh water: 109 m³

Anchor equipment

3x Anchors weight each 7.800 kg

Chain length 632,50 m

Cargo gear

2x Electro-hydraulic driven deck cranes - SWL 45,0 t each

Outreach: 28,00 m

Lifting equipment

1x Crane - SWL 4,0 t

1x Crane - SWL 6,0 t

Crew size

30

ISM & Commercial manager

Compagnie Maritim Marfret S.A.

13, quai de la Joliette

13002 Marseille

France

Registered owner

Marseille-Fret S.A.

39, rue Jean-Francois-Leca

13002 Marseille

France

Renamed

2023 MSC Turin II

Liberia, Monrovia- call sign: 5LMH6

Owner: Marseille Fret SA

Latest data adjustment

23 July 2023
