Name |

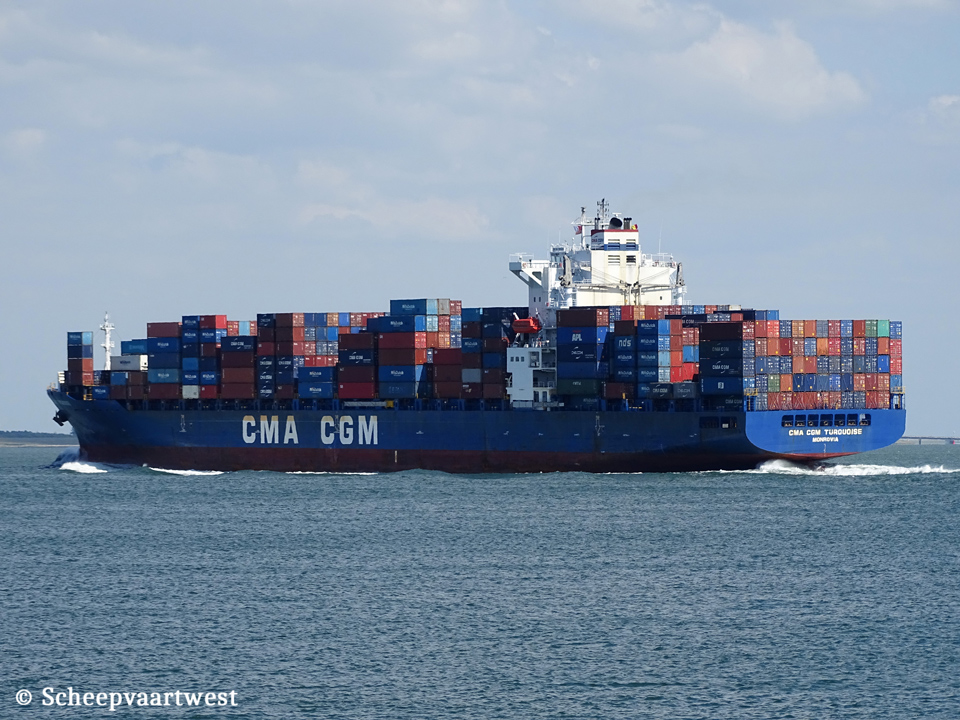

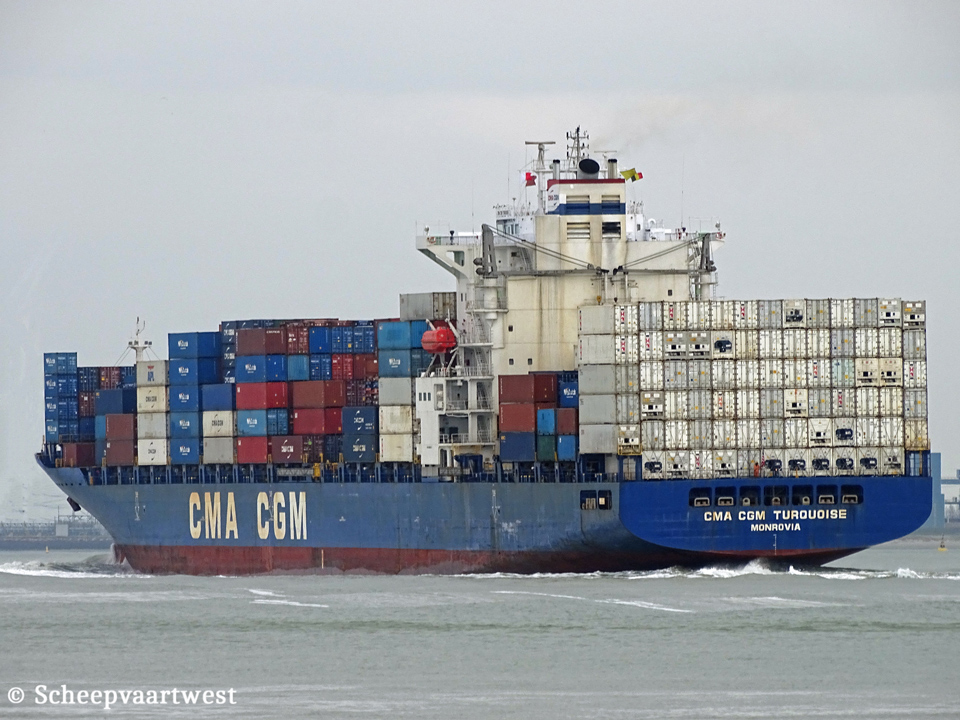

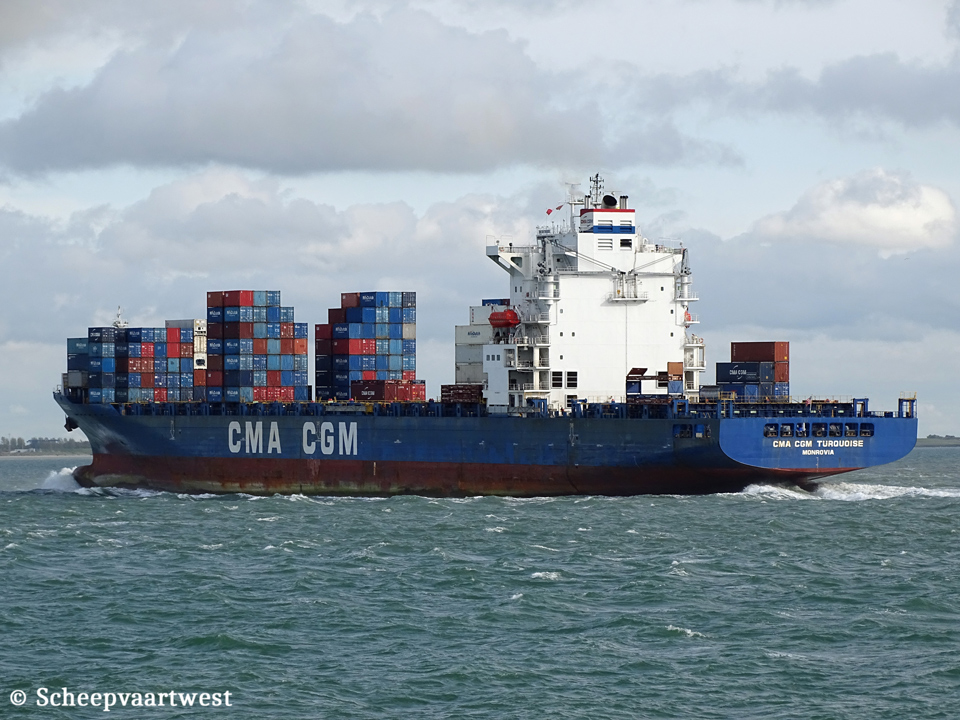

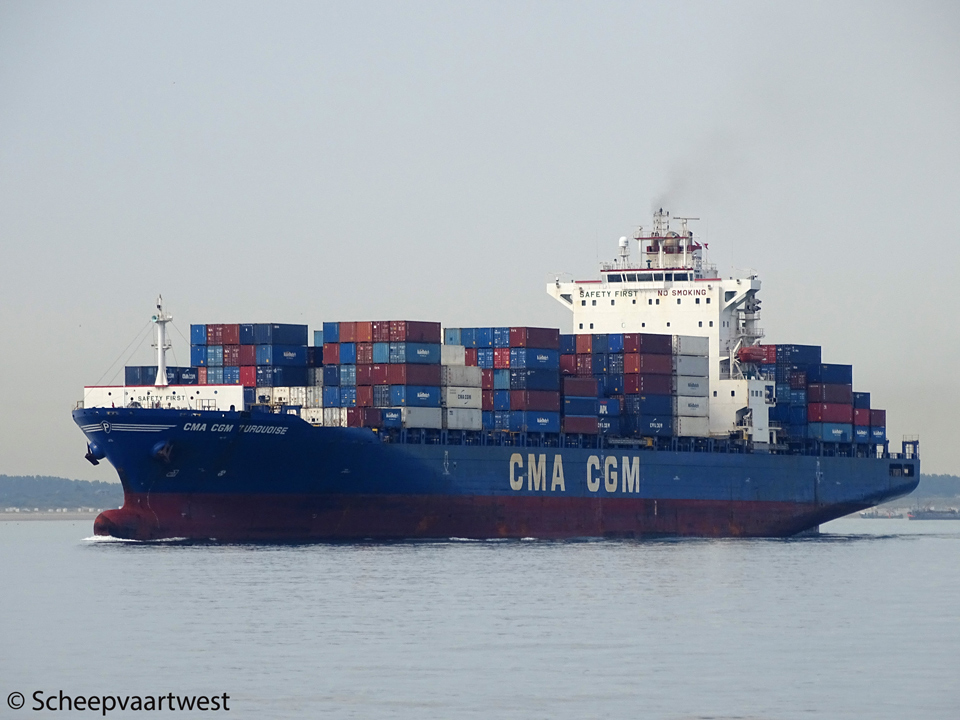

CMA CGM TURQUOISE |
|
Type |
Cellular containership |
|
IMO-number |
9386471 |
|
Call sign |
A8RB5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
40.560 t Suez: 42.190 t |
|
DWT |
Summer: 52.357 t |
|
NT |
24.217 t Suez: 34.372 t |
|
Number of 20ft containers |
4.360 |
|
Container capacity 14t |
2.771 |
|
Reefer capacity |
326 |
|
Length |
258,92 m overall 246,70 m between perpendiculars |
|
Breadth |
32,20 m |
|
Draught |
Summer: 12,62 m |
|
Keel to mast end |
56,50 m |
|
Freeboard |
3.037 mm |
|
Depth |
19,30 m |
|
Speed |
Max: 24,5 knots |
|
Built |
2009 |
|
Date of completion |
07/01/2009 |
|
Builder |
Hanjin Heavy Industries & Construction Co., Ltd. Subic Bay Philippines |
|
Yard number |
PN-002 |
|
Hull material |
Steel |
|
Watertight compartments |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x Doosan/MAN-B&W 8K90MC-C - 2 stroke 8 cylinder 900 x 2.300 mm combustion engine 36.560 kW / 49.674 hp at 104,0 rpm Built: 21/01/2008 Builder: Doosan Engine Co., Ltd., Changwon - South Korea |
|
Propellers |
1x Screw propeller solid - aft at 104,0 rpm |
|
Boilers |
1x CHO Aalborg 609,00 m² - 7,0 bar |
|
Generators |
3x Main diesel generatorsets each 2.438 kVA - 1.950 kW - 2.789 hp |
|
Emergency generator |
1x Diesel generatorset 188 kVA - 150 kW - 255 hp |
|
Bow thruster |
1x 1.600 kW |
|
Number of holds |
7 |
|
Total capacity of holds |
80.790 m³ |
|
Tank capacities |
Fuel: 8.192,28 m³ |
|
Crew size |
Gearless |
|
ISM & commercial manager |
Dioryx Maritime Services Corporation 1, Alopekis Street 106 75 Athens Greece |
|
Operator |
CMA CGM Marseille France |
|
Registered owner |
OCM Kassi LLC Care of Dioryx Maritime Corporation 1, Alopekis Street 106 75 Athens Greece |
|
Latest data adjustment |
23 May 2021 |
