| Zeebrugge 20 June 2009 |
 |
 |
 |
 |
 |
 |
|||||

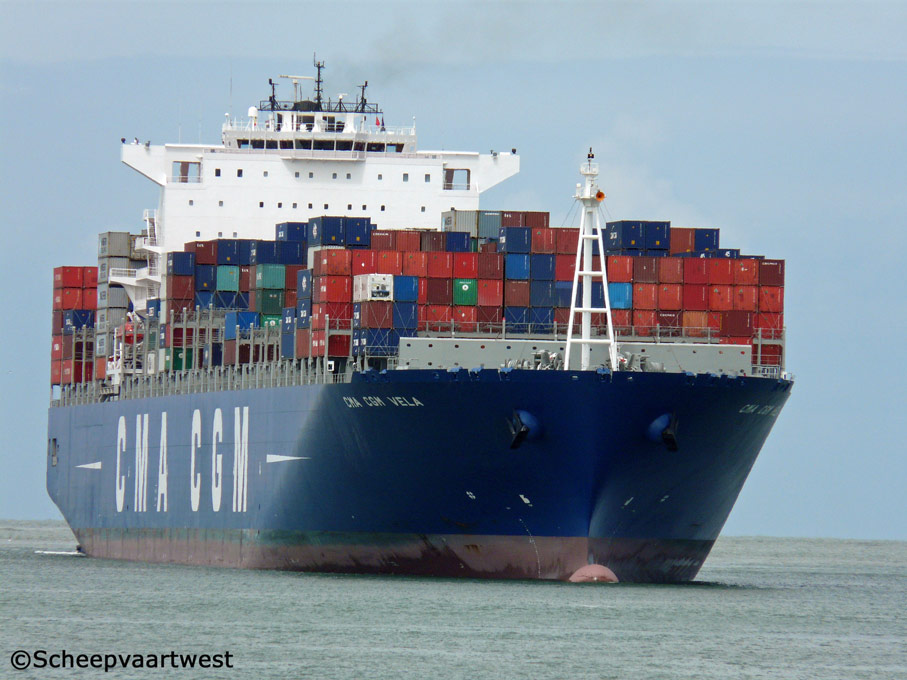

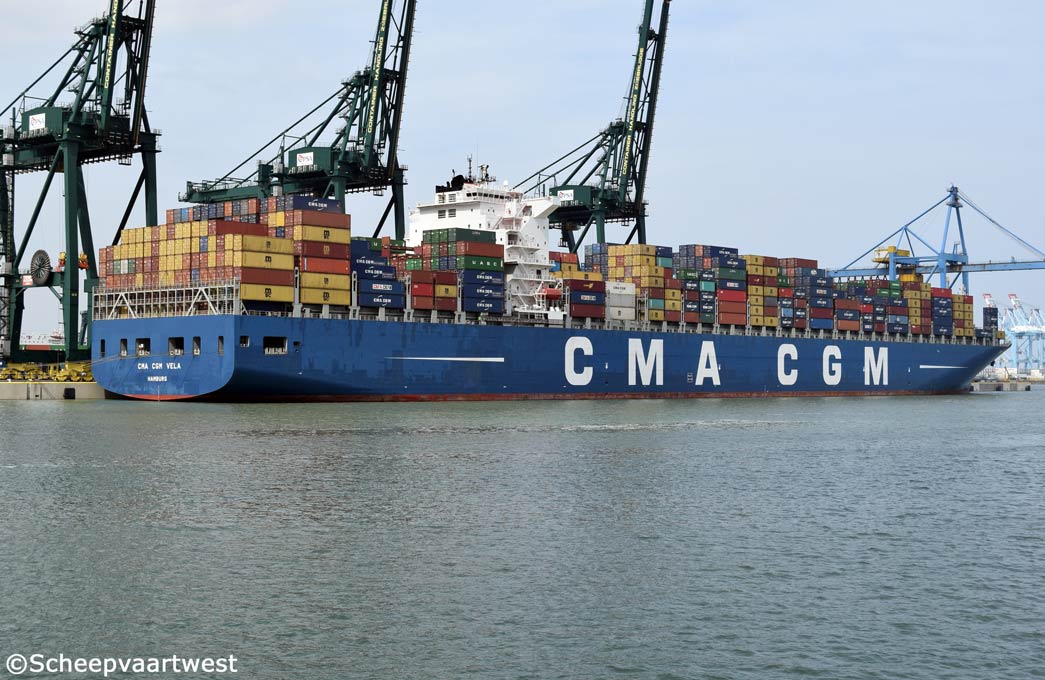

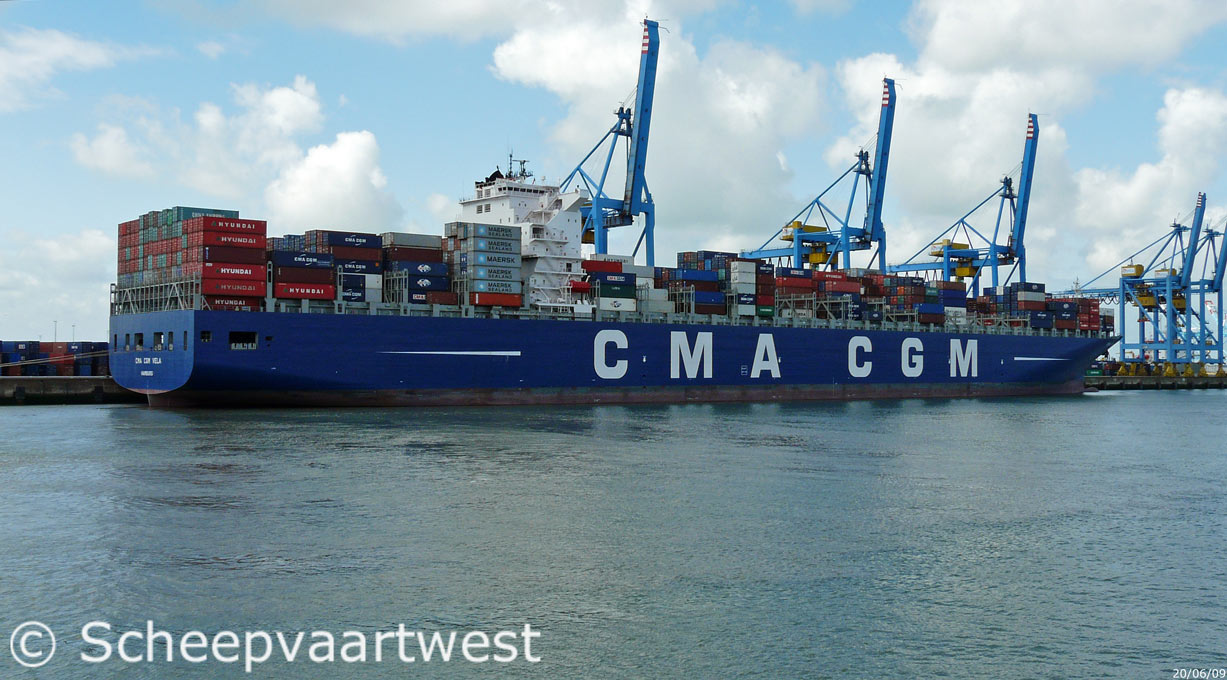

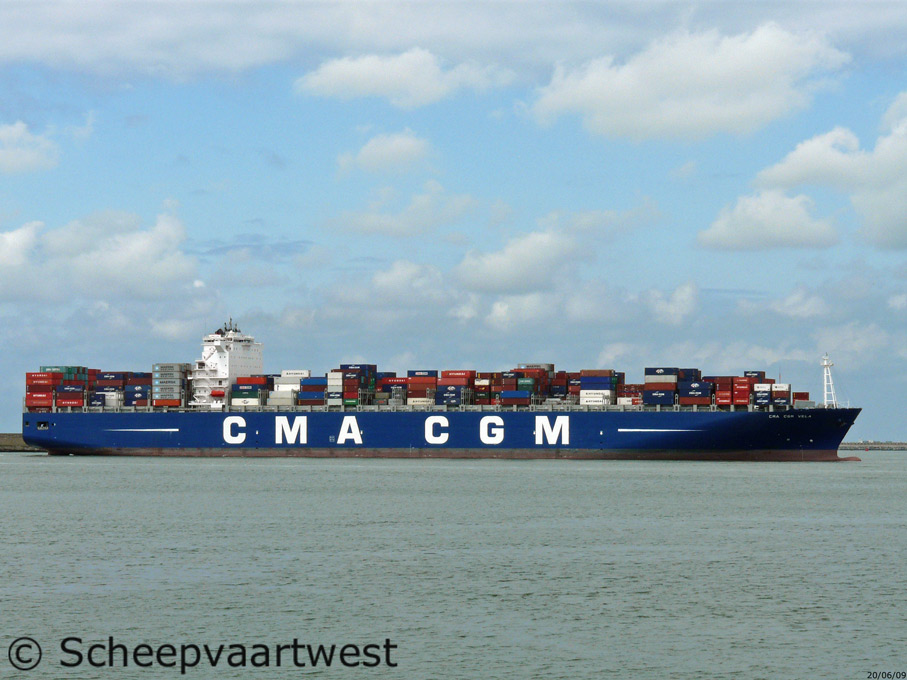

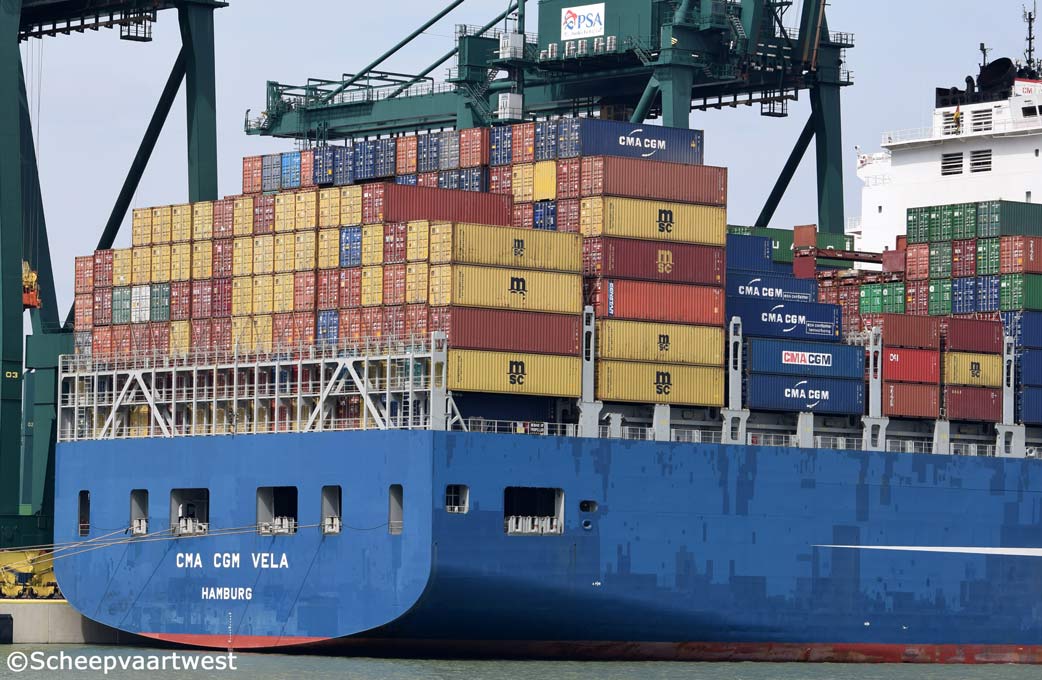

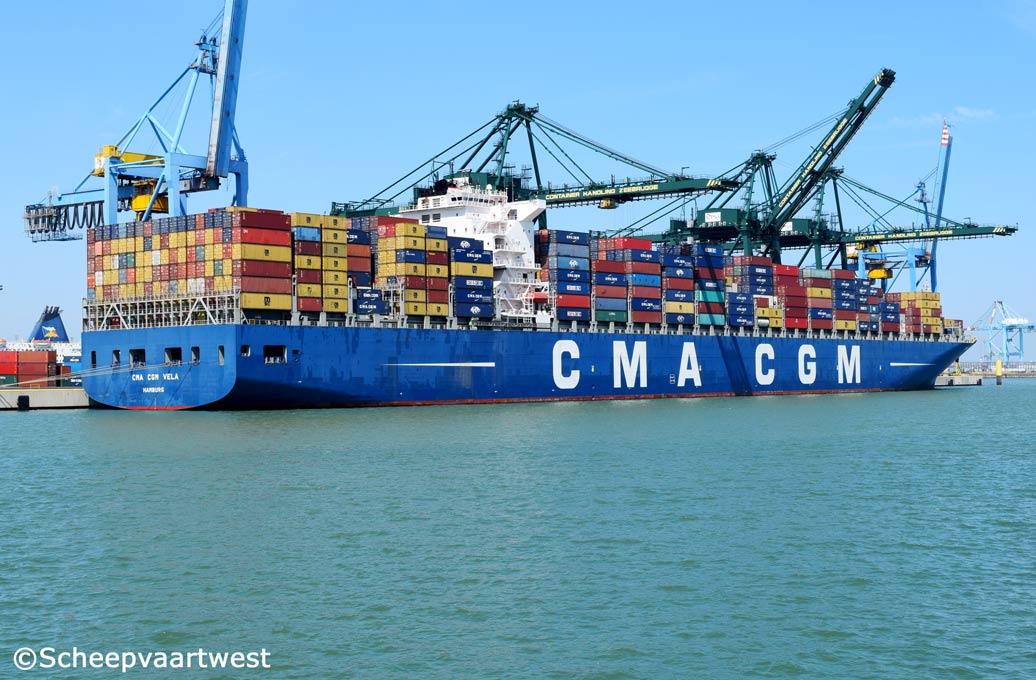

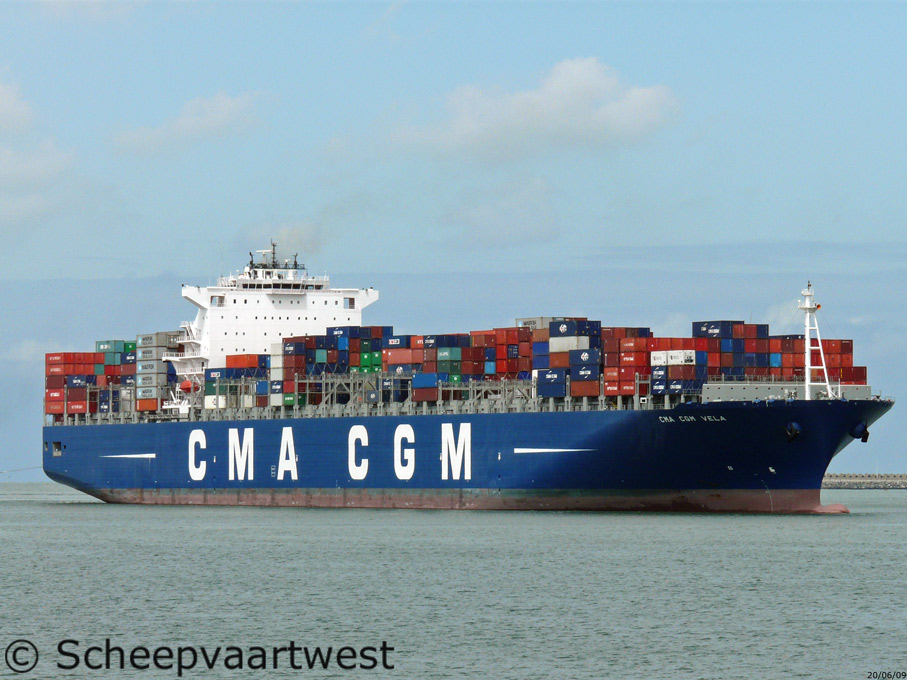

| Zeebrugge 20/06/09 | Zeebrugge 20/06/09 | Zeebrugge 28/04/14 | Zeebrugge 28/04/14 | Zeebrugge 20/06/09 | Zeebrugge 24/07/14 |
|
Name |
CMA CGM VELA |
|
Previous name |
Conti Jupiter |
|
Type |
Cellular containership |
|
IMO-number |
9354923 |
|
Call sign |
DFUM2 |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
GT |
128.600 t Suez: 130.392,48 t |
|
DWT |
131.831 t |
|
NT |
72.696 t Suez: 114.078,26 t |
|
Number of 20ft containers |
11.040 |
|
Container capacity 14t |
7.990 |
|
Reefer point |
700 (incl. 130 under deck) |
|
Length |
347,48 m overall 333,15 m registered |
|
Breadth |
45,20 m registered |
|
Draught |
Summer: 15,50 m |
|
Forecastle |
166,573 m |
|
Bridge |
157,773 m |
|
Freeboard |
7.347 mm |
|
Depth |
29,70 m moulded |
|
Speed |
24,3 knots |
|
Built |
2008 |
|
Keel laid |
28.04.2008 |
|
Launch date |
12.07.2008 |
|
Date of completion |
17.10.2008 |
|
Builder |
DSME - Daewoo Shipbuilding & Marine Engineering Co., Ltd. Okpo Shipyard |
|
Yard number |
4125 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Double bottom |
|
Watertight bulkheads |
12 |
|
Continuous decks |
2 |
|
Propelling engine |
1x Man B&W 12K98ME-C - 2 stroke single acting 12 cylinder 980 x 2.400 mm diesel engine - 72.240 kW at 104,0 rpm Year of manufacture: 2008 Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propeller |
1x Solid propeller (keyless) - aft at 104 rpm |
|
Boilers |
1x Steam boiler, exhaust gas heated - 10,0 bar Heating surface: 631,0 m² Year of manufacture: 2007 Manufacturer: Aalborg Industries A/S 1x Steam boiler, oil fired - 10,0 bar Heating surface: 46,23 m² Year of manufacture: 2008 Manufacturer: Aalborg Industries Ltd. |
|
Electric installations |
1x Plant 6.600 V - 16.000 kVA 1x Plant 450 V - 596 kVA 1x Plant 24 V - 65 Ah 1x Plant 24 V - 80 Ah 1x Plant 24 V - 120 Ah 1x Plant 24 V - 300 Ah 1x Plant 24 V - 300 Ah 1x Plant 110 V - 40 Ah |
|
Generators |
4x Daihatsu 8DK32C main diesel generatorsets each 3.200 kW / 4.000 kVA |
|
Emergency generator |
1x Diesel generatorset 596 kVA |
|
Batteries |
1x Battery for UPS navigation 300 Ah 1x Battery for UPS radio 300 Ah 2x Batteries for diesel control each 120 Ah 2x Batteries for automation each 80 Ah 2x Batteries for diesel control each 65 Ah 2x Batteries for automation each 40 Ah |
|
Compressed air receivers |
1x Receiver 180 litres - 33,0 bar 2x Receivers each 17.000 litres - 32,4 bar 1x Receiver 300 litres - 32,4 bar 1x Receiver 350 litres - 7,7 bar |
|
Bow thruster |
1x Transverse thruster - 3.000 kW, forward |
|
Tank capacities |
Bunker: 16.000 t Water ballast: 25.000 t |
|
Anchor equipment |
3x Anchors weight each 23.000 kg Chain length: 770,00 m |
|
Cargo gear |
Gearless |
|
Crew |
25 |
|
Crew size |
38 |
|
Manager |
NSB Niederelbe Schiffahrts GmbH & Co. KG |
|
Operator |
CMA CGM |
|
Owner |
Conti 155. Container Schifffahrts-GmbH & Co. KG MS "CONTI JUPITER" |
