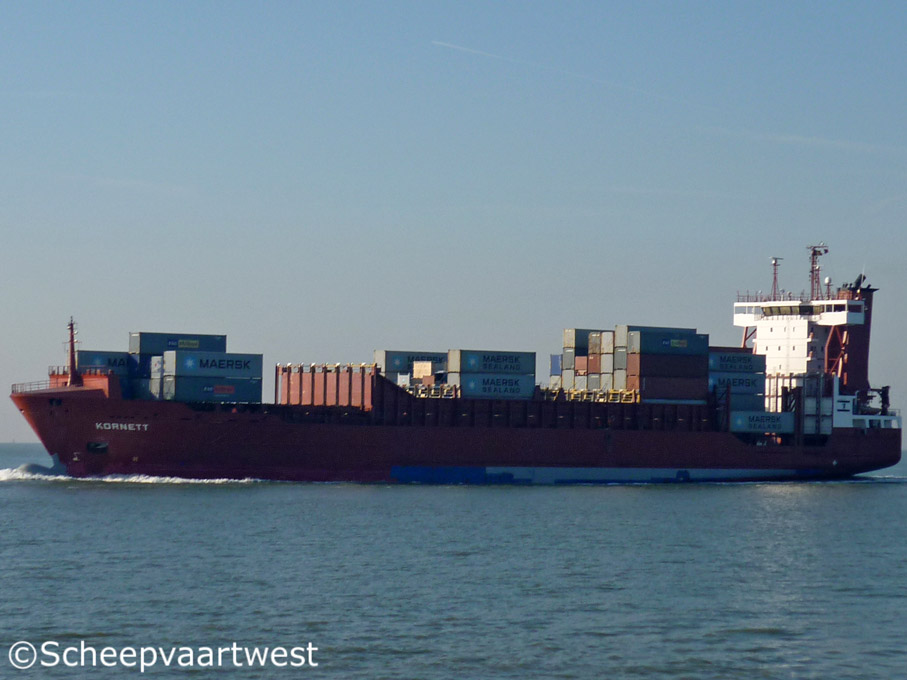

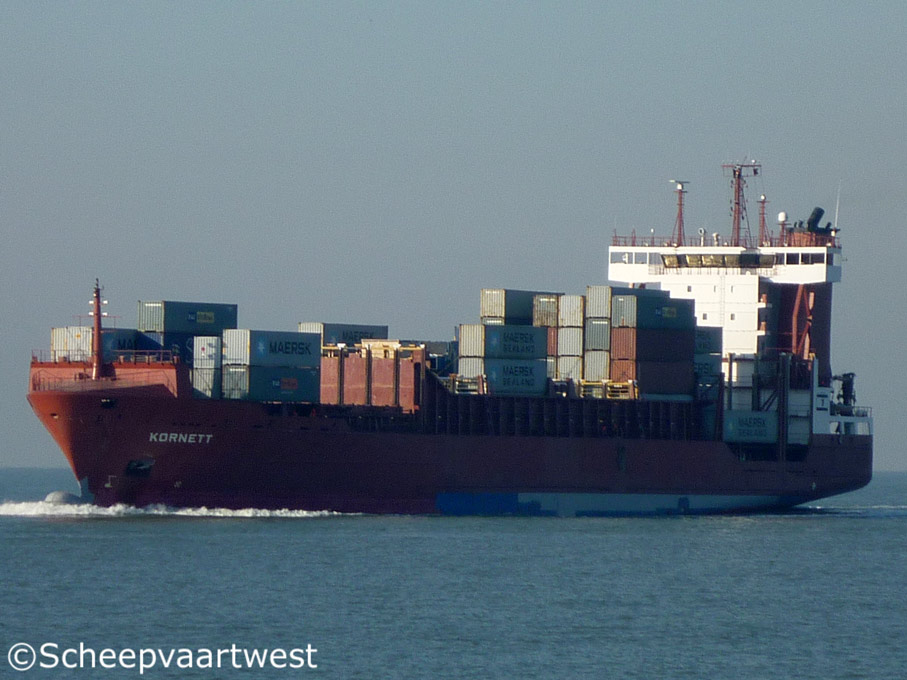

| Westerschelde 06 February 2012 |
 |
| Westerschelde 06/02/12 |
|
Name |
KORNETT |
|
Type |
Containership |
|
IMO-number |
9354428 |
|
Call sign |
V2CO2 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. Johns |
|
GT |
9.962 t |
|
DWT |
11.434 t |
|
NT |
6.006 t |
|
Number of 20ft containers |
868 |
|
Container capacity 14t |
516 |
|
Reefer capacity |
150 |
|
Length |
134,44 m overall 125,08 m registered |
|
Breadth |
22,50 m registered |
|
Draught |
8,70 m |
|
Forecastle |
62,54 m |
|
Bridge |
28,85 m |
|
Poop |
9,45 m |
|
Freeboard |
2.609 mm |
|
Depth |
11,30 m |
|
Speed |
18,5 knots |
|
Built |
2007 |
|
Keel laid |
10.12.2004 |
|
Launch date |
21.04.2007 |
|
Date of completion |
05.07.2007 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. |
|
Yard number |
1241 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar MaK 9 M43C - 4 stroke 9 cylinder 430 x 610 mm diesel engine - 8.400 kW at 500 rpm Year of manufacture: 2007 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft at 128 rpm |
|
Boilers |
2x Thermal oil heater, oil fired - 10,0 bar Heating Surface: 45,4 m² 2x Thermal oil heater, exhaust gas heated - 10,0 bar Heating Surface: 183,0 m² Year of manufacture: 20: 07 Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH |
|
Electric installation |
1x Plant 400/230 V - 1.155 kVA 1x Plant 400/230 V - 1.390 kVA 1x Plant 400 V - 1.860 kVA 1x Plant 400 V - 400 kVA 1x Plant 24 V - 140 Ah |
|
Shaft generator |
1x 1.860 kVA / 1.488 kW |
|
Generators |
1x Caterpillar main diesel generatorset 1.390 kVA/ 1.112 kW 1x Caterpillar main diesel generatorset 1.155 kVA / 924 kW |
|
Emergency + Harbour gen. |
1x Diesel generatorset 400 kVA |
|
Batteries |
2x Batteries for start emergency engine each 140 Ah |
|
Compressed air receivers |
2x Receivers each 750 - 30,0 bar 1x Receiver 10 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster - 750 kW, forward 1x Transverse thruster - 450 kW, aft |
|
Anchor equipment |
3x Anchors weight each 5.250 kg Chain length: 577,50 m |
|
Gear |
Gearless |
|
Crew size |
17 |
|
Manager |
Reederei Eicke GmbH & Co. KG |
|
Registered owner |
MS ''KORNETT'' GmbH & Co. KG |
