Antwerpen 15 November 2018 |
|
Name |

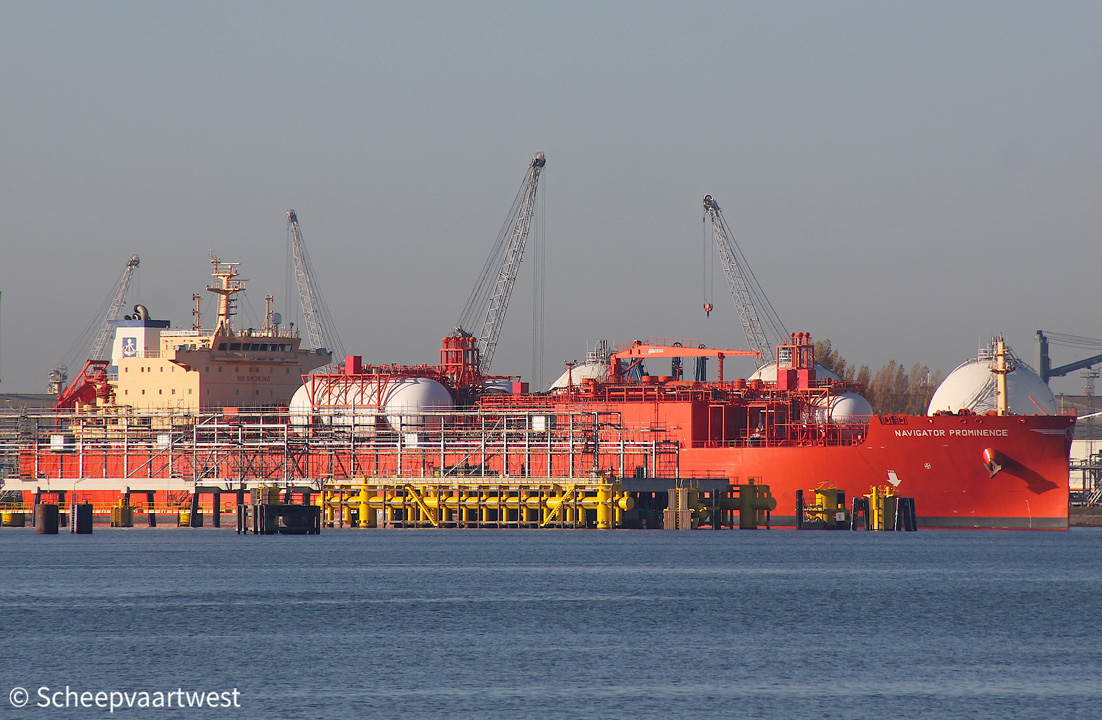

NAVIGATOR PROMINENCE |
|
Type |
Ethylene/LPG Carrier |
|
Main products |
Ammonia - Butadiene - Butane - Butene-1 - Crude-C4 - Ethane - Ethylene - Propane - Propylene - V.C.M |
|
IMO-number |
9742326 |
|
Call sign |
D5KU6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
27.546 t registered Suez: 29.990,97 t |
|
DWT |
Summer: 26.939,3 t |
|
NT |
8.263 t registered Panama: 22.981 t Suez: 26.311,38 t |
|
Length |
179,89 m overall 176,00 m between perpendiculars |
|
Breadth |
29,60 m moulded |
|
Draught |
Max: 11,00 m |
|
Freeboard |
8.421 mm |
|
Depth |
19,40 m moulded |
|
Speed |
Service: 16,0 knots |
|
Keel laid |
30/12/2015 |
|
Delivery date |
08/11/2017 |
|
Builder |
Jiangnan Shipyard (Group) Ltd. Co. |
|
Yard number |
H2564 |
|
Hull material |
Ordinary strength steel |
|
Hull type |
Double bottom |
|
Bulkheads |
Water tight: 2 Gas tight: 3 Oil tight: 1 |
|
Main engine |
1x Hyundai- MAN B&W 6S50ME-C8.2-GI - 2 stroke 6 cylinder combustion engine 8.100 kW at 108 rpm |
|
Propellers |
1x Fixed propeller |
|
Generators |
2x Wärtsilä 6L20 diesel generatorsets each 1.054 kW 2x Wärtsilä 8L20 diesel generatorsets each 1.420 kW |
|
Number of cargo tanks |
3x Bi-lobe Max pressure: 4,16 bar Min temp: -104°C |
|
Cargo tank capacity |
35.000 m³ |
|
Deck tank |
200 m³ Min temp: -104°C Max pressure: 18,0 bar |
|
Pumps |
6x Elec. motor driven cargo pumps Svanehoy deepwell type |
|
Number of tanks |
Ballast: 14 Fuel oil: 10 Lubricating oil: 8 Fresh water: 4 Diesel oil: 3 Waste water: 2 Sludge: 2 Chain: 2 Sewage: 1 |
|
Tank capacities |
HFO: 1.887,8 m³ MGO: 236 m³ Fresh water: 295 m³ Ballast water: 13.697 m³ Lub oil: 128,2 m³ |
|
Lifting equipment |
1x Cargo crane - SWL 7,5 t Manufacture: CSSC - Nanjing Luzhou Machine Co., Ltd. 1x Engine room crane - SWL 2,0 t Manufacture: Nantong CSEMC Machinery Manufacture Co., Ltd. 1x Provision crane port - SWL 2,0 t 1x Provision crane starboard - SWL 2,0 t Manufacture: Zhenjiang Marine Auxiliary Machinery Works |
|
Manager |
Navigator Gas LLC |
|
Operator |
Northern Marine Management Limited |
|
Owner |
Navigator Prominence L.L.C. Ajeltake Road, Ajeltake Island |
|
Registered owner |
Navigator Prominence LLC |
|
Latest data adjustment |
26 November 2018 |
