| Westerschelde 20 July 2012 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 20/07/12 | Westerschelde 28/10/11 | Westerschelde 01/08/18 | Westerschelde 01/08/18 | Westerschelde 15/09/18 | Westerschelde 15/06/18 | |||||
 |
||||||||||
| Westerschelde 25/09/16 | ||||||||||
|
Name |

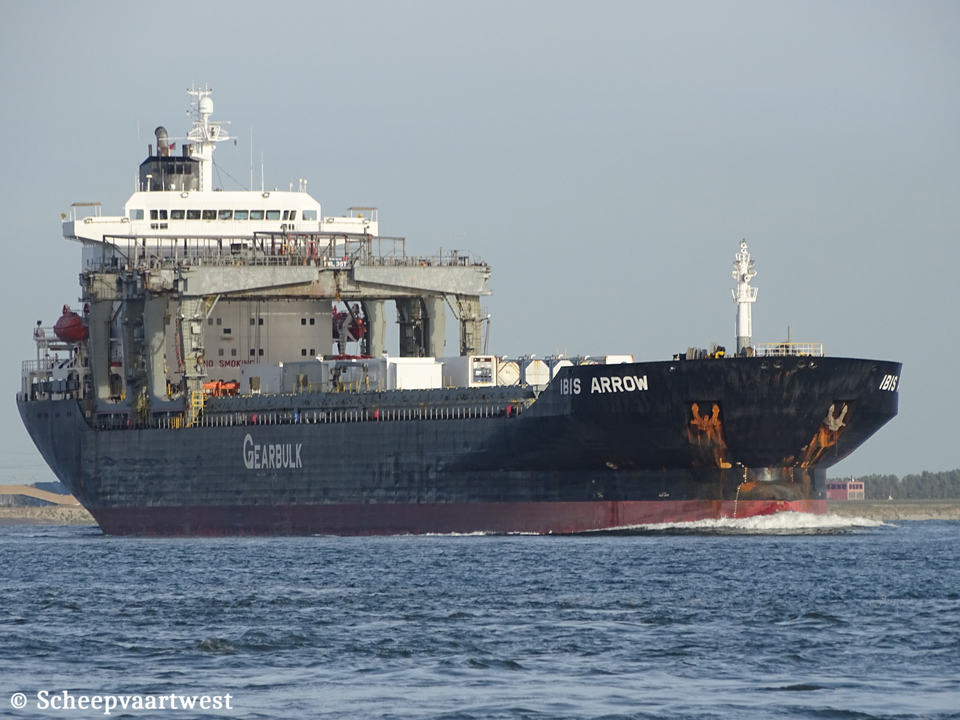

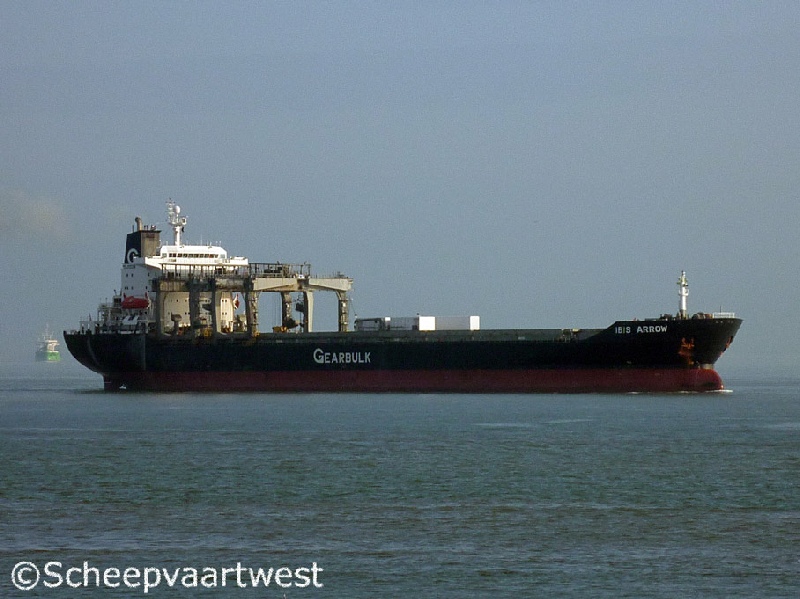

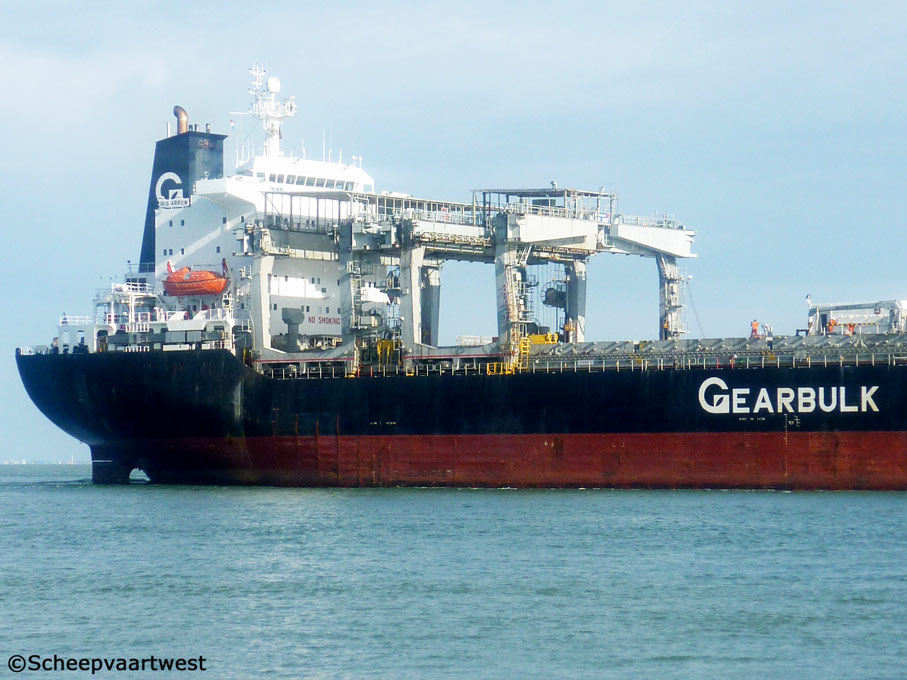

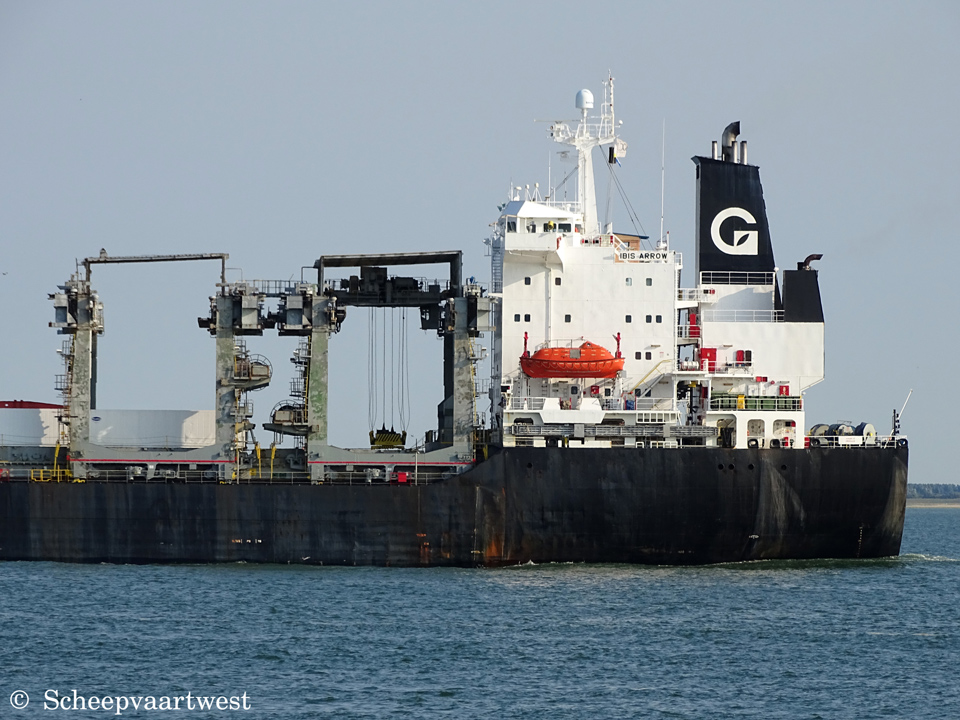

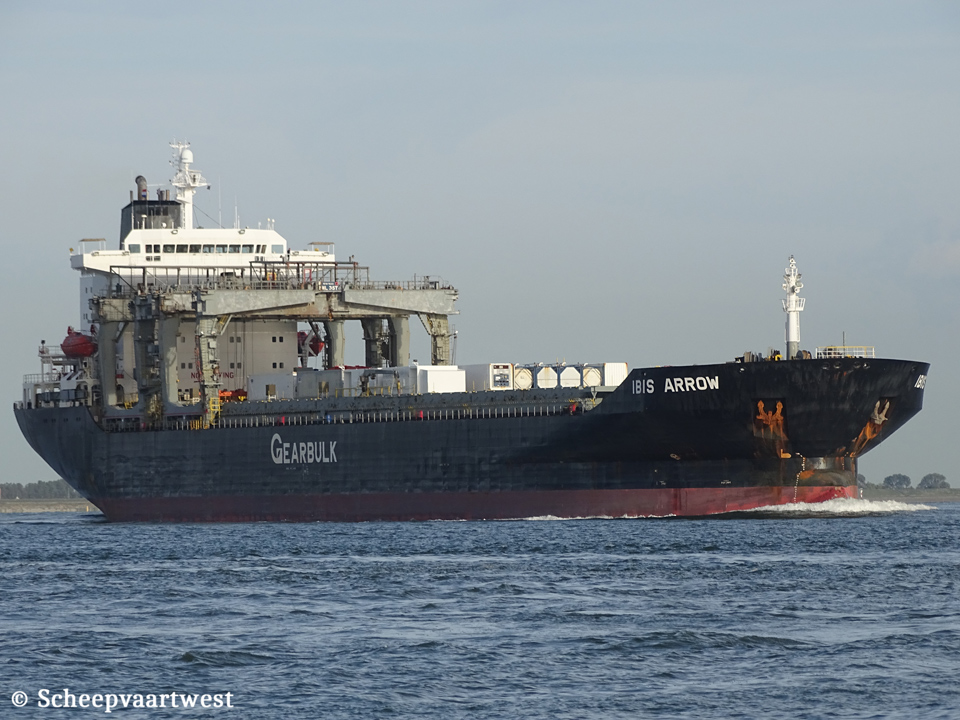

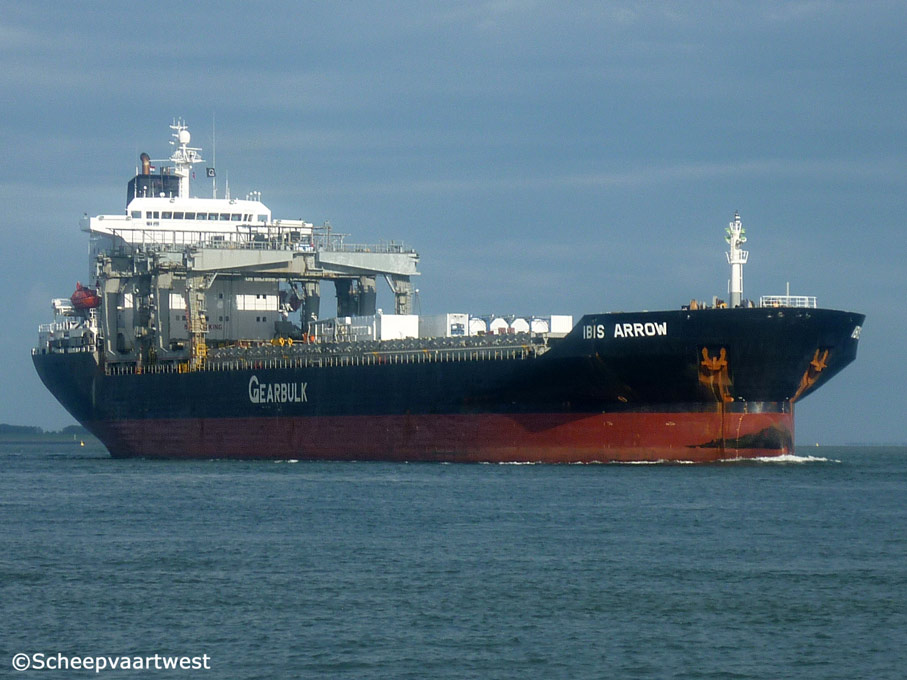

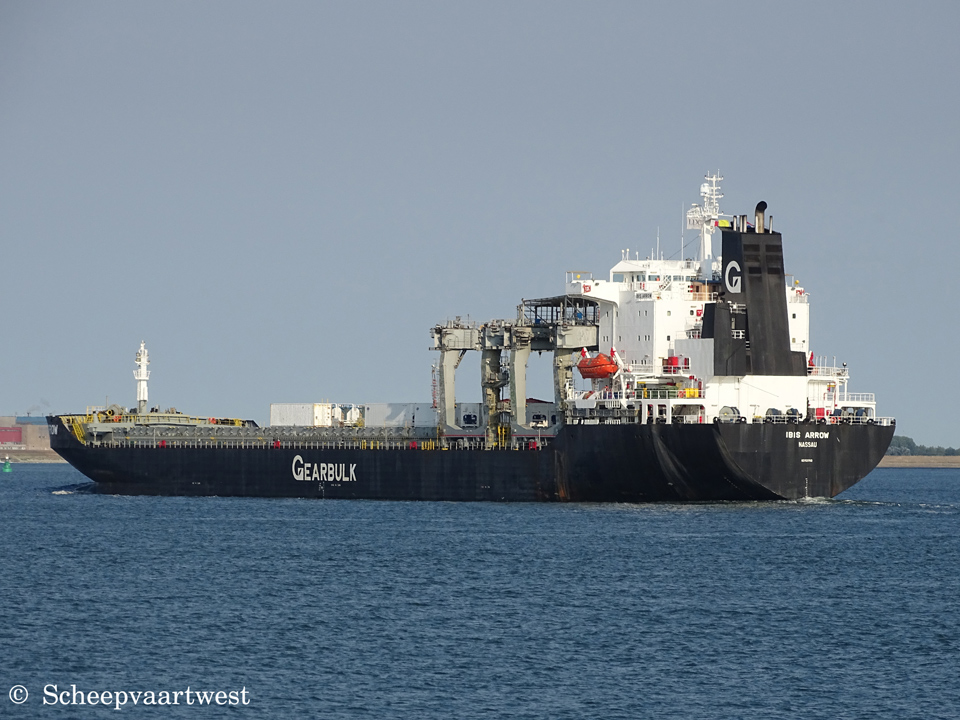

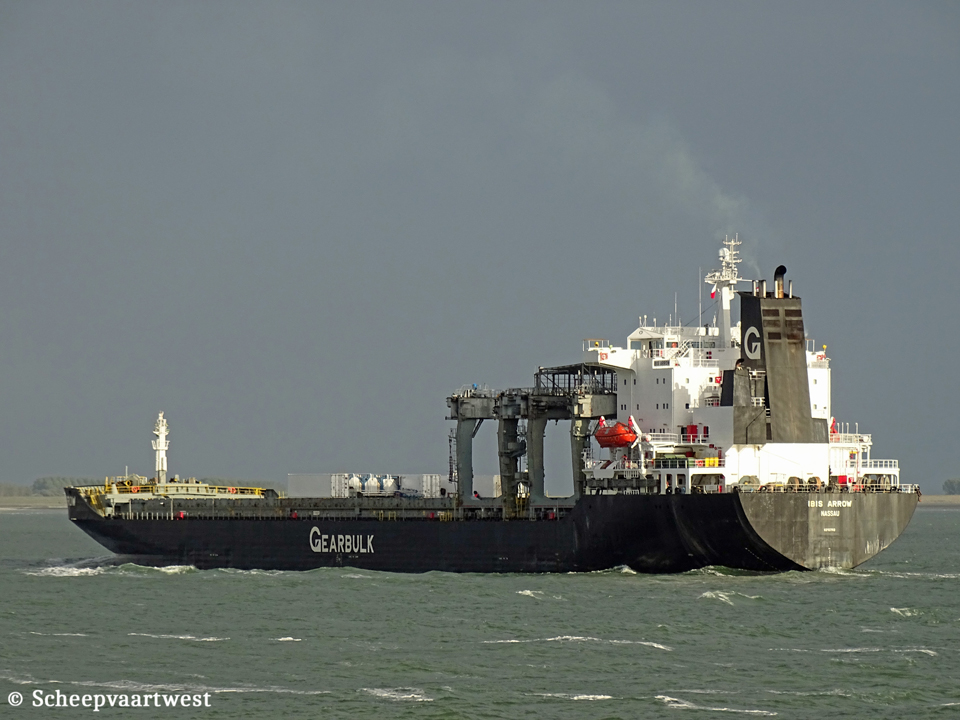

IBIS ARROW |
|
Previous names |
1986 - 31/12/1990 Singapore Express 31/12/1990 - 15/03/1991 Ibis Arrow 15/03/1991 - 26/04/1991 Singapore Express |
|
Type |
General cargo carrier - Bulk carrier - Forest product carrier |
|
IMO-number |
8313702 |
|
Call sign |
C6CU6 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
28.239 t |
|
DWT |
Summer: 42.497 t |
|
NT |
12.870 t |
|
Number of 20ft containers |
1.392 |
|
Length |
187,50 m overall 178,60 m between perpendiculars |
|
Breadth |
29,06 m extreme |
|
Draught |
12,364 m |
|
Depth |
16,89 m |
|
Speed |
14,5 knots |
|
Built |
1986 |
|
Keel laid |
18/09/1984 |
|
Launch date |
19/01/1985 |
|
Date of completion |
05/09/1986 |
|
Builder |
Samsung Shipbuilding & Heavy Industries Co. Ltd. 530 Jangpyung-Ri Sinhyun-Up 665-800 Koje Republic of Korea |
|
Yard number |
1029 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Transverse: 9 |
|
Main engine |
1x MAN-B&W 6L60MCE- 6 cylinder combustion engine 8.056 kW / 10.800 bhp at 110,0 rpm |
|
Propeller |
1 |
|
Boilers |
1x Auxiliary boiler, vertical shell type ACM (Domestic heating & fuel heating.) - AQ3 1x Auxiliary boiler, exhaust gas water tube ACU (Exhaust gas boiler.) - AV6 Builder: Aalborg |
|
Shaft generator |
1x Hyundai 8H21/32 - 1.520 kW at 900 rpm Builder: Hyundai Heavy Industries Co., Ltd. |
|
Generators |
1x Bergen Mekaniske Verksted - KRG8 diesel generatorset 2x Bergen Mekaniske Verksted - KRG6 diesel generatorsets |
|
Emergency generator |
1x MAN D2566 MTE diesel generatorset |
|
Number of holds |
7 Hold 1: 12,40 x 17,00 x 16,00 m Hold 2: 24,60 x 23,00 x 16,90 m Hold 3: 12,40 x 23,00 x 16,90 m Hold 4: 24,60 x 23,00 x 16,90 m Hold 5: 12,40 x 23,00 x 16,90 m Hold 6: 24,60 x 23,00 x 16,90 m Hold 7: 12,40 x 23,00 x 15,88 m |
|
Cargo hold capacity |
Bale: 455.675 ft³ / 12.903 m³ Grain: 471.032ft³ / 13.338 m³ |
|
Hatchways |
1x Hatch with dimension: 12,50 x 17,00 m 6x Hatches with dimension: 24,60 x 24,00 m 12,50 x 24,00 m 24,60 x 24,00 m 12,50 x 24,00 m 24,60 x 24,00 m 12,50 x 24,00 m |
|
Ballast capacity |
26.262,90 m³ |
|
Cargo cranes |
2x Gantry cranes - SWL 35,0 t each Grab fitted: 2x 13 m³ |
|
Crew size |
30 |
|
Manager |
Gearbulk Norway AS Damsgårdsv. 165 5160 Laksevåg Norway |
|
Previous managers |
1986 - 2011 Kristian Gerhard Jebsen Skipsrederi A/S Folke Bernadottes Vei 38 5147 Fyllingsdalen Norway |
|
Operator |
Gearbulk |
|
Owner |
Gearbulk Shipowning Ltd. Folke Bernadottesvei 38 5845 Bergen Norway |
|
Sister ships |
1985 Hawk Arrow |
|
Renamed |
2020 - 2023 Aruba Pearl Bahamas, Nassau - Call sign: C6CU6 Owner: Aruba Pearl Shipping Co. Ltd. Manager: SMT Shipping Poland Sp. z o.o. 06/06/2023 Bontrup Emirates Bahamas, Nassau - Call sign: C6CU6 |
|
Scrapped |
24/02/24 Beached at Alang - India |
|
Latest data adjustment |
22 July 2024 |
