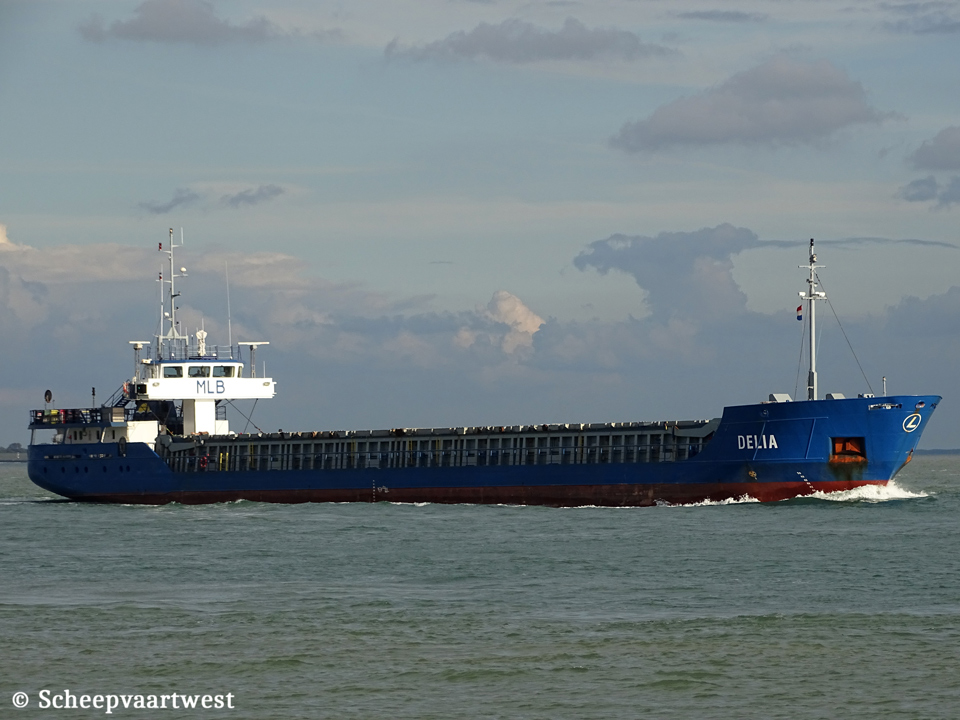

Delia IMO 9234317 01

Westerschelde 19 September 2017

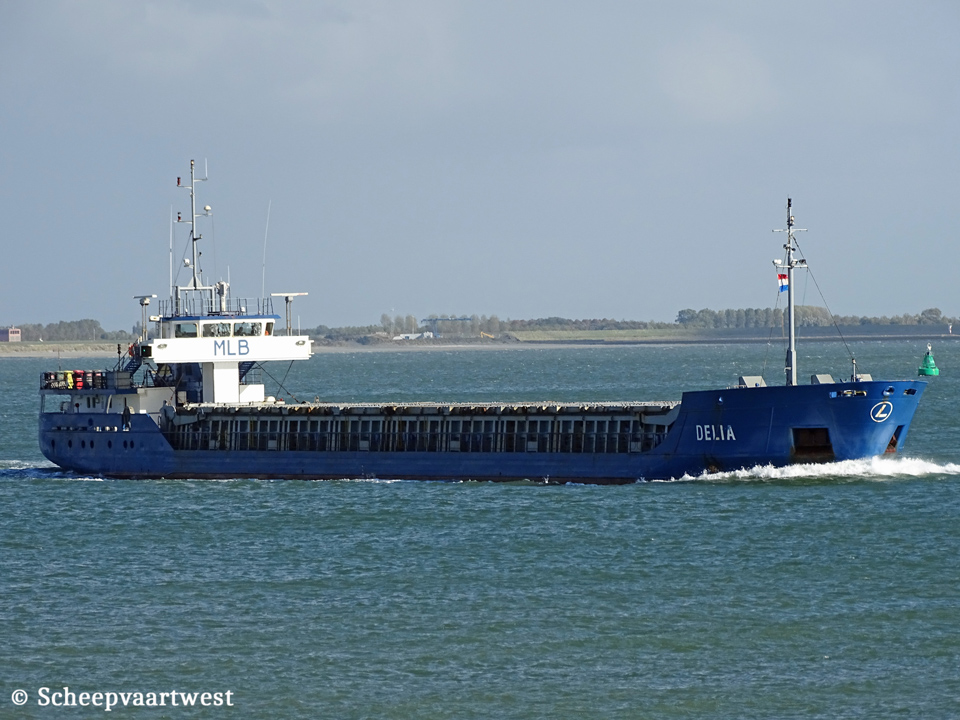

Delia IMO 9234317 02
Westerschelde 01/10/18









Name

DELIA

Type

Multi-purpose carrier - Container Ship - Heavy cargo

Seine / Rhone / Rhine going General Cargo / Container Vessel

IMO-number

9234317

Call sign

V2AB4

Flag

Antigua & Barbuda

Port of registry

St. John’s

GT

1.846 t

DWT

Summer: 2.560 t

Winter: 2.370 t

NT

1.081 t

Number of 20ft containers

In hold: 52

On deck: 72

Total: 124

Container capacity 14t

100

Reefer capacity

16

Length

89,71 m overall

84,60 m between perpendiculars

Breadth

11,65 m overall

Draught

Summer: 4,49 m

3,12 m in ballast

Keel to top antenna

23,00 m

Lowered mast: 11,60 m

Air draft

19,88 m

Freeboard

1.329 mm

Depth

5,80 m

Speed

12,5 knots

Built

2000

Date of completion

15/11/2000

Builder

STX OSV Tulcea S.A.

Tulcea

Romania

Yard number

252

Hull material

Steel

Hull type

Single hull

Watertight compartments

4

Movable bulkheads

2x Moveable bulkheads, 8 different positions

Continuous decks

1

Main engine

1x Deutz MWM SBV8M628 - 4 stroke single acting 8 cylinder 240 x 182 mm combustion engine 1.500 kW / 2.038 hp at 900 rpm

Build: 2000

Builder: Deutz A.G.; Mannheim - Germany

Propellers

1x Fixed pitch propeller - aft at 246 rpm

Electric installations

Power voltage: 380 V

Lighting voltage: 220 V

Frequency: 50 Hz

Generators

2x Scania DS 995 M03S main diesel generatorsets each 200 kVA - 160 kW - 272 hp

Emergency generator

1x Valmet 420 DSG diesel generatorset 77 kVA - 62 kW - 95 hp

Bow thruster

1x Fixed pitch thruster 194 kW / 264 bhp, forward

Number of holds

1

59,66 m x 9,30 m x 6,65 m

Boxshaped at length of 51,81m

Cargo hold capacity

Grain: 3.674 m³ / 129.746 ft³

Bale: 3.582 m³ / 129.497 ft³

Hold ventilation

6x Air changes per day

Number of hatches

1

57,81 m x 9,30 m

Hatch type

Crocodile hydraulic folding covers

Max permitted loads

Tanktop: 15,0 t/m²

Weatherdeck hatch: 1,56 t/m²

Tank capacities

Fuel oil: 147,09 m³

Freshwater: 30,00 m³

Lub oil: 14,75 m³

Ballast: 1.118,03 m³

Crew size

8

Manager

MLB - Manfred Lauterjung befrachtung GmbH & Co., KG

Promenade Am Alten Binnenhafen 10

26721 Emden

Germany

Registered owner

Reederei M. Lauterjung GmbH & Co. KG Sunship Eurocoaster

Latest data adjustment

04 January 2020
