Delicata 01

Vlissingen 13 November 2015
The Netherlands

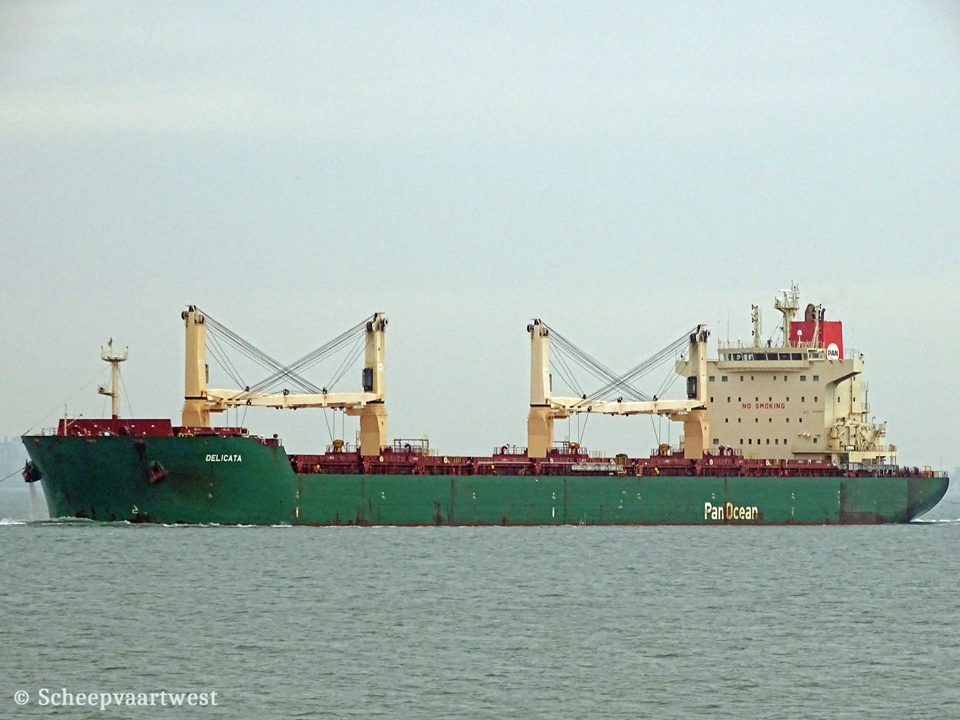

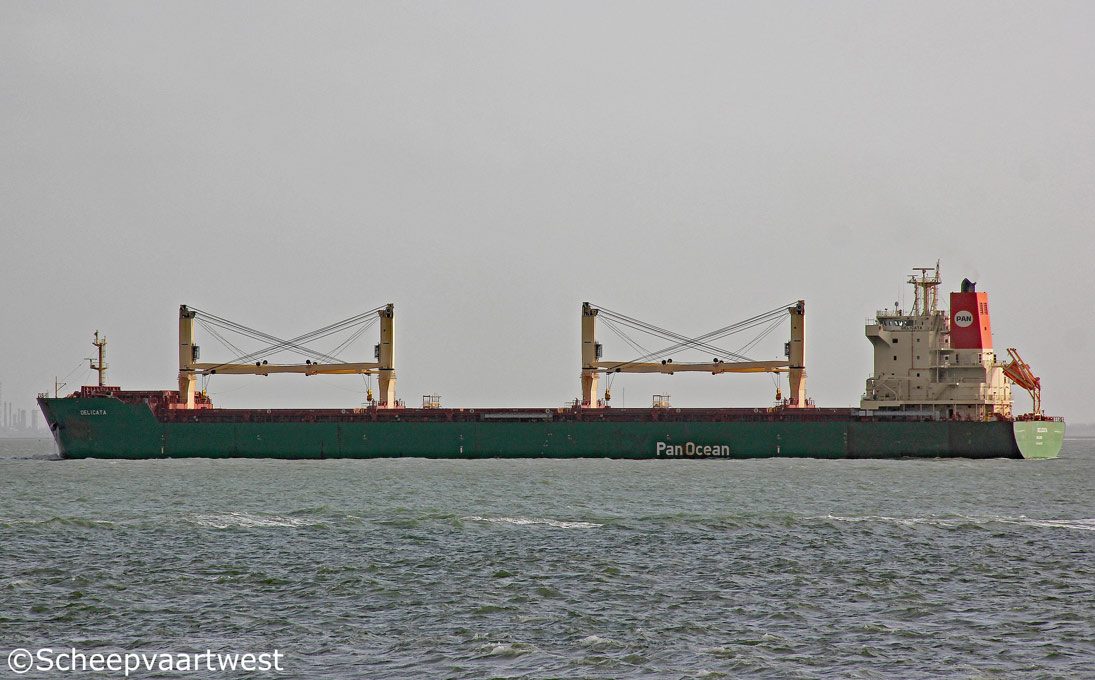

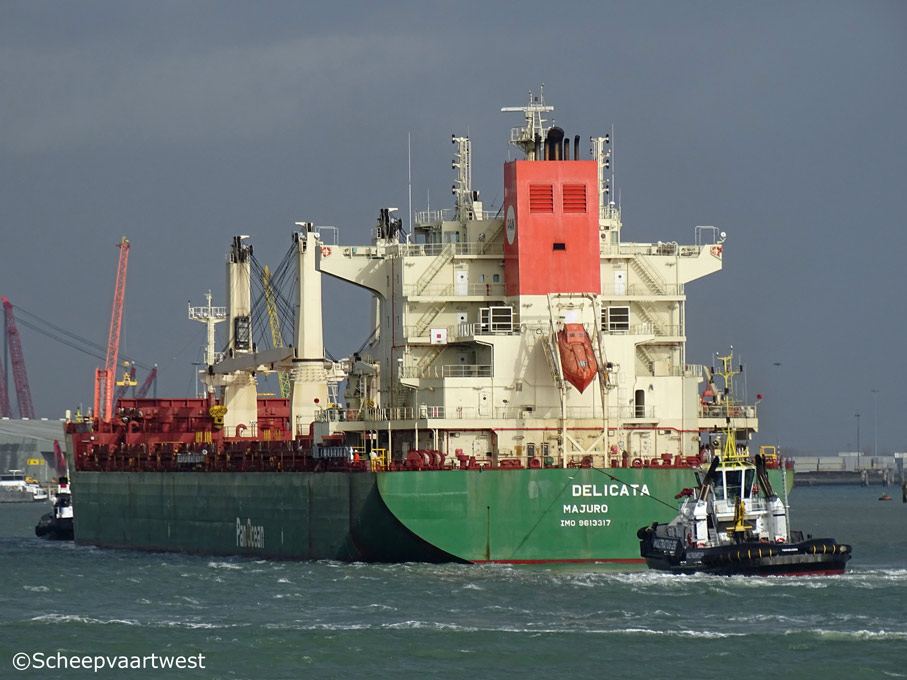

Delicata 02   Delicata 03   Delicata IMO 9613317 04
Vlissingen 13/11/15 Westerschelde 13/11/15   Westerschelde 27/06/17


Name

DELICATA

Previous names

2013 - 05/2014 STX Delicata

Type

General dry cargo ship - Open hatch

IMO-number

9613317

Call sign

V7AQ5

Flag

Marshall Islands

Port of registry

Majuro

GT

39.009 t

DWT

57.441 t

NT

16.720 t

Length

199,96 m overall

191,80 m between perpendiculars

Breadth

32,26 m

Draught

12,72 m

Reg. dimensions L x B x D

192,67 X 32,26 X 19,30 m

Rule dimensions L x B x D

192,67 X 32,26 X 19,30 m

Freeboard

3.715 mm

Depth

19,30 m

Speed

13,9 knots

Built

2013

Keel laid

23/11/2012

Launch date

31/12/2012

Date of completion

10/05/2013

Builder

STX Offshore & Shipbuilding Jinhae Shipyard

Jinhae

South Korea

Yard number

S1542

Hull material

Steel

Main engine

1x MAN-B&W 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 9.960 kW / 13.541 hp at 127,0 rpm

Built: 11/01/2013

Builder: STX Heavy Industries Co., Ltd., Changwon - South Korea

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary Boiler CPB - 9,0 kg/cm²

Heating surface: 265 m²

Build: 18/06/2012

Builder: Seah E&T Co.,Ltd., Ulsan - South Korea

Generators

1x Generators each 1.138 kVA - 450 Volt

Cargo hold capacity

Grain: 68.840 m³

Number of hatchway

8

Hatchway 1: 1 12,80 x 18,00 m

Hatchway 2-7: 18,40 x 28,20 m

Hatchway 8: 12,80 x 28,20 m

Tank capacities

Fuel oil: 3.044,8 m³

Fresh water: 434,8 m³

Ballast water: 23.019,6 m³

Cargo gear

4x Deck cranes - SWL 45 t each

Commercial manager

Pan Ocean Co., Ltd.

Seoul

South Korea

ISM manager

POS SM Co., Ltd.

Registered owner

Pos Maritime RE S.A.

Latest data adjustment

25 September 2024
