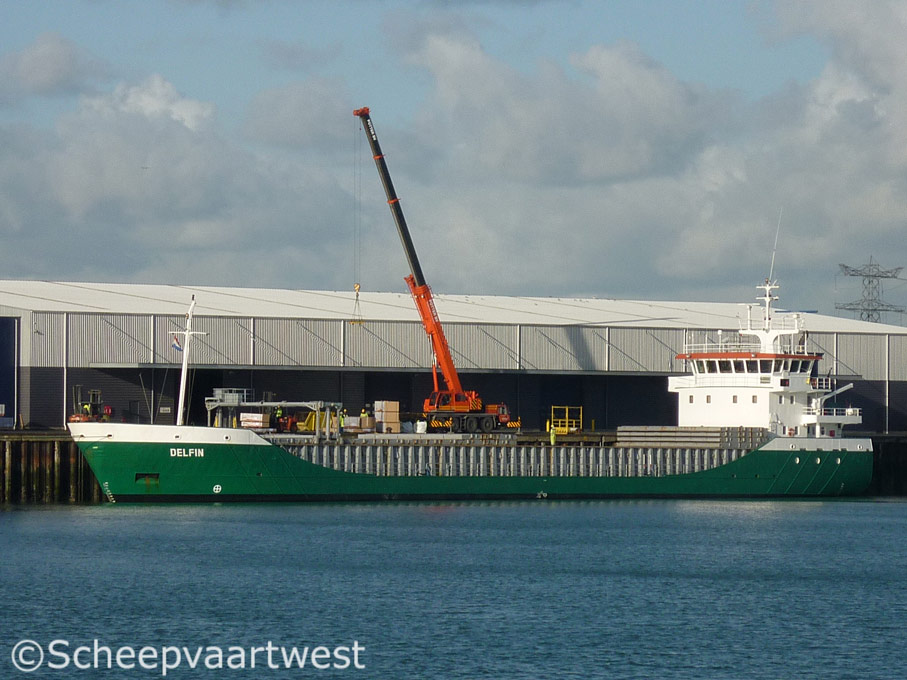

Delfin 01
Vlissingen 02 December 2012

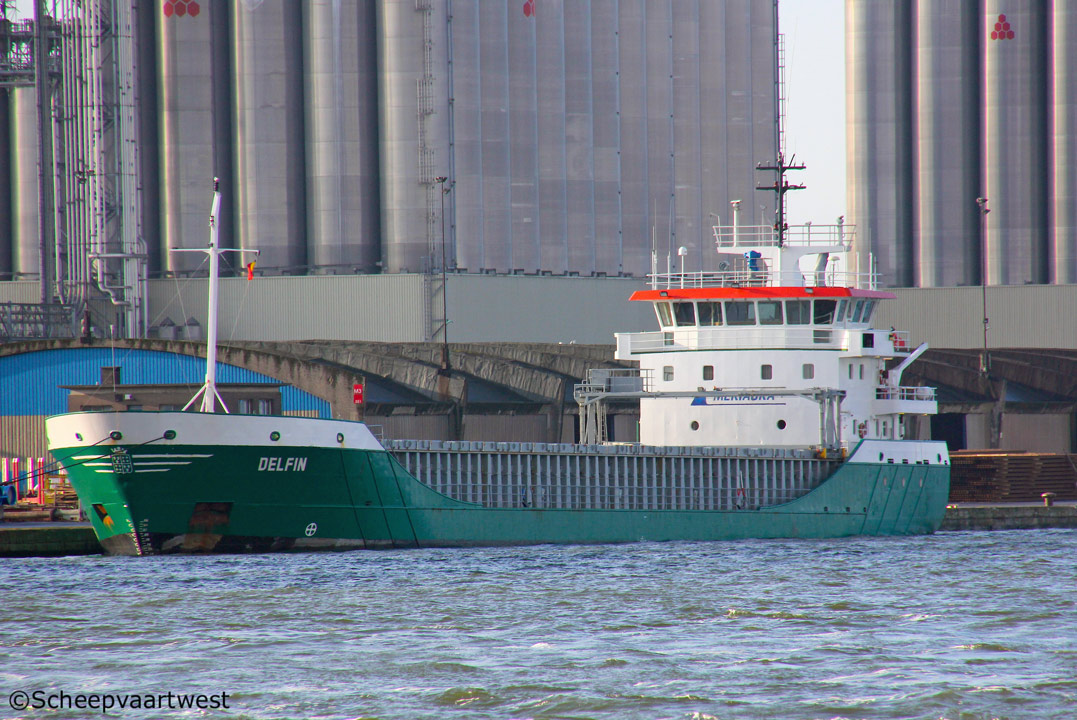

Delfin 02
Antwerpen 28/12/17



Name

DELFIN

Previous names

1998 - 24.02.2005 Lumare

Type

General cargo ship - Equipped for carriage of containers, Strengthened for heavy cargo

Box-shaped Singledecker

IMO-number

9173161

Call sign

ZDGT7

Flag

Gibraltar

Port of registry

Gibraltar

Previous flag

1998 - 2005 The Netherlands, Harlingen - Call sign: PFTH

GT

2.780 t

DWCC

Summer: 3.550 t

Winter: 3.450 t

DWT

3.789 t

NT

1.587 t

Number of 20ft containers

In hold: 96

On deck: 88

Total: 184

Length

89,25 m overall

84,96 m between perpendiculars

Breadth

13,30 m moulded

Draught

5,67 m

Air draft

26,50 m in ballast

Depth

7,15 m moulded

Speed

12,0 knots

Built

1998

Keel laid

02/04/1997

Launch date

20/06/1998

Date of completion

25/07/1998

Builder

Scheepswerf Peters B.V.
Haatlandhaven 1
8263 AS Kampen
The Netherlands

Yard number

457

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

5 whereof 2 movable bulkheads

Movable bulkheads

2

Continuous decks

1

Main engine

1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm diesel engine - 1.800 kW / 2.448 bhp at 750 rpm

Year of manufacture: 1997

Manufacturer: MaK Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft at 217 rpm

Electric installations

1x Plant 380/220 V - 155 kVA

1x Plant 380 V - 475 kVA

1x Plant 380 V - 82 kVA

Shaft generator

1x 475 kVA

Generators

1x Main diesel generatorsets each 155 kVA

Emergency generator

1x Diesel generatorset 82 kVA

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

Bow thruster

1x Transverse thruster 370 kW, forward

Number of holds

2

Each 31,00 x 11,16 x 8,65 m height holds tapering fore 7,20 m and aft 5,00 m

Hatch

2

Each 31,00 x 11,16 m

Cargo capacity

Grain: 5.663 m³ / 200.000 ft³

Max permitted loads

Deck: 1,60 t/m²

Tanktop: 14,0 t/m²

Tank capacities

Ballast water: 1.602 m³

Fuel oil: 259 m³

Anchor Equipment

3x Anchors weight each 1.920 kg

Chain length: 440,00 m

Crew size

8

Manager

Reederei Heinz Corleis KG
Freiburger Str. 3
21682 Stade
Federal Republic of Germany

Previous managers

1998 - 2000 Poseidon Chartering B.V., Delfzijl - The Netherlands

2000 - 2005 Wijnne & Barends' Cargadoors- en Agentuurkantoren B.V., Delfzijl - The Netherlands

Owner

MS "DELFIN" GmbH & Co. KG
Freiburger Str. 3
21682 Stade
Federal Republic of Germany

Previous names & owners

1998 - 02.2005 Lumare - C.V. Scheepvaartonderneming Lumare, Harlingen - The Netherlands

Latest data adjustment

18 March 2018
