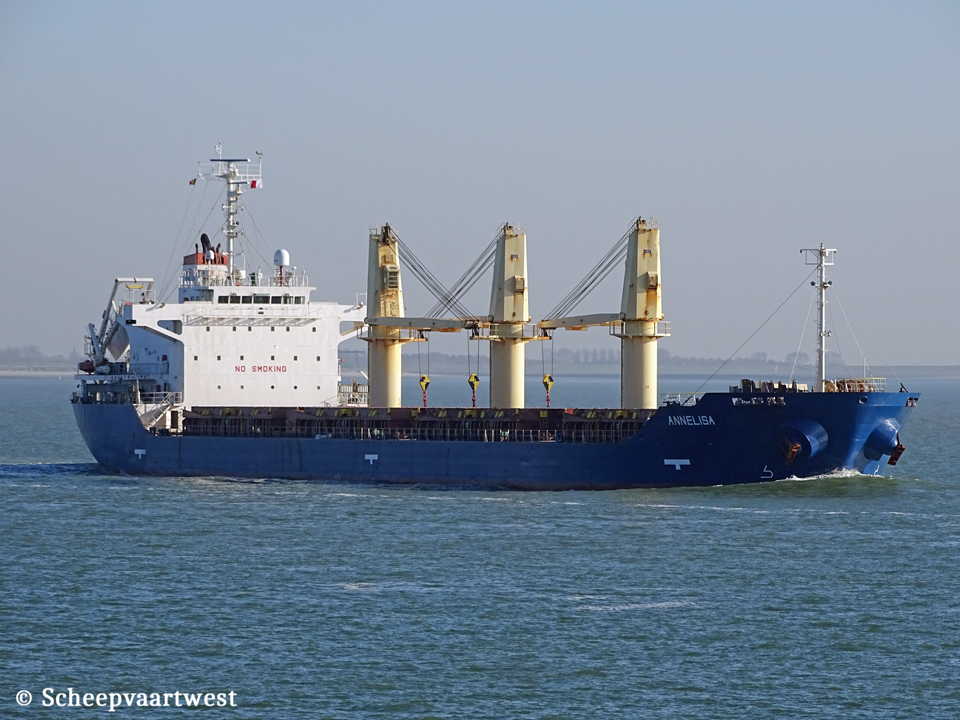

| Westerschelde 15 November 2018 |
|
Name |
ANNELISA |
|
Previous names |
2008 launch as: Sider Red 2008 - 12/2014 Porto Maina |
|
Type |
Bulk carrier |
|
IMO-number |
9385221 |
|
Call sign |
DUGT |
|
Flag |
Philippines |
|
Port of registry |
Manila |
|
Previous flags |
2008 - 2016 Liberia, Monrovia - Call sign: A8QQ2 |
|
GT |
11.767 t registered |
|
DWT |
Summer: 18.920 t Winter: 18.374 t |
|
NT |
6.023 t registered |
|
Light ship |
4.692 t |
|
Displacement |
Summer: 23.612 t Winter: 23.066 t |
|
Length |
139,92 m overall 132,00 m between perpendiculars |
|
Breadth |
25,00 m moulded |
|
Draught |
Summer: 8,50 m Winter: 8,32 m |
|
Freeboard |
3.044 mm |
|
Depth |
11,50 m moulded |
|
Speed |
Max: 15,0 knots |
|
Built |
2008 |
|
Keel laid |
11/04/2008 |
|
Launch date |
16/06/2008 |
|
Date of completion |
25/08/2008 |
|
Builder |
Yamanishi Corporation & Iron Works 1-2 Nishihama-Cho, Ishinomaki City, Miyagi, 986-0843 Japan |
|
Yard number |
1053 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Makita/MAN-B&W 7S35MC - 7 cylinder 350 x 1.400 mm combustion engine 5.180 kW at 173,0 rpm Manufacturer: Makita Corporation |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler - 6,9 MPa 1x Unfired exhaust gas boiler - 10,7 MPa Manufacturer: Miura |
|
Generators |
2x Yanmar 6N18AL-UV min diesel generator each 550 kW at 900 rpm - 450 Volt 60 HZ |
|
Emergency generator |
1x Mitsui BF6L-923 diesel generatorset 82 kW at 1.800 rpm - 450 Volt 60 HZ |
|
Number of holds |
4 |
|
Cargo hold capacity |
Grain: 21.590,34 m³ Bale: 20.896,13 m³ |
|
Tank capacities |
Ballast: 8.932,92 m³ Diesel oil: 51,16 m³ Fuel oil: 645,92 m³ Fresh water: 345,14 m³ Lube oil: 79,34 m³ |
|
Lifting equipment |
3x Cranes - SWL 30,5 t each |
|
Owner |
Orient Shipping Rotterdam Fascinatio Boulevard 742 2909 VA Capelle aan den IJssel The Netherlands |
|
Group |
Van Weelde Shipping Fascinatio Boulevard 742 2909 VA Capelle aan den IJssel The Netherlands |
|
Renamed |
10/2019 Soda Marshall Islands, Majuro - Call sign: V7A2191 Owner: Kazan Shipping Ltd. Operator: Deval Marine LCD, Istanbul - Turkey |
|
Latest data adjustment |
07 April 2022 |
