Westerschelde 05 April 2017 |
 |
 |
 |
 |
|||
| Westerschelde 28/06/18 | Doel, Belgium 29/07/19 | Westerschelde 21/05/19 | Westerschelde 21/05/15 | |||
|
Name |

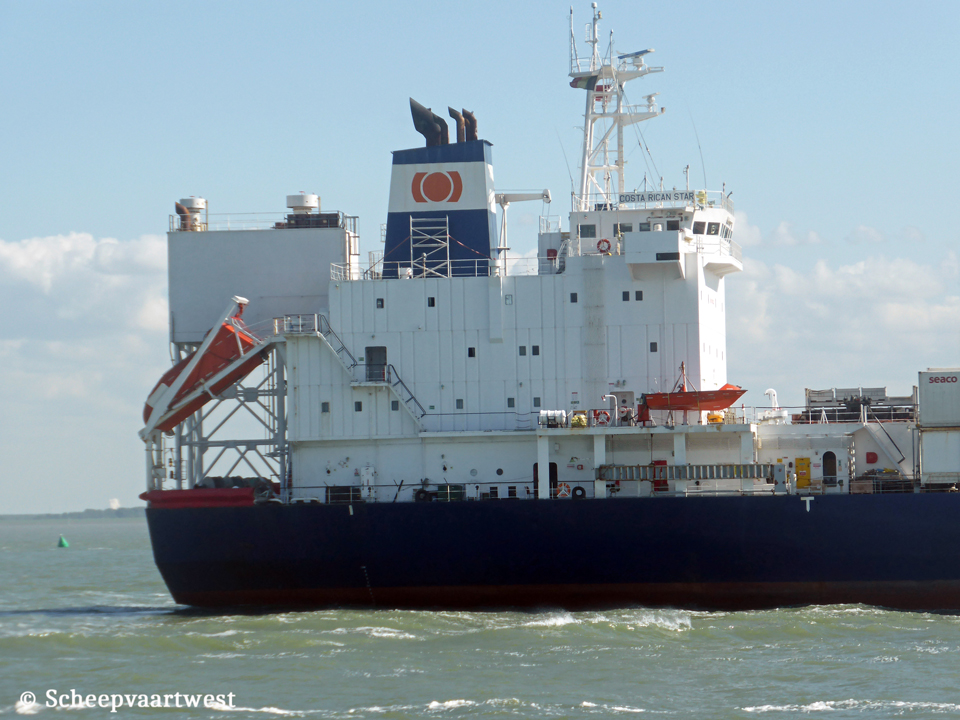

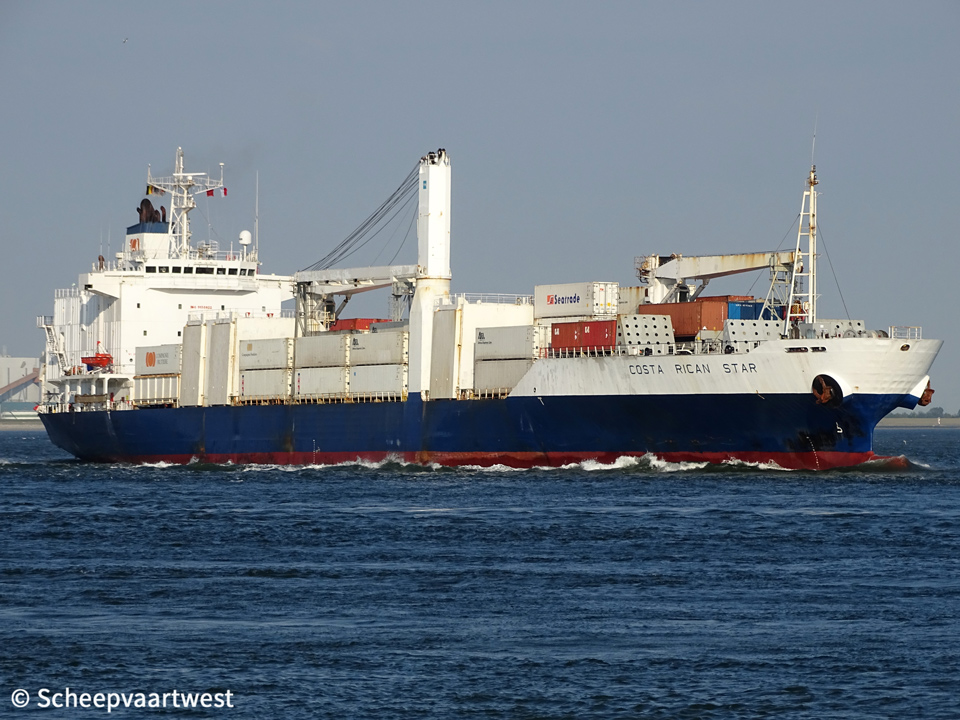

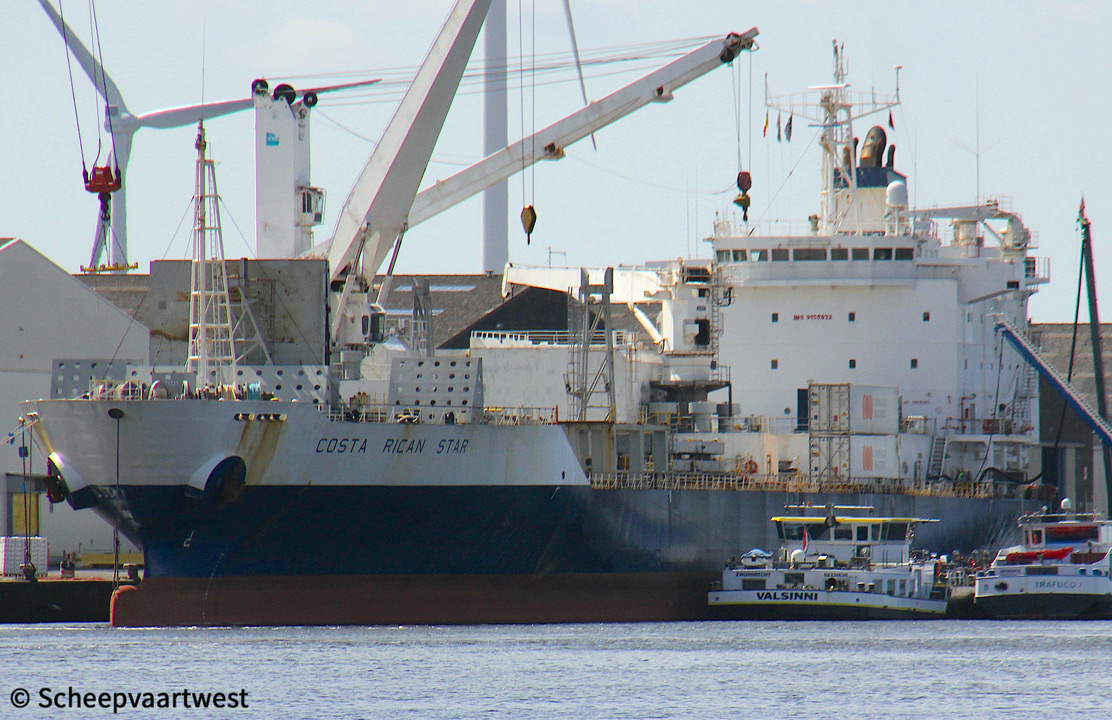

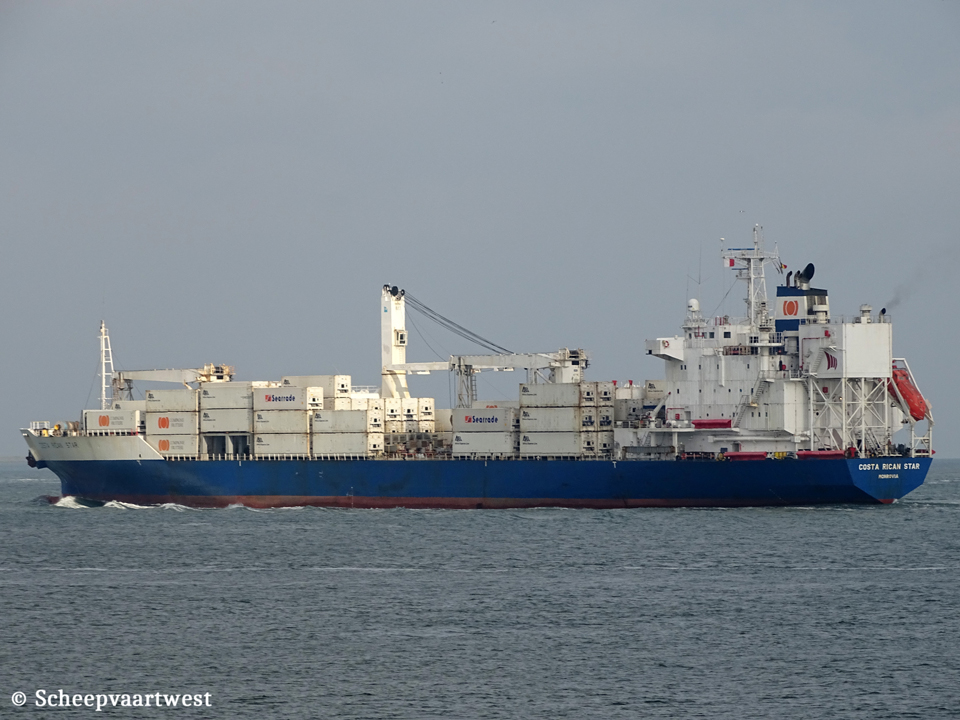

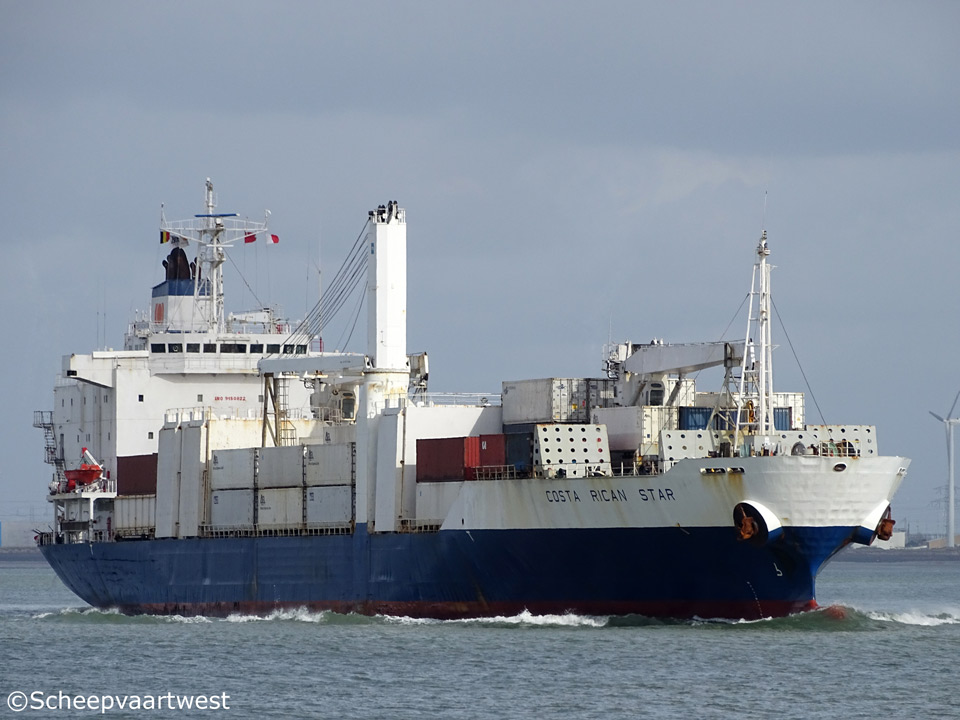

COSTA RICAN STAR |
|
Previous names |
1998 Build as: Costa Rican Star 10/1998 - 12/2002 Hornwind |
|
Type |
Refrigerated cargo ship - Equipped for carriage of containers |
|
IMO-number |
9150822 |
|
Call sign |
A8KK4 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flag |
1998 - 2006 Republic of Panama, Panama City |
|
GT |
15.058 t |
|
DWT |
Summer: 14.551,9 t on 9,01 m draft |
|
NT |
7.480 t |
|
Displacement |
Summer: 24.209,6 t |
|
Number of 20ft containers |
On hatch cover: 105 On deck: 119 Under deck: 48 Container hold: 96 Total: 368 |
|
Number of 40ft containers |
On hatch cover: 76 On deck: 60 Under deck: 6 Container hold: 48 Total: 190 |
|
Reefer capacity |
184 |
|
Length |
184,80 m overall 175,40 m between perpendiculars |
|
Breadth |
24,00 m extreme |
|
Draught |
9,02 m |
|
Air draft |
40,50 m |
|
Freeboard |
Summer: 4.318 mm |
|
Depth |
13,30 m |
|
Speed |
19,5 knots |
|
Built |
1998 Rebuilt: 2013 |
|
Launch date |
17/10/1997 |
|
Date of completion |
22/01/1998 |
|
Builder |
Shikoku Dockyard Co., Ltd. Takamatsu Japan |
|
Yard number |
885 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsui/MAN-B&W - 2 stroke 6 cylinder 600 x 1.100 mm combustion engine Mcr 11.633 kW / 15.806 hp at 123,0 rpm |
|
Propellers |
1x Fixed pitch propeller - aft at 123 rpm |
|
Boilers |
1x CHM Hada boilers 275,00 m² - 8,0 bar |
|
Generators |
4x Main diesel generatorsets each 1.000 kVA - 800 kW - 1.200 hp |
|
Emergency generator |
1x Diesel generatorset 80 kVA - 64 kW - 111 hp |
|
Number of holds |
5 |
|
Compartments / Zones |
16 / 8 |
|
Total capacity of holds |
15.994,2 m³ / 566.015 ft³ |
|
Pallet capacity |
5.094 |
|
Number of hatches |
5 |
|
Hold ventilation |
90 Air circulations per hour 2x Air renewals per hour |
|
Temperature range |
+15°C / -25°C |
|
Tank capacities |
Fuel oil: 17.354 m³ |
|
Cargo gear |
2x Hydraulic Cranes - SWL 37,0 t 1x Crane - SWL 45,0 t 3x Side loading system - SWL 12,5 t (8 pallets per lift) |
|
Manager |
Star Reefers UK London United kingdom |
|
Operator |
AEL - Africa Express Line Ltd. 30 Tower View KingsHill West Malling Kent United Kingdom |
|
Registered owner |
SSI Shipowning I Inc. Care of Siem Shipping UK Ltd. 40, Brighton Road, Sutton, SM2 5BN United Kingdom |
|
Group |
Compagnie Fruitière |
|
Previous names & owners |
Jan.1998 Costa Rican Star - Betelgeuse Shipping Corp. SA., Panama (3FDD8) 2003 Costa Rican Star - Caribbean Shipping SA., Panama 2004 Costa Rican Star - Star Reefers Shipowning Inc., Panama 2006 Costa Rican Star - Star Reefers Shipowning Inc., Monrovia - Liberia (A8KK4) |
|
Latest data adjustment |
20 September 2022 |
