| Antwerpen 06 April 2010 |
 |
 |
|
| Antwerpen 06/04/10 | Antwerpen 06/04/10 |
|

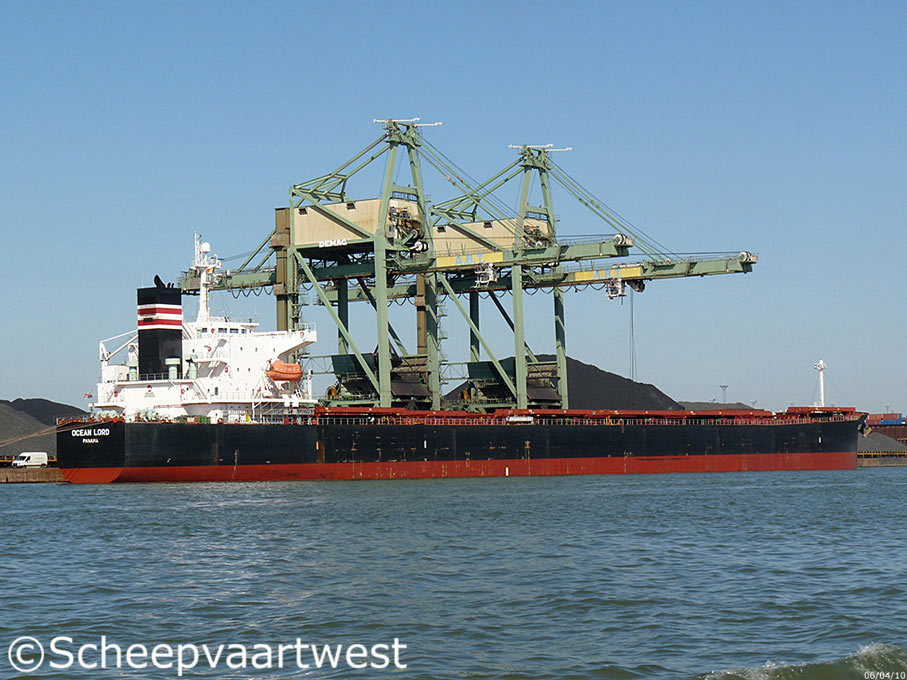

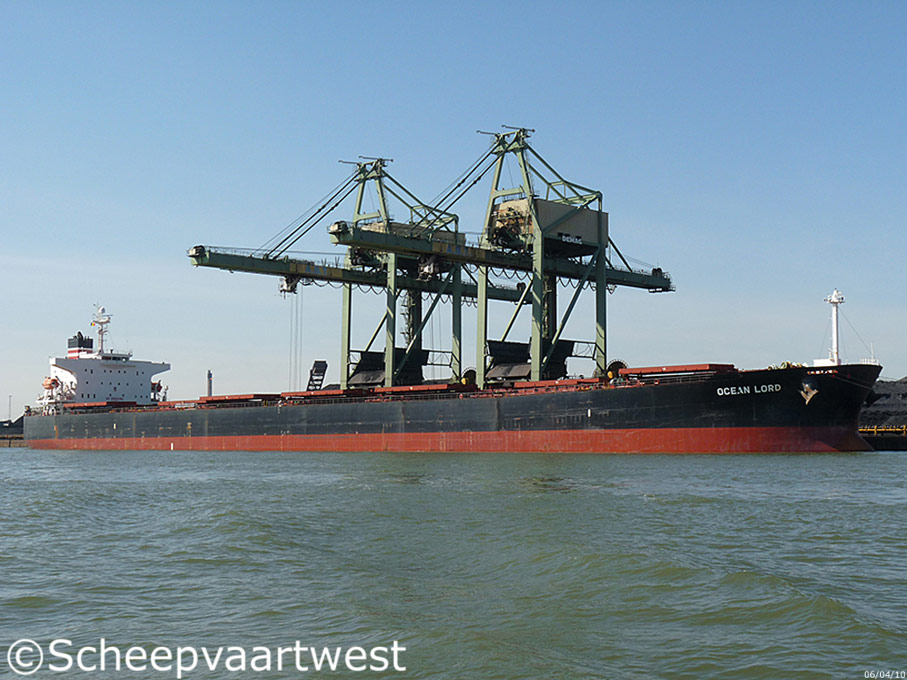

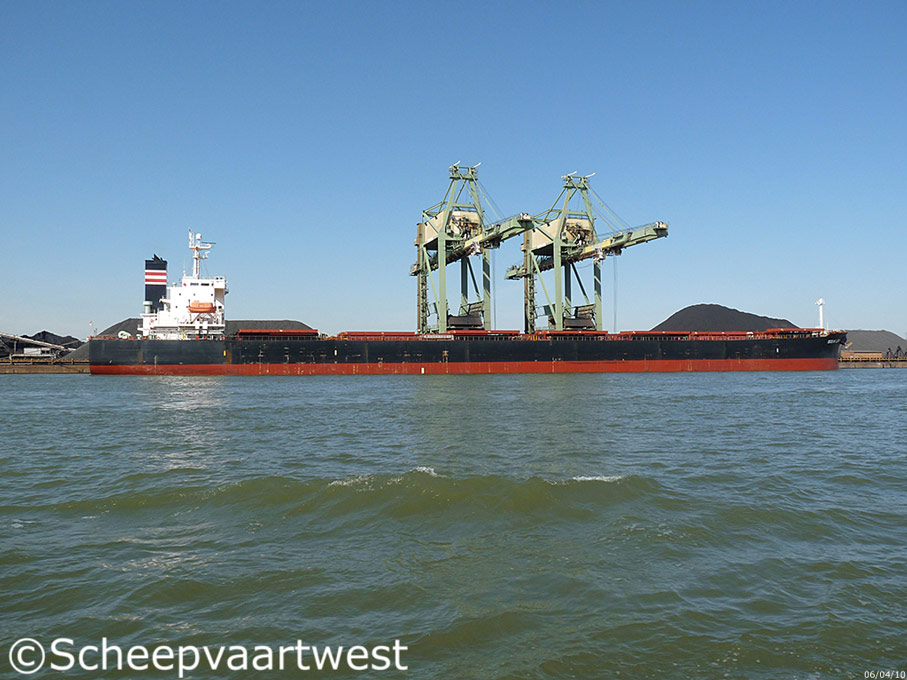

Name |
OCEAN LORD |
|
Type |
Bulk carrier (Panmax), Strengthened for heavy cargo |
|
IMO-number |
9286592 |
|
Call sign |
3EBU2 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
42.887 t registered |
|
DWT |
82.977 t |
|
NT |
27.547 t registered |
|
Length |
228,99 m overall |
|
Breadth |
32,26 m |
|
Draught |
14,429 m |
|
Moulded L x B x D |
222,00 x 32,26 x 19,90 m |
|
Registered L x B x D |
222,64 x 32,26 x 19,90 m |
|
Freeboard |
Summer: 5.526 mm |
|
Depth |
19,90 m |
|
Speed |
Trial: 16,0 knots |
|
Built |
2005 |
|
Keel laid |
01.11.2004 |
|
Launch date |
10.05.2005 |
|
Date of completion |
20.07.2005 |
|
Builder |
Tsuneishi Shipbuilding Corporation |
|
Yard number |
1303 |
|
Hull type |
Single hull |
|
Main engine |
1x Sulzer Type 1D2SA7CY - 2 stroke single acting 7 cylinder 500 x 2.000 mm diesel engine - 9.800 kW at 113,0 rpm Manufacturer:Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device |
|
Boiler |
1x Auxiliary vertical boiler - 7,0 bar Evaporation: 2,71 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Main diesel generatorsets each 1.600 kVA |
|
Cargo Capacity |
Grain: 97.233 m³ |
|
Tank capacities |
Fuel oil: 2.878 m³ Fresh water: 461 m³ Water ballast: 23.801 m³ |
|
Manager |
United Ocean Ship Management Pte. Ltd. Singapore |
|
Owner |
Rams Shipholding S.A. Republic of Panama |
