Antwerpen 31 December 2013 |
 |
| Antwerpen 31/12/13 |
|
Name |

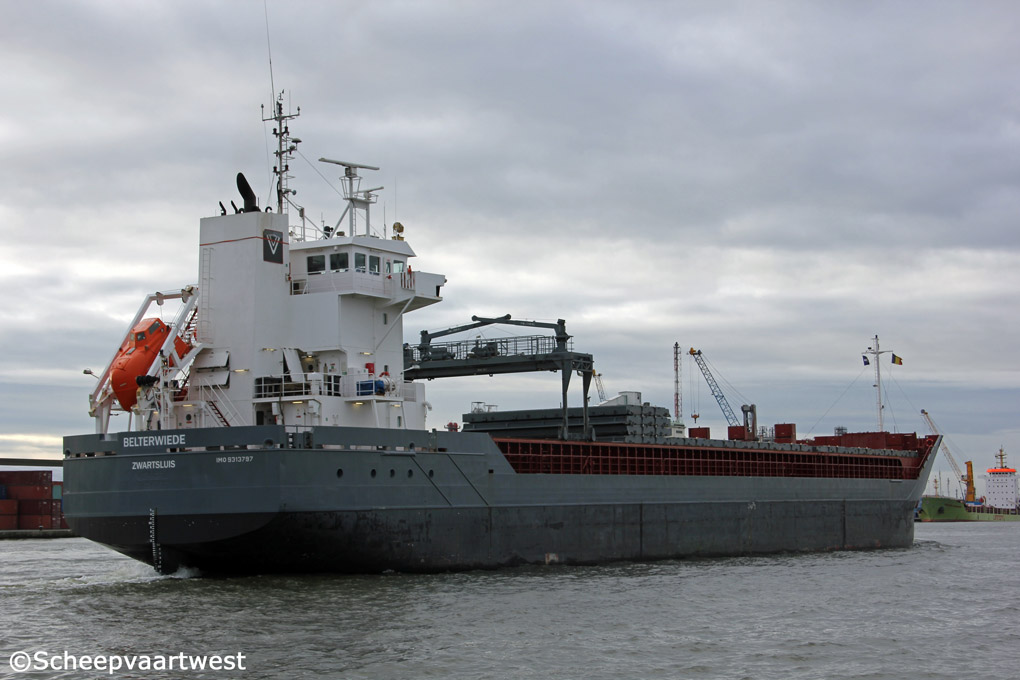

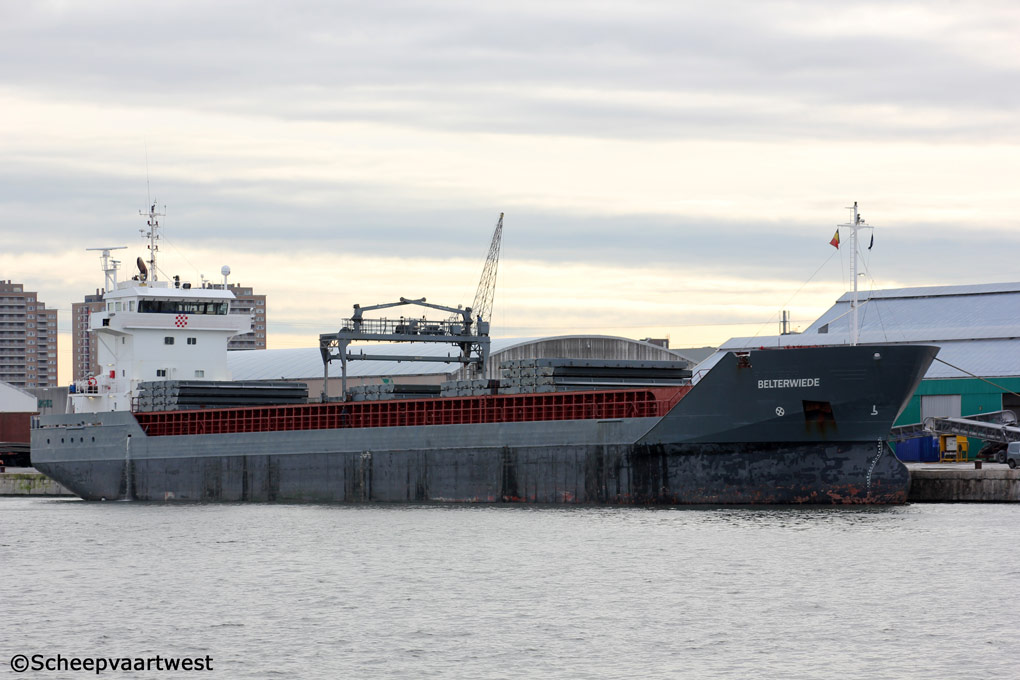

BELTERWIEDE |
|
Previous names |
2005 - 06/2007 Pioneer - C.V. Scheepvaartonderneming "Pioneer", Delfzijl, management Wagenborg Shipping B.V., Delfzijl for Scheepvaartbedrijf Gebr. J. & H. Waker |
|
Type |
General cargo ship - Heavycargo - Container ship Single deck |
|
IMO-number |
9313797 |
|
Call sign |
PHCM |
|
Flag |
The Netherlands |
|
Port of registry |
Zwartsluis |
|
Previous flag |
03/2005 - 06/2007 The Netherlands, Delfzijl - Call sign: PHCM |
|
GT |
3.990 t |
|
DWT |
Summer: 6.000 t |
|
DWCC |
Summer: 5.800 t full bunkers Winter: 5.700 t full bunkers |
|
NT |
2.208 t |
|
Number of 20ft containers |
242 |
|
Length |
110,78 m overall 108,45 m between perpendiculars |
|
Breadth |
14,00 m |
|
Draught |
6,09 m |
|
Air draft |
21,00 m |
|
Freeboard |
2.054 mm |
|
Depth |
8,13 m |
|
Speed |
12,0 knots loaded 13,5 knots in ballast |
|
Built |
2005 |
|
Keel laid |
2004 |
|
Launch date |
28/01/2005 |
|
Date of completion |
03/03/2005 |
|
Builder |
N.V. Scheepswerf Ferus Smit Hoogezand The Netherlands |
|
Yard number |
359 |
|
Hull material |
Steel |
|
Watertight compartments |
9 |
|
Movable bulkhead |
2 in main hold |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M25 - 4 stroke single acting 8 cylinder 255 x 400 mm combustion engine 2.640 kW / 3.587 hp at 750 rpm Start type: Compressed air Built: 2004 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Gearbox |
1x Reverse reduction gear Flender GMCP-670 - reduction: 3.75:1 |
|
Propellers |
1x Screw propeller controllable pitch - aft at 200 rpm Diameter: 3.200 mm |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 230 V Frequency: 50 Hz |
|
Shaft generator |
1x Stamford HCM534E - 530 kVA / 424 kW |
|
Generators |
2x Cummins 6CTA8.3DM - 6 cylinder 114 x 130 mm diesel engines 140 kW / 220 hp at 1.500 rpm coupled with Stamford UCM274H generator 175 kVA each |
|
Emergency generator |
1x Cummins 4BT3.9G3 - 4 cylinder 102 x 120 mm diesel - 42 kW / 68 hp at 1.500 rpm coupled with Stamford UCM224E generator 52 kVA |
|
Bow thruster |
1x Jastram thruster 350 KW |
|
Number of holds |
2 Hold 1: 27,60 x 11,50 x 9,10 m Hold 2: 50,80 x 11,50 x 9,10 m |
|
Hold capacity |
Grain: 7.868 m³ / 280.949 ft³ |
|
Number of hatches |
2 Hatch 1: 27,60 x 11,50 m Hatch 2: 50,80 x 11,50 m |
|
Type of hatches |
Pontoon covers |
|
Deck strength |
Hatchcover: 1,75 t/m² Tanktop: 20 t/m² |
|
Hold ventilation |
6 Air-changes/h |
|
Tank capacities |
Fuel oil: 438 m³ Ballast water: 2.500 m³ Potable water: 40 m³ |
|
Lifting equipment |
1x Gantry deck crane |
|
Manager |
Wijnne & Barends' Cargadoors- en Agentuurkantoren B.V. Delfzijl The Netherlands |
|
Previous manager |
03/2005 - 06/2007 Wagenborg Shipping B.V., Delfzijl - The Netherlands |
|
Owner |
Willem van Veen, Zwartsluis - The Netherlands |
|
Registered owner |
Ramspol V.O.F. |
|
Previous names & owner |
03/2005 - 06/2007 Pioneer - Gebr. Hilco en Jan Cornelis Waker, Delfzijl - The Netherlands |
|
Last data update |
28 April 2021 |
