Westerschelde 21 March 2019 |
Westerschelde 16/11/12 |
Name |

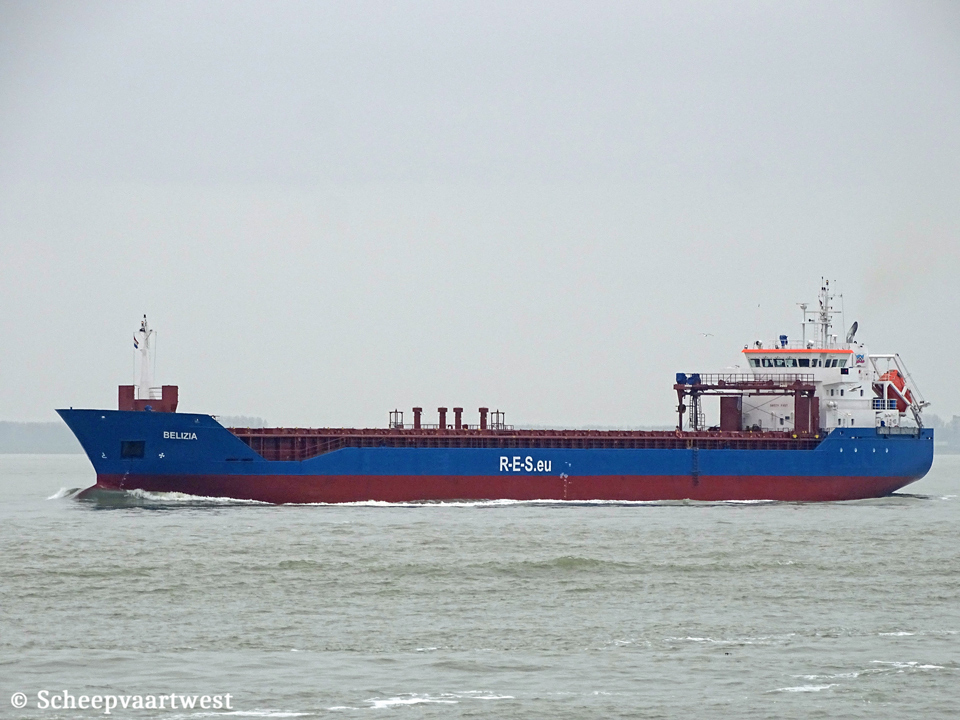

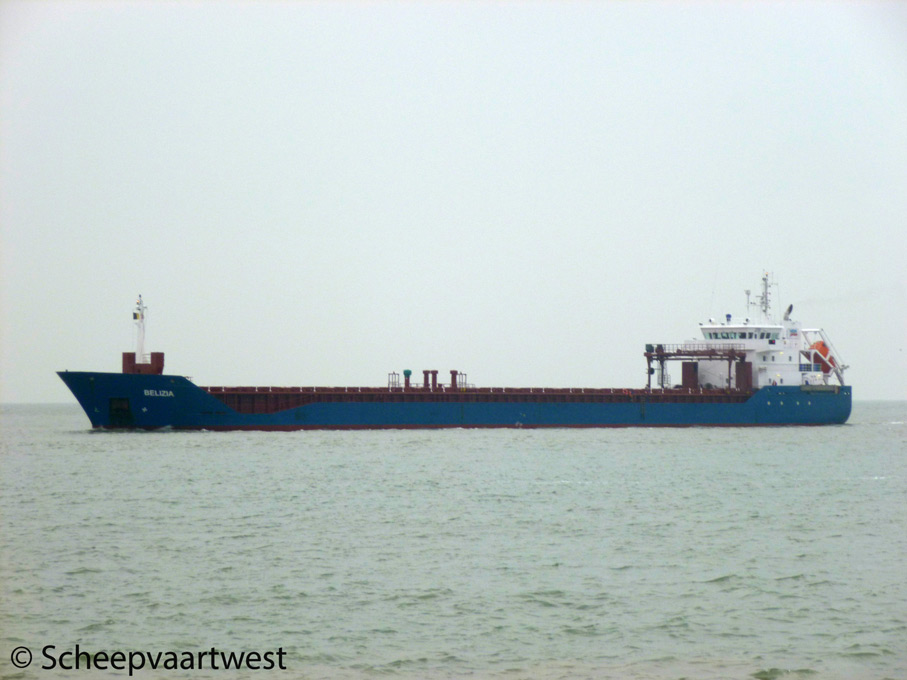

BELIZIA |
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
IMO-number |
9433341 |
Call sign |
V2DQ2 |
Flag |
Antigua & Barbuda |
Port of registry |
St. John's |
GT |
4.723 t |
DWT |
7.560 t |
NT |
2.724 m |
Number of 20ft containers |
In hold: 177 On deck: 88 Total: 265 |
Length |
116,08 m overall 109,78 m between perpendiculars |
Breadth |
15,80 m registered |
Draught |
Summer: 6,39 m |
Air draft |
20,30 m aft 17,20 m forward |
Depth |
7,65 m to main deck 8,90 m to upper deck |
Speed |
13,5 knots |
Built |
2008 |
Keel laid |
17/12/2007 |
Launch date |
24/10/2008 |
Date of completion |
27/11/2008 |
Builder |
Bodewes Shipyards B.V. Werfkade 22 9601 LG Hoogezand The Netherlands |
Yard number |
771 |
Hull material |
Shipbuilding steel (standard) |
Hull type |
Double bottom, continuous from peak to peak bulkhead |
Watertight bulkheads |
7 |
Movable bulkhead |
1 |
Continuous decks |
1 |
Main engine |
1x MaK 6M32 C - 4 stroke 9 cylinder 320 x 480 combustion engine 2.999 kW at 600 rpm Year of manufacture: 2008 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
Propellers |
1x Controllable pitch propeller - aft at 186 rpm |
Boilers |
1x Water heater, oil fired - 5,0 bar Year of manufacture: 2008 Manufacturer: A.C.V. Nederland B.V. Kaartenmakerstraat 5 2984 CB Ridderkerk The Netherlands |
Electric installations |
2x Plants 400 V - 262 kVA 1x Plant 400 V - 435 kVA 1x Plant 400 V - 120 kVA |
Shaft generator |
1x 435 kVA |
Generators |
2x Sisu 84 CTAG main diesel generatorsets each 262 kVA |
Emergency & Harbour gen. |
1x Sisu 49 CTAG diesel generatorset 120 kVA |
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
Bow thruster |
1x 300 kW, forward |
Number of holds |
2 Hold 1: 38,25 x 13,25 x 9,00 m Hold 2: 44,25 x 13,25 x 9,00 m |
Hold capacity |
Hold 1: 4.163 m³ / 147.050 ft³ Hold 2: 5.276 m³ / 186.349 Ft³ Total: 9439 m³ / 333.400 ft³ |
Max permitted loads |
Hatchcovers: 2,6 t/m² Tanktop: 15,0 t/m² |
Tank capacities |
Ballast: 3.120,12 m³ |
Anchor equipment |
3x Anchors weight each 2.640 kg Chain length: 467,50 m Diameter: 40 mm |
Crew size |
12 |
Manager |
Reederei Erwin Strahlmann e.K. Schleusenstr. 10 25541 Brunsbüttel Federal Republic of Germany |
Registered owner |
Erwin Strahlmann Schleusenstr. 10 25541 Brunsbüttel Federal Republic of Germany |
Renamed |
04/2021 Birgit Antigua and Barbuda, St. John's - Call sign: V2DQ2 Owner: MS "MB2" Jens & Waller GmbH & Co. KG - Germany Manager: Reederei Jens & Waller GmbH & Co. KG - Germany |
Last update |
18 October 2021 |
