Antwerpen 03 April 2014 |
 |
| Westerschelde 03/10/15 |
|
Name |

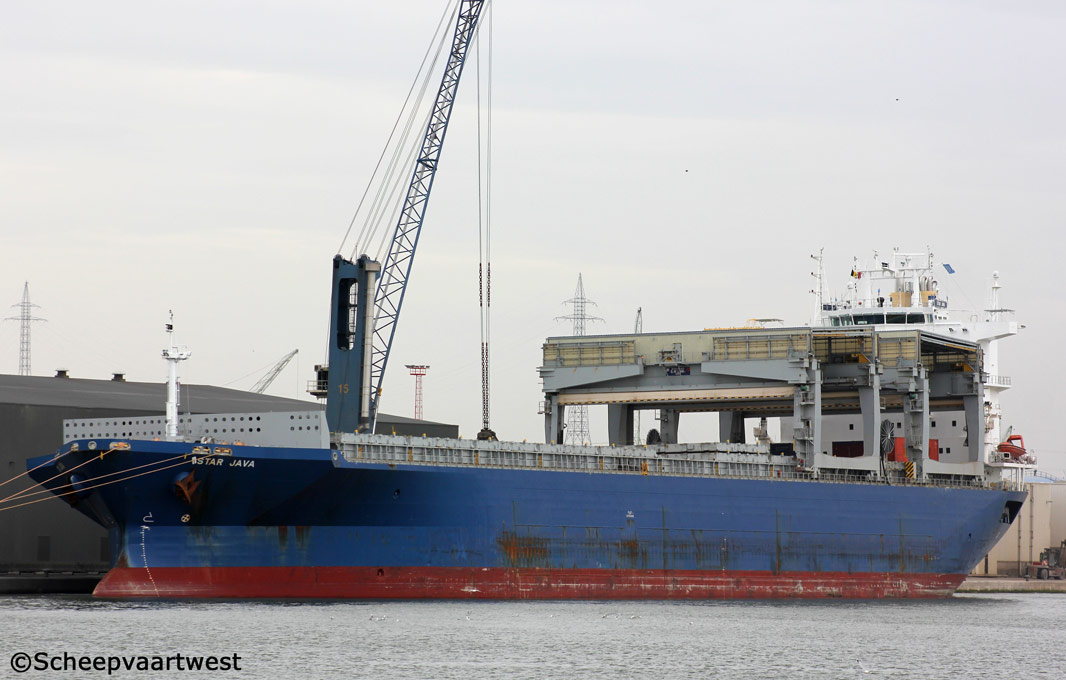

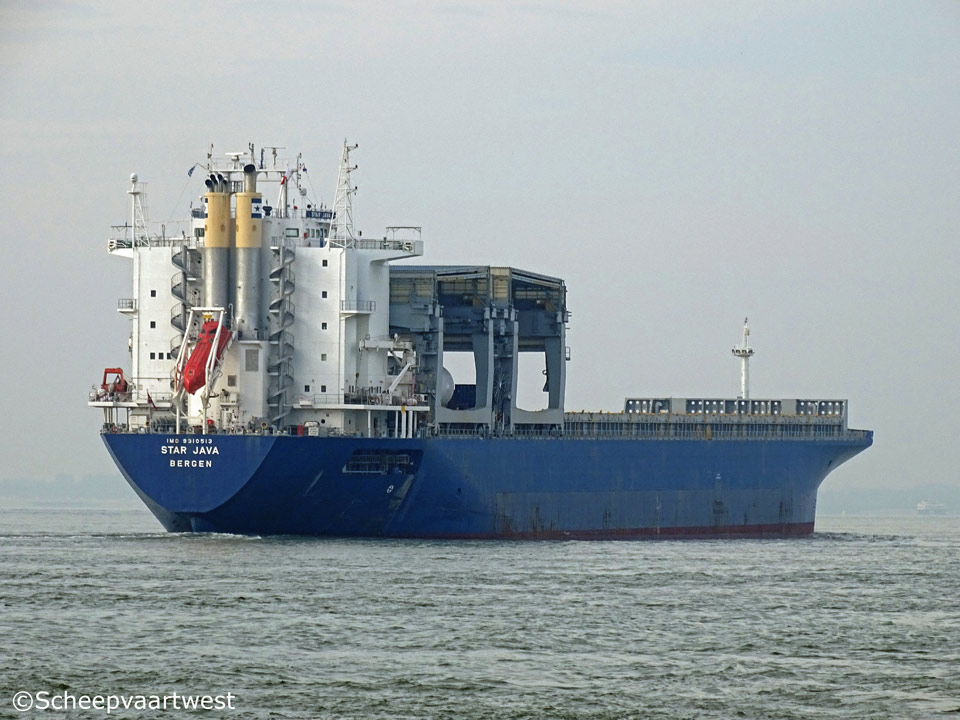

STAR JAVA |
|
Type |
General cargo ship / Container ship |
|
Products |
Baled pulp, ore, grain, cement, paper, packaged lumber and other solid bulk cargoes |
|
IMO-number |
9310513 |
|
Call sign |
LAJS6 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GT |
32.679 t |
|
DWT |
44.800 t |
|
NT |
13.085 t |
|
Number of 20ft containers |
On hatch cover: 720 In hold: 1.350 Total: 2.070 |
|
Length |
198,00 m overall 187,00 m between perpendiculars |
|
Breadth |
31,06 m extreme |
|
Draught |
12,00 m moulded |
|
Air draft |
Max.: 46,00 m |
|
Depth |
19,00 m to main deck |
|
Speed |
Service: 16,0 knots |
|
Built |
2006 |
|
Keel laid |
30.05.2006 |
|
Launch date |
03.08.2006 |
|
Date of completion |
14.11.2006 |
|
Builder |
Mitsui Tamano Engineering & Shipbuilding Co., Ltd. |
|
Yard number |
1533 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 12 |
|
Main engine |
1x Mitsui B&W 6S60MC - 2 stroke single acting 6 cylinder diesel engine- 10.520 kW at 96,0 rpm |
|
Turbo charger |
Mitsui MAN NA-57 |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary BoilerType: OEV-120-14 Steam production: 1.200 kg/h Working pressure: 6 kg/cm² (0,59MPa) 1x Exhaust gas economizer Type: DC-061510-1B Steam production: 1.100 kg/h Working pressure: 6 kg/cm² (0,59 MPa) Builder: Osaka Boiler Mfg. Co. Ltd. |
|
Generators |
2x Rolls Royce Bergen KRG-8 - 4 stroke 8 cylinder diesel engines 1.370 kW each at 720 rpm couples with generator 1.300 kW Builder: Bergen Engines AS 1x Rolls Royce Bergen KRG-5 - 4 stroke 5 cylinder diesel engine 760 kW coupled with generator 720 kW |
|
Emergency generator |
1x Deutz BF 6 L 913 diesel generatorset |
|
Compressed air receivers |
2x Main air compressors: SPERRE HV2/200 - 136 m³/h capacity at 30,0 bar.(3 MPa) 1x Working air compressor: SPERRE HV2/300A - 437 m³/h capacity at 8,0 bar. (0,8 MPa) 1x Diesel generator cold start air compressor: SANWA S10A - 25 m³/h at 30,0 bar. (3 MPa) |
|
Bow thruster |
1x 2.000 hp |
|
Stern thruster |
1x 1.000 hp |
|
Number of holds |
11x Box-shaped cargo holds |
|
Hold capacity |
Hold 1: 4.049 m³ / 142.983 ft³ Hold 2: 5.511 m³ / 194.603 ft³ Hold 3-9: 6.206 m³ / 219.179 ft³ Hold 10: 5.722 / 202.079 ft³ Hold 11: 2.765 m³ / 97.635 m³ Total: 61.489 m³ / 2.171.553 ft³ |
|
Hatchways |
11 Dimension: 12,30 x 26,24 m |
|
Fresh water generator |
1x Fresh water generator Alfa Laval Type: JWP-28-C100 Capacity: 30 t/day |
|
Ballast capacity |
15.538,5 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 78 mm |
|
Cargo gear |
2x Gantry cranes - SWL 68,0 t each on deck |
|
Accommodation |
29 persons |
|
Manager |
Grieg Star Shipping Bergen |
|
Operator |
Grieg Star |
|
Registered owner |
Grieg Shipping II AS |
|
Latest data adjustment |
15 May 2014 |
