| Westerschelde 23 July 2019 |
 |
 |
 |
 |
 |
||||

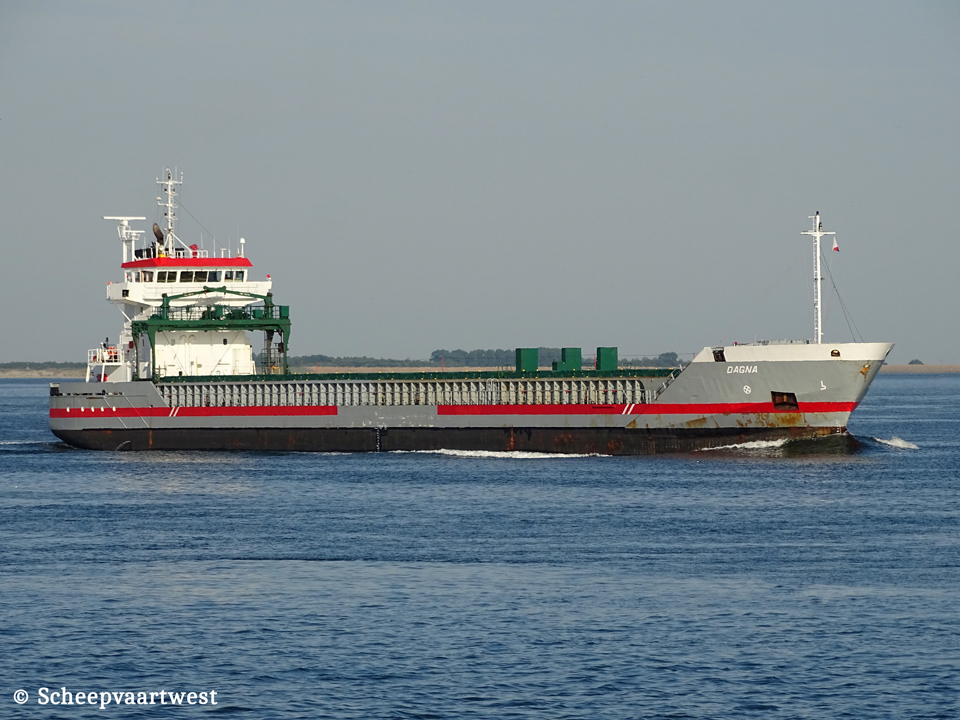

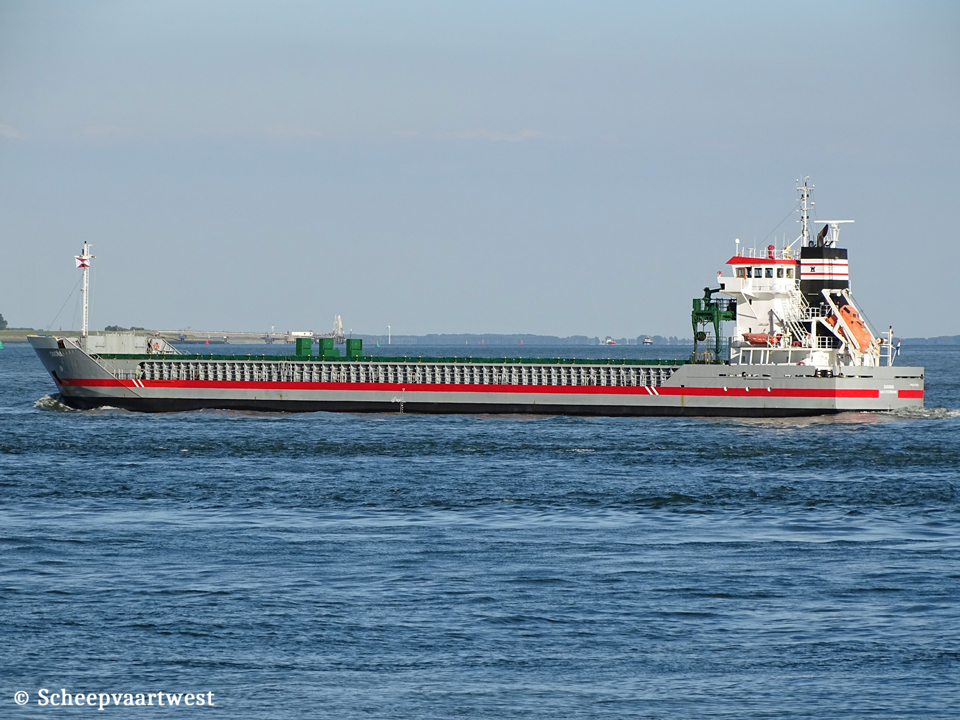

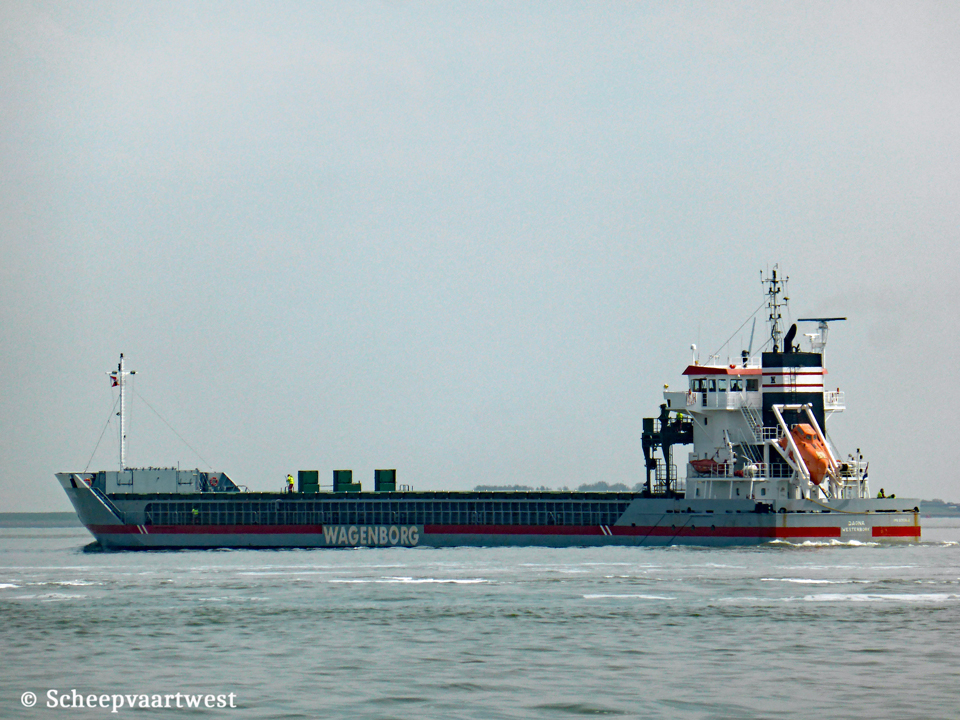

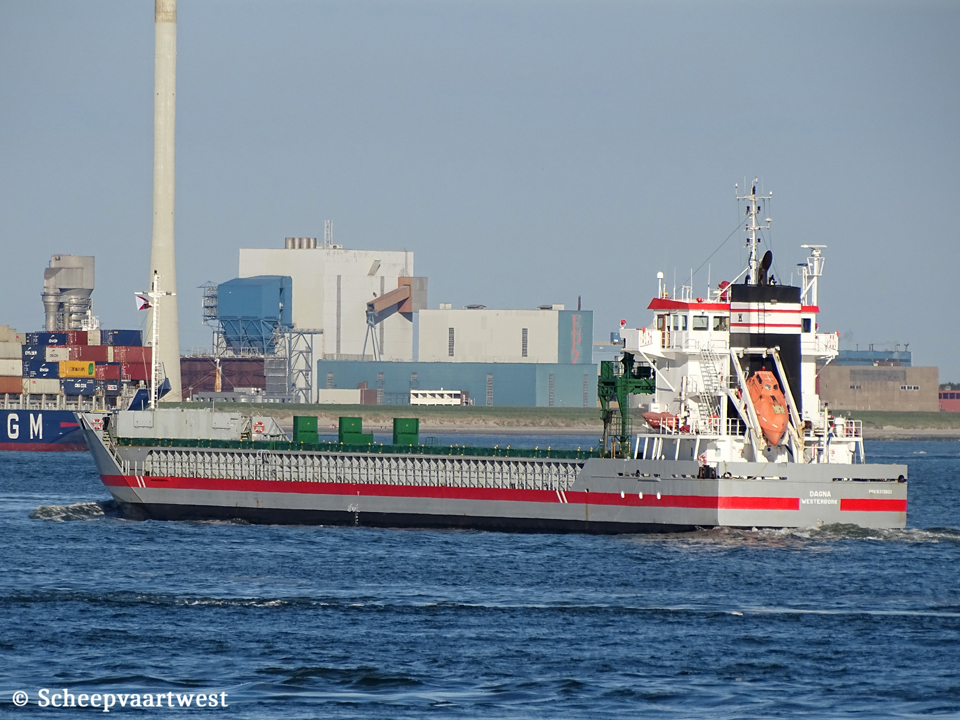

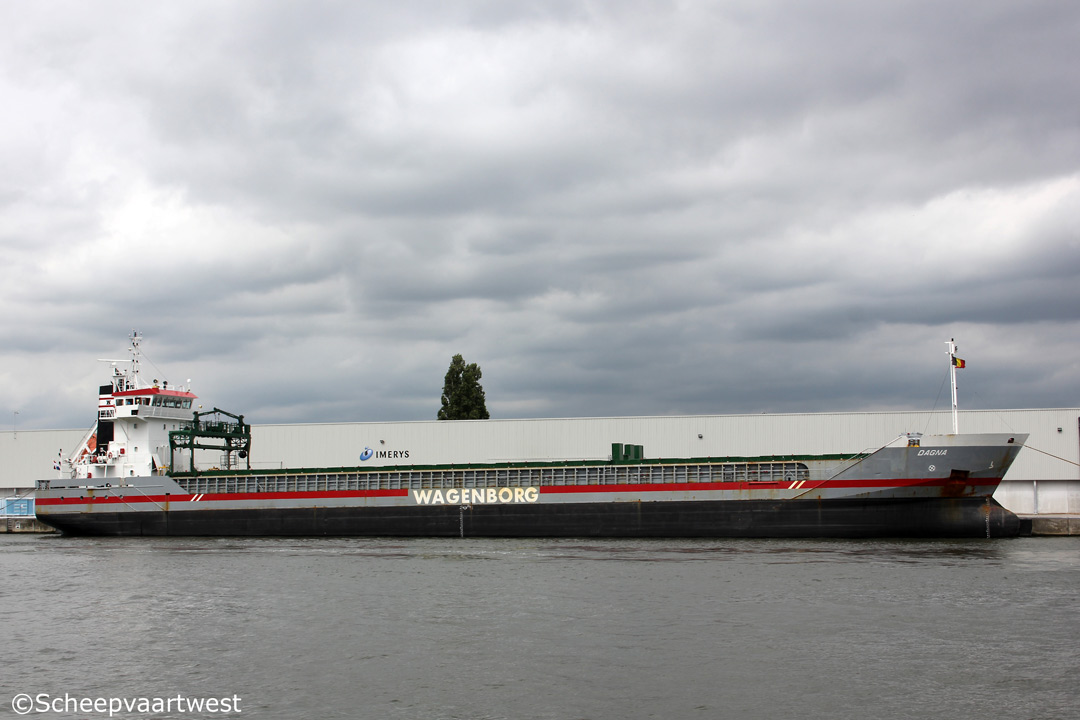

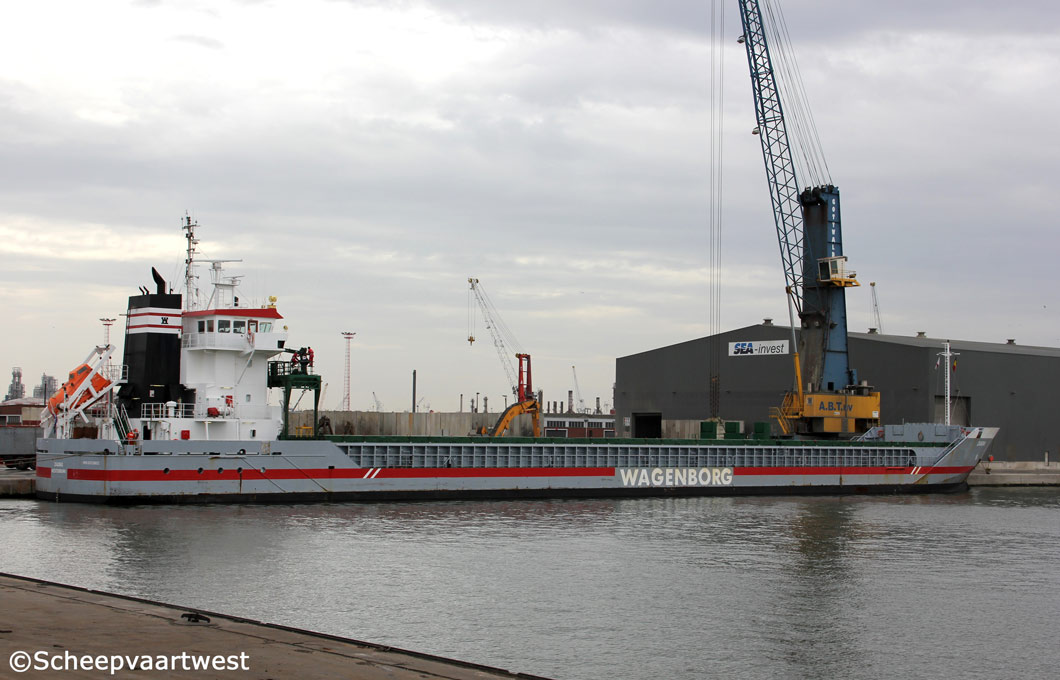

| Westerschelde 22/07/20 | Westerschelde 22/07/20 | Antwerpen 31/07/13 | Antwerpen 31/07/13 | Westerschelde 08/05/15 | ||||
|
Name |
DAGNA |
|
Type |
Multi-purpose dry cargo carrier - Heavycargo - Container ship |
|
IMO-number |
9313802 |
|
Call sign |
PHDE |
|
Flag |
Westerbork |
|
Port of registry |
The Netherlands |
|
GT |
3.990 t |
|
DWT |
Summer: 6.058 t |
|
NT |
2.208 t |
|
Number of 20ft containers |
242 |
|
Length |
110,78 m overall 105,48 m between perpendiculars |
|
Breadth |
14,00 m extreme |
|
Draught |
6,09 m |
|
Air draft |
21,00 m |
|
Freeboard |
2.054 mm |
|
Depth |
8,13 m moulded |
|
Speed |
13,0 knots |
|
Built |
2005 |
|
Keel laid |
05/11/2004 |
|
Launch date |
29/04/2005 |
|
Date of completion |
03/06/2005 |
|
Builder |
Ferus Smit Scheepswerf BV Westerbrok The Netherlands |
|
Yard number |
360 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M25 - 4 stroke single acting 8 cylinder 255 x 400 mm combustion engine 2.640 kW / 3.587 bhp at 750 rpm Built: 2004 Builder: MaK Caterpillar GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw Propeller Controllable pitch - aft at 200 rpm |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 230 V Frequency: 50 Hz |
|
Shaft generator |
1x 530 kVA - 424 kW |
|
Generators |
2x Main diesel generatorsets each 175 kVA - 140 kW - 222 hp |
|
Emergency generator |
1x Diesel generatorset 52 kVA - 42 kW - 68 hp |
|
Bow thruster |
1x 340 kW |
|
Number of holds |
2 Hold 1: 27,58 x 11,47 x 9,00 m Hold 2: 50,88 x 11,47 x 9,00 m |
|
Total capacity of holds |
Grain & bale: 7.946 m³ |
|
Cargo hatchways |
2 Hatch 1: 27,58 x 11,47 m Hatch 2: 50,88 x 11,47 m |
|
Tank capacities |
Fuel oil: 400 m³ |
|
Crew size |
8 |
|
Commercial manager |
Wagenborg Shipping BV Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
ISM manager |
Van Dijk Rederij Boermaat 26 9431 MS Westerbork The Netherlands |
|
Registered owner |
Hanno H. Van Dijk, Westerbork - The Netherlands Care of Wagenborg Shipping BV Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Renamed |
10/2022 Nijlborg The Netherlands - Call sign: PHDE Manager: Wagenborg Shipping B.V., Delfzijl - The Netherlands Owner: Wagenborg Shipowners 5 B.V, Delfzijl - The Netherlands |
|
Latest data adjustment |
21 January 2023 |
