| Westerschelde 26 September 2015 |
|
Name |

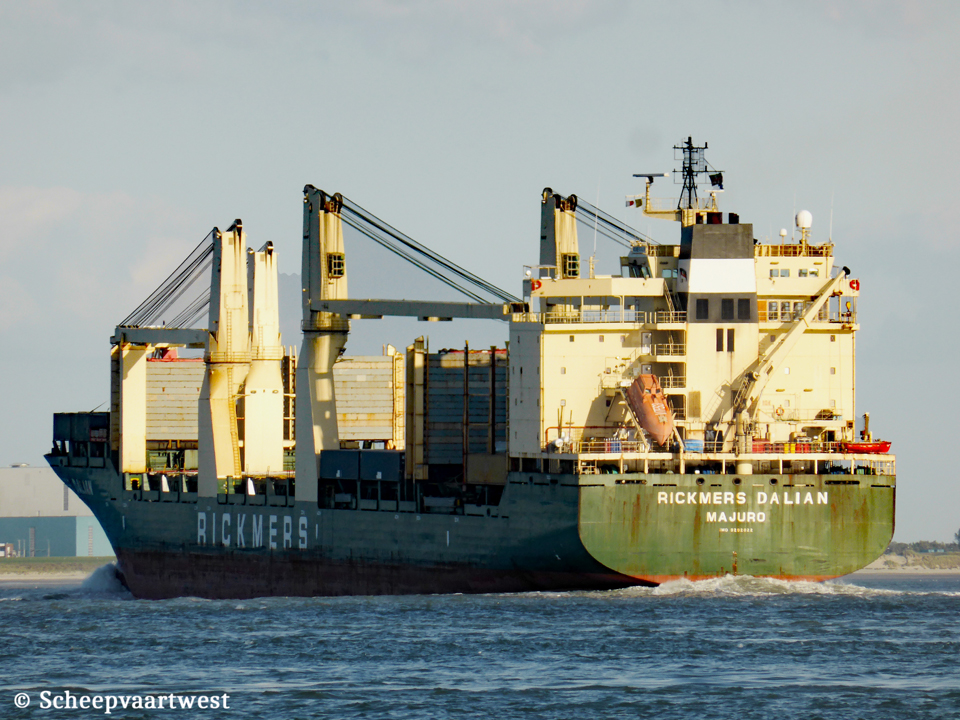

RICKMERS DALIAN |
|
Previous names |
2004 / 10/2005 Rickmers Genoa |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9292022 |
|
Call sign |
V7FS3 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
23.119 t |
|
DWT |
Summer: 29.827,3 t |
|
NT |
9.772 t |
|
Number of 20ft containers |
In hold: 832 On deck: 1.056 Total: 1.888 |
|
Reefer capacity |
150 on deck |
|
Length |
192,99 m overall 182,00 m between perpendiculars |
|
Breadth |
27,86 m extreme |
|
Draught |
Max: 11,20 m |
|
Depth |
15,50 m |
|
Speed |
18,0 knots |
|
Built |
2004 |
|
Keel laid |
12/06/2002 |
|
Launch date |
28/02/2004 |
|
Date of completion |
15/03/2004 |
|
Builder |
Xiamen Hipbuilding Industry Xiamen China |
|
Yard number |
439H |
|
Hull material |
Steel |
|
Hull type |
Single hull double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Main engine |
1x MAN-B&W/Hudong Heavy Machinery - 7S60 MC-C - 2 stroke 7 cylinder 600 x 2.400 mm combustion engine 15.785 kW / 21.461 bhp at 105,0 rpm Manufacturer: Dalian Marine Diesel Co., Ltd. - China |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 30,0 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 198,0 m² Year of manufacture: 2001 Manufacturer: Dalian Marine Diesel Co., Ltd. - China |
|
Electric installations |
1x Plant 440/220 V - 910 kVA 2x Plant 440/220 V - 1.060 kVA 1x Plant 440 V - 170 kVA |
|
Generators |
2x MAN 7 L23/30H main diesel generatorsets each 1.060 kVA 1x MAN 6 L23/30H main diesel generatorset 910 kVA |
|
Emergency generator |
1x MAN D2866 TE diesel generatorset 170 kVA |
|
Bow thruster |
1x Transverse thruster 900 kW, forward |
|
Compressed air receivers |
2x Receivers each 6.500 litres - 30,0 bar 1x Receiver 320 litres - 30,0 bar 3x Receivers each 250 litres - 10,0 bar |
|
Number of holds |
5 |
|
Cargo hold capacity |
Hold#1: 5.599 m³ / 197.727 ft³ Hold#2: 8.114 m³ / 286.543 ft³ Hold#3: 10.358 m³ / 365.789 ft³ Hold#4: 8.200 m³ / 289.580 ft³ Hold#5: 3.638 m³ / 128.474 ft³ Total: 35.909 m³ / 1.268.114 ft³ |
|
Number of hatches |
Hatch 1: 15,40 x 12,80 m + 20,40 x 12,80 m Hatch 2: (Twin) 2x (25,60 x 10,32 m) Hatch 3: (Twin) 2x (25,60 x 10,32 m) Hatch 4: (Twin) 2x (25,60 x 10,32 m) Hatch 5: (Twin) 2x (25,60 x 10,32 m) |
|
Floor space |
Under deck: 6.490 m² On deck: 3.000 m² Total: 9.490 m² |
|
Max permitted loads |
Tanktop: Hold 1 & 5: 13,75 t/m² Hold 2-4: 22,00 t/m² Tween deck: 4,00 t /m² Hatch cover: 2,50 t/m² |
|
Tank capacities |
Ballast: 12.196,5 m³ Fuel: 2.908 m³ |
|
Anchor equipment |
3x Anchors weight each 7.800 kg Length: 550,00 m Diameter: 68 mm |
|
Cargo gear |
2x Cranes - SWL 320 t + 1x 45 t (Forward) + 1x 100 t (Aft) Combined lift capacity: 640 t 1x 120 t Forward |
|
Crew size |
36 |
|
Manager |
Rickmers Reederei GmbH & Cie. KG Hamburg Germany |
|
Registered owner |
'RICKMERS GENOA' Schifffahrtsges. mbH & Cie. KG Hamburg Germany |
|
Renamed |
2019 Zea Dalian Marshall Islands, Majuro - Call sign: V7FS3 Owner: Zea Dalian GmbH & Co., KG Manager: Zeaborn Ship Management GmbH & Cie. KG 2020 Dalian Marshall Islands, Majuro - Call sign: V7FS3 Owner: Nora Seaway Ltd. Manager: Zeaborn Ship Management GmbH & Cie. KG |
|
Scrapped |
As Dalian 21/01/2021 Beached at Chittagong - Bangladesh |
|
Latest data adjustment |
24 January 2024 |
