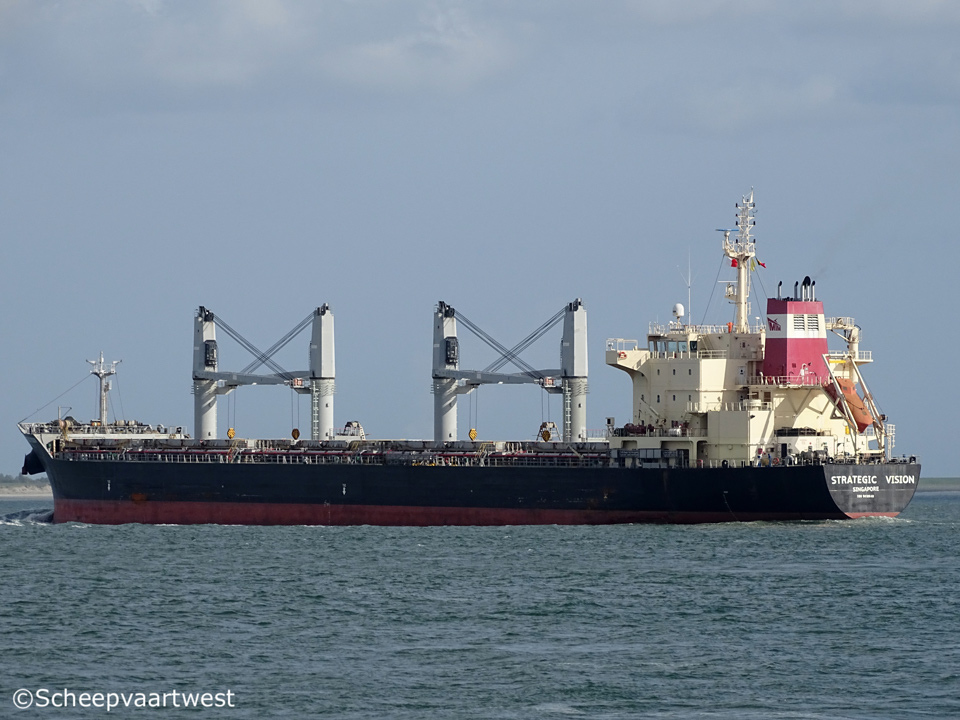

Westerschelde 30 September 2017 |
|
Name |
STRATEGIC VISION |
|
Previous names |
2012 - 2016 Ocean Jewel |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading - Handysize |
|
IMO-number |
9610640 |
|
Call sign |
9V3944 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
Previous flags |
2012 - 2016 Republic of Panama; Panama City - Call sign: 3EXB6 |
|
GT |
22.662 t registered |
|
DWT |
37.186 t |
|
NT |
12.531 t registered |
|
Length |
186,40 m overall |
|
Breadth |
27,80 m moulded |
|
Draught |
Summer: 10,99 m |
|
Moulded L x B x D |
178,00 x 27,80 x 15,60 m |
|
Registered L x B x D |
178,93 x 27,80 x 15,60 m |
|
Freeboard |
Summer: 4.636 mm |
|
Depth |
15,60 m moulded |
|
Speed |
15,5 knots |
|
Built |
2012 |
|
Keel laid |
09/09/2011 |
|
Launch date |
09/11/2011 |
|
Date of completion |
06/01/2012 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. |
|
Yard number |
6128 |
|
Hull material |
Steel |
|
Hull type |
Single hull, double bottom |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai MAN B&W - 2 stroke single acting 6 cylinder 460 x 1.932 mm combustion engine 7.860 kW at 129,0 rpm Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 440 m |
|
Propellers |
1x Fixed pitch propeller Manufacturer: HHI Engine & Machinery Div. |
|
Boilers |
1x Auxiliary vertical boiler - 8,8 bar Evaporation: 2,10 t/h Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Generators |
4x Generators - total 2.150 kVA |
|
Number of cargo holds |
5 |
|
Cargo hold capacity |
Grain: 47.899 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 1.628 m³ Fresh water: 308 m³ Ballast: 10.632 m³ |
|
Lifting equipment |
2x Provision crane - SWL 3,0 t each |
|
Cargo gear |
4x Deck cranes - SWL 30,5 t each |
|
Manager |
M.T.M. Ship Management Pte. Ltd. Republic of Singapore |
|
Owner |
Strategic Bulk Carriers Inc. |
|
Registered owner |
SBC Vision Pte. Ltd. |
|
Latest data adjustment |
10 July 2018 |
