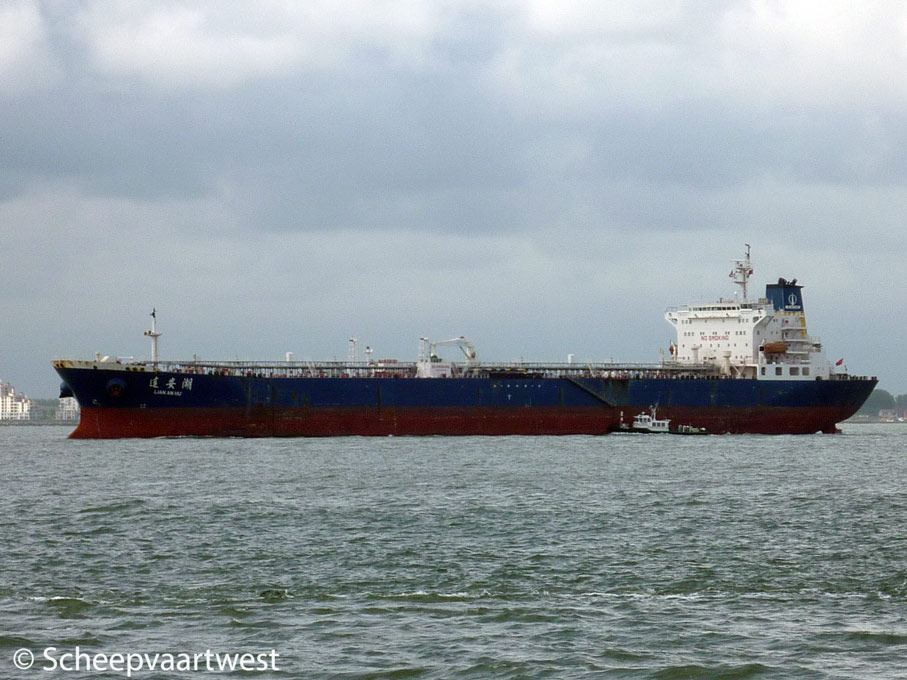

| Westerschelde 14 May 2012 |
|
Name |
LIAN AN HU |
|
Type |
Crude oil tanker |
|
IMO-number |
9308974 |
|
Call sign |
BOGI |
|
Flag |
People's Republic of China |
|
Port of registry |
Dalian |
|
GT |
40.996 t |
|
DWT |
Summer: 71.962 t |
|
NT |
22.187 t |
|
Length |
229,00 m overall 219,00 m between perpendiculars |
|
Breadth |
32,20 m moulded |
|
Draught |
14,35 m |
|
Keel to masthead |
50,15 m Collapsed condition: 47,15 m |
|
Freeboard |
Winter: 6.916 mm Summer: 5.870 mm |
|
Depth |
20,20 m moulded |
|
Speed |
15,0 knots |
|
Built |
2005 |
|
Date of completion |
12.05.2005 |
|
Builder |
Dalian New Shipbuilding Heavy Industry Co., Ltd. |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x DMD-MAN B&W 5S60MC - 5 cylinder 600 x 2.292 mm diesel engine - 10.200 kW at 105,0 rpm Built: 01.12.2004 Builder: Dalian Marine Diesel Engine Works - China |
|
Propellers |
1x Fixed pitch |
|
Boilers |
2x Heating area: 110 m² 1x Heating area: 50 m² Built: 08.10.2004 Builder: Aalborg Industries Ltd.- Denmark |
|
Generators |
3x NTAKL-VC diesel generatorsets each 720 kW / 450 Volt |
|
Cargo spaces |
13 |
|
Cargo tank capacity 98% |
77.081,9 m³ excluding slop tanks |
|
Slop tanks capacity 98% |
2.520,2 m³ |
|
Hatch |
13 |
|
Maximum loading rate |
3.000 m³/h homogeneous cargo per manifold connection 9.500 m³/h loaded simultaneously through all manifolds |
|
Pumps |
3x Cargo pumps KVL400 - 2.000 m³/h 1x Stripping pump KVL200 - 200 m³/h 1x Eductors pump Venturi - 250 m³/h 2x Ballast pumps CVL253 - 1.500 m³/h 3x Cargo pumps can be run simultaneously at full capacity |
|
Manifolds |
Bow to centre manifold: 111,81 m Stern to centre manifold: 117,19 m Distance bridge front to centre of manifold: 75,49 m Distance between cargo manifold centres: 2.500 mm Distance ships rail to manifold: : 4.425 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 540 mm Distance main deck to centre of manifold: 1.800 mm |
|
Tank capacities |
Fuel oil: 2.355,4 m³ Ballast: 26.214,1 m³ |
|
Lifting equipment |
1x Cranes - SWL 15,0 t |
|
Manager |
COSCO Dalian |
|
Operator |
Dalian Ocean Shipping Company |
|
Registered owner |
Dalian Ocean Shipping Company |
|
Last update |
24.01.2013 |
