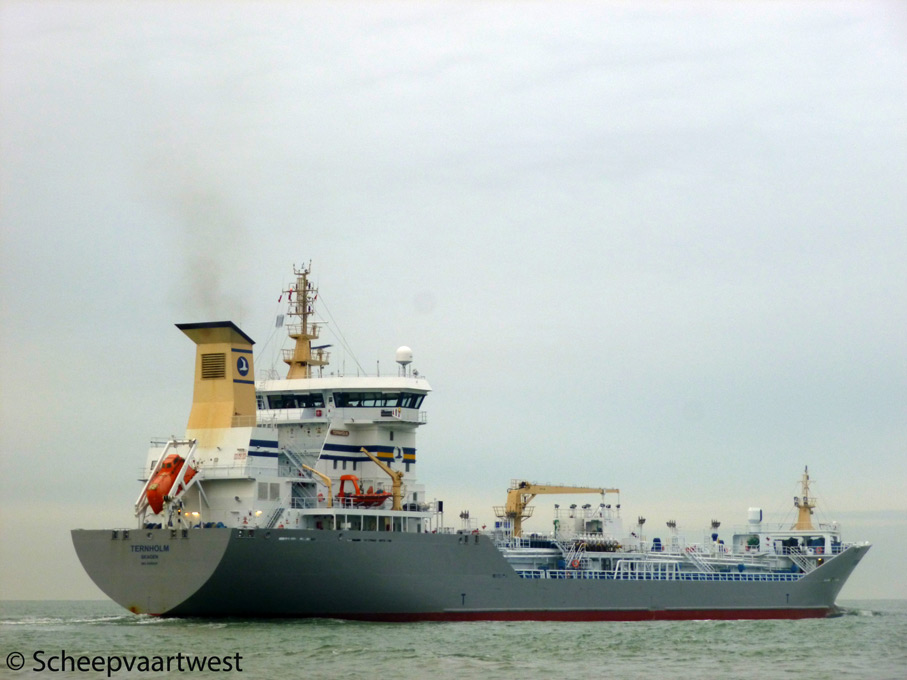

Westerschelde 27 November 2013 |
Name |
TERNHOLM |
Previous names |
2005 - 11.2009 Tärnholm |
Type |
Tanker for chemicals & Oil products |
IMO-number |
9300829 |
Call sign |
OWIM2 |
Flag |
Denmark |
Port of registry |
Skagen |
GT |
9.993 t |
DWT |
14.796 t at 9,00 m |
NT |
4.581 t |
Length |
141,20 m overall 133,00 m between perpendiculars |
Breadth |
21,60 m moulded |
Draught |
9,00 m |
Depth |
11,50 m moulded |
Speed |
14,7 knots |
Built |
2005 |
Keel laid |
19.07.2004 |
Date of completion |
29.03.2005 |
Builder |
Shanghai Edward Shipbuilding Co., Ltd. |
Yard number |
H-131 |
Hull material |
Steel |
Main engine |
1x Wärtsilä 6L46- 4 stroke 6 cylinder - 6.300 kW at 500 rpm Builder: Wärtsilä Finland Oy |
Propellers |
1x Wärtsilä Propac type CP 130, diameter: 5.000 mm |
Boilers |
2x Thermal oil boilers GESAB / HTI Thermal Oil Heater, Type TOH 2900 V 40 oil-fried heaters, 2.900 KW 1x Exhaust gas heater Type EGH 1300 V40 Heat Exchanger |
Shaft generator |
1x Type ABB AMG 500S6, developing 1.875 KVA, 60 Hz at 1.200 rpm. Voltage/frequency : 450 V 60 HZ. |
Generators |
3x Caterpillar 3508B diesel engine 750 KW connected to CAT generators 750 KW developing 937 KVA 60 Hz Builder: Caterpillar Inc. |
Emergency generator |
1x DEMP/MAN diesel engine type D 2866 TE- 200 kW connected to a STAMFORD generator - 170 KW, 213 kVA, 450V, 60 hz Builder: MAN Truck & Bus AG - GE Motoren-Nürnberg, Germany |
Bow thruster |
1x Brunvoll type FU-63-LTC-1750-800 - 800 KW Speed of propeller: 363 rpm |
Cargo tank capacity 98% |
15.807 m³ |
Deck tank capacity 98% |
172 m³ |
Tank configuration |
2x 7 Cargo-tanks divided P&S by centre bulkhead and building 7 natural segregation’s of: 1.217 m³ + 2.134 m³ + 2.781 m³ + 1.793 m³ + 2.838 m³ + 2.240 m³ + 2.805 ³m. Double skin and double bottom for clean water ballast in cargo area. Double bottom for clean water ballast in cargo area. |
Tank coating |
Cargo and Deck tanks, Epoxy International TC 900 |
Cargo pumps |
7x Svanehöj electrically driven frequency controlled centrifugal pumps. Type DW 200/250-2-K - 450 m³/h each pumping from two tanks. 1x Svanehöj portable hydraulically driven pump for emergency discharge, type NH 80-1- NE 70 m³/h |
Ballast pump |
2x PG-Behrens VRF 9 / 350 G centrifugal pumps, capacity each 600 m³/h. |
Cargo heating |
Primary and Secondary thermal oil system with Stainles Steel coils in cargo tanks Cargo holding temp 70°C at 0°C sea water temperature and minus 20°C in air temperature |
Windlass and mooring winches |
Totally 6 double drums Brattvaag hydraulic mooring winches with a brake holding load of 32 t Two of these are combined anchor/mooring winches |
Tank capacities |
Ballast capacity: 6.112 m³ Fresh water: 120 m³ Heavy oil: 576 m³ Diesel oil: 96 m³ |
Anchor equipment |
Length: 550,00 m Diameter: 54 mm |
Lifting equipment |
1x Hose handling crane Hydralift MCV 1610-5-20Ex - length 20,0 m/ 5 t SWL 1x 1,5 ton – 16,0 m slewing crane aft |
Accommodation |
Living quarters situated aft with public rooms and recreation facilities 14 Single cabins with separate bedrooms / toilets / bathrooms |
Navigation equipment |
Furuno Integrated Bridge System “Voyager”: High-performance ARPA/radars Automatic Navigation and Trackkeeping system 2x TRANSAS ECDIS and High-accuracy position fixing Furuno GMDSS communication equipment |
Manager |
Tärntank Ship Management AB 430 82 Donsö |
Owner |
Terntank Rederi Vestre Strandvej 10 9990 Skagen Denmark |
Previous owners |
2005 - 2012 Tärntank Rederi AB |
Last data update |
23 December 2013 |
