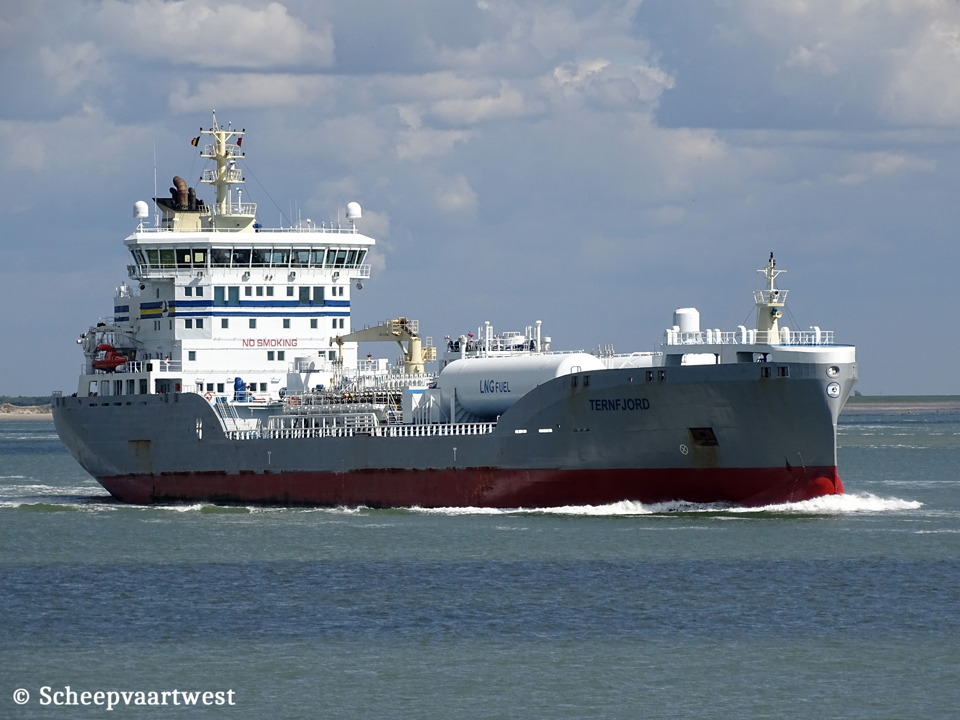

Ternfjord IMO 9722405 01

Westerschelde 12 May 2020



Name

TERNFJORD

Type

Tanker for chemicals and oil products

IMO-number

9722405

Call sign

OWPW2

Flag

Denmark

Port of registry

Skagen

GT

11.374 t

DWT

Summer: 14.848 t

NT

4.780 t

Length

147,00 m overall

144,50 m between perpendiculars

Breadth

22,03 m extreme

Draught

Summer: 9,00 m

Depth

11,70 m moulded

Speed

Service: 12,0 knots

Max: 16,9 knots

Built

2016

Keel laid

15/08/2015

Launch date

27/03/2016

Date of completion

12/09/2016

Builder

AVIC Dingheng Shipbuilding Co., Ltd.

Jiangdu District

Yangzhou

China

Yard number

AD0025

Hull material

Steel

Hull type

Double hull

Propulsion engine

LNG dual-fuel engine:

1x Wärtsilä/Yuchai 5RT-flex50DF - 2 stroke 5 cylinder combustion engine 5.850 kW at 102,0 rpm

Propellers

1x Controllable pitch propeller

Boilers

1x Thermal oil heater, exhaust heated EGH 650 V40

2x Thermal oil heater, oil fired TOH 2900 V40

1x Thermal oil heater, exhaust heated (Catamiser) CAT525 V50 B37

Shaft generator

1x 780 kW

Generators

3x Mitsubishi MAS 850-S generatotrsets 790 ekW @ 1.800 rpm 60Hz

Builder: Mitsubishi Turbocharger and Engine Europe B.V.

Emergency generator

1x Cummins CCFJ200Y-KC diesel generatorset 200 kW

Bow thruster

1x Tunnel thruster 1650 AUX controllable pitch 865 kW 60Hz

Number of tanks

16

Cargo tank capacity 98%

16.548 m³

Slop tank capacity

242 m³

Number of pumps

Deepwell pumps type DW 200/250 multi suction

Frequency controlled 450 m³/h

Tank capacities

Marine gas oil: 610 m³

Ballast: 6.633,7 m³

LNG fuel storage tanks: 630 m³

Urea: 52 m³

Anchor equipment

Length: 577,50 m

Diameter: 56 mm

Manager

Tärntank Ship Management AB

Donsö hamnväg 24

430 82 Donsö

Sweden

Registered owner

Terntank Rederi A/S

Vestre Strandvej 10

9990 Skagen

Latest data adjustment

15 September 2021
