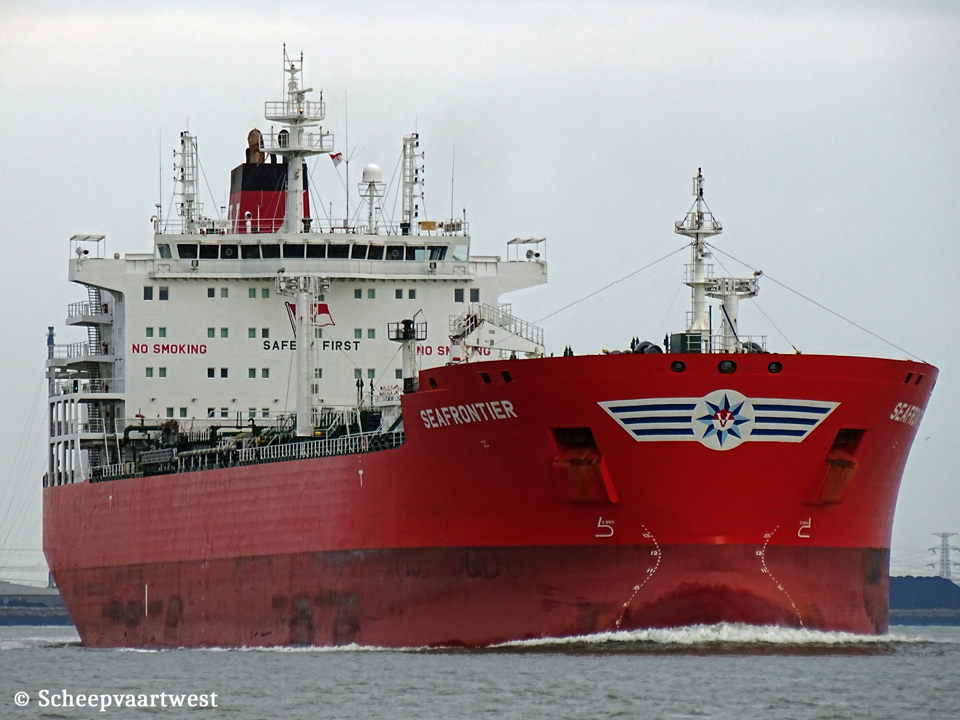

Seafrontier IMO 9457268 11

Westerschelde 25 February 2016

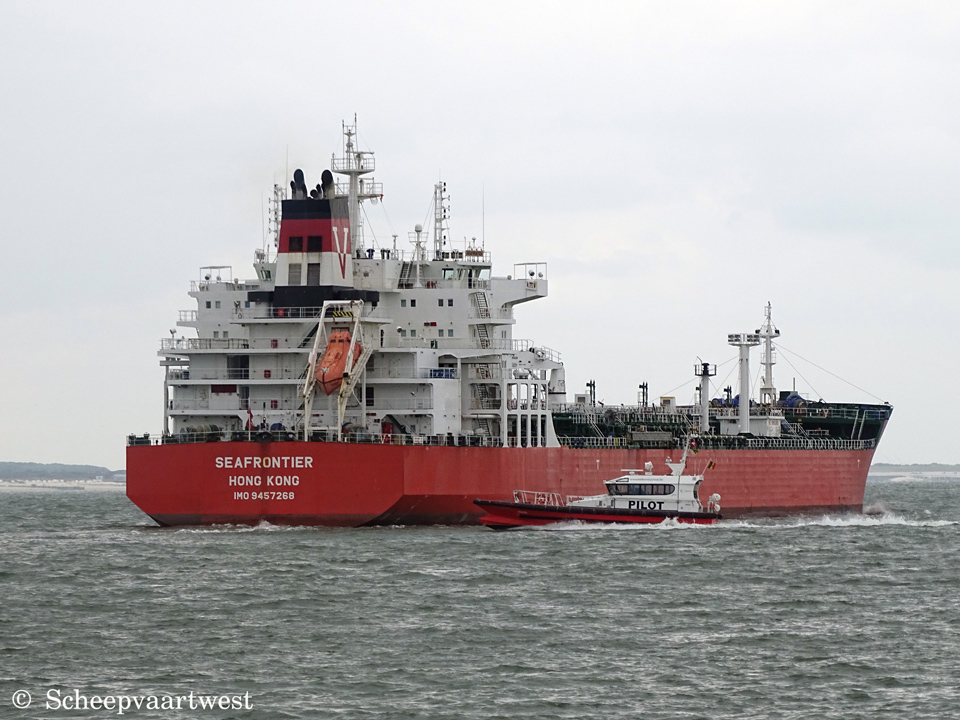

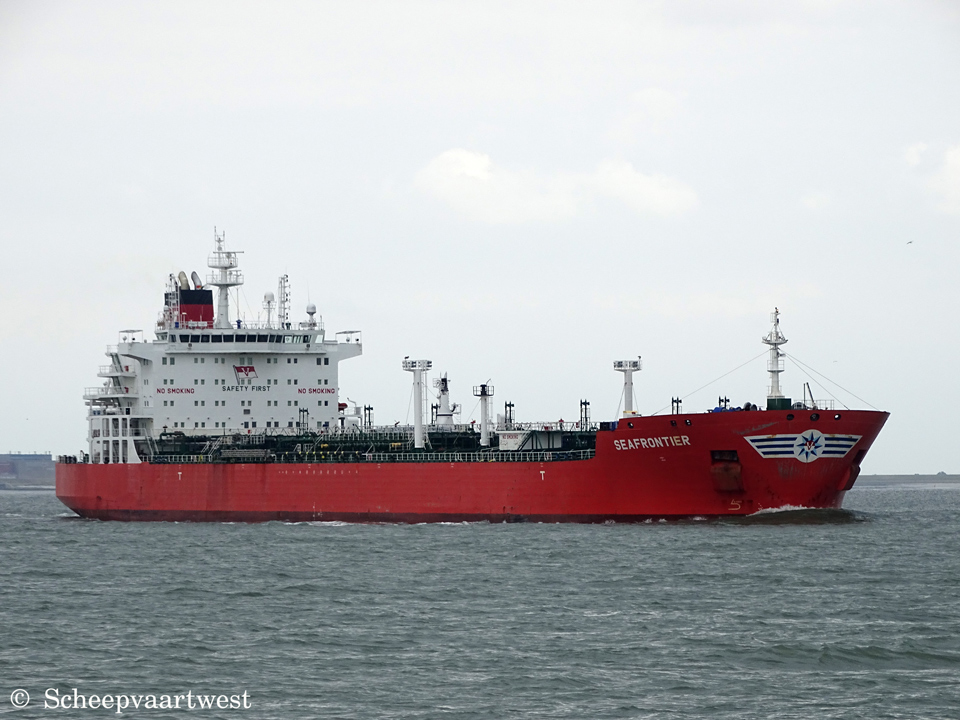

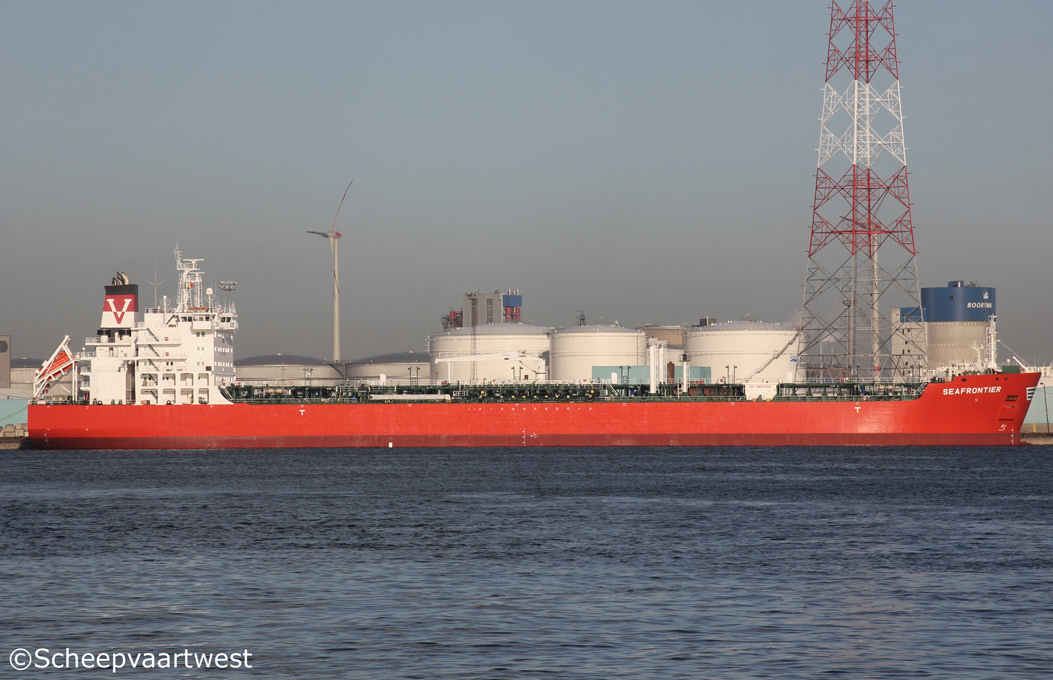

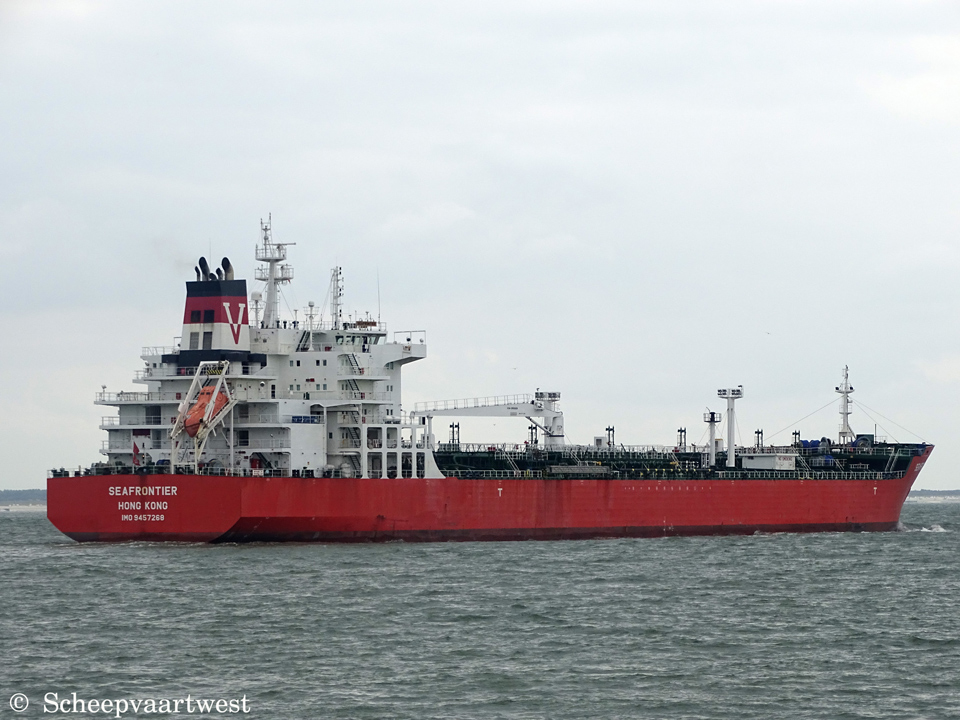

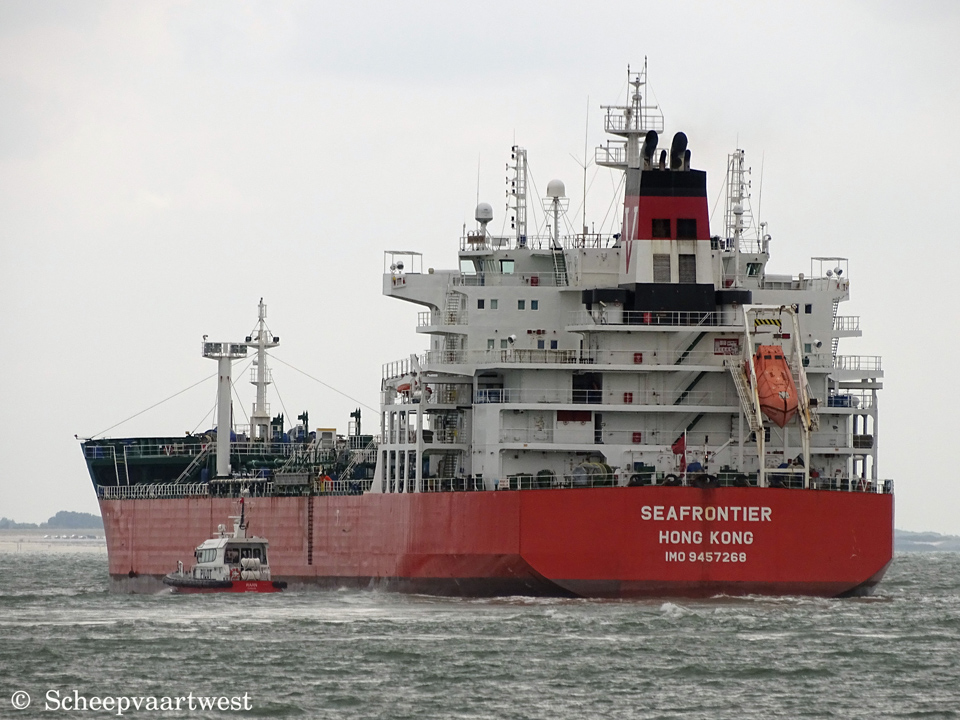

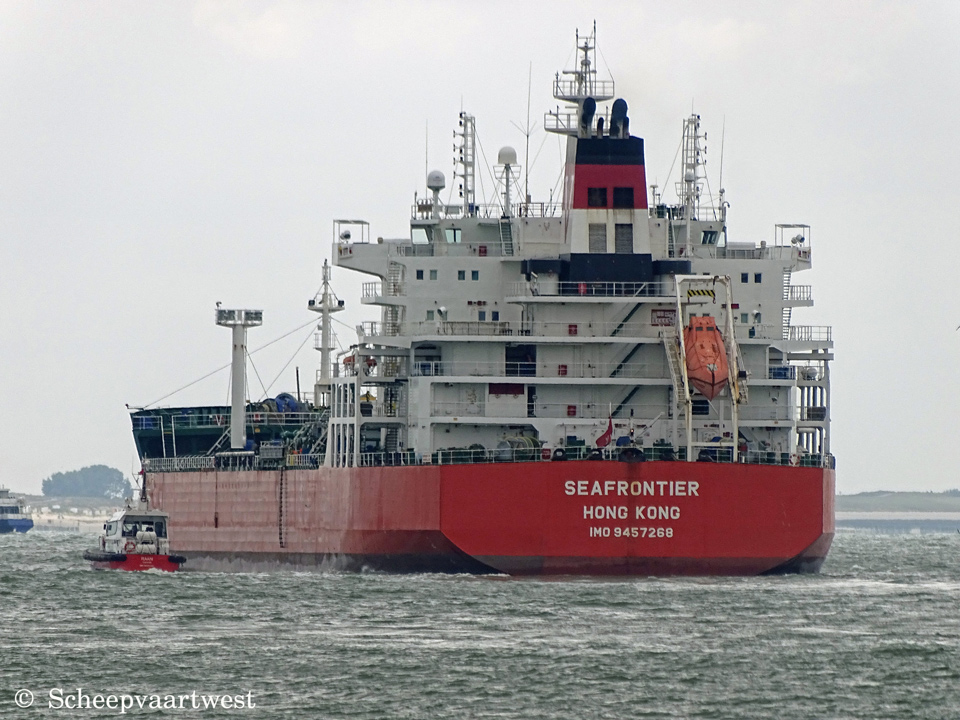

Seafrontier 02   Seafrontier 04   Seafrontier 05   Seafrontier 06   Seafrontier 07   Seafrontier 01
Westerschelde 18/06/18 Westerschelde 18/06/18 Westerschelde 18/06/18 Westerschelde 18/06/18 Westerschelde 18/06/18 Antwerpen 09/12/15

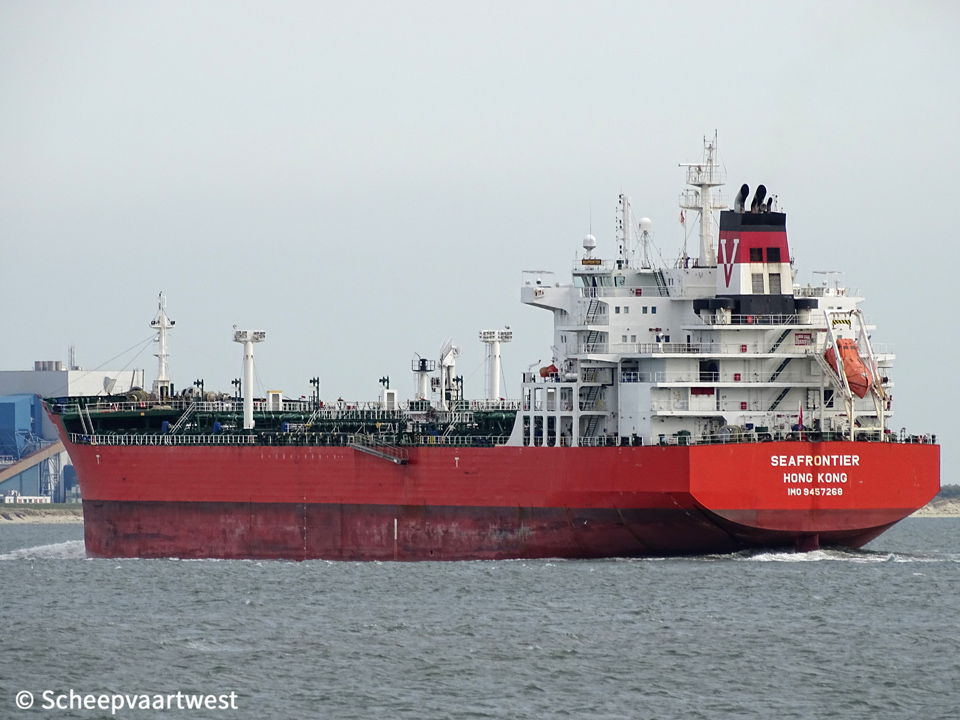

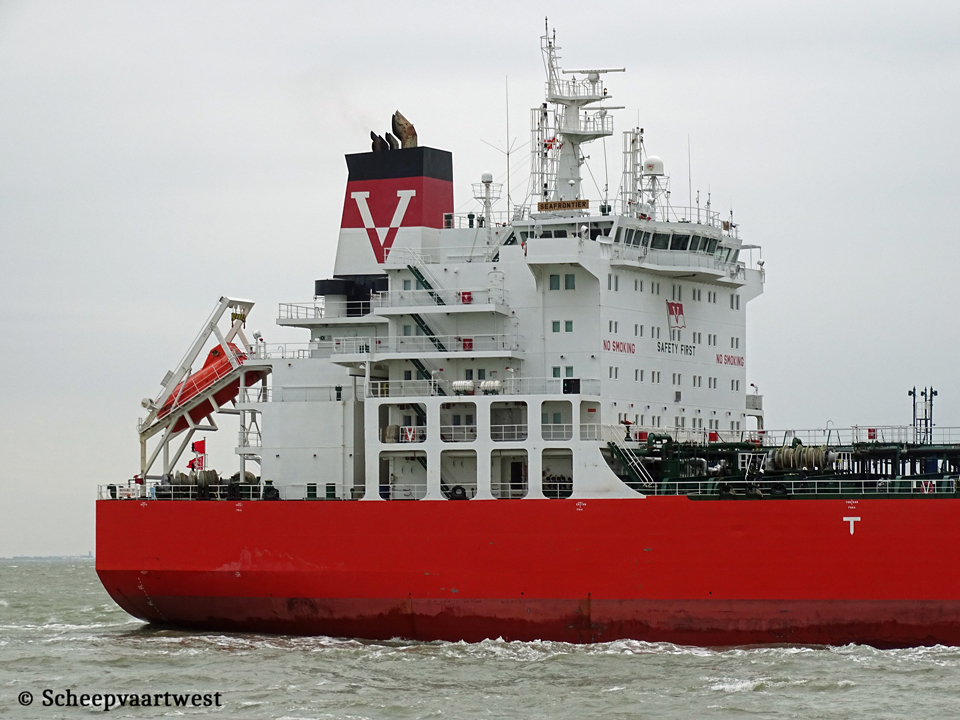

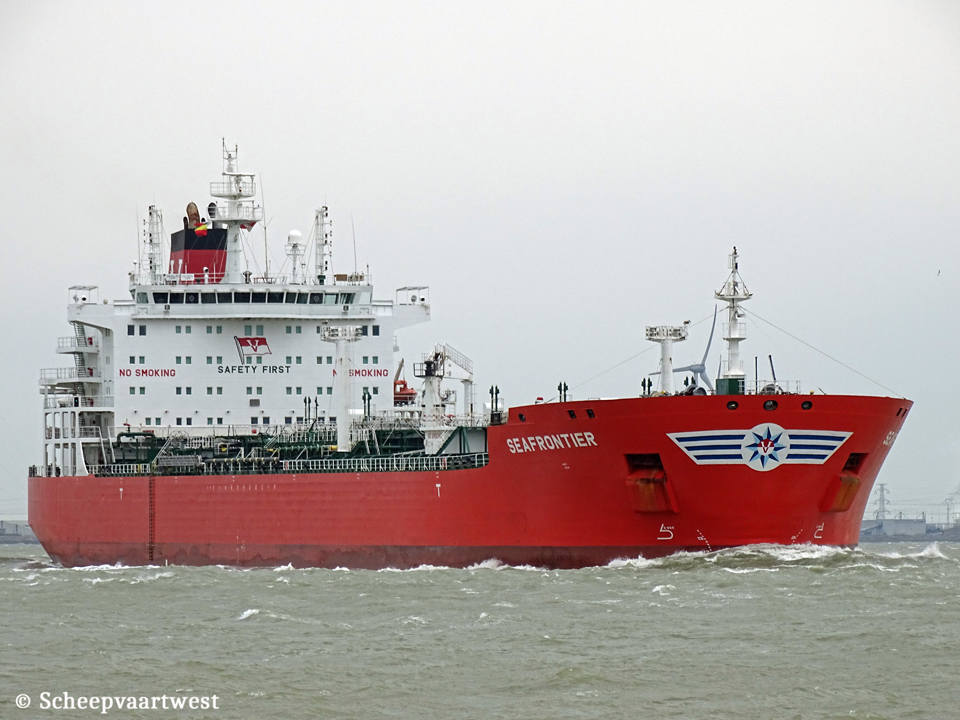

Seafrontier IMO 9457268 09   Seafrontier IMO 9457268 10    Seafrontier 08
Westerschelde 09/03/16   Westerschelde 09/03/16    Westerschelde 08/06/18


Name

SEAFRONTIER

Previous names

2011 built as: Seafronter

Type

Oil product tanker

IMO-number

9457268

Call sign

VRHA3

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

30.241 t

Suez: 30.779 t

DWT

Summer: 48.580 t

Winter: 47.167,3 t

NT

14.702 t

Suez: 28.001,33 t

Panama: 25.102 t

Displacement

Summer: 60.407,20 t

Winter: 58.994,50 t

Length

183,30 m overall

176,00 m between perpendiculars

Breadth

32,22 m extreme

Draught

Summer: 12,28 m

Winter: 12,02 m

Keel to mast end

47,20 m

Air draft

Summer deadweight: 34,92 m

Normal ballast: 39,69 m

Lightship: 44,31 m

Freeboard

Summer: 5.932 mm

Winter: 6180 mm

Depth

18,20 m moulded

Speed

Max ballast: 14,25 knots / economic: 11,0 knots

Laden: 14,0 knots / economic: 10,0 knots

Built

2011

Keel laid

18/08/2010

Launch date

10/11/2010

Date of completion

12/05/2011

Builder

Guangzhou Shipyard International Co. Ltd.

Guangzhou

China

Yard number

06130089

Hull material

Steel

Hull type

Double bottom with hopper

Double side with top wing

Main engine

1x MAN-B&W-Dalian Marine Diesel 6S50MC-C - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW / 12.889 hp at 127,0 rpm

Propellers

1x Fixed pitch propeller

Boilers

Auxiliary boiler, composite type Mission OC

Auxiliary boiler, oil/gas fired type Mission OL

Manufacturer: Aalborg Industries in Aalborg - Denmark

Shaft generator

3x MAN B&W 6L23/30H diesel generatorsets each 910 kW

Generators

1x Sisu 645 DSBA(E)G diesel generatorset

Manufacturer: Agco Power OY

Number of cargo tanks

12 + 2 slop tanks

Total tank capacity 98%

51.472,39 m³

Capacity natural segregation with double valve 98%

Seg#1: 6.988,72 m³ (1 Wings)

Seg#2: 9.804,81 m³ (2 Wings)

Seg#3: 8.673,37 m³ (3 Wings)

Seg#4: 8.673,37 m³ (4 Wings)

Seg#5: 8.673,37 m³ (5 Wings)

Seg#6: 8.658,72 m³ (6 Wings)

Seg#7: 2.319,70 m³ (Slop P)

Seg#8: 2.851,76 m³ (SLop S)

Number of slop tanks

2

Slop tank capacity 98%

5.700,25 m³

Pumps

2x Marflex MDPD 150 ballast pumps each 1.000 m³/h

12x Marflex cargo pumps each 550 m³/h

2x Marflex cargo pumps each 200 m³/h

1x Marflex cargo pumps 70 m³/h

Manifolds

Distance bridge front to centre of manifold: 60,18 m

Bow to centre manifold: 91,40 m

Stern to centre manifold: 92,80 m

Distance ships rail to manifold: 4.430 mm

Distance between cargo manifold centres: 2.000 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 800 mm

Distance main deck to centre of manifold: 2.100 mm

Spill tank grating to centre of manifold: 900 mm

Tank capacities

Ballast: 22.079,63 m³

Fuel oil: 1.474,92 m³

Gas oil: 674,06 m³

Anchor equipment

Length: 660,00 m

Diameter: 76 mm

Lifting equipment

1x Cranes - SWL 10,0 t centre midship

Technical operator

Valles Steamship Canada Ltd.

1160 Guinness Tower

1055 West Hastings Street

Vancouver,B.C.Canada,V6E 2E9

Canada

Commercial operator

Chartering and Shipping Services SA (CSSA)

World Trade Center 1

1215 Geneva

Switzerland

Registered owner

Dorchester Associates Inc.

c/o Valles Steamship Co. Ltd.

The Center, 99 Queen's Road Central

Hong Kong

Hong Kong - China

Disponent owner

Chartering and Shipping Services SA

World Trade Center 1

1215 Geneva

Switzerland

Renamed

2010 Clarity

04/2010 Dignity - IMO 9413676

2011 Honesty

09/2011 Seameridian - IMO 9462897

Latest data adjustment

31 July 2022
