Vlissingen, The Netherlands 01 August 2018 |
|
Name |

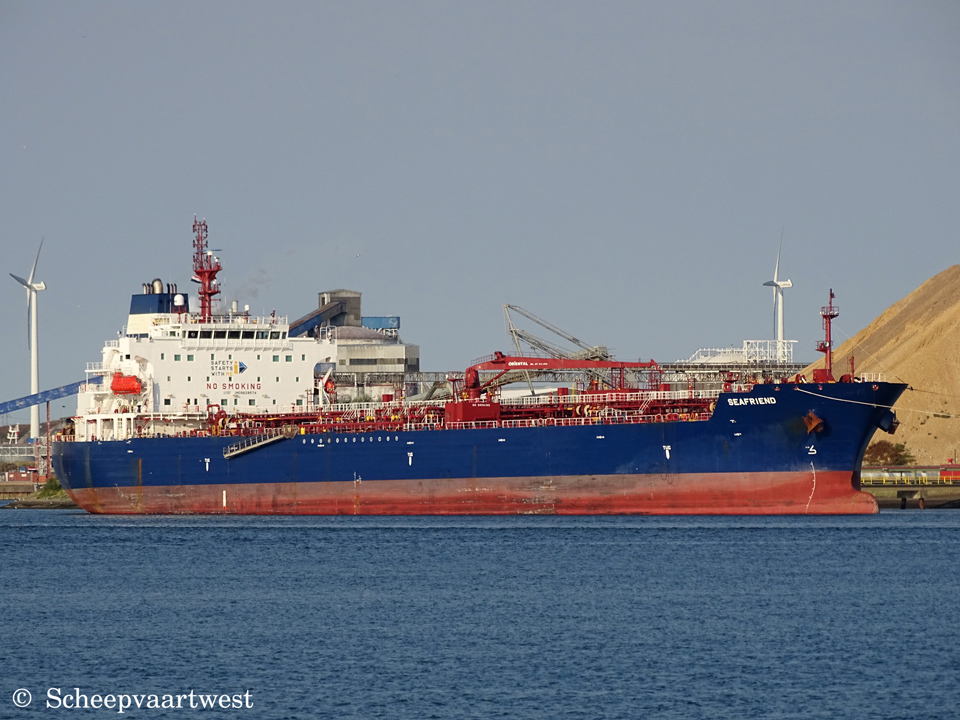

SEAFRIEND |
|
Type |
Oil and chemical carrier |
|
IMO-number |
9629574 |
|
Call sign |
9HA3308 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
29.925 t registered Suez: 31.294,66 t |
|
DWT |
Summer: 50.660,1 t |
|
NT |
13.626 t registered Panama: 24.839 t Suez: 27.043,62 t |
|
Length |
183,00 m overall 173,90 m between perpendiculars |
|
Breadth |
32,20 m moulded |
|
Draught |
Max: 13,15 m |
|
Freeboard |
5.962 mm |
|
Depth |
19,10 m moulded |
|
Speed |
Max: 14,5 knots |
|
Built |
2013 |
|
Keel laid |
26/12/2011 |
|
Launch date |
24/12/2012 |
|
Delivery date |
30/04/2013 |
|
Builder |
STX Offshore & Shipbuilding Co., Ltd. |
|
Yard number |
S1534 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 10 Oil tight: 1 |
|
Main engine |
1x Man B&W 6S50ME-C8 - 6 cylinder 500 x 2.000 mm combustion engine 9.019 kW at 115 rpm Manufacturer: STX Heavy Industries Co., Ltd. |
|
Propellers |
1 Manufacturer: Sil La Metal Co. |
|
Boilers |
Fired boiler - 9,0 bar Exhaust gas boiler - 6,86 bar Manufacturer: Kangrim Heavy Industries Co., Ltd. - Changzhou Office |
|
Generators |
3x Main diesel generatorset each 740 kW Manufacturer: HHI Electro Electric System |
|
Number of cargo tanks |
15 |
|
Cargo tank capacity |
53.302 m³ |
|
Number of tanks |
Ballast: 14 Lubricating oil: 11 Fuel oil: 8 Gasoline: 4 Diesel oil: 4 Waste water: 3 Fresh water: 3 Chain: 2 Sludge: 2 Hydraulic oil: 1 |
|
Tank capacities 100% |
Diesel oil: 160,7 m³ Freshwater: 377,3 m³ Fuel oil: 1.577,6 m³ Hydraulic oil: 18,9 m³ Lube oil: 120,7 m³ Tank ballast: 22.446,6 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 2,0 t 1x Hose handling crane - SWL 10,0 t 1x Provision crane - SWL 3,0 t Manufacture: Oriental Prec & Eng'g Co. |
|
Crew size |
28 |
|
Manager |
Thenamaris Ships Management Inc. |
|
Operator |
Thenamaris Ships Management |
|
Registered owner |
Rosebay Marine SA |
|
Latest data adjustment |
13 January 2019 |
