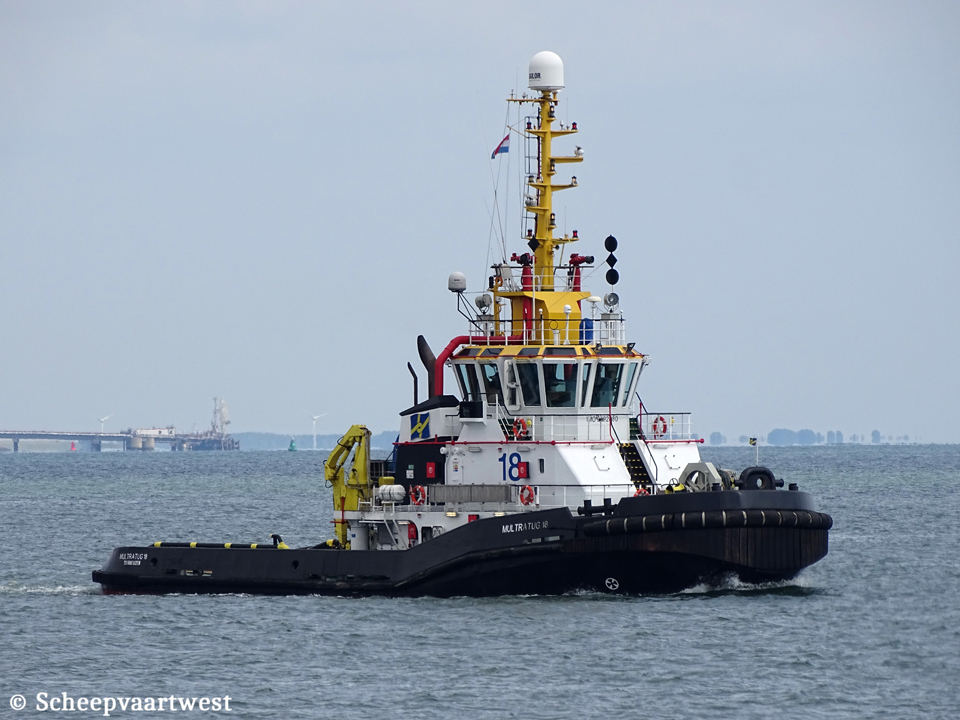

Multratug 18 - IMO 9492880

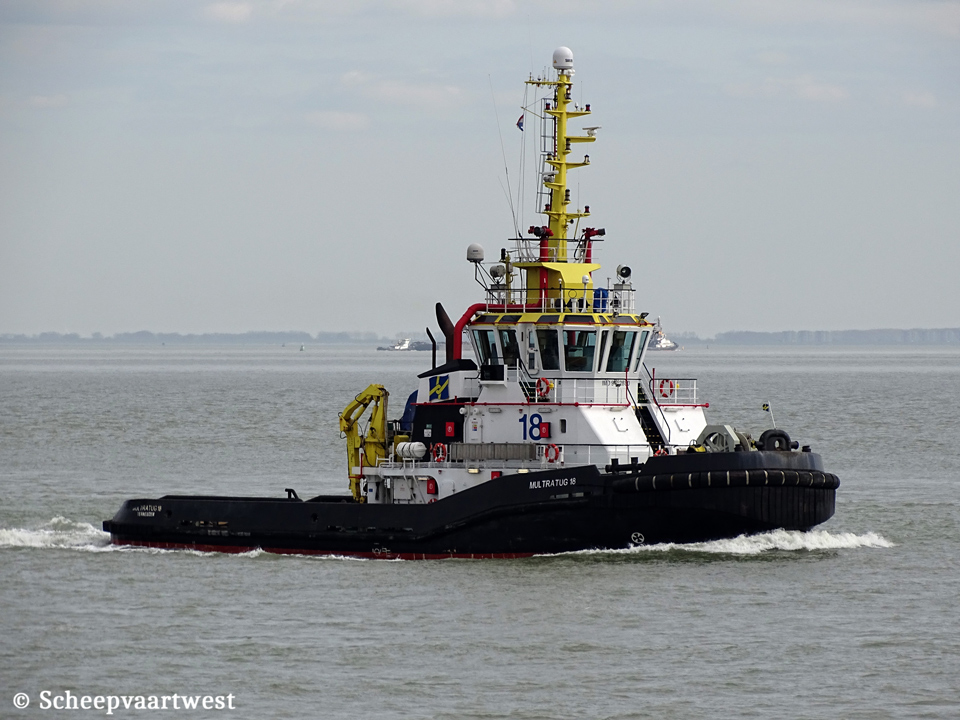

Westerschelde 03 May 2020

Name

MULTRATUG 18

Type

Tug boat - Escort tug - Salvage tug - Fire fighting ship - Oil recovery

IMO-number

9492880

Call sign

PBRY

Flag

The Netherlands

Port of registry

Terneuzen

GT

499 t

NT

149 t

Length

35,70 m overall

30,54 m between perpendiculars

Breadth

11,50 m

Draught

Summer: 4,85 m

Air draft

21,00 m

Freeboard

358 mm

Speed

12,5 knots

Built

2009

Date of completion

11/05/2009

Builder

Vega Denizcilik Sanayi Ve Tic Ltd Sti.

Bandirma

Turkey

Yard number

13

Hull material

Steel

Hull type

Single hull

Watertight compartment

3

Number of decks

1

Main engine

2x ABC 8MDZC-1000-183A - 4 stroke 8 cylinder 256 x 310 mm combustion engines each 1.900 KW total 3.800 kW / 5.164 bhp at 1.000 rpm

Built: 2009

Builder: Anglo Belgian Corporation N.V.

Wiedauwkaai 43

9000 Gent

Belgium

Propulsion

2x Azimuth thruster controllable pitch Schottel SRP 1515CP

Diameter each 2.600 mm

Generators

3x Volvo Penta D7A-TA diesel generatorsets each 174 kVA - 139 kW - 189 hp at 1.500 rpm

3x 400 Volt, 50 Hz, 3 ph

Bow thruster

150 kW, electric driven

Bollard pull

70 t

Deck space

64 m²

Deck lay-out

• Double drum winch: Plimsoll P 4256 - HTW/DD - 45/130 - Capacity: 2x 1.100 m - diameter 52 mm - Brake capacity : 130 t on the 1st layer

• Stern roller : 130 t SWL 3 m x 1 m diameter

• Towing pin : Plimsoll-Smith Berger PS - 200MTA - 200 t at 30 deg.

• 1x Karmoy fork

• Bridle winch: Schraven Maritiem, 27 t

• FWD Towing winch: 1x Single drum escort winch model PC - HAETW/GDG -24 - 65/130. line cap. 220 m - diameter: 48 mm - Brakehold 130 t

• Towing hook: Plimsoll - Model PC-PTH-60/70

• Spare towing wire: 1.100 m - 52 mm diam

Fire fighting

Type: Centrifugal, main engine driven

Capacity: 1x 1.500 m³/h and 1x 1.200 m³/h

Tank capacities

Fuel oil: 340 m³

Fresh water: 48,8 m³

Lubrication oil: 5 m³

Hydraulic oil: 5 m³

Dirty oil: 3,6 m³

Bilge water: 3,6 m³

Anchor equipment

2x 780 kg

Chain : diameter 24 mm - 206 m

Lifting equipment

1x Hydraulic deck crane - 2,9 t at 5,11 m - 1,0 t at 13,20 m

Accommodations

4-Men cabins: 2

2-Men cabins: 1

1-Men cabin: 3

Mess room: 1

Galley: 1

Crew

8

Manager

Handel- & Scheepvaartmaatschappij Multraship B.V.

Terneuzen

The Netherlands

Owner

Multraship towage & salvage

Scheldekade 48

4530 AB Terneuzen

The Netherlands

Registered owner

Multratug 18 B.V.

Latest data adjustment

28 June 2022
