Multratug 20 - IMO 9572006

Details
Written by: Werner Goes
Category: Tugs
Hits: 5701

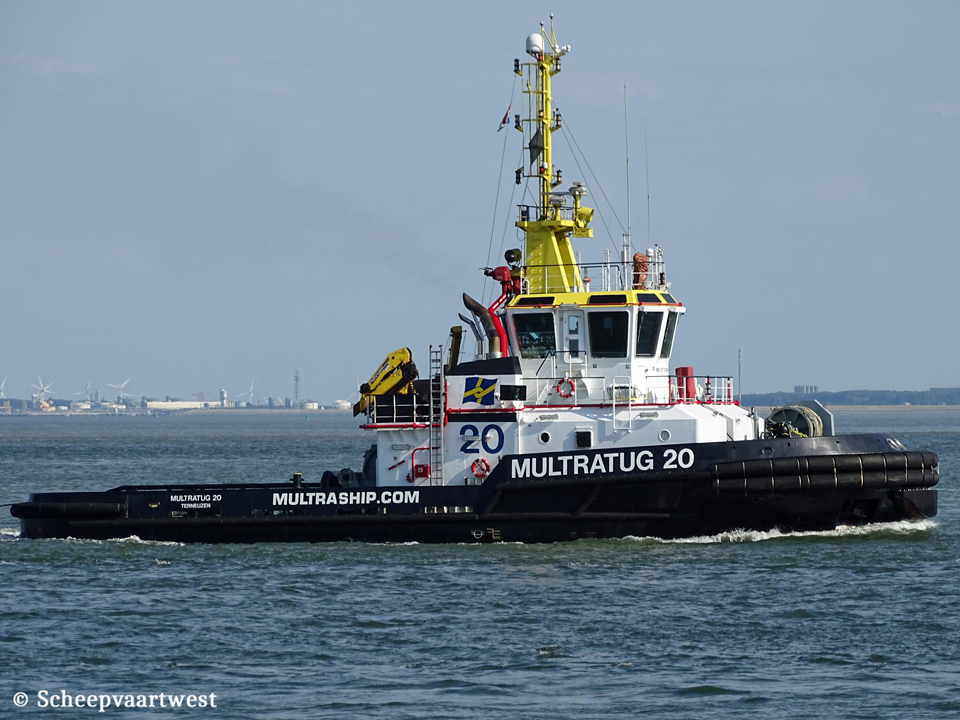

Multratug 20 IMO 9572006 12
Westerschelde 21 August 2017

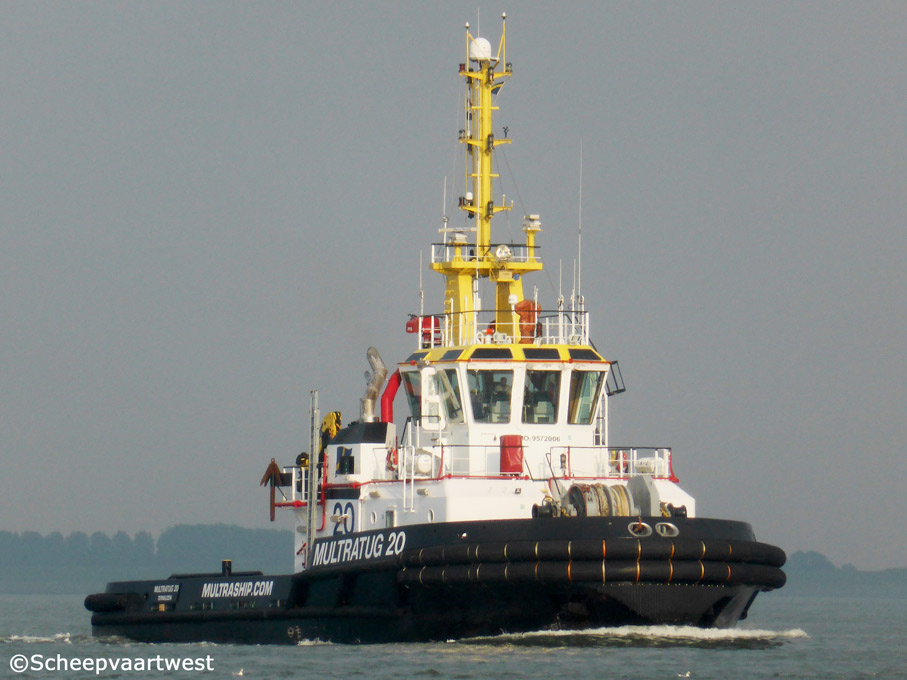

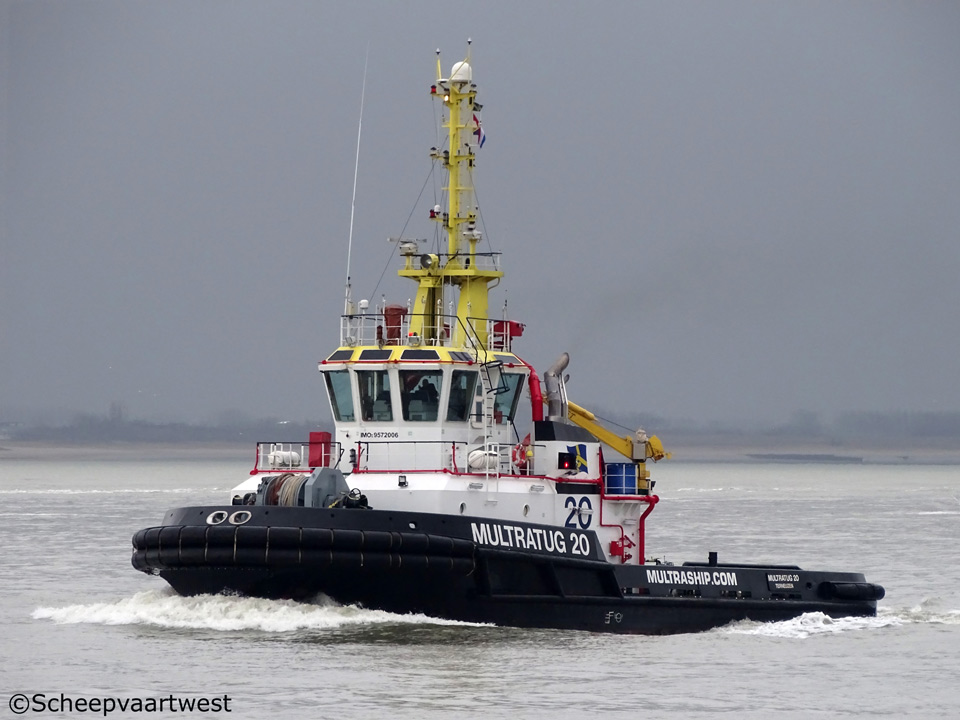

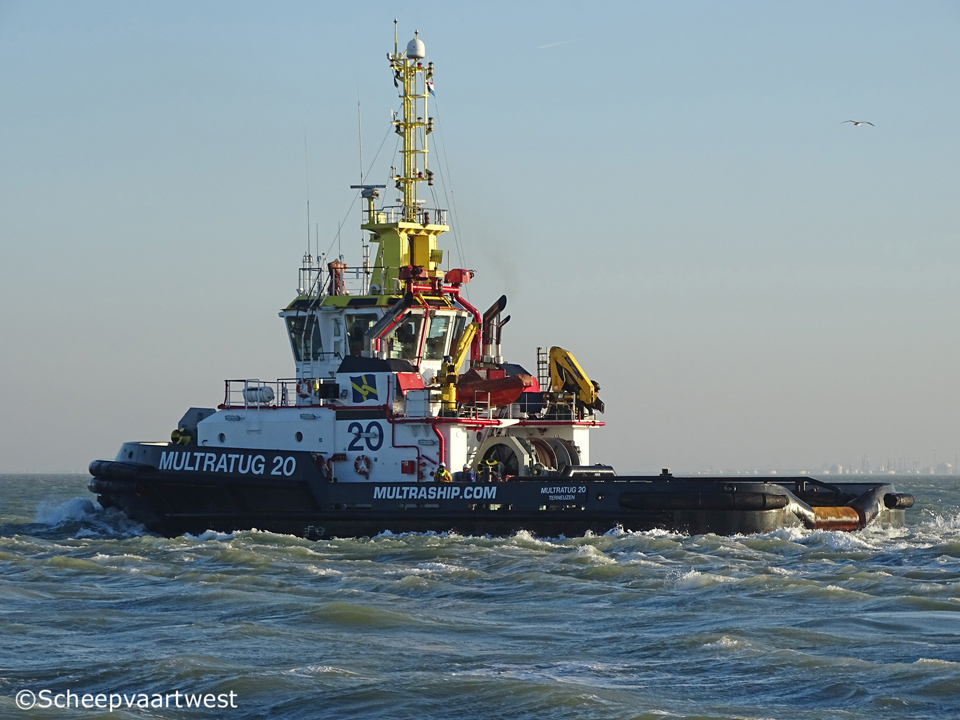

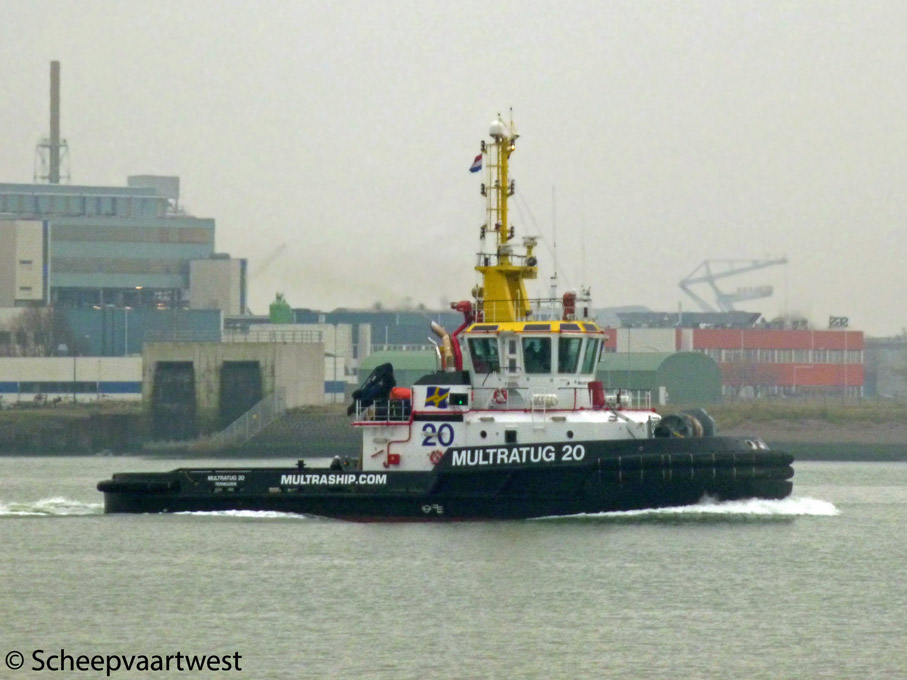

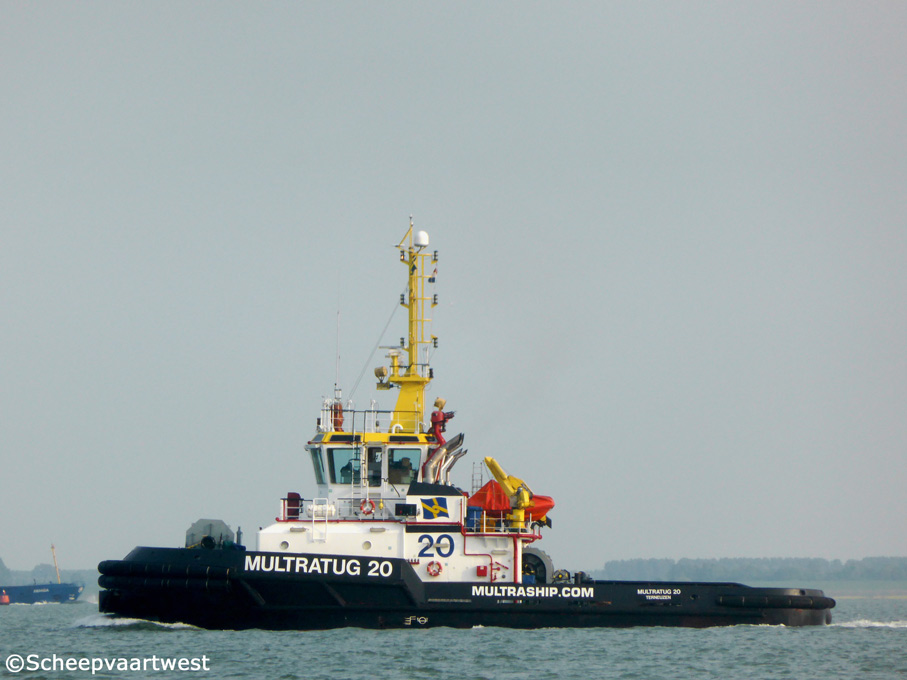

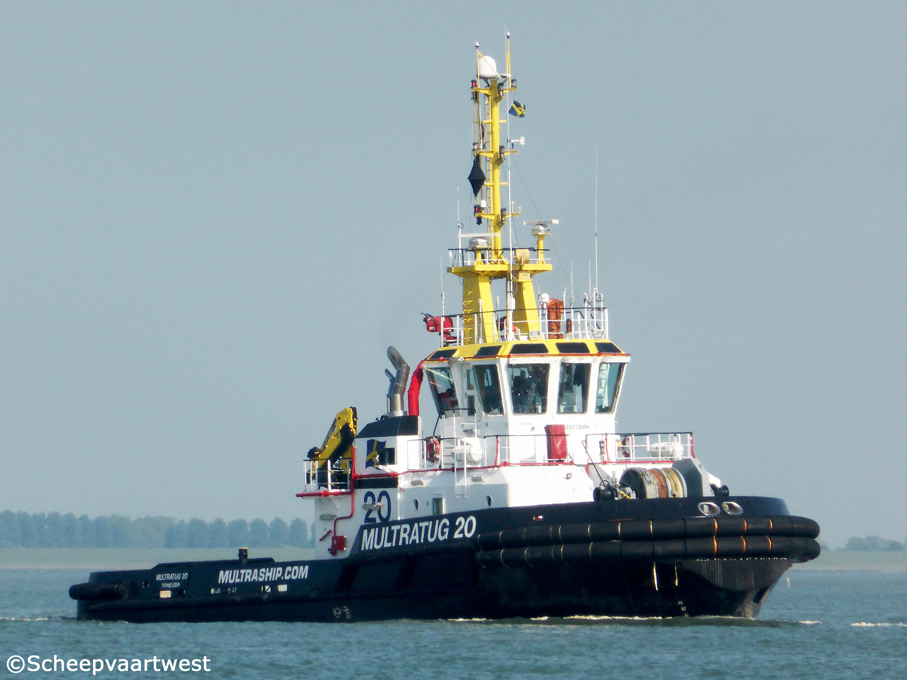

Multratug 20 01   Multratug 20 03   Multratug 20 04   Multratug 20 06   Multratug 20 10   Multratug 20 11
Vlissingen 28/11/13 Westerschelde 02/08/14 Westerschelde 31/07/14 Westerschelde 17/05/14   Westerschelde 15/01/17   Westerschelde 22/11/17

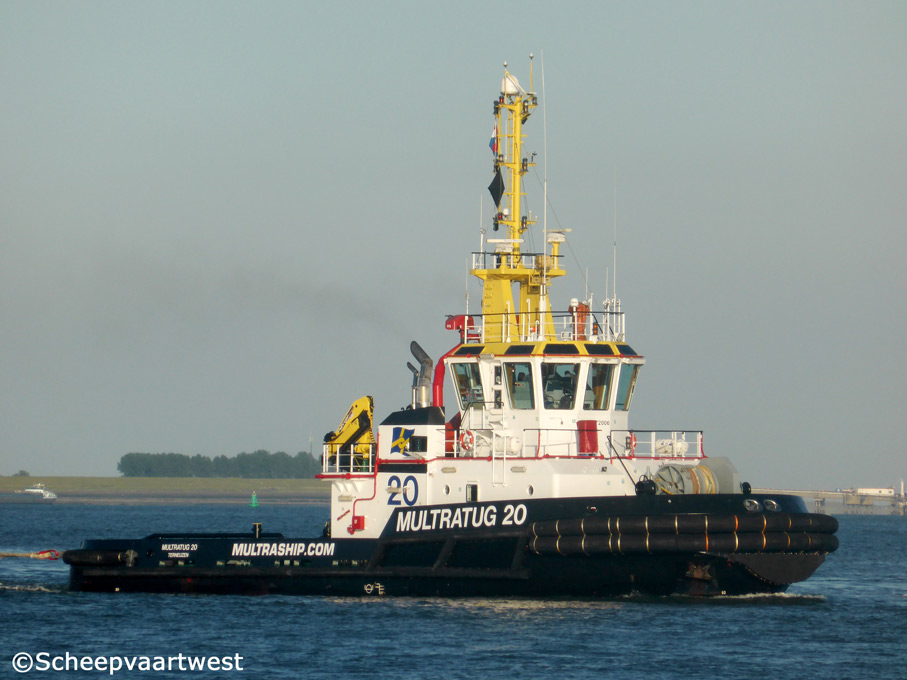

Multratug 20 02
Westerschelde 11/06/14


Name

MULTRATUG 20

Previous names

Launch as: Bogazici 7

2010 - 06/2011 Waterchief

2011 - 01/2013 BB Hunter

01/2013 - 06/2011 Waterchief

Type

Tug boat / Fire fighting ship

Escort tug - Salvage tug -Fire fighting ship - Water spraying -Oil recovery ship

IMO-number

9572006

Call sign

PBFX

Flag

The Netherlands

Port of registry

Terneuzen

GT

463 t

NT

139 t

Length

32,50 m overall

27,60 m between perpendiculars

Breadth

11,70 m overall

Draught

Max.: 5,60 m

Freeboard

724 mm

Speed

13,0 knots

Built

2010

Date of completion

13/06/2010

Builder

Dentas Gemi Insa Ve Onarim Sanayi A.S. - Shipbuilding & Repair

Istanbul

Turkey

Yard number

06-12

Hull material

Steel

Main engine

2x Caterpillar 3516B - 4 stroke 16 cylinder combustion engines each 2.100 kW total 4.200 kW / 5.710 hp at 1.600 rpm

Builder: Caterpillar Inc. - USA

Propelling system

2x Schottel SRP 1515 azimuth thruster controllable pitch at 1.600 rpm

Diameter: 2.600 mm

Generators

2x Caterpillar C9 diesel generatorsets each 150 kW - 440 Volt / 50 Hz

Bollard pull

72 t

Deck lay-out

  • Anchor & escort winch: MacGregor Plimsoll HAETW/GDG-22-80 /200, Brake holding load 200 t 1st layer

  • Towing winch (aft): MacGregor Plimsoll HTW/DD-65-130, Brake holding load 130 t 1st layer

  • Reel winder: MacGregor Plimsoll ESW/SD-03 - 400 m drum capacity

  • Stern roller: : 130 t SWL

  • Towing pin: Data towing pins

  • Towing hook: Triplex shark jaw

  • Spare towing wire: 400 m diameter: 52 mm

  • Deck load: : 3x 20’ containers

FI-FI Monitors

2x 1.200/300 Water/Foam monitors

Tank capacities

Fuel oil: 244 m³

Fresh water: 26 m³

Rec oil: 54 m³

Ballast water: 69 m³

Lubrication oil: 2,44 m³

Hydraulic oil: 2,44 m³

Dirty oil: 5,03 m³

Bilge water: 5,13 m³

Anchor equipment

2x 600 kg speck anchor

Chain: Grade 2 stud link 22 mm - 5 shackle each

Lifting equipment

1x Deck crane Palfinger - SWL 1,22 t

Accommodation

4-Men cabins: One

2-Men cabins: Two

1-Man cabin : Two

Messroom: One

Galley: One

Manager

Multraship Ocean Towage & Salvage

Schuttershofweg 1

4530 AB Terneuzen

The Netherlands

Owner

Kristiansund Taubaatservices AS

Flatøyveien 81

6523 Kristiansund N

Norway

Latest data adjustment

27 August 2023
