Zeebrugge 21 July 2016 |
|
Name |

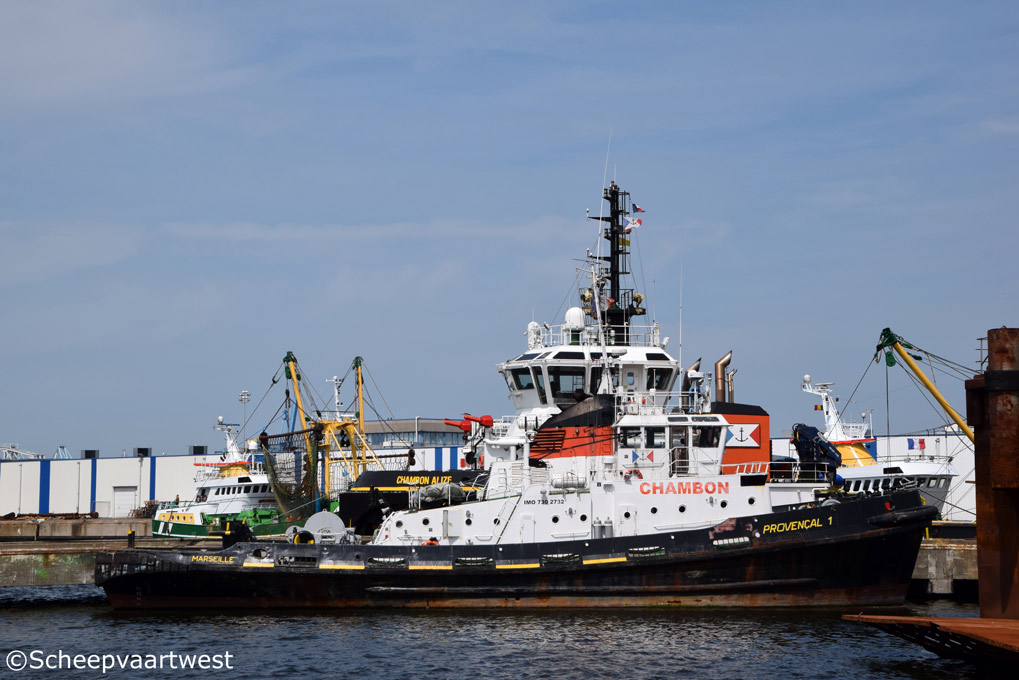

PROVENÇAL 1 |
|
Type |
Tug boat |
|
IMO-number |
7302732 |
|
Call sign |
FKQP |
|
Flag |
France |
|
Port of registry |
Marseille |
|
GT |
307 |
|
DWT |
110 t |
|
NT |
92 t |
|
Length |
33,00 m overall 30,00 m between perpendiculars |
|
Breadth |
9,32 m |
|
Draught |
3,12 m |
|
Freeboard |
1.150 mm |
|
Depth |
4,15 m |
|
Speed |
12,1 knots |
|
Built |
1973 |
|
Builder |
Sté Alsacienne de Constructions Mécaniques |
|
Hull material |
Steel |
|
Watertight compartments |
7 |
|
Continuous decks |
1 |
|
Main engine |
2x AGO (SACM) 240G8LS - 4 stroke 8 cylinder 240 x 220 mm diesel engines total 1.988 kW / 2.700 hp at 1.120 rpm Built: 1972 Builder: Societe Alsacienne De Constr. Mec., Mulhouse - France |
|
Propellers |
2x Voith-Schneider/Cycloidal propellers |
|
Electric installations |
Power voltage: 380 V Lighting voltage: 220 V |
|
Shaft generator |
2x 3 kVA - 2 kW |
|
Generators |
2x Diesel generatorsets each 70 kVA - 56 kW - 85 hp |
|
Bollard pull |
32 t |
|
Tank capacities |
Fuel oil: 140 m³ |
|
Owner |
Compagnie Maritime Chambon 3 Rue Beauvau |
|
Latest data adjustment |
30 July 2016 |
