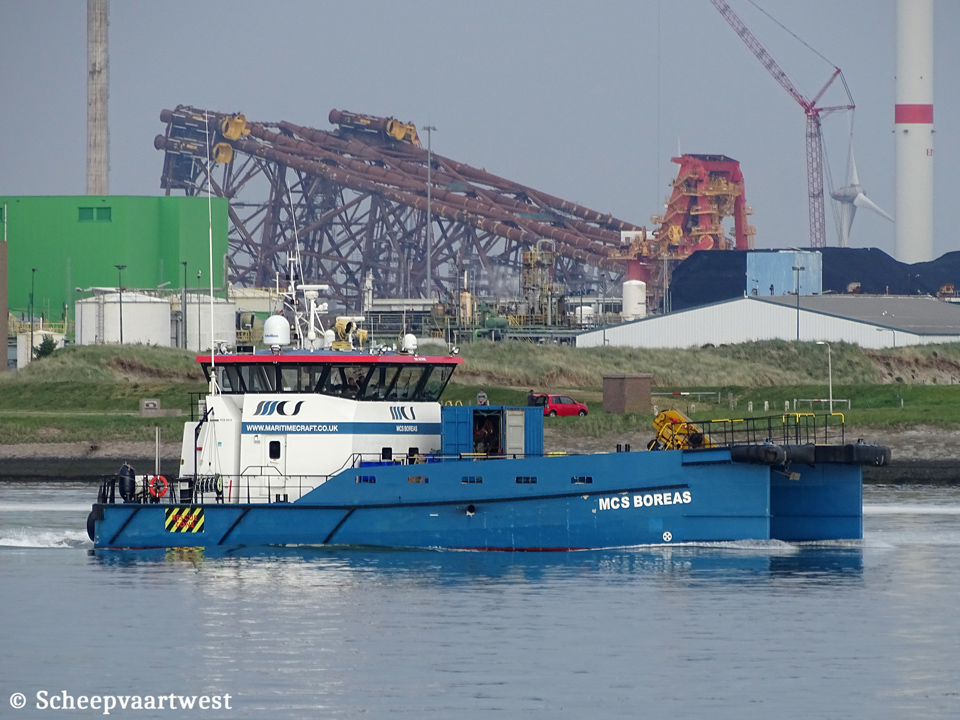

Vlissingen, The Netherlands 07 May 2019 |
 |
 |
|

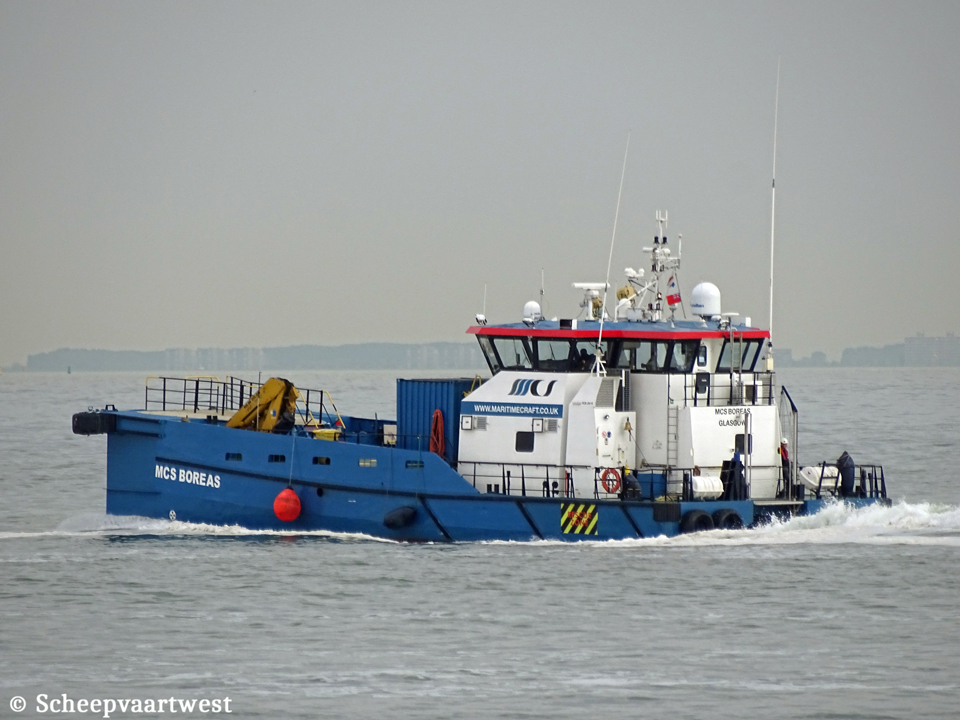

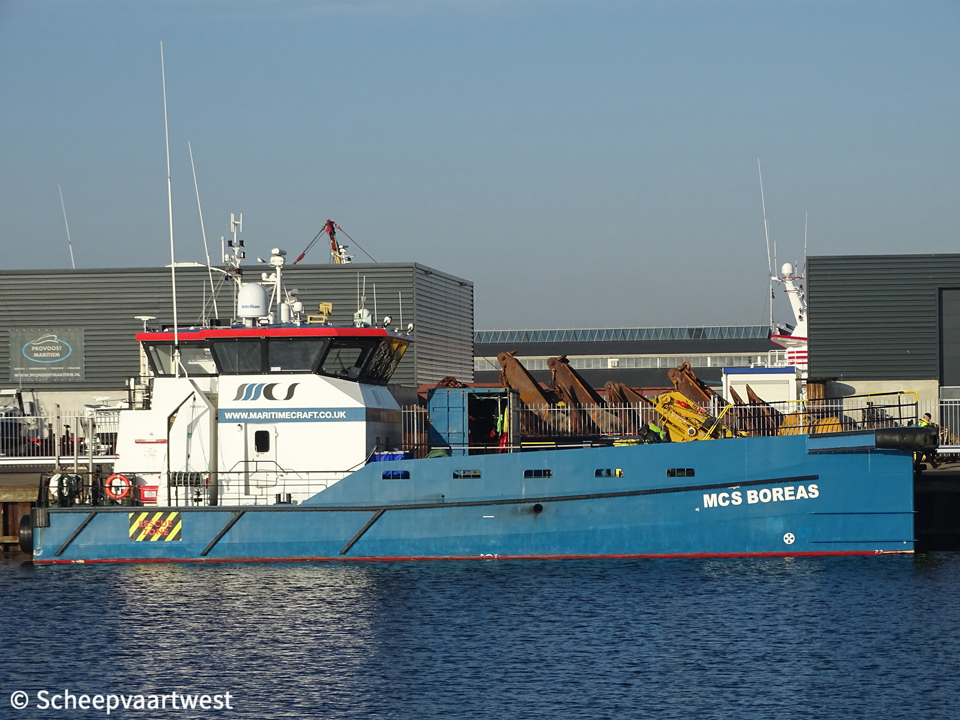

| Westerschelde 07/05/19 | Vlissingen 23/02/19 | |
|
Name |
MCS BOREAS |
|
Type |
Catamaran high-speed crew craft - Offshore supply ship Damen 2610 |
|
IMO-number |
9679098 |
|
Call sign |
2GDR8 |
|
Flag |
United Kingdom |
|
Port of registry |
Glasgow |
|
GT |
81,58 t registered |
|
NT |
107 t |
|
Displacement |
80 t |
|
Length |
25,75 m overall 23,98 m between perpendiculars |
|
Breadth |
10,40 m |
|
Draught |
2,20 m |
|
Depth |
3,50 m |
|
Speed |
Max: 25,9 knots Cruising: 22,0 knots |
|
Built |
2013 |
|
Date of completion |
13/05/2013 |
|
Builder |
189 One Member Limited Liability Company (189 Ship Yard) Hai Phong City Vietnam |
|
Builder completion |
Damen Shipyards B.V. The Netherlands |
|
Yard number |
532511 |
|
Hull material |
Aluminium |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar C32 TTA - 4 stroke 12 cylinder 145 x 162 mm combustion engines total 1.790 kW / 2.432 hp at 2.000 rpm Builder: Caterpillar, Fountain Inn - USA |
|
Gearbox |
Reintjes ZWVS 440/1 |
|
Propelling system |
2x Fixed pitch propellers |
|
Generators |
2x Caterpillar C2.2T diesel generatorsets each 28 kVA - 23 kW - 31 hp |
|
Bow thruster |
2x Hydraulically driven B.V.50 kW |
|
Moonpool |
1.200 mm x 920 mm |
|
Deck carrying capacity |
15,0 t |
|
Clear deck space |
90 m² |
|
Fendering |
Rubber “D” type and heavy duty foam fender |
|
Tank capacities |
Fuel oil: 21,0 m³ Fresh water: 1,8 m³ Dirty oil: 0,33 m³ Sewage: 2,0 m³ |
|
Anchor equipment |
1x 150 kg HHP Pool TW |
|
Lifting equipment |
1x Deck crane Heila HLM 20-2s - SWL 2,2 t @ 8,50 m |
|
Accommodation |
12 persons Crew sleeping accommodation: 3 persons |
|
Navigation equipment |
Searchlight: 2x MP-Pesch @ 1.000 Watt Magnetic compass: Cassen & Plath Satellite compass: JRC JRL-21 Radar system: 2x JRC JMA mk2 GPS: JRC JHS-182 Autopilot: Alphatron Deapilot MFC AIS: JRC Echosounder: JRC JFE-380 VHF/DSC: sailor RT6210 Handheld VHF: 2x Sailor SP3520 SSB: Sailor 6000 series DSC: Sailor RT 6222 Navtex JRC NCR-333 |
|
Manager |
Maritime Craft Services (Clyde) Ltd. Maritime House, 69-71 Main Rd, Fairlie North Ayrshire Scotland United Kingdom |
|
Registered owner |
Maritime Craft Services (Clyde) Ltd. |
|
Latest data adjustment |
27 April 2019 |
