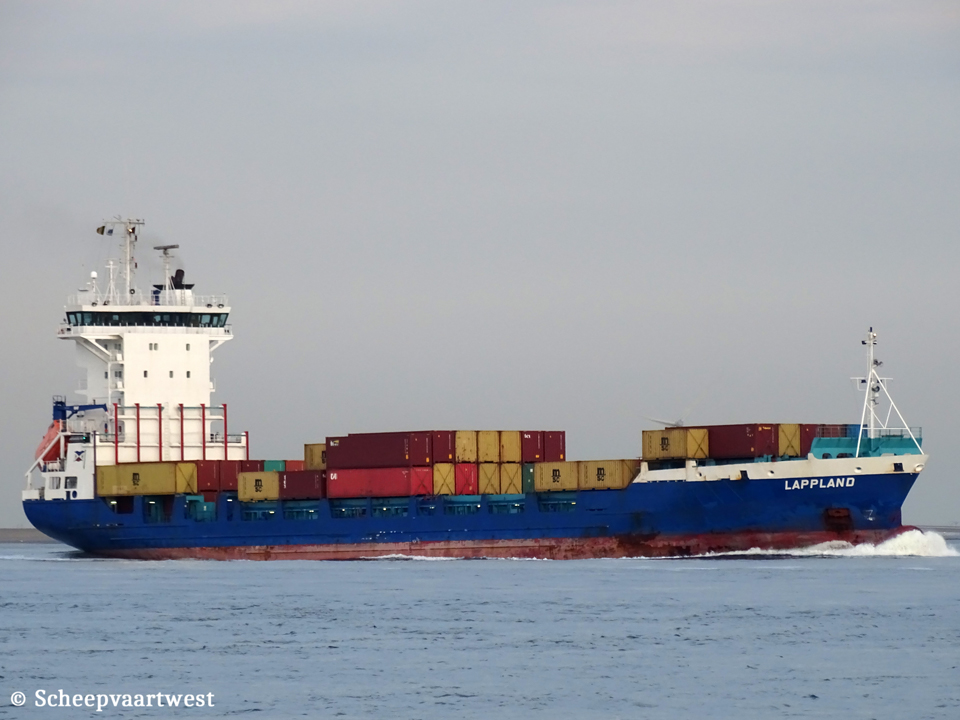

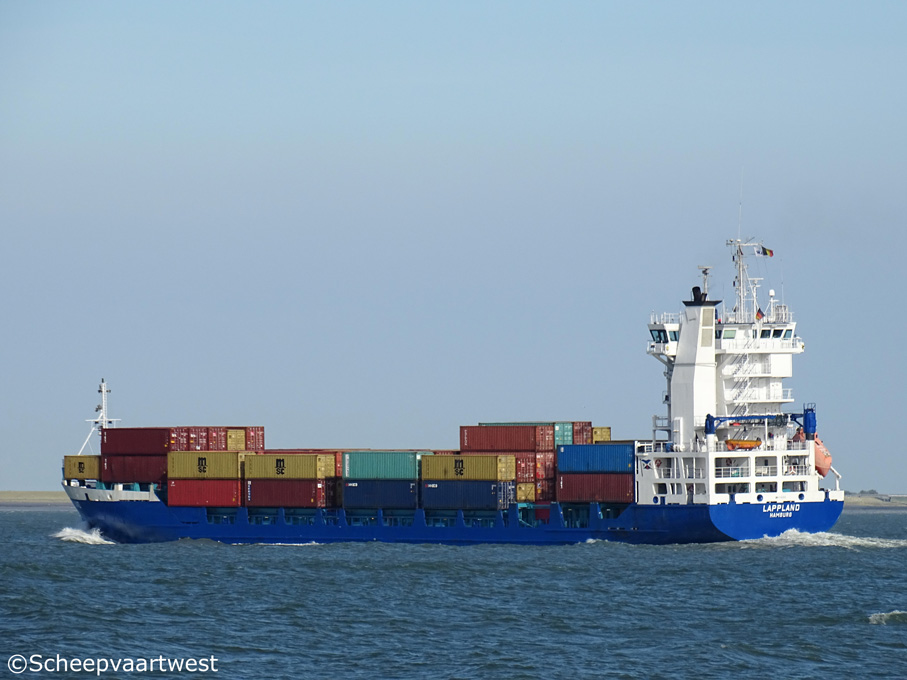

Westerschelde 10 September 2016 |
 |
|
| Westerschelde 15/07/16 | |
|
Name |
LAPPLAND |
|
Type |
Cellular containership Single screw container vessel with poop and forecastle |
|
IMO-number |
9186388 |
|
Call sign |
DPLG |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
GT |
5.056 t |
|
DWT |
Summer: 6.862 t |
|
NT |
2.530 t |
|
Number of 20ft containers |
In hold: 162 TEU On deck: 496 TEU (up to 7 tiers) Total: 658 |
|
Number of 40ft containers |
In hold: 78 FEU + 6 TEU On deck: 214 FEU + 68 TEU Total: 292 FEU + 74 TEU |
|
Container capacity 14t |
335 |
|
Reefer capacity |
In hold: 24 On deck: 78 Total: 102 400 Volt / 50 Hz - 3 phases |
|
Length |
117,90 m overall 108,00 m between perpendiculars |
|
Breadth |
17,90 m extreme |
|
Draught |
7,09 m |
|
Forecastle |
22,94 m |
|
Poop |
6,97 m |
|
Depth |
9,20 m moulded |
|
Speed |
16,5 knots |
|
Built |
1998 |
|
Keel laid |
19/11/1997 |
|
Launch date |
21/07/1998 |
|
Delivery date |
12/09/1998 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. Neuenfelder Fährdeich 88 21129 Hamburg Federal Republic of Germany |
|
Yard number |
1153 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8L40/54 - 4 stroke single acting 8 cylinder 400 x 540 mm combustion engine 5.760 kW / 7.831 hp at 514 rpm Reduced power: 3.265 kW Year of manufacture: 1998 Manufacturer: MAN B&W Diesel GmbH Stadtbachstr. 1 86153 Augsburg Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 156 rpm |
|
Electric installations |
1x Plant 380/220 V - 380 kVA 1x Plant 380/220 V - 380 kVA 1x Plant 380 V - 963 kVA 1x Plant 380 V - 50 kVA |
|
Shaft generator |
1x 963 kW |
|
Generators |
2x Caterpillar 3412 DITA main diesel generatorsets each 380 kW |
|
Emergency generator |
1x Deutz F6L912 diesel generatorset 47 kW |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 550 kW, forward |
|
Number of holds |
3 |
|
Number of hatches |
3x Hydraulic operated steel hatch covers Hatch 1: 12,66 x 10,42 m Hatches 2-3: 25,10 x 15,52 m each |
|
Cargo capacity |
Grain: 8.528 m³ Bales: 7.693 m³ |
|
Tank capacities |
Fuel: 492 m³ Fresh water: 97 t Ballast: 2.120,56 m³ |
|
Anchor equipment |
3x Anchors weight each 4.050 kg Length: 529,10 m Diameter: 50 mm |
|
Cargo gear |
Gearless |
|
Crew size |
19 |
|
Manager |
H.H. Shipping GmbH & Co. KG Königreicher Straße 114a 21635 Jork Germany |
|
Previous manager |
09/2018 - 10/2007 Lappland - Petra Heinrich K.G. m.s. "Lappland", Hamburg - Germany |
|
Registered owner |
M/S "LAPPLAND" UG (haftungsbeschränkt) & Co. KG Hamburg Germany |
|
Previous names & owners |
09/2018 - 10/2007 Lappland - Petra Heinrich K.G. m.s. "Lappland", Hamburg - Germany |
|
Renamed |
09/2016 Greetje The Netherlands, Heerenveen - Call sign: PBMI Owner: Scheepvaartonderneming Greetje B.V., Heerenveen - The Netherlands Manager: Holwerda Shipmanagement B.V., Heerenveen - The Netherlands 10/2022 Greetje Palau (Republic of), Ngerulmud - Call sign: T8A4044 Owner: Alesta RoRo Gemi Acenteligi ve Isletmeciligi Nakliye Ticartet Ltd Sti, Samsun - Turkey Manager: Trikeri Shipholding Inc., Samsun - Turkey 10/20236 Cetus Palau (Republic of), Ngerulmud - Call sign: T8A4044 Owner: Alesta RoRo Gemi Acenteligi ve Isletmeciligi Nakliye Ticartet Ltd Sti, Samsun - Turkey Manager: Trikeri Shipholding Inc., Samsun - Turkey |
|
Latest data adjustment |
31 March 2024 |
