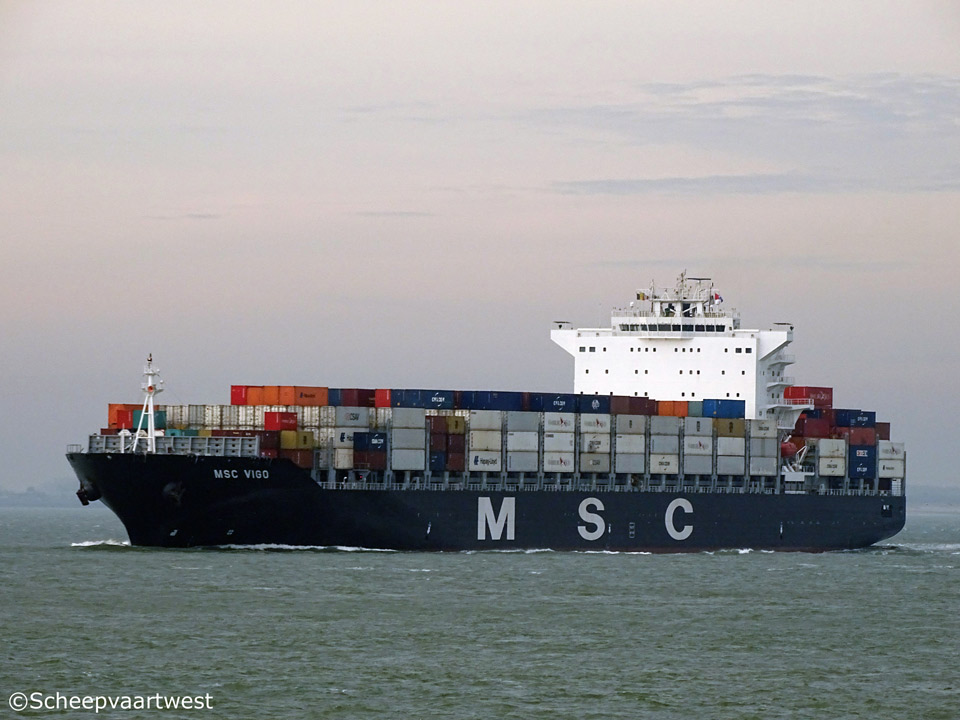

MSC Vigo 01

Westerschelde 07 December 2016



Name

MSC VIGO

Previous names

2012 Built as: CPO Vigo

Type

Cellular containership

IMO-number

9480227

Call sign

A8ZV8

Flag

Liberia

Port of registry

Monrovia

GT

61.870 t

DWT

Summer: 73.800 t

NT

35.409 t

Number of 20ft containers

5.550

Container capacity 14t

4.400

Reefer capacity

716

Length

270,41 m overall

257,52 m between perpendiculars

Breadth

40,05 m extreme

Draught

13,50 m m

Depth

21,70 m moulded

Speed

Max.: 23,2 knots

Service: 22,4 knots

Built

2012

Keel laid

20.12.2010

Launch date

08.10.2011

Date of completion

17.02.2012

Builder

Daewoo Mangalia Heavy Industries S.A.
Strada Portului 1
905500 Mangalia, Constanta
Romania

Yard number

4087

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Partly double bottom

Watertight bulkheads

8

Continuous decks

2

Main engine

1x MAN-B&W-Doosan 7K98MC-C - 2 stroke 7 cylinder 980 x 2.400 mm diesel engine - 42.140 kW at 104,0 rpm

Manufacturer: Doosan Engine Co., Ltd.
18, Gongdanro21-gil, Sungsan-gu
Changwon, Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 29,6 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 471,0 m²

Year of manufacture: 2010

Manufacturer: Alfa Laval Aalborg A/S
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installations

2x Plants each 450 V - 2.867 kVA

2x Plants each 450 V - 3.333 kVA

1x Plant 450 V - 438 kVA

1x Plant 24 V - 200 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 300 Ah

Generators

2x MAN 7L27/ 38 diesel generatorsets each 2.150 kW / 2.867 kVA

2x MAN 8L27/ 38 diesel generatorsets each 2.500 kW / 3.333 kVA

Emergency generator

1x Cummins KTA19-DM GE diesel generatorset 438 kVA

Batteries

1x Battery for UPS navigation 300 Ah

1x Battery for UPS radio 200 Ah

1x Battery for start emergency engine 200 Ah

Compressed air receivers

2x Receivers each 13.500 litres - 33,0 bar

1x Receiver 400 litres - 33,0 bar

1x Receiver 2000 litres - 7,7 bar

1x Receiver 250 litres - 7,7 bar

Bow thruster

2.000 kW

Tank capacities

Ballast: 23.251 m³

Anchor equipment

Length: 751,00 m

Diameter: 97 mm

Cargo gear

Gearless

Manager

Reederei Claus-Peter Offen (GmbH & Co.) KG
Bleichenbrücke 10
20354 Hamburg
Federal Republic of Germany

Operator

MSC - Mediterranean Shipping Company

Registered owner

Kommanditgesellschaft MS "CPO VIGO" Offen Reederei GmbH & Co.
Bleichenbrücke 10
20354 Hamburg
Federal Republic of Germany

Latest data adjustment

29 December 2016
