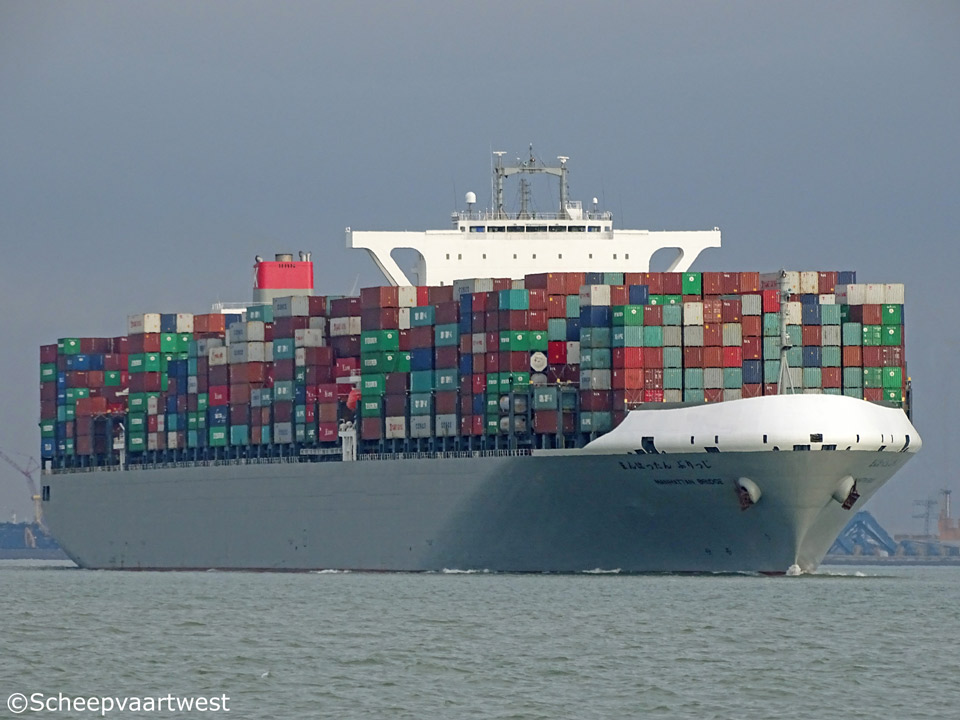

Manhattan Bridge 01

Westerschelde 28 January 2017

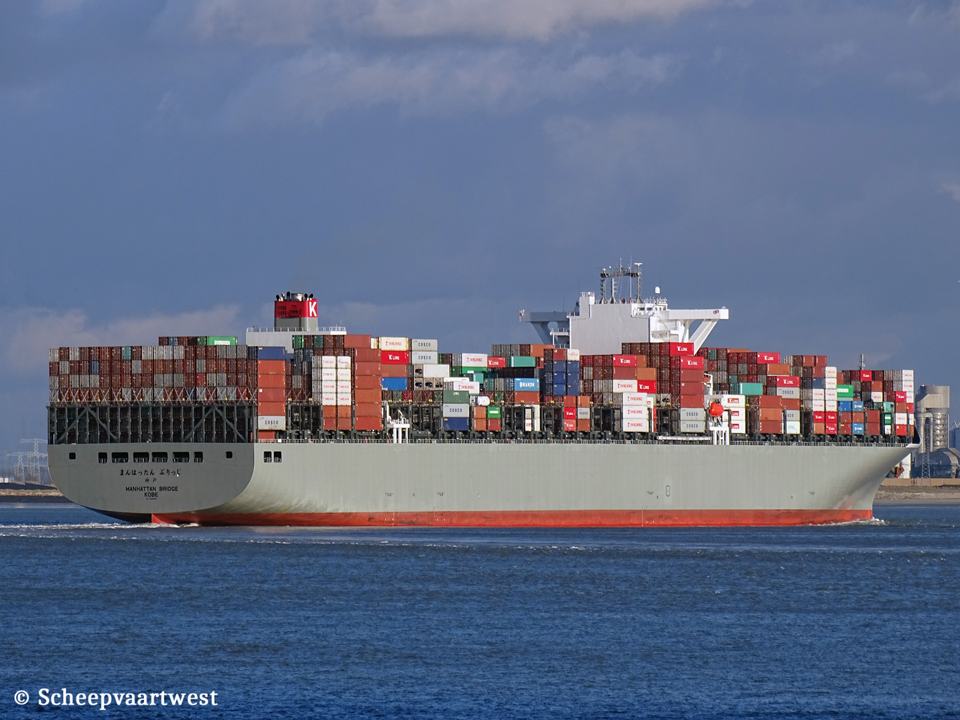

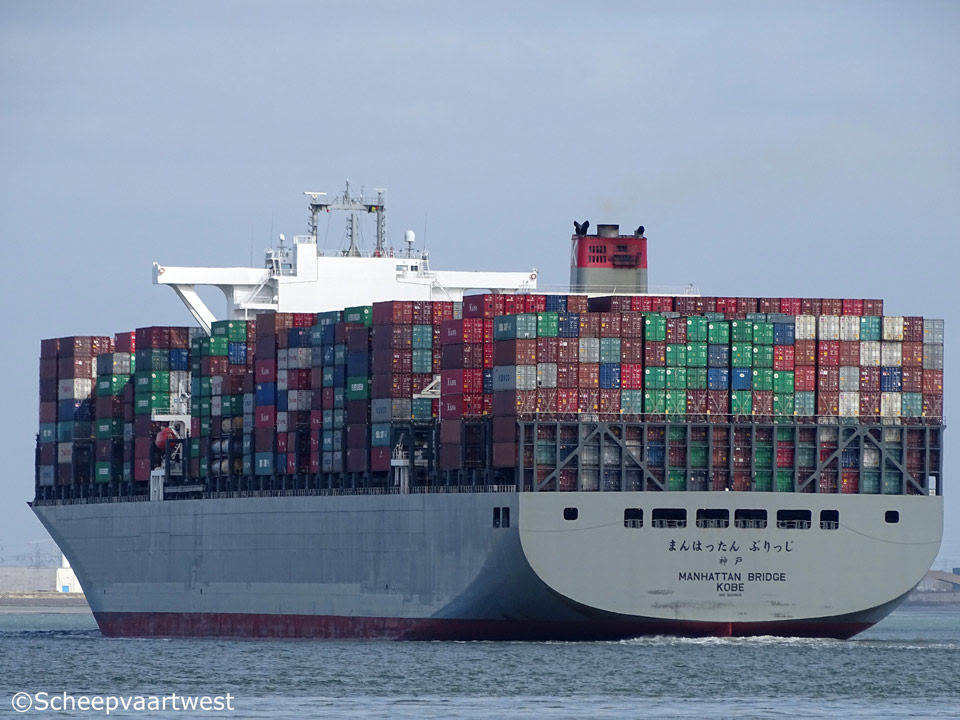

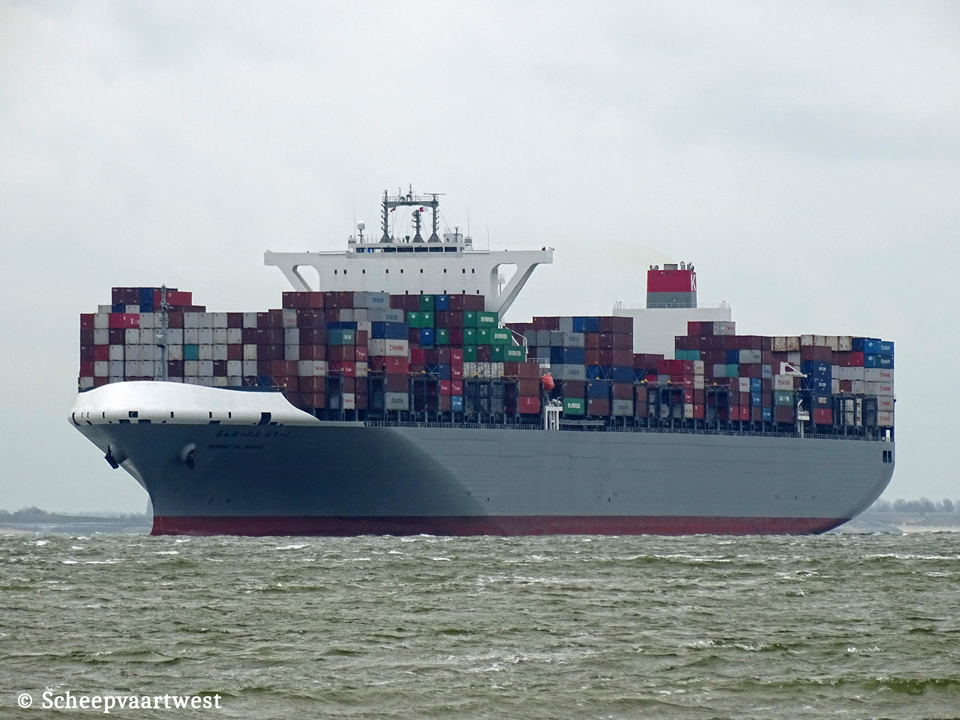

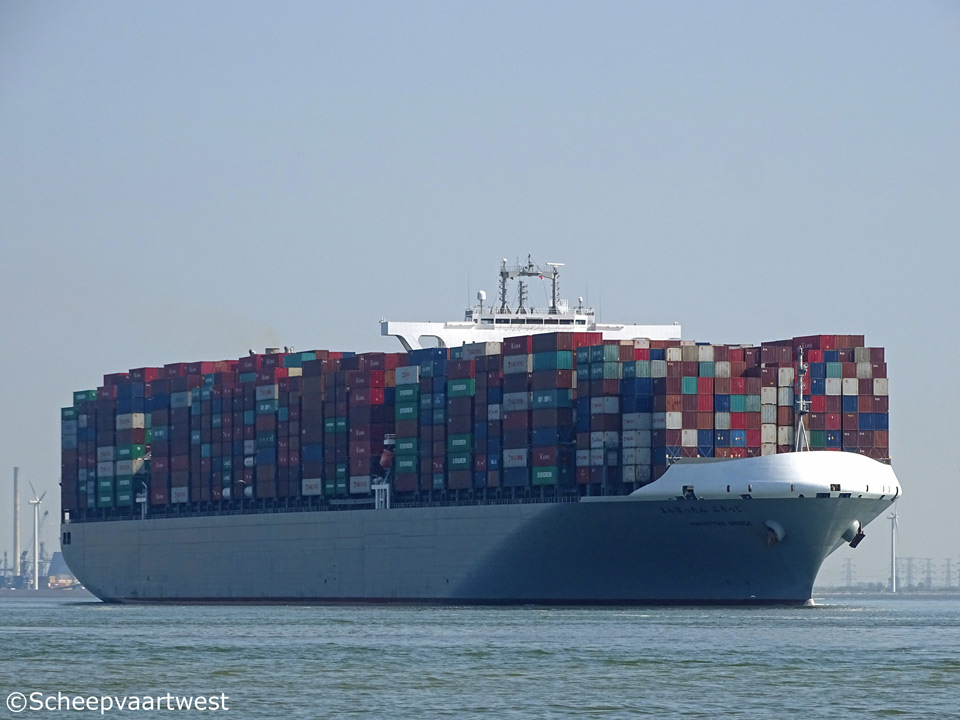

Manhattan Bridge 02   Manhattan Bridge 03   Manhattan Bridge IMO 9689615 04   Manhatten Bridge IMO 9689615 05
Westerschelde 08/04/17 Westerschelde 01/04717   Westerschelde 25/04/16   Westerschelde 15/02/16


Name

MANHATTAN BRIDGE

Type

Cellular containership

IMO-number

9689615

Call sign

7JVP

Flag

Japan

Port of registry

Kobe

GRT

153,453 t

DWT

Summer: 146,883 t

NRT

63.410 t

Number of 20ft containers

13.870

Length

365,94 m overall

Breadth

51,20 m moulded

Draught

Summer: 15,52 m

Moulded L x B x D

350,00 x 51,20 x 23,20 m

Registered L x B x D

356,38 x 51,20 x 23,20 m

Freeboard

Summer: 7.716 mm

Depth

23,20 m moulded

Speed

Max.: 24,8 knots

Built

2015

Keel laid

27/06/2014

Launch date

20/06/2015

Date of completion

07/10/2015

Builder

Imabari Shipbuilding Co., Ltd. Hiroshima Shipyard

Japan

Yard number

2536

Hull material

Steel

Hull type

Single hull double bottom

Continuous decks

1

Main engine

1x Mitsui/MAN-B&W 11S90ME-C9.2 - 2 stroke single acting 11 cylinder 900 x 3.260 mm combustion engine 48.900 kW at 76,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 1.050 mm

Propellers

1x Fixed propeller

Boilers

1x Auxiliary vertical boiler - 8,0 bar

Evaporation: 10,08 t/h

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Generators

5x Generators total 17.800 kVA

Tank capacities

Fuel oil: 10.276,61 m³

Fresh water: 343,44 m³

Manager

"K" Line Ship Management (Singapore) Pte Ltd.

Operator

K-Line - Kawasaki Kisen Kaisha

Tokyo

Japan

Registered owner

East River Shipping GK

Renamed

2020 One Manhattan

Japan, Kobe - Call sign: 7JVP

Manager: "K" Line Ship Management (Singapore) Pte Ltd.

Reg. owner: East River Shipping GK

Latest data adjustment

03 June 2023
