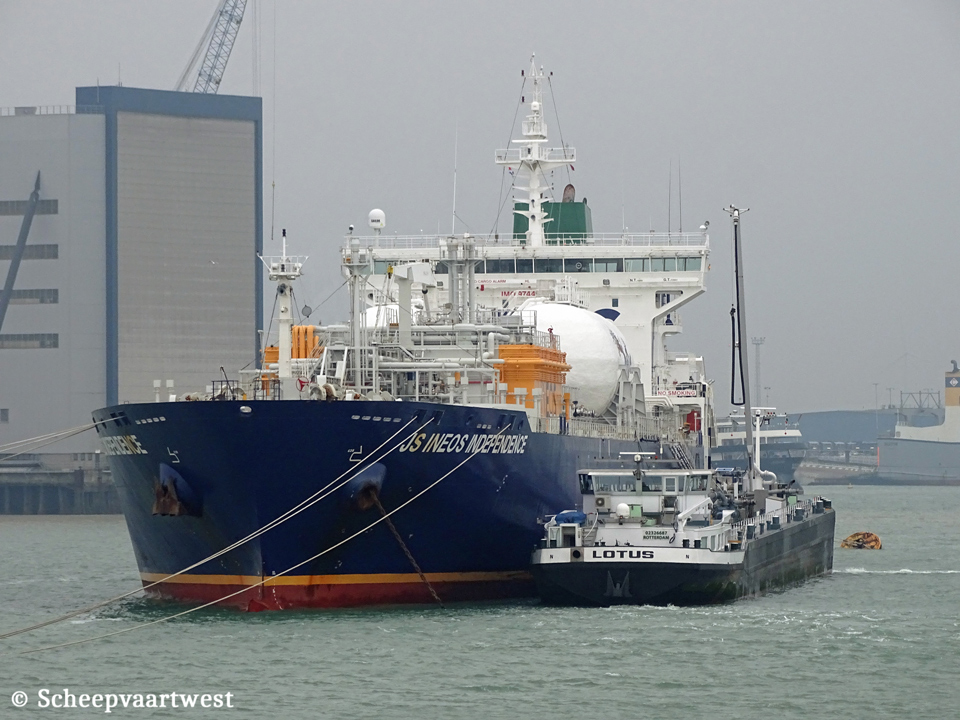

JS Ineos Independence IMO 9744960 01

Vlissingen 29 December 2018



Name

JS INEOS INDEPENDENCE

Previous names

Build as: JS Ineos Intuition

Type

Liquefied gas tanker - Multigas LNG carrier

The vessel can simultaneously transport LNG and LPG

IMO-number

9744960

Call sign

9HA4327

Flag

Malta

Port of registry

Valletta

GT

22.887 t

DWT

Summer: 20.917,9 t

Suez: 24.966,94 t

NT

6.866 t

Suez: 21.589,49 t

panama: 19.070 t

Light displacement

11.170 t

Length

180,30 m overall

170,80 m between perpendiculars

Breadth

26,60 m extreme

Draught

Summer: 9,40 m

Distance bow to bridge

142,40 m

Keel to highest point

46,50 m

Air draft

40,00 normal ballast

Freeboard

5.411 mm

Depth

17,80 m

Speed

Service: 14,0 knots

Max: 16,7 knots

Built

2017

Keel laid

23/12/2015

Launch date

28/09/2016

Date of completion

15/03/2017

Builder

Nantong Sinopacific Offshore & Engineering Co. Ltd.

Qidong

China

Yard number

S1020

Hull material

Steel

Hull type

Double bottom

Continuous decks

1

Main engine

2x Wärtsilä 6SL50DF Tier II - 4 stroke 6 cylinder 500 x 280 mm combustion engine each 5.850 kW at 514 rpm

Total: 11.700 kW / 15.896 hp

Build: 13/03/2015

Builder: Wärtsilä Hyundai Engine Company Ltd. - South Korea

Propellers

1x Screw propeller controllable pitch

Boilers

2x CHR Aalborg 56,00 m² - 10,0 bar

1x CHO Aalborg 18,90 m² - 9,0 bar

Shaft generator

2x Each 1.875 kW

Generators

1x Wärtsilä 6L20 DF main diesel generatorset 1.325 kVA - 1.060 kW - 1.495 hp at 1.200 rpm

Emergency generator

1x Diesel generatorset 187 kVA - 150 kW - 204 hp

Number of cargo tanks

3

Cargo tank capacity

Tank 1

100%: 8.188,96 m³

98%: 7.991,28 m³

Tank 2

100%: 9.687,06 m³

98%: 9.459,72 m³

Tank 3:

100%: 9.677,99 m³

98%: 9.450,83 m³

Total:

100%: 27.554,00 m³

98%: 26.902,12 m³

Number of deck tanks

2

Deck tank capacity

Tank 1:

100%: 998,47 m³

98%: 978,25 m³

Tank 2:

100%: 998,37 m³

98%: 978,41 m³

Total:

100%: 1.996,84 m³

98%: 1.956,41 m³

Number of pumps

2x Wärtsilä Svanehøj AS DW 200/200-3K+1 centrifugal ballast pumps each 350 m³/h

1x Wärtsilä Svanehøj AS NMB 150e booster pump 500 m³/h

Min temp

-163°C

Pressure

4,5 bar

Manifolds

Distance bridge front - mid point manifold: 46,40 m

Distance bow to mid-point manifold: 96,40 m

Distance centre stern: 87,56 m

Distance for manifold centreline: 3/750 mm

Tank capacities

HFO: 1.236 m³

MDO: 400,7 m³

LNG/Ethne: 1.956,66 m³

Ballast: 8.505 m³

Crew

21

Manager

Evergas Shipmanagement Pte. Ltd.

21 Ubi Road

# 06-01, Cambridge Trust Building

Singapore 408724

Republic of Singapore

Operator

Evergas Management A/S

Kalvebod Brygge 39-41

1560 Copenhagen

Denmark

Registered owner

Xiangtong International Ship Lease Co. Ltd.

1/F. Far East Consortium Building

121 Des Voeux Road Central

Hong Kong

Latest data adjustment

10 June 2021
