| Westerschelde 15 March 2017 |
 |
|
| WS 15/03/17 | |
|
Name |

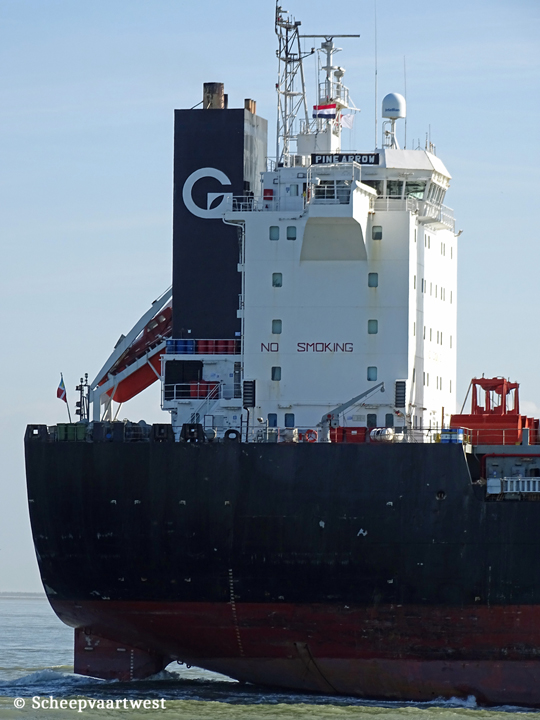

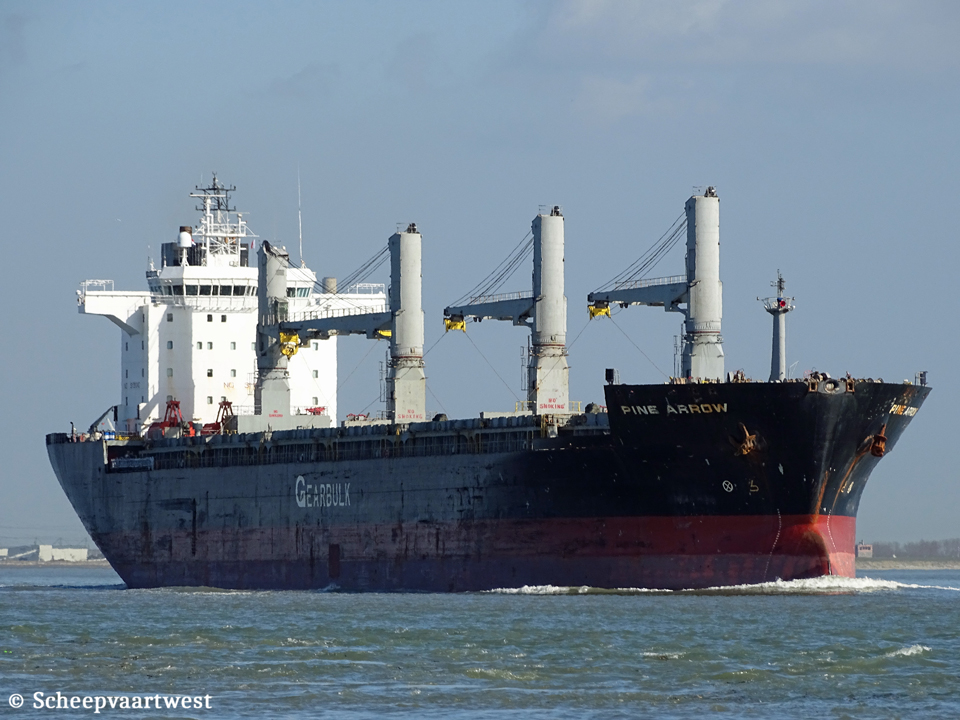

PINE ARROW |
|
Type |
General cargo carrier - Forest product carrier - Open hatch jib crane vessel |
|
IMO-number |
9107306 |
|
Call sign |
C6NZ3 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
32.520 |
|
DWT |
48.041 t |
|
NT |
15.621 |
|
Length |
189,75 m overall 181,80 m between perpendiculars |
|
Breadth |
31,03 m extreme |
|
Draught |
Summer: 12,80 m |
|
Depth |
18,81 m |
|
Speed |
Max: 14,2 knots |
|
Build |
1996 |
|
Keel laid |
20/06/1995 |
|
Launch date |
29/03/1996 |
|
Date of completion |
05/05/1996 |
|
Builder |
Stocznia Gdansk S.A. Gdansk Poland |
|
Yard number |
B684/1 |
|
Hull material |
Steel |
|
Bulkheads |
9x Transverse |
|
Main engine |
1x MAN-B&W 5S60MC - 5 cylinder combustion engine |
|
Propellers |
1x Mono-block propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired (Auxiliary Boiler) 1x Auxiliary boiler, exhaust gas heater |
|
Generators |
3x Ulstein/Bergen KRG-6 main diesel generatorsets |
|
Number of holds |
7 |
|
Cargo hold capacity |
Grain: 62.356,17 m³ Bale: 61.375,31 m³ |
|
Number of hatches |
7 |
|
Tank capacities |
Ballast: 24.030,8 m³ |
|
Cargo gear |
4x Deck cranes - SWL 36,0 t each 4x Electro-hydraulic grabs each 15,0 t |
|
Manager |
Gearbulk Norway AS Ytrebygdsvegen 215 5258 Blomsterdalen Norway |
|
Registered owner |
Gearbulk Shipowning AS Ytrebygdsvegen 215 5258 Blomsterdalen Norway |
|
Latest data adjustment |
27 December 2024 |
