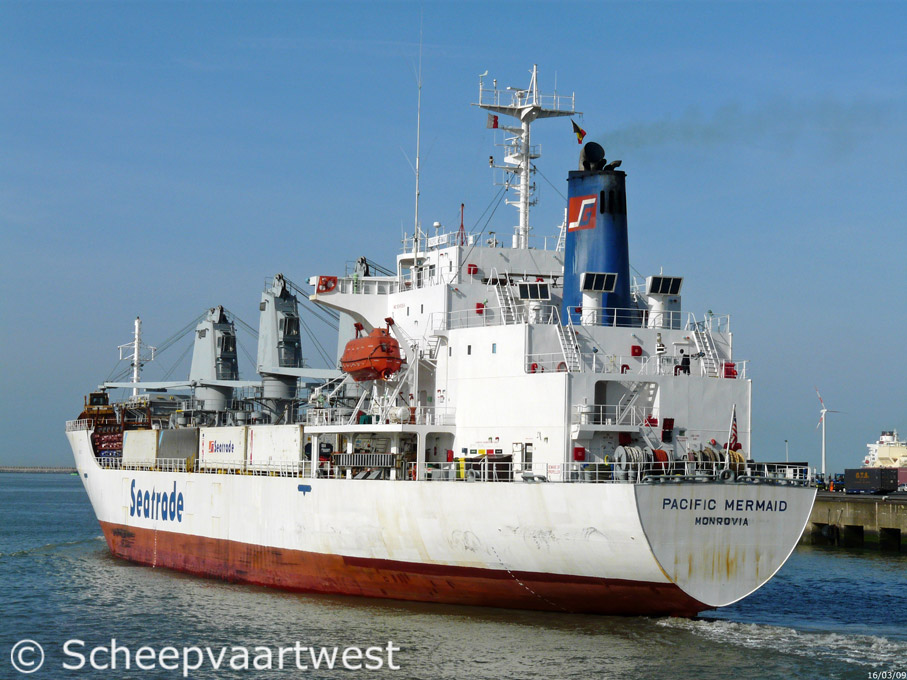

| Zeebrugge 16 March 2009 |
|
Name |
PACIFIC MERMAID |
|
Type |
Frozen Cargo Refrigerated Cargo Ship |
|
IMO-number |
9045924 |
|
Call sign |
A8JJ5 |
|
Flag |
Liberia |
|
Previous flag |
22.07.2006 Republic of Panama |
|
Port of registry |
Monrovia |
|
GT |
9.820 t |
|
DWT |
10.466 t |
|
NT |
3.538 t |
|
Container cap. on deck |
80 TEU + 9 FEU |
|
Reefer plugs |
49 on weather decks |
|
Length |
141,80 m overall 133,00 m between perpendiculars |
|
Breadth |
22,80 m moulded |
|
Draught |
Summer: 8,81 m |
|
Freeboard |
4.213 mm |
|
Depth |
13,00 m |
|
Speed |
19,5 knots |
|
Built |
1992 |
|
Date of completed |
28.02.1992 |
|
Builder |
Imabari Zosen |
|
Yard number |
145 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
7 |
|
Continuous decks |
4 |
|
Main engine |
1x Hitachi Burmeister & Wain - 2 stroke 7 cylinder 500 x 1.910 mm diesel engine - 9.170 KW / 12.460 hp at 123 rpm Built 1991 |
|
Propelling system |
1x Screw propeller solid at 119 rpm |
|
Boilers |
1x CHM Miura 17,00 m² - 8,0 bar |
|
Electrical installation |
Power voltage: 440 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Generators |
3x Diesel generatorsets each 1.000 kVA - 800 kW - 3.600 hp |
|
Cargo capacity |
540.572 ft³ / 15.295 m³ |
|
Floorspace |
6.074,68 m² |
|
Holds |
4 |
|
Compartment |
20 |
|
Hatches |
4 7,60 x 7,10 m |
|
Air changes |
Vertical 90 |
|
Cargo gear |
2x Cranes - SWL 30 t each |
|
Tank capacities |
Fuel oil: 1.725 m³ |
|
Refrigerating installations |
Compressors: 3 Temperature range: -30°C Insulation material: Polyurethane Insulation lining: Plywood Means for distribution: Air coolers |
|
Manager |
Triton Schiffahrt |
|
Operator |
Seatrade |
|
Owner |
Acific Mermaid Shipping Co. Inc. |
|
Owner |
Pacific Mermaid Shipping |
