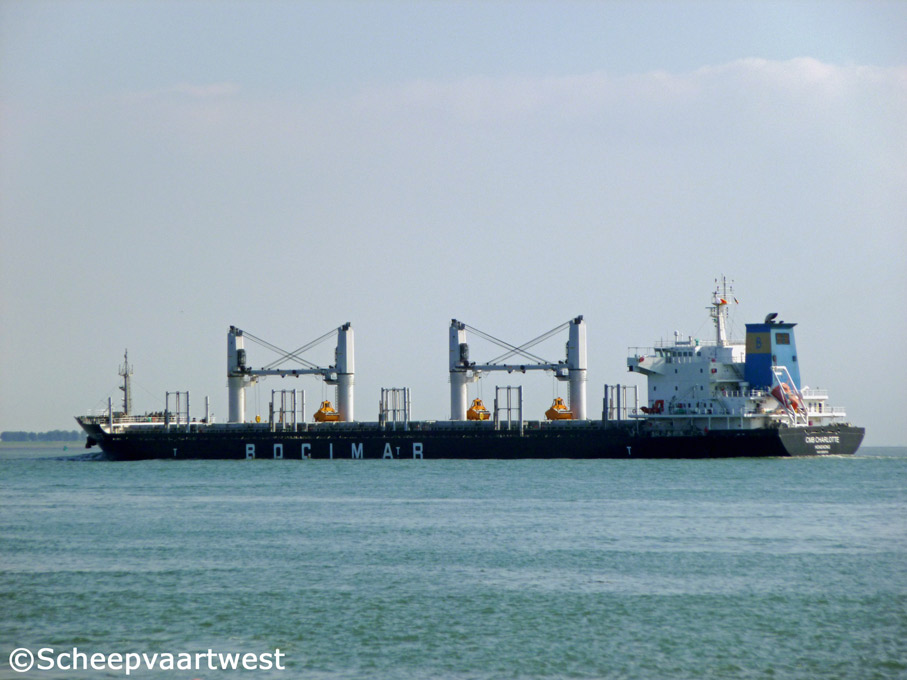

CMB Charlotte - IMO 9559705

Name

CMB CHARLOTTE

Type

Bulk carrier - Carriage of dangerous goods

IMO-number

9559705

Call sign

VRHT9

Flag

Hong Kong Special Administrative Region of the People's Republic of China

Port of registry

Hong Kong

GT

20.846 t registered

Suez: 21.401,09 t

DWT

Summer: 32.626 m

NT

11.800 t registered

Panama: 17.391 t

Suez: 18.836,35 t

Length

179,93 m overall

171,50 m between perpendiculars

Breadth

28,40 m

Draught

10,00 m

Freeboard

3.975 mm

Depth

14,10 m moulded

Built

2010

Keel laid

29.04.2010

Launch date

05.09.2010

Date of completion

08.12.2005

Builder

Jiangsu Zhenjiang Shipyard Co., Ltd.
Zhenjiang
China

Yard number

VZJ432-0606

Hull material

Ordinary strength steel

High strength steel

Watertight bulkheads

8

Main engine

1x 5S50MC6 - 5 cylinder 500 x 1.910 mm diesel engine - 7.150 kW at 127,0 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1

Manufacturer: Wärtsilä CME Zhenjiang Propeller Co., Ltd.

Boilers

Fired Exhaust Gas Boiler ZYC1.2/210-0.7

Manufacturer: Zhangjiagang Greens Shazhou Boiler Co., Ltd.

Generators

3x Main diesel generatorsets each 440 kW

Manufacturer: CSIC Electrical Machinery Science & Technology Co.

Total hold capacity

43.694 m³

Number of tanks

Ballast: 16

Fuel Oil: 13

Lubricating Oil: 11

Diesel Oil: 5

Fresh Water: 3

Waste Water: 2

Sludge: 2

Organic Compound: 1

Chain: 1

Tank capacities

Cargo Ballast: 9.097 m³

Diesel Oil: 151,4 m³ / 136,26 t

Freshwater: 362,4 m³

Fuel Oil: 1.508,4 m³/ 1.468,68 t

Lube Oil: 102 m³ / 91,8 t

Tank Ballast: 10.376 m³ / 10.635,4 t

Lifting equipment

1x Engine room crane DECB-8/2 - SWL 2,0 t

1x Manual traveling crane FMCA20 - Swl 2,0 t

Manufacturer: Zhenjiang Just Marine Equipment Co., Ltd.

1x Provision Crane 3000KGX5M - SWL 3,0 t

Manufacturer: Nanjing Navigation Instrument No. 2 Factory Co., Ltd.

Cargo gear

4x Cargo deck crane GLB30.524-2/2424GR - SWL 30,5 t each

Manufacturer: Nantong Rainbow Heavy Machinerics Co., Ltd.

Manager

Anglo-Eastern Ship Management Ltd.
Shipmanagement
Hong Kong
China

Operator

Bocimar

CMB - Compangnie Maritime Belge
De Gerlachekaai 20
2000 Antwerpen
Belgium

Registered owner

Bohandymar Limited
R.M.3206, 32ND Floor, Lippo Centre, Tower Two, N0.89, Queensway
Hongkong
China

Last data update

31 January 2014
