Antwerpen 14 December 2015 |
 |
| Antwerpen 14/12/15 |
|
Name |

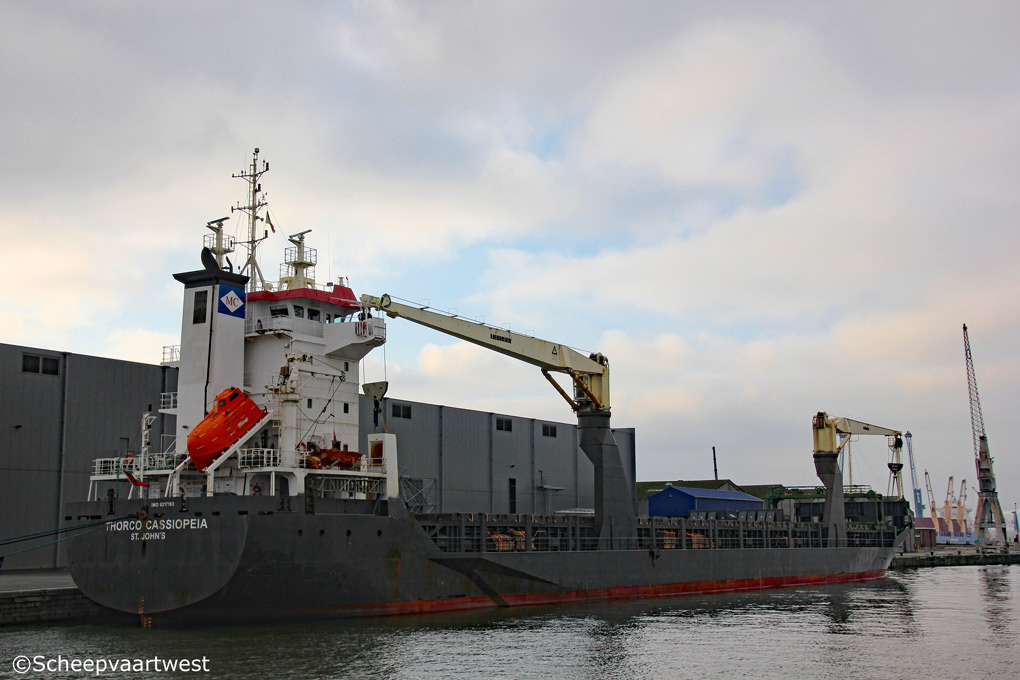

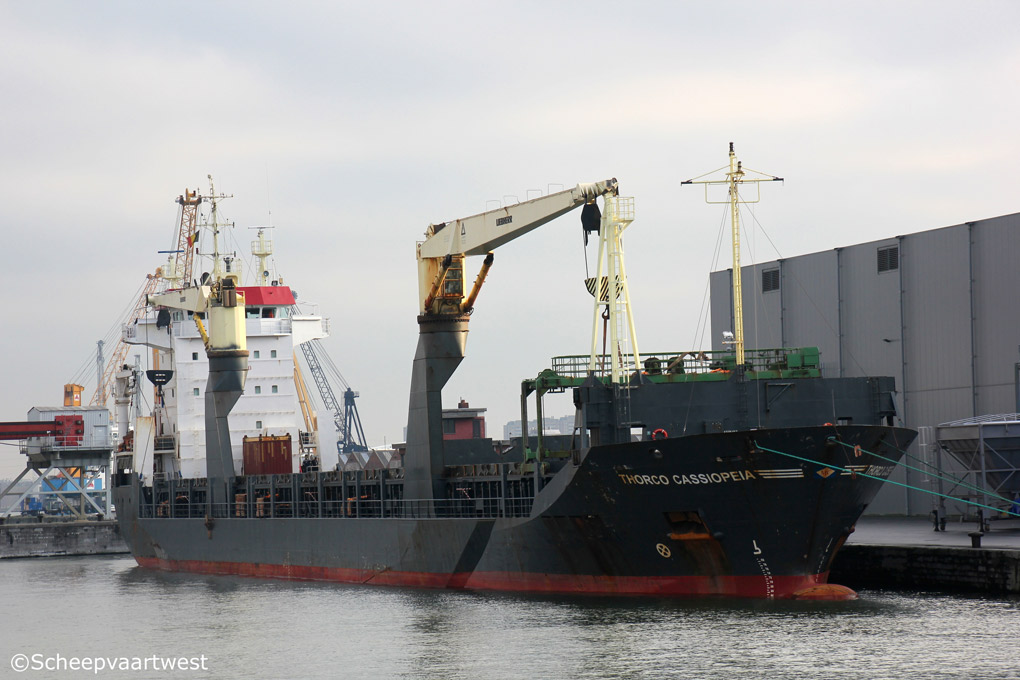

THORCO CASSIOPEIA |
|
Previous names |
2002 - 05.2014 Xenia |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9217163 |
|
Call sign |
V2OI4 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
7.406 t |
|
DWT |
10.610 t incl. Tweendeck |
|
NT |
3.859 t |
|
Number of 20ft containers |
675 |
|
Number of 40ft containers |
313 + 27 TEU |
|
Reefer plug |
60 |
|
Length |
142,69 m overall 138,82 m between perpendiculars |
|
Breadth |
18,25 m |
|
Draught |
7,36 m fully loaded |
|
Depth |
10,15 m |
|
Built |
2002 |
|
Keel laid |
02.03.2000 |
|
Launch date |
01.11.2002 |
|
Date of completion |
20.12.2002 |
|
Builder |
Damen Shipyard Yichang |
|
Yard number |
818 |
|
Hull material |
Steel |
|
Main engine |
1x MaK 9M32 - 9 cylinder diesel engine 4.320 kW |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated 1x Thermal oil heater, oil fired |
|
Shaft generator |
1x 690 kW |
|
Generators |
3x Scania D-12 45m diesel generatorsets each 400 kW |
|
Emergency generator |
1x Valmet 620 DSG diesel generatorset |
|
Bow thruster |
1x 400 kW |
|
Number of holds |
2 |
|
Cargo hold capacity |
Grain & bale Hold 1: 5.409 m³ Hold 2: 9.469 m³ Total: 14.787 m³ |
|
Hatch cover type |
Pontoon |
|
Max. permitted loads |
Tanktop: 18,0 t/m² Tweendeck: 3,5 t/m² Hatchcover: 1,75 t/m² Weather deck: 1,75 t/m² |
|
Tank capacities |
HFO: 626,9 m³ MGO: 60,2 m³ Fresh water: 75,5 m³ Ballast: 4.887,4 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 46 mm |
|
Cargo gear |
2x Electro hydraulic cranes - SWL 60 t each |
|
Commercial manager |
Thorco Shipping A/S |
|
Technical manager |
MarConsult Schiffahrt (GmbH & Co.) KG |
|
Previous managers |
2002 - 2008 Intersee Schiffahrts GmbH & Co. KG 2008 - 2014 Intership Verwaltungsgesellschaft mbH |
|
Owner |
MarMuna Schiffahrtsges. mbH & Co. KG Hamburg, 22761 Germany |
|
Previous owners |
2002 - 2003 Intersee Schiffahrts GmbH & Co. KG 2003 - 2014 MS "XENIA" Schiffahrts GmbH & Co. Reederei KG |
|
Latest data adjustment |
27 March 2016 |
