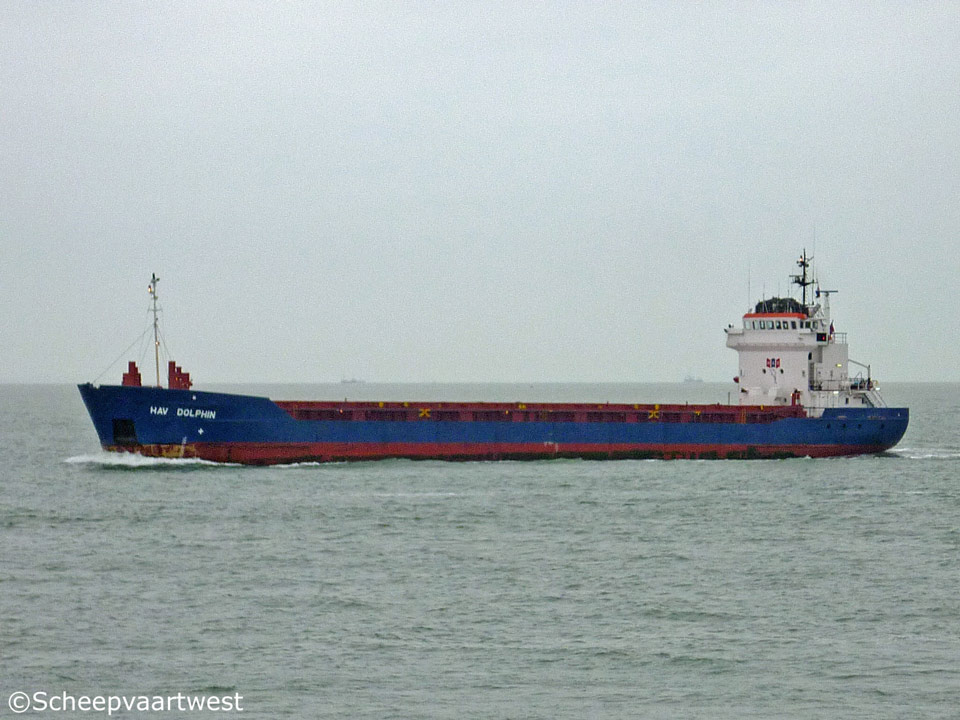

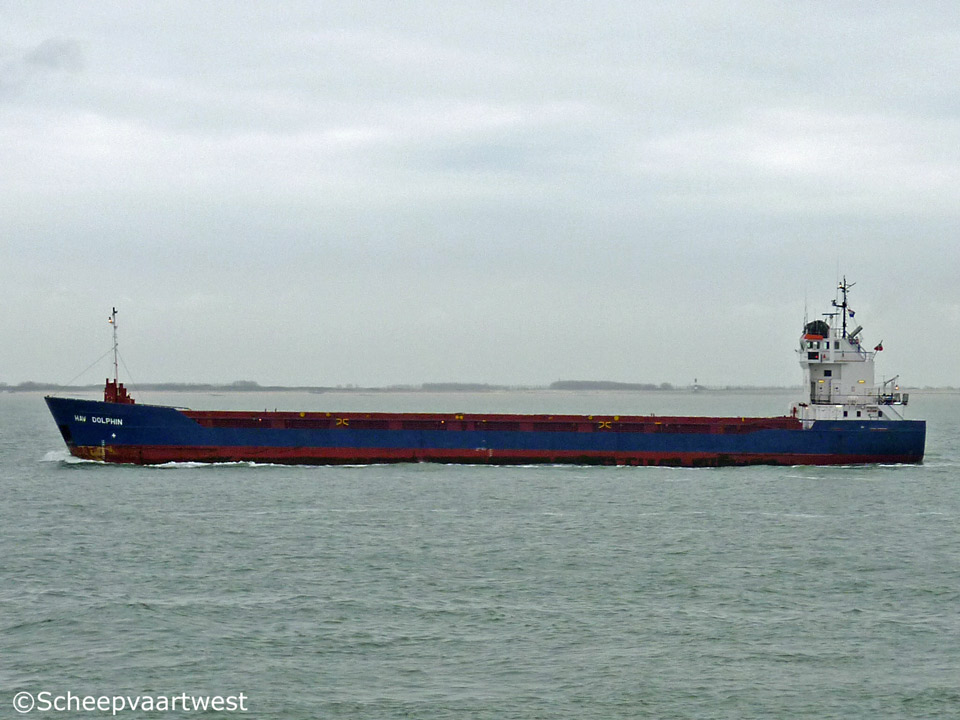

HAV Dolphin - IMO 9073880

Westerschelde 31 March 2012

Name

HAV DOLPHIN

Previous names

1994 - 03.1995 Canum

03.1995 - 01.1996 Saar Rouen

01.1996 - 11.2007 Canum

Type

General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9073880

Call sign

C6WS4

Flag

Bahamas

Port of registry

Nassau

GT

2.075 t

DWT

Summer: 3.027 t

NT

1.064 t

Number of 20ft containers

154

Length

88,18 m overall

84,13 m between perpendiculars

Breadth

12,50 m extreme

Draught

4,64 m

Forecastle

6,03 m

Depth

6,50 m moulded

Speed

10,0 knots

Built

1994

Keel laid

01.03.1991

Launch date

18.10.1991

Date of completion

01.12.1994

Builder casco

Shipyard Begej

Zrenjanin
Serbia

Yard number: 230

Builder completion

B.V. Scheepswerf Damen Gorinchem
Industrieterrein Avelingen West 20
4202 MS Gorinchem
The Netherlands

Yard number: 8211

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom

Watertight bulkheads

4

Continuous decks

2

Main engine

1x Deutz SBV 8 M 628 - 4 stroke 8 cylinder 240 x 280 mm diesel engine - 1.500 kW / 2.038 hp at 900 rpm

Manufacturer: Deutz MWM Motoren-Werke Mannheim AG
,Mannheim - Federal Republic of Germany

Propellers

1x Fixed propeller - aft at 228 rpm with nozzle

Electric installations

1x Plant 380/220 V - 112,5 kVA

1x Plant 380/220 V - 112,5 kVA

1x Plant 380 V - 113 kVA

Generators

2x Main diesel generatorsets each 112,5 kVA

Emergency generator

1x Diesel generatorset 113 kVA

Compressed air receivers

1x Receiver 250 litres - 30,0 bar

1x Receiver 125 litres - 30,0 bar

Bow thruster

1x VETH jet - 235 kW, forward

Number of holds

1

Cargo hold capacity

Grain: 4.005 m³

Tank capacities

Ballast: 1.467 m³

Fuel oil: 232 m³

Anchor equipment

3x Anchors weight each 1.440 kg

Length: 412,00 m

Diameter: 34 mm

Crew size

8

Manager

HAV Ship Management NorRus AS
Teatralnaya ul., 35
Konigsberg
Kaliningradskaya oblast
Russia

Owner

Hav Shipmanagement
Oslo
Norway

Registered owner

Skagerak Shipping AS
Kristiansand S
Norway

Latest data adjustment

09 February 2017
