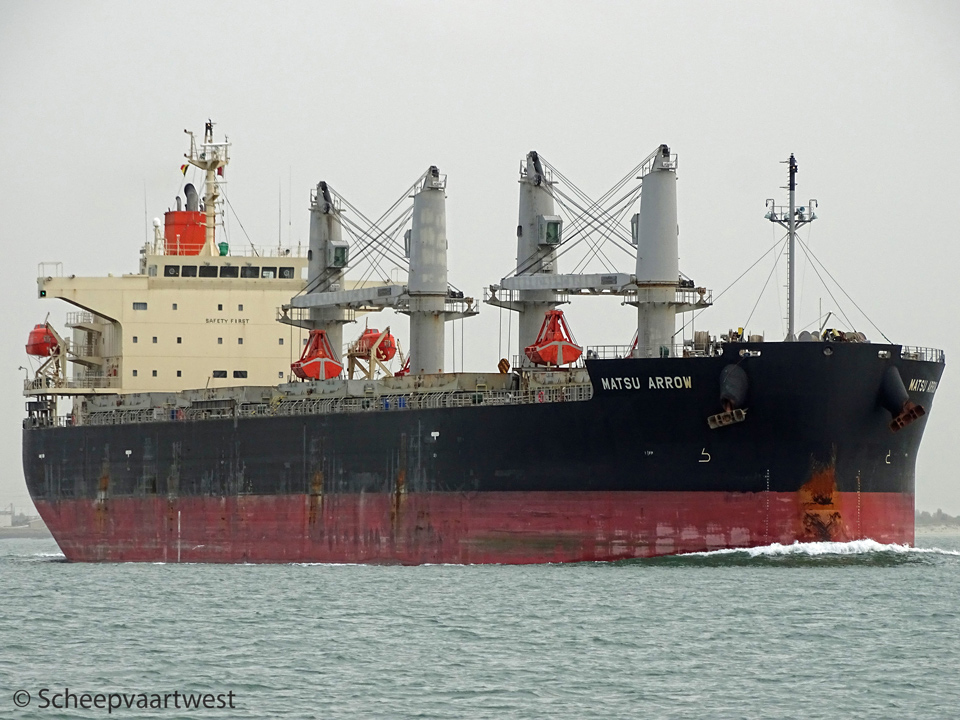

Westerschelde 17 October 2017 |
|
Name |
MATSU ARROW |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9687083 |
|
Call sign |
3FQB8 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
31.864 t registered |
|
DWT |
55.975 t |
|
NT |
16.746 t registered |
|
Length |
189,90 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 12,56 m |
|
Moulded L x B x D |
185,79 x 32,26 x 17,87 m |
|
Registered L x B x D |
185,96 x 32,26 x 17,87 m |
|
Freeboard |
5.354 mm |
|
Depth |
17,87 m moulded |
|
Speed |
Max: 15,9 knots |
|
Built |
2014 |
|
Keel laid |
28/12/2010 |
|
Launch date |
24/04/2014 |
|
Date of completion |
27/05/2014 |
|
Builder |
OSHIMA Shipbuilding Co., Ltd. |
|
Yard number |
10655 |
|
Hull material |
Steel |
|
Hull type |
Double hull construction applied to all cargo holds |
|
Main engine |
1x 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 7.612 kW at 102,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 475 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 1,86 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generators total 1.750 kVA |
|
Number of holds |
5 Hold 1: 28,25 x 19,80 x 17,27 m Hold 2: 29,72 x 25;80 x 17,27 m Hold 3: 29,72 x 25;80 x 17,27 m Hold 4: 29,72 x 25;80 x 17,27 m Hold 5: 29,72 x 25;80 x 17,27 m |
|
Cargo hold capacity |
Bale: 64.064 m³ Grain: 64.634 m³ |
|
Tank capacities |
Fuel oil: 2.162 m³ Fresh Water: 321 m³ |
|
Cargo gear |
4x Cranes - SWL 30,0 t each Grabs: 4x 12 m³ each |
|
Radio installation |
GMDSS A1+A2+A3 |
|
Navigation equipment |
MC, GYRO, HCS, TCS, ECDIS, GPS, RDX, RDS, ARPA, AIS, VDR, LOG, ES, STGTEL, DSL, LRIT, BNWAS |
|
Manager |
Fleet Ship Management Pte Ltd. |
|
Owner |
Gearbulk Norway AS |
|
Previous owners |
MI-Das Line S.A. |
|
Latest data adjustment |
10 December 2018 |
